Abstract
The utility model relates to a universal intelligent pen which comprises a pen-shaped outer shell formed by a pen point, a pen head and a pen holder, and is characterized in that the pen is internally provided with a main control unit, and a wireless transceiver module, a gyroscope, a buzzer and a microphone that are electrically connected with the main control unit; the pen holder is provided with a microphone through hole (11) corresponding to the microphone; and the pen holder is also provided with a key (13) which is electrically connected with the main control unit. The universal intelligent pen can be used for controlling a platform computer or other intelligent devices in a remote way, and is also used for reading and writing and used as the microphone, so that the capability and the range of the tool can be greatly expanded.
Description
Technical field
The utility model relates to the studying and living instrument, is specifically related to a kind of omnipotent smart pen.
Background technology
In the daily life, panel computer brings colourful amenities of life to people, more provide the important channel that people understand various information, for people's life brings convenience, and because the quickening of rhythm of life is now obviously accelerated daily life and work time of having a rest timing, panel computer has become people's spiritual civilization requisite a kind of domestic electronic appliances of living.Yet the main armrest of panel computer refers to touch control operation control at present. and can't be in better effect of learning areas performance. therefore, at present, need to want a kind of carrying convenience in a hurry, powerful, and do not increase on the basis of how many costs and be convenient for people to operate tablet computer equipment whenever and wherever possible, promptly by the remote controlled portable universal smart pen of Radio Transmission Technology, be convenient for people to any place very convenient demand of operate tablet computer all any time.Especially at teaching field, phonetic function, writing function, aerial flying squirrel more perfect functions Teaching Quality.
On the other hand, traditional pen is people's a writing implement, and people still use in study in a large number, also develop into electronic pen except traditional pen, as: talking pen.But it can not finely satisfy the requirement of controlling panel computer, giving lectures application, and owing to the importance of pen, the location of pen and searching also are new problems simultaneously.
The utility model content
The utility model technical issues that need to address are, how a kind of omnipotent smart pen is provided, and can satisfy electronic writing, electronic teacher pointer, reading, microphone simultaneously, control various needs such as panel computer.
Above-mentioned technical matters of the present utility model solves like this, make up a kind of omnipotent smart pen, comprise the lip pencil shell of forming by nib, nib and penholder, it is characterized in that this inside is provided with radio receiving transmitting module, gyroscope, hummer and the microphone of main control unit and electrical connection thereof; Described penholder is provided with the microphone through hole corresponding with described microphone, also is provided with the button that is electrically connected with described main control unit on the described penholder.
According to the omnipotent smart pen that the utility model provides, this inside also is provided with the pilot lamp on the described penholder of being exposed at that is electrically connected with described main control unit.
According to the omnipotent smart pen that the utility model provides, described pilot lamp comprises LED relay indicating light and LED voltage indicator lamp.
According to the omnipotent smart pen that the utility model provides, this inside also is provided with battery, is used to provide internal electric source.
According to the omnipotent smart pen that the utility model provides, described battery is a rechargeable battery, and this inside also is provided with Power Management Unit and the wireless charging module that is electrically connected successively with described rechargeable battery.
According to the omnipotent smart pen that the utility model provides, main control unit is built in the radio receiving transmitting module.
According to the omnipotent smart pen that the utility model provides, described radio receiving transmitting module is bluetooth or radio-frequency (RF) receiving and transmission module.
According to the omnipotent smart pen that the utility model provides, button comprises function selecting key, operating key, voice key and flying squirrel key; Described flying squirrel key comprise a left side/right button or a left side/in/right button.
According to the omnipotent smart pen that the utility model provides, the microphone through hole is positioned at penholder top.
Above-mentioned technical matters of the present utility model can also solve like this, make up a kind of omnipotent smart pen, comprise the lip pencil shell of forming by nib, nib and penholder, it is characterized in that, this inside is provided with the radio receiving transmitting module of built-in main control unit and gyroscope, hummer and the microphone of electrical connection thereof, this inside also is provided with relay indicating light and the voltage indicator lamp on the described penholder of being exposed at that is electrically connected with described radio receiving transmitting module, and this inside also is set to Power Management Unit and the wireless charging module that inside provides the rechargeable battery of power supply and is electrically connected successively; Described penholder is provided with the microphone through hole corresponding with described microphone, also is provided with the button that is electrically connected with described main control unit on the described penholder; Described button comprises function selecting key, operating key, voice key and flying squirrel key; Described flying squirrel key comprise a left side/right button or a left side/in/right button; Described button is positioned at the penholder middle part that has rubber sleeve and is exposed at outside the described rubber sleeve; Described microphone through hole is positioned at penholder top.
The omnipotent smart pen that the utility model provides compared with prior art, only needs an omnipotent smart pen, just can satisfy the demand of people's handled easily panel computer; Described omnipotent smart pen possesses the Bluetooth signal of transmission function, finishes the selection of described audio-video signal with panel computer jointly and controls; Not limited by barrier, its body volume is less, easy to carry, easy to operate, have the reading function, phonetic function contacts writing function every empty writing function with condenser type point, aerial flying squirrel function can satisfy the needs of people's regular job panel computer well. especially at teaching field, its phonetic function, every empty writing function contacted with condenser type point writing function, in the air more perfect functions such as flying squirrel Teaching Quality.
Description of drawings
Further the utility model is elaborated below in conjunction with the drawings and specific embodiments.

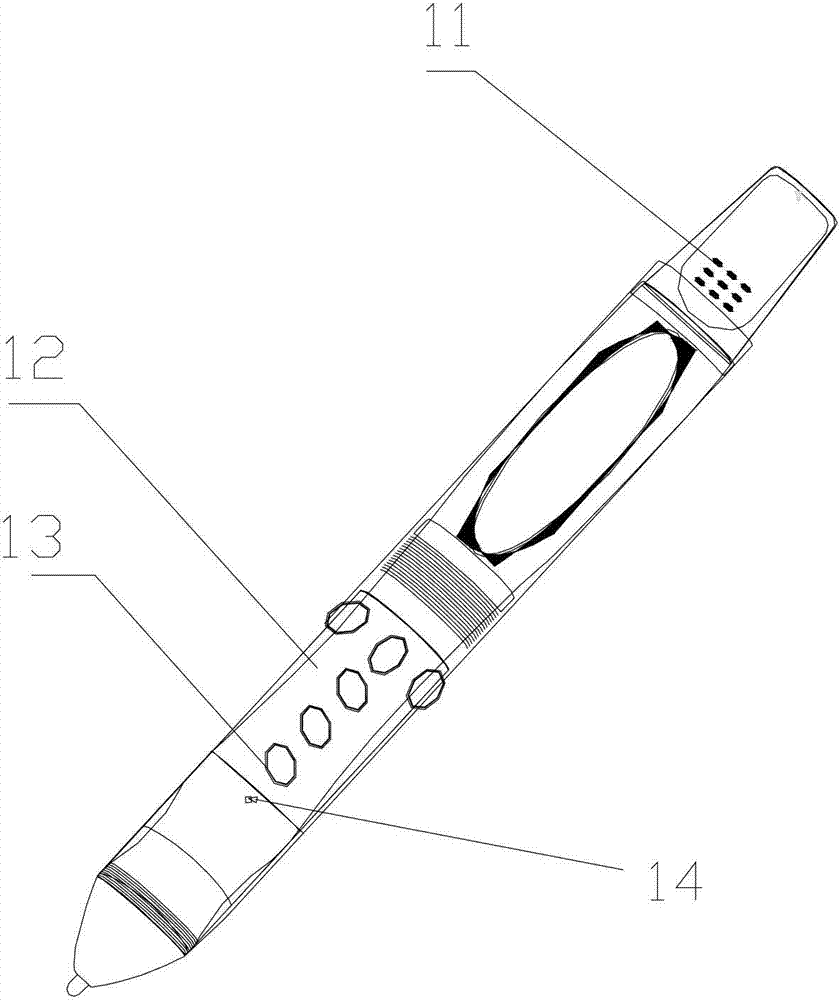

Fig. 1 is the surface structure synoptic diagram of the omnipotent smart pen of the utility model;
Fig. 2 is omnipotent smart pen application scenarios one synoptic diagram of the utility model;
Fig. 3 is omnipotent smart pen application scenarios two synoptic diagram of the utility model;
Fig. 4 is omnipotent smart pen application scenarios three synoptic diagram of the utility model;
Fig. 5 is the electrical block diagram of the omnipotent smart pen of the utility model;
Fig. 6 is a core circuit principle schematic in the omnipotent smart pen shown in Figure 5;
Fig. 7 is the electrical block diagram with the supporting USB wireless charger of omnipotent smart pen shown in Figure 5;
Fig. 8 is and the software control schematic flow sheet of the supporting panel computer of omnipotent smart pen shown in Figure 5 every blank operation.
Embodiment
At first, the gordian technique that the utility model specific embodiment adopts is described:
Nib: pen tip is a ф 2mm electric conductivity material;
Action induction adopts :+6 gyroscope inductions of 6 axle accelerations induction;
Wireless: bluetooth 3.0 and 4.0 edition compatibilities, guarantee that it is more than the 20M that electric wave arrives distance, the capable process agreement of human interface device (HID)/degeneracy (SPP) side correspondence, the coupling action enters match pattern with long mode by 3 seconds, with the panel computer that possesses bluetooth master (Master) appointed equipment is mated and finishes;
Power supply: the non-contact type wireless charged lithium cells, service time is more than 12 hours continuously;
Diode (LED) lamp state representation is used: just light a lamp when 1 look has only communication
Button: 6, the information of switch (ON/OFF) that deliver letters respectively, the value of delivering letters holds omnipotent smart pen to obtain by bluetooth Master, and (API) provides by the panel computer application programming interfaces;
Pen identification: pen identification physics (MAC) the address byte identification of bluetooth, reading function;
Nib pressure-sensitive correspondence: 256-4096 resolution;
The nib action is cut and is replaced: can switch following 2 patterns according to setting application program, deliver letters respectively separately value, many-valued inductive mode: cut for writing to contact with the ON/OFF key and to write .2 value pressure-sensitive pattern: deliver letters during button ON under the situation during nib ON value with condenser type point every sky, deliver letters during button OFF under situation during nib OFF value, the value of delivering letters is held omnipotent smart pen to obtain panel computer API by bluetooth Master and is provided;
Power saving: induction dormancy in the time can not detecting duty speed, under the situation that the action of dormancy transient time can not detect, transfer to dormancy, under the situation that action is detected in the dormancy, in the dormancy reversion time with interior from the dormancy reversion, to detect be to trigger from the interruption of duty velocity response in action in the dormancy;
The point contact is write and tilted to detect (benchmark down): with the detect reversion of acceleration induction to the vertical direction inclination, each interval setting value of delivering letters can be delivered letters, and the value of delivering letters is held omnipotent smart pen to obtain panel computer API by bluetooth Master and provided;
Gesture correspondence: each setting value of delivering letters at interval following action induction value of delivering letters, acceleration induction: X, Y, the accekeration of Z axle, angular velocity induction: X, Y, the magnitude of angular velocity of Z axle, the value of delivering letters is held omnipotent smart pen to obtain panel computer API by bluetooth Master and is provided;
Notice is corresponding: the omnipotent smart pen of indication of coming from bluetooth panel computer Master end has vibration, also has by hummer notice search usefulness when pen is lost, and the value of delivering letters obtains omnipotent smart pen API by bluetooth panel computer Master end and provides;
Set application program: many-valued pressure-sensitive pattern/2 cutting of value pressure-sensitive pattern are replaced, the loading value of nib ON: 5g-1kg (acquiescence 10g), dormancy transient time 1 second-10 minutes, under the situation of not dividing a word with a hyphen at the end of a line, set (acquiescence 30S), set (acquiescence 500ms) between the dormancy reversion time 10ms-3s, the at interval setting value of delivering letters: set (acquiescence 10ms) between the 2ms-100ms, action corresponding all have all systems of panel computer of Bluetooth transmission signaling protocol. contain and cover 10 kinds of language.
The second, the utility model basic fundamental thinking and scheme are described:
(1) system
Omnipotent smart pen constitutes transmitting terminal, and panel computer constitutes receiving end; Sending reception by bluetooth interconnects; The audio frequency of described omnipotent smart pen transmission, emission output after the software signal decoding processing of button and nib and six induction gyroscopes; Described panel computer product is caught image by built-in Bluetooth signal receiver and external universal serial port bus (USB) coiled pipe camera and is realized that long-range induction received through showing by signal such as the read operation of omnipotent smart pen voice software point and button and nib and with it of described omnipotent smart pen conversion and export.Contain and six gyrostatic aerial flying squirrel functions of induction.
For effectively addressing the above problem, concrete technical scheme is:
1) invention one omnipotent smart pen, a built-in Bluetooth signal emitter, the also built-in voice reading of described omnipotent smart pen tries other module and software control module such as six aerial flying squirrels of induction gyroscope and microphone, can and conversion of signals emission Bluetooth signal such as write to a read operation and button and nib, other is built-in with the wireless charging module;
2) panel computer is set, embedded with bluetooth function signal receiver, an external USB coiled pipe camera are caught and are write image;
3) audio frequency of described omnipotent smart pen transmission, button and nib and write and the software signal decoding processing of six aerial flying squirrels of induction gyroscope after emission output;
4) described panel computer product by built-in Bluetooth signal receiver and external USB coiled pipe camera catch image realize long-range induction receive through described omnipotent smart pen conversion by the read operation of omnipotent smart pen voice software point and button and nib and write and wait signal and its demonstration is exported.Contain and six gyrostatic aerial flying squirrel functions of induction.
5) described omnipotent smart pen has writing function, writing function has been contained to write to contact with condenser type point every sky and has been write, after catching image, the external USB coiled pipe camera of panel computer finished sky-writing function and reading function, contact is write and has been used omnipotent smart pen capacitive induction, after panel computer receives it is shown output.
(2) method
As long as a kind of operation possesses omnipotent smart pen and the operation and the control method of the panel computer of Bluetooth communication protocol, a panel computer with Bluetooth function is set, embedded with bluetooth function signal receiver; Invent a kind of omnipotent smart pen, and a built-in Bluetooth signal emitter; Its purposes covers the panel computer product of all band Bluetooth functions; Described omnipotent smart pen constitutes transmitting terminal, and described panel computer constitutes receiving end; Sending reception by bluetooth interconnects; Described omnipotent smart pen built-in signal bluetooth sending/receiving module, microphone, wireless blue tooth formula control chip, voice control chip, six induction gyroscope control chips, charged lithium cells and wireless charging modules, key device and signal lamp and electric conductivity material nib.Wireless communication distance is more than 20m between described panel computer receiving end and the described omnipotent smart pen transmitting terminal, and described omnipotent smart pen is provided with built-in charged lithium cells power supply, and it is the lithium battery wireless charging that the external radio cradle is set.
Described key device comprises function selecting key, operating key, voice key, flying squirrel right and left key, flying squirrel acknowledgement key, and in described button front the LED display lamp is set.
Described function selecting key for select voice, reading, write, the flying squirrel function, operating key is functions such as control page turning and cursor speed during separately or with other key combinations, voice key is voice switch control, flying squirrel right and left key, flying squirrel acknowledgement key are mouse function.
Described signal lamp comprises relay indicating light, low-voltage pilot lamp.
Described omnipotent smart pen and the setting of described panel computer signal generator obtain API by bluetooth Master end to be provided.
Wireless communication distance is more than 20m between described panel computer receiving end and the described omnipotent smart pen transmitting terminal, and described omnipotent smart pen is provided with built-in wireless charging lithium battery power supply, adopts radio induction charging.
Described gesture induction signal control signal such as clicks, rotates, moves in the position aloft for holding omnipotent smart pen; Click, rotate, move omnipotent smart pen aloft, handle each setting value of delivering letters at interval following action induction value of delivering letters, acceleration induction: X through six induction gyroscopes, Y, the accekeration of Z axle, angular velocity induction: X, Y, the magnitude of angular velocity of Z axle, the value of delivering letters is held omnipotent smart pen to obtain panel computer API by bluetooth Master and is provided, and response converts the cursor control on screen to rapidly, precisely operates by user's will fully.Described voice signal is through microphone, and the voice software signal decoding is handled back emission output and shown at panel computer.
At last, describe the utility model specific embodiment in detail:
As shown in Figure 1, the omnipotent smart pen of the utility model, its outside surface has upper and lower covers, nib, button 13, rubber sleeve 12, microphone through hole 11, LED display lamp 14 compositions such as grade.
The omnipotent smart pen of the utility model includes, but are not limited to following three kinds of application:
(1) as shown in Figure 2, the omnipotent smart pen of the utility model can also be carried out the scene explanation by microphone every intelligent television, the sky-writing of blank operation band bluetooth module.
(2) as shown in Figure 3, the omnipotent smart pen of the utility model is directly carried out touch-control, reading, is write on the giant-screen touch-screen, can also carry out the scene explanation by microphone.
(3) as shown in Figure 4, the omnipotent smart pen of the utility model can combine any among realization Fig. 2 and 3 with panel computer.
As illustrated in Figures 5 and 6, the principle framework that the omnipotent smart pen of the utility model realizes, it comprises following main chip: 1) bluetooth main control chip; 2) speech chip; 3) six induction gyroscope control chips also have auxiliary circuit: microphone, pilot lamp, hummer, button, rechargeable battery, power management module, be used to receive electromagnetic wireless charging receiver module.
As shown in Figure 7, the omnipotent smart pen of the utility model cooperates a USB wireless charger, connects USB interface, and utilizing wherein, the 5V power supply utilizes electromagnetic wave to transmit energy to omnipotent smart pen by wireless transmitter module.
The omnipotent smart pen of the utility model can cooperate panel computer or intelligent television, and the function button by pen is provided with it and is the flying squirrel mode of operation, and this moment, omnipotent smart pen transmitted control signal to panel computer or intelligent television by bluetooth.Panel computer or intelligent television receive, processing control signals, specifically as shown in Figure 8, may further comprise the steps:
801) receive the control signal of pen by bluetooth module;
802) judge whether it is the action induction signal type? be to enter step 803), otherwise enter step 806);
803) do you judge whether angular acceleration values surpasses the set angle acceleration threshold? be to be identified as corresponding gesture input control signal, otherwise to enter step 804);
804) do you judge whether horizontal and vertical accekeration surpasses the corresponding acceleration threshold of setting? be to be identified as corresponding gesture input control signal, otherwise to enter step 805);
805) be identified as laterally and or vertically mouse move input control signal, return step 801);
806) judge whether it is flying squirrel push button signalling type? be, be identified as corresponding mousebutton (left side/in/right side) input control signal, otherwise be identified as corresponding control button or control key combination input control signal;
807) return step 801).
This omnipotent smart pen can also be provided with it by the function button of pen and be speech pattern, and this moment, omnipotent smart pen no longer outwards sent gyroscope induced signal and control signal, used as wireless microphone, and the voice button of pen is used for the ON/OFF wireless microphone.
It is every empty write mode that this omnipotent smart pen can also be provided with it by the function button of pen, finished the sky-writing function after USB coiled pipe camera in panel computer or the intelligent television is caught image at this moment, and omnipotent smart pen does not outwards send gyroscope induced signal and control signal yet.
This omnipotent smart pen can also be provided with it by the function button of pen and be a reading mode, when nib is clicked on panel computer or intelligent television, after USB coiled pipe camera in panel computer or the intelligent television captures pen tip position panel computer or intelligent television image at this moment, after software identification, send signal to omnipotent smart pen, export by the microphone voice reading on the omnipotent smart pen by bluetooth.
The above only is preferred embodiment of the present utility model, and all equalizations of being done according to the utility model claim scope change and modify, and all should belong to the covering scope of the utility model claim.
Claims (10)
1. an omnipotent smart pen comprises the lip pencil shell of being made up of nib, nib and penholder, it is characterized in that, this inside is provided with radio receiving transmitting module, gyroscope, hummer and the microphone of main control unit and electrical connection thereof; Described penholder is provided with the microphone through hole (11) corresponding with described microphone, also is provided with the button (13) that is electrically connected with described main control unit on the described penholder.
2. according to the described omnipotent smart pen of claim 1, it is characterized in that this inside also is provided with the pilot lamp (14) on the described penholder of being exposed at that is electrically connected with described main control unit.
3. according to the described omnipotent smart pen of claim 2, it is characterized in that described pilot lamp comprises LED relay indicating light and LED voltage indicator lamp.
4. according to claim 1 or 3 described omnipotent smart pen, it is characterized in that this inside also is provided with battery.
5. according to the described omnipotent smart pen of claim 4, it is characterized in that described battery is a rechargeable battery, this inside also is provided with Power Management Unit and the wireless charging module that is electrically connected successively with described rechargeable battery.
6. according to claim 1 or 3 described omnipotent smart pen, it is characterized in that main control unit is built in the radio receiving transmitting module.
7. according to the described omnipotent smart pen of claim 6, it is characterized in that described radio receiving transmitting module is bluetooth or radio-frequency (RF) receiving and transmission module.
8. according to claim 1 or 3 described omnipotent smart pen, it is characterized in that button comprises function selecting key, operating key, voice key and flying squirrel key; Described flying squirrel key comprise a left side/right button or a left side/in/right button.
9. according to claim 1 or 3 described omnipotent smart pen, it is characterized in that the microphone through hole is positioned at penholder top; Described nib is a conductive material.
10. omnipotent smart pen, comprise the lip pencil shell of forming by nib, nib and penholder, it is characterized in that, this inside is provided with the radio receiving transmitting module of built-in main control unit and gyroscope, hummer and the microphone of electrical connection thereof, this inside also is provided with relay indicating light and the voltage indicator lamp on the described penholder of being exposed at that is electrically connected with described radio receiving transmitting module, and this inside also is set to Power Management Unit and the wireless charging module that inside provides the rechargeable battery of power supply and is electrically connected successively; Described penholder is provided with the microphone through hole (11) corresponding with described microphone, also is provided with the button (13) that is electrically connected with described main control unit on the described penholder; Described button comprises function selecting key, operating key, voice key and flying squirrel key; Described flying squirrel key comprise a left side/right button or a left side/in/right button; Described button is positioned at the penholder middle part that has rubber sleeve (12) and is exposed at outside the described rubber sleeve; Described microphone through hole is positioned at penholder top; Described nib is a conductive material.
