Abstract

本实用新型公开了一种灯具，包括灯座，所述灯座上设有LED灯，灯座内设有电池，电池与LED灯为电连接，电池连接有太阳能板，所述太阳能板上设有亚克力板，所述太阳能板置于支撑柱上，所述支撑柱与灯座连接。本实用新型结构简单、使用方便、且节能环保、防水。

Figure 201320009228

The utility model discloses a lamp, which comprises a lamp holder, an LED lamp is arranged on the lamp holder, a battery is arranged inside the lamp holder, the battery and the LED lamp are electrically connected, the battery is connected with a solar panel, and the solar panel is equipped with There is an acrylic plate, and the solar panel is placed on a support column, and the support column is connected with a lamp holder. The utility model has the advantages of simple structure, convenient use, energy saving, environmental protection and waterproof.

Figure 201320009228

Description

A kind of light fixture
Technical field
The utility model relates to a kind of light fixture.
Background technology
Existing LED lamp, function singleness needs the power supply on outer boundary constantly to power and just can reach illumination purposes, so energy consumption is bigger, not environmental protection, and do not have the function of waterproof, can not directly be useful in underwater lighting, low visibility.
The utility model content
The technical problems to be solved in the utility model provides the light fixture of a kind of simple in structure, easy to use and energy-conserving and environment-protective, waterproof.
To achieve these goals, the technical solution of the utility model is as follows:
A kind of light fixture comprises lamp socket, and described lamp socket is provided with the LED lamp, is provided with battery in the lamp socket, and battery and LED lamp are for being electrically connected, and battery is connected with solar panels.
Further, described solar panels are provided with acrylic board.
Further, described solar panels place on the support column, and support column is connected with lamp socket.
Further, described battery is lithium battery.
Further, described lamp socket and LED lamp link position are provided with Waterproof glue line.
Adopt the light fixture of technique scheme, because described lamp socket is provided with the LED lamp, be provided with battery in the lamp socket, battery and LED lamp are for being electrically connected, and battery is connected with solar panels, so make conversion of solar energy become electric energy by solar panels, charge the battery, reach purpose of energy saving.Because described solar panels are provided with acrylic board, so play the purpose of protection solar panels, light transmittance is good simultaneously.Because described solar panels place on the support column, so daylighting is good.Because described support column is connected with lamp socket, so good stability.Because described battery is lithium battery, so energy supply is good.Because described lamp socket and LED lamp link position are provided with Waterproof glue line, so waterproof.
Description of drawings

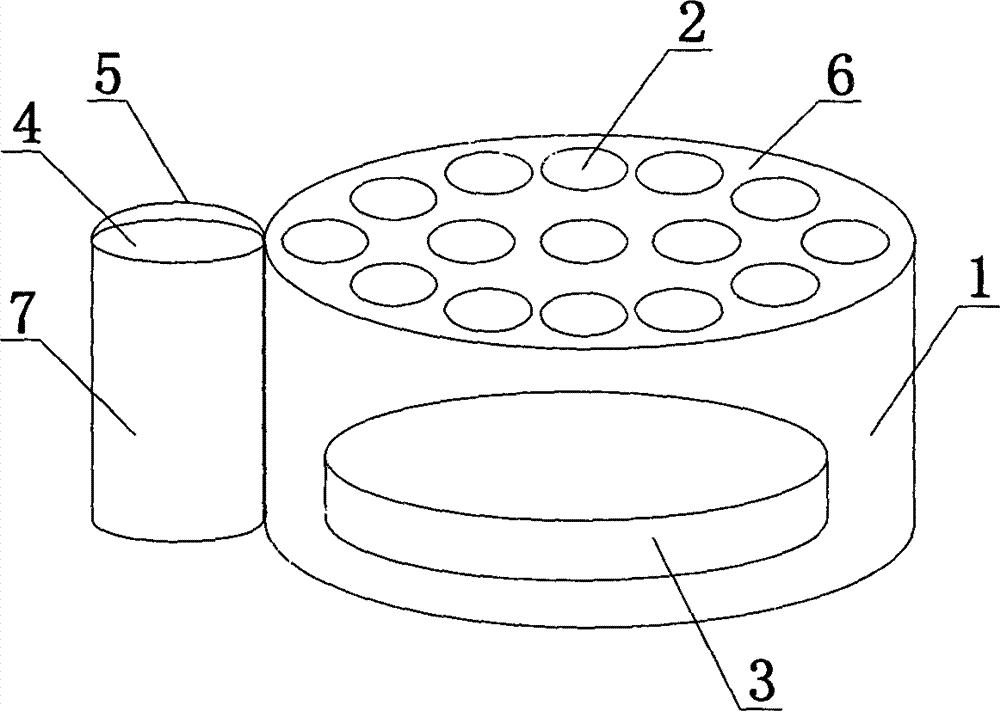

Fig. 1 is the structural representation of the utility model light fixture.
The specific embodiment
As shown in Figure 1, a kind of light fixture comprises lamp socket 1, and lamp socket 1 is provided with LED lamp 2, be provided with battery 3 in the lamp socket 1, battery 3 and LED lamp 2 are for being electrically connected, and battery 3 is connected with solar panels 4, and solar panels 4 are provided with acrylic board 5, solar panels 4 place on the support column 7, support column 7 is connected with lamp socket 1, and battery 3 is lithium battery, and lamp socket 1 is provided with Waterproof glue line 6 with LED lamp 2 link positions.
The utility model light fixture, extraneous sunshine see through acrylic board 5 and reach on the solar panels 4, and it is electric energy that solar panels 4 make conversion of solar energy, give battery 3 chargings, and battery 3 gives the LED lamp 2 power supplies, thereby realizes solar LED (Light Emitting Diode) lamp; Make this LED light fixture that the function of waterproof be arranged by Waterproof glue line 6, can be applied in underwater lighting.

Claims (5)

1.一种灯具，包括灯座，其特征在于：所述灯座上设有LED灯，灯座内设有电池，电池与LED灯为电连接，电池连接有太阳能板。1. A lamp, comprising a lamp holder, characterized in that: the lamp holder is provided with an LED lamp, the lamp holder is provided with a battery, the battery is electrically connected to the LED lamp, and the battery is connected to a solar panel. 2.根据权利要求1所述的灯具，其特征在于：所述太阳能板上设有亚克力板。2. The lamp according to claim 1, characterized in that: the solar panel is provided with an acrylic panel. 3.根据权利要求2所述的灯具，其特征在于：所述太阳能板置于支撑柱上，支撑柱与灯座连接。3. The lamp according to claim 2, wherein the solar panel is placed on a support column, and the support column is connected to the lamp holder. 4.根据权利要求3所述的灯具，其特征在于：所述电池为锂电池。4. The lamp according to claim 3, wherein the battery is a lithium battery. 5.根据权利要求1至4任一项所述的灯具，其特征在于：所述灯座与LED灯连接位置设有防水胶层。5. The lamp according to any one of claims 1 to 4, wherein a waterproof adhesive layer is provided at the connection position between the lamp holder and the LED lamp.
