Abstract
本实用新型的海水养殖净化设备，技术目的是提供一种耗能低、水质达标并且能够直接进行养殖生产的海水养殖净化设备。包括有进水过滤器，进水过滤器设于海水沉淀池中，所述进水过滤器连接有进水管，所述进水管连接有增压泵进水口，增压泵连接电源；增压泵的出水口连接有除沙器的进水管，除沙器的出水管连接有多层过滤罐进水口，多层过滤罐中设有多层过滤网，多层过滤罐设有净化水出水口及污水出水口，所述净化水出水口连接有精密过滤器的进水口，所述精密过滤器的出水口连接养殖池。本实用新型水质净化后能直接进行养殖作业，并且节能减耗，有利于水产养殖物的生长，适用于海水养殖中应用。
The technical purpose of the marine aquaculture purification equipment of the present utility model is to provide a marine aquaculture purification equipment with low energy consumption, up to the water quality standard and capable of directly carrying out aquaculture production. Including a water inlet filter, the water inlet filter is set in the seawater sedimentation tank, the water inlet filter is connected with the water inlet pipe, the water inlet pipe is connected with the water inlet of the booster pump, and the booster pump is connected with the power supply; the booster pump The water outlet of the sand remover is connected to the water inlet pipe of the sand remover, and the water outlet pipe of the sand remover is connected to the water inlet of the multi-layer filter tank. The multi-layer filter tank is provided with a multi-layer filter screen, and the multi-layer filter tank is provided with a purified water outlet and A sewage water outlet, the purified water outlet is connected to a water inlet of a precision filter, and the water outlet of the precision filter is connected to a culture pond. The utility model can directly carry out aquaculture operation after the water quality is purified, saves energy and reduces consumption, is beneficial to the growth of aquaculture products, and is suitable for application in seawater aquaculture.
Description
Technical field
The utility model relates to a kind of cleaning equipment, in particular, relates to a kind of mariculture cleaning equipment.
Background technology
In the prior art, the coastal waters is because human lives's sewage discharge owing to there are a large amount of noxious materials, as heavy metal and chemical contamination, can not directly be carried out aquaculture in the seawater; Seriously polluted and need carry out under the environment of aquaculture at current coastal ocean, need water quality up to standard finish the breed operation.Current cleaning equipment exists purification not thorough, consume energy height and the high technological deficiency of purification cost, becomes those skilled in the art's technical problem anxious to be solved.
Summary of the invention
Technical purpose of the present utility model is to overcome in the prior art, the mariculture cleaning equipment exist purification not thoroughly, purify the high technical problem of cost; A kind of low, water quality reaching standard and can directly carry out the mariculture cleaning equipment of breeding production of consuming energy is provided.
For realizing above technical purpose, the technical solution of the utility model is
The mariculture cleaning equipment includes into water filter, and the water inlet filter is located in the seawater sedimentation basin, and described water inlet filter is connected with water inlet pipe, and described water inlet pipe is connected with the booster pump water inlet, and booster pump connects power supply; The delivery port of booster pump is connected with the water inlet pipe of sand cleaning machine, the outlet pipe of sand cleaning machine is connected with multiple filtration jar water inlet, be provided with the multiple filtration net in the multiple filtration jar, the multiple filtration jar is provided with purify waste water delivery port and sewage outlet, the described delivery port of purifying waste water is connected with the water inlet of accurate filter, and the delivery port of described accurate filter connects cultures the pond.
Further, described sand cleaning machine is the eddy flow sand cleaning machine.
Further, be provided with the backwash water pipe between each layer screen pack in the described multiple filtration jar, described backwash water pipe is connected with running water pipe.
Further, be provided with ball valve between described water inlet filter and the booster pump.
Further, multiple filtration jar below is provided with the water quality sampling outlet, and described water quality sampling outlet is provided with ball valve.
In the utility model, the seawater sedimentation basin precipitated the foreign material in the seawater at the initial stage of seawater cleaning, elementary removal foreign material and the big grains of sand; Suspension and other foreign material in the water inlet filter filtering sea enter in the water inlet pipe, and booster pump plays the effect of the water outlet of drawing water, for the filtration of current provides power; Sand cleaning machine is by arranging the position of water inlet pipe and outlet pipe, outlet pipe up, sediment deposition can not flow out in the below during water outlet; The backwash water pipe is provided with valve, and when needs washing and filtering layer, Open valve washes; Be provided with the filtering heavy metal layer in the multiple filtration jar, filter poisonous and harmful chemical layer etc., again by secondary filter, further removed the toxic composition in the water, culture in the pond via the delivery port inflow of accurate filter and culture.The sewage outlet of multiple filtration jar is communicated with sewer, and sewage discharge in sewer, is prevented secondary pollution.
Useful technique effect of the present utility model is: can directly culture operation behind the purification of water quality, and energy-saving consumption-reducing, be conducive to the growth of aquaculture thing.
Description of drawings

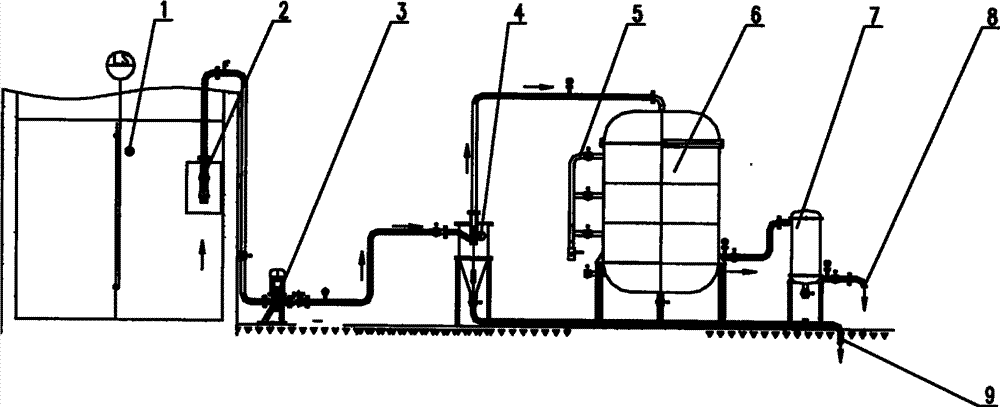

Fig. 1 is the structural representation of an embodiment of the utility model.
Embodiment
In conjunction with Fig. 1, describe embodiment of the present utility model in detail, but claim is not done any restriction.
In the structure of the utility model mariculture cleaning equipment, include into water filter 2, water inlet filter 2 is located in the seawater sedimentation basin 1, and described water inlet filter 2 is connected with water inlet pipe, described water inlet pipe is connected with the water inlet of booster pump 3, and booster pump 3 connects power supply; The delivery port of booster pump 3 is connected with the water inlet pipe of sand cleaning machine 4, and in force, described sand cleaning machine 4 is eddy flow sand cleaning machines.The outlet pipe of sand cleaning machine 4 is connected with multiple filtration jar 6 water inlets, be provided with the multiple filtration net in the multiple filtration jar 6, multiple filtration jar 6 is provided with purify waste water delivery port and sewage outlet, the described delivery port of purifying waste water is connected with the water inlet of accurate filter 7, and the delivery port 8 of described accurate filter 7 connects cultures the pond.When implementing, be provided with backwash water pipe 5 in the multiple filtration jar 6 between each layer screen pack, described backwash water pipe 5 is connected with running water pipe.Be provided with ball valve between water inlet filter 2 and the booster pump 3.Multiple filtration jar 6 belows are provided with the water quality sampling outlet, and described water quality sampling outlet is provided with ball valve.
The utility model in force, in the utility model, seawater sedimentation basin 1 precipitated the foreign material in the seawater at the initial stage of seawater cleaning, elementary removal foreign material and the big grains of sand; Suspension and other foreign material in water inlet filter 2 filtering seas enter in the water inlet pipe, and booster pump 3 plays the effect of the water outlet of drawing water, for the filtration of current provides power; Sand cleaning machine 4 is by arranging the position of water inlet pipe and outlet pipe, outlet pipe up, sediment deposition can not flow out in the below during water outlet; Backwash water pipe 5 is provided with valve, and when needs washing and filtering layer, Open valve washes; Be provided with the filtering heavy metal layer in the multiple filtration jar 6, filter poisonous and harmful chemical layer etc., by the secondary filter of accurate filter 7, further removed the toxic composition in the water again, culture in the pond via the delivery port inflow of accurate filter 7 and culture.The sewage outlet of multiple filtration jar 6 is communicated with sewer 9, and sewage discharge in sewer 9, is prevented secondary pollution.
Claims (5)
