Abstract
The utility model discloses an integrated box type intelligent water supply station, which is designed for realizing the self-control and automatic heating of domestic water and direct drinking water, wherein the outlet of a raw water tank in a waterproof box body is respectively connected with an activated carbon filter, a quartz sand filter and toilet flushing equipment; the quartz sand outlet of the filter is respectively connected with the domestic water tank, the high-pressure pump and the RO reverse osmosis membrane assembly; the outlet of the RO reverse osmosis membrane component is respectively connected with a domestic water tank and a purified water tank; the dosing device is respectively connected with the activated carbon filter and the inlet of the RO reverse osmosis membrane assembly; the outlet of the domestic water tank is respectively connected with the hot water circulating pump, the gas water heater and the non-drinking water pipeline. This water supply station is intelligent integration box design, and full automatic control can prepare directly drinking water and life hot water simultaneously to divide the matter to supply water, guarantee the quality of water that supplies water through on-line measuring, waterproof formula box can be placed in the open, and the installation is maintained conveniently, can be according to the automatic transfer control mode of water supply volume, and safe energy-conservation guarantees that hot water is stably supplied in all weather.
Description
Technical field
The utility model relates to a kind of integrated chamber type intelligent water stop, belongs to living water and water-treatment technology field.
Background technology
The small-sized life point of oil gas field all has its salient feature on water condition and way of supplying water, at first be that the aspect, water source can't rely on the municipal water supply system, need self-built water supply well, water quality varies, the problem that self-built water source exists total dissolved solid, total hardness and inorganic ion to exceed standard more can not satisfy " drinking water sanitary standard " GB5749-2006 requirement; Next is because water scarcity need carry out quality classification water supply.Because the break tour system of employing, the water period concentrates, and whole day is inhomogeneous with water electrode.
Summary of the invention
The purpose of this utility model is to provide a kind of integrated chamber type intelligent water stop, is a kind of living water use self-control, the supply of unsteady flow constant voltage, direct drinking self-control storage supply, automatic intelligent type energy saving environmental protection water supply installation that is supplied in one that heats of domestic hot-water of collecting.
Concrete technical scheme of the present utility model is as follows:
The water-proof type casing of this water stop is located on the sled seat, and box outer surface is provided with switch board and online water quality control instrument; Be provided with former water tank, ozone generator, chemicals dosing plant, active carbon filter, quartz sand filtration device, water supply tank, high-pressure pump, RO reverse osmosis membrane assembly, purified water supply pump, pure water tank, right life water frequency-changing water supply device, hot water circulator and gas water-heating furnace in the water-proof type casing; The outlet of former water tank connects active carbon filter and quartz sand filtration device via former water frequency-changing water supply device one tunnel, another road connect box equipment of flushing the toilet outward; Strainer quartz sand exports one the tunnel and connects the water supply tank that ozone generator is set, and another road connects high-pressure pump and RO reverse osmosis membrane assembly; The RO reverse osmosis membrane assembly exports one the tunnel and connects water supply tank, and another road connects the pure water tank that the purified water supply pump is set; Chemicals dosing plant one tunnel connects the active carbon filter entrance, and another road connects RO reverse osmosis membrane assembly entrance; The water supply tank outlet connects hot water circulator and gas water-heating furnace via life water frequency-changing water supply device one tunnel, and another road connects the undrinkable water pipeline.
The beneficial effects of the utility model are as follows:
The integrated box design of integrated chamber type intelligent water stop, Automatic Control can prepare living water use, direct drinking and domestic hot-water simultaneously, to flush the toilet, washing, Drinking Water carry out quality classification water supply, guarantee water supply quality by the online detection of water quality, realize the purpose of a machine four-function.The water-proof type casing can be placed in the open, and is convenient for installation and maintenance, can be according to the automatic transform mode control of output, and energy-saving safe is guaranteed the round-the-clock stable supply of hot water.
Description of drawings

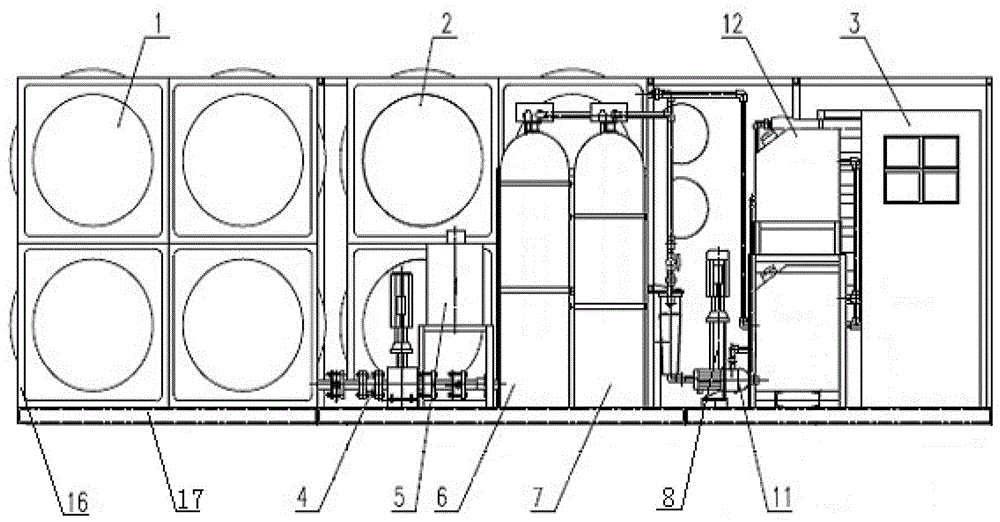

The integrated chamber type intelligent water stop of Fig. 1 schematic diagram.
The integrated chamber type intelligent water stop of Fig. 2 vertical view.
The specific embodiment
With reference to Fig. 1 and 2 embodiment of the present utility model is further specified:
Embodiment:
This water stop is made up of former water tank 1, water supply tank 2, switch board and online water quality control instrument 3, former water frequency-changing water supply device 4, chemicals dosing plant 5, active carbon filter 6, quartz sand filtration device 7, high-pressure pump 8, RO reverse osmosis membrane assembly 9, life water frequency-changing water supply device 10, purified water supply pump 11, pure water tank 12, hot water circulator 13, gas water-heating furnace 14, ozone generator 15, water stop casing 16 and sled seat 17:
1 outlet of former water tank connects active carbon filter 6 and quartz sand filtration devices 7 via former water frequency-changing water supply device 4 one tunnel, another road connect box equipment of flushing the toilet outward; 7 outlets one tunnel of strainer quartz sand connect the water supply tank 2 that ozone generator 15 is set, and another road connects high-pressure pump 8 and RO reverse osmosis membrane assembly 9; 9 outlets one tunnel of RO reverse osmosis membrane assembly connect water supply tank 2, and another road connects the pure water tank 12 that purified water supply pump 11 is set; Chemicals dosing plant 5 one tunnel connects active carbon filter 6 entrances, and another road connects RO reverse osmosis membrane assembly 9 entrances; Water supply tank 2 outlets connect hot water circulator 13 and gas water-heating furnace 14 via life water frequency-changing water supply device 10 one tunnel, and another road connects the undrinkable water pipeline.
The course of work of this integrated chamber type intelligent water stop equipment is as follows:
Former water tank 1 water outlet enters active carbon filter 6 via former water frequency-changing water supply device 4 parts and quartz sand filtration device 7 carries out preliminary treatment, and another part is directly for the use of flushing the toilet; A pretreated water part of removing behind suspension, colloid and the free chlorine enters RO reverse osmosis membrane assembly 9 through high-pressure pump 8, and another part enters water supply tank 2; The water outlet of RO reverse osmosis membrane assembly 9 enters pure water tank 12 and water supply tank 2 respectively; Chemicals dosing plant 5 enters active carbon filter 6 at Yuan Shui to carry out adding flocculant before the preliminary treatment, adding antisludging agent before handling water to enter RO reverse osmosis membrane assembly 9; Water in the water supply tank 2 enters gas water-heating furnace 14 via life water frequency-changing water supply device 10 parts, supplies with the user by hot water circulator 13 and uses, and another part is directly supplied with non-drinking such as washing room, kitchen, washing machine tap, greening and used water spot.
Function and the operation of this integrated chamber type intelligent water stop equipment require as follows:
1. water treatment portion
Filter: former water enters active carbon filter and quartz sand filtration device through pressurization, by the damming and adsorb of quartz sand and active carbon, reduces impurity such as colloid in the former water and suspension, the water inlet requirement of assurance RO reverse osmosis membrane assembly.
The RO counter-infiltration: the water rate of recovery of reverse osmosis equipment is 85%, salt rejection rate 〉=98%.Before the counter-infiltration operation and after shutting down, low-pressure washing to remove the pollutant on reverse osmosis membrane surface, the dense water in the displacement force pipe will regularly carry out Chemical cleaning and aseptic process.
A RO reverse osmosis membrane assembly water outlet part is prepared into direct drinking through sterilization, a part is controlled by electronic instrument, in the ratio of setting after the raw water quality analysis is mixed with the filtration water outlet, be prepared as living water use after the ozone generator sterilization, its water quality will satisfy the requirement of " drinking water sanitary standard " GB5749-2006.
2, hot water preparation part
The living water use of water treatment portion enters to be heated behind the gas water-heating furnace and is prepared into the domestic hot-water, adopts full-time robot brain tool recycle unit to carry out comfortable, safety and stably supplies water.
3, online water quality monitoring and instrument control
Equipment guarantees that by online water quality monitoring water outlet is safe and reliable, and supply-water pump is controlled by PLC, by switch board and online water quality control instrument pressure, flow and electrical conductivity is detected and record, to guarantee that balance of plant stably moves.Hot water system is controlled by instrument, can realize automatic air inlet igniting, circulation heating automatically.
Claims (1)
1. integrated chamber type intelligent water stop is characterized in that:
The water-proof type casing (16) of this water stop is located on the sled seat (17), and box outer surface is provided with switch board and online water quality control instrument (3); Be provided with former water tank (1), ozone generator (15), chemicals dosing plant (5), active carbon filter (6), quartz sand filtration device (7), water supply tank (2), high-pressure pump (8), RO reverse osmosis membrane assembly (9), purified water supply pump (11), pure water tank (12), right life water frequency-changing water supply device (10), hot water circulator (13) and gas water-heating furnace (14) in the water-proof type casing (16); Former water tank (1) outlet connects active carbon filter (6) and quartz sand filtration devices (7) via former water frequency-changing water supply device (4) a tunnel, another road connect box equipment of flushing the toilet outward; Strainer quartz sand (7) outlet one tunnel connects the water supply tank (2) that ozone generator (15) are set, and another road connects high-pressure pump (8) and RO reverse osmosis membrane assembly (9); RO reverse osmosis membrane assembly (9) outlet one tunnel connects water supply tank (2), and another road connects the pure water tank (12) that purified water supply pump (11) is set; Chemicals dosing plant (5) one tunnel connects active carbon filter (6) entrance, and another road connects RO reverse osmosis membrane assembly (9) entrance; Water supply tank (2) outlet connects hot water circulator (13) and gas water-heating furnace (14) via life water frequency-changing water supply device (10) a tunnel, and another road connects the undrinkable water pipeline.
