Abstract
A novel slitting machine comprises a direction reel, a tension detector, a magnetic powder brake, a tension controller, a variable frequency motor, an upper slitting cutter, a lower slitting cutter, a guide roll, a torque motor, a winding device and a deviation rectification device, the upper slitting cutter and the lower slitting cutter are tangent, the guide roll and the winding device are arranged above the left side and the right side of the upper slitting cutter, the deviation rectification device is below the right side of the upper slitting cutter, the variable frequency motor is connected on the lower slitting cutter, the winding device is connected with the torque motor, the guide roll is arranged between the tension detection device and the tension controller, and the tension controller is connected with the magnetic powder brake. The novel slitting machine solves the problems of fracture, breakage, folding, small cutting size range, different winding tightness and the like due to the fact that tension is not enough, and production practicality and product quality are improved.
Description
Technical field
The utility model relates to cutting apparatus, is specially a kind of novel cutting machine.
Background technology
At present, it is bigger to cut paper difficulty such as air filter paper, toilet paper, nonwoven fabrics in the prior art, because these paper intensity are low, and easily broken cracky.In slicing machine, often bad because of tension force control, the overtension paper is broken; Tension force is too small, the easy folding of paper, drift, and the entanglement of paper cut lengths, the paper roll degree of tightness differs.Often because of these problem breaks in production, influence production efficiency in the production, particularly produce the paper that some dimension precision requirement are higher, dimensions is less, these problems are difficult to solve especially, often the out of reach requirements for quality.
The utility model content
The technical matters that the utility model solves is to provide a kind of novel cutting machine, to solve the shortcoming in the above-mentioned background technology.
The technical matters that the utility model solves realizes by the following technical solutions:
A kind of novel cutting machine, comprise the direction spool, tension detector, electromagnetic power brake, tension control assembly, variable-frequency motor, cut upper slitter, divide the cutting-out cutter, guiding roller, torque motor, wrap-up and deviation correcting device, the described upper slitter of cutting is tangent with branch cutting-out cutter, cut the upper slitter left and right sides above described guiding roller and wrap-up are arranged, the below, right side is described deviation correcting device, described branch downcuts on the cutter and is connecting described variable-frequency motor, described wrap-up is connected with described torque motor, also be provided with guiding roller between described tension detector and the tension control assembly, described tension control assembly is connecting described electromagnetic power brake.
Beneficial effect
The utility model solves and fractures because tension force causes inadequately, damaged, folding, little, the not first-class problem of rolling degree of tightness of cut lengths scope, improves the production practicality and promotes product design.
Description of drawings

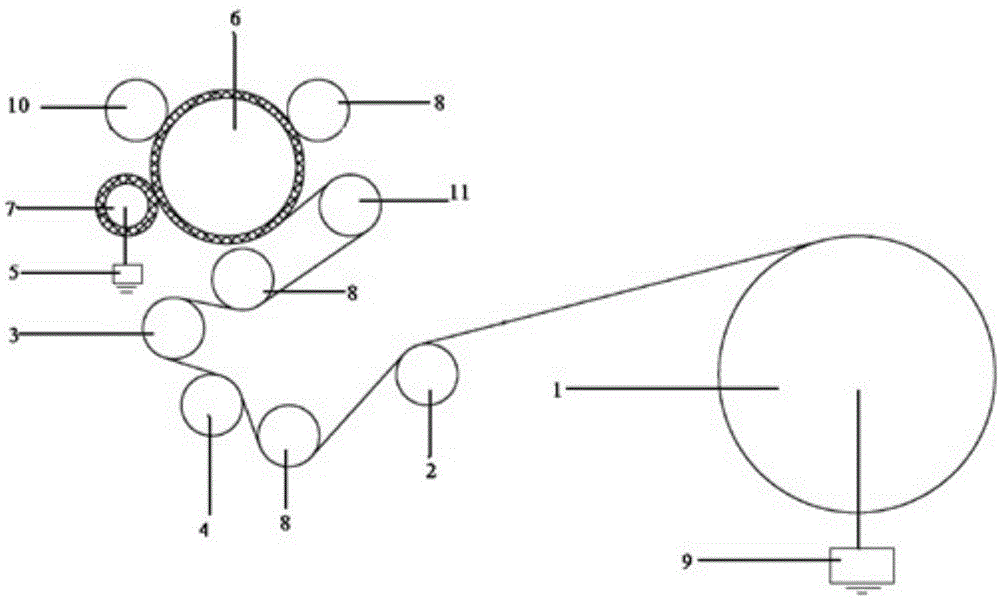

Fig. 1 is a kind of novel cutting machine scheme drawing.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, below in conjunction with concrete diagram, further set forth the utility model.
A kind of novel cutting machine, comprise direction spool 1, tension detector 2, electromagnetic power brake 3, tension control assembly 4, variable-frequency motor 5, cut upper slitter 6, divide cutting-out cutter 7, guiding roller 8, torque motor 9, wrap-up 10 and deviation correcting device 11, the described upper slitter 6 of cutting is tangent with branch cutting-out cutter 7, cut upper slitter 6 left and right sides above described guiding roller 8 and wrap-up 10 are arranged, the below, right side is described deviation correcting device 11, described branch downcuts on the cutter 7 and is connecting described variable-frequency motor 5, described wrap-up 10 is connected with described torque motor 9, also be provided with guiding roller 8 between described tension detector 2 and the tension control assembly 4, described tension control assembly 2 is connecting described electromagnetic power brake 3.
More than show and described groundwork of the present utility model and principal character and advantage of the present utility model; the technical personnel of the industry should be understood; the utility model is not restricted to the described embodiments; that describes in above-described embodiment and the specification sheets just illustrates principle of the present utility model; under the prerequisite that does not break away from the utility model spirit and scope; the utility model also has various changes and modifications; these changes and improvements all fall in claimed the utility model scope, and the claimed scope of the utility model is defined by appending claims and equivalent thereof.
Claims (1)
1. novel cutting machine, comprise the direction spool, tension detector, electromagnetic power brake, tension control assembly, variable-frequency motor, cut upper slitter, divide the cutting-out cutter, guiding roller, torque motor, wrap-up and deviation correcting device, it is characterized in that: the described upper slitter of cutting is tangent with branch cutting-out cutter, cut the upper slitter left and right sides above described guiding roller and wrap-up are arranged, the below, right side is described deviation correcting device, described branch downcuts on the cutter and is connecting described variable-frequency motor, described wrap-up is connected with described torque motor, also be provided with guiding roller between described tension detector and the tension control assembly, described tension control assembly is connecting described electromagnetic power brake.
