CN203031969U - Combination drive press machine - Google Patents
Combination drive press machine Download PDFInfo
- Publication number
- CN203031969U CN203031969U CN 201220702218 CN201220702218U CN203031969U CN 203031969 U CN203031969 U CN 203031969U CN 201220702218 CN201220702218 CN 201220702218 CN 201220702218 U CN201220702218 U CN 201220702218U CN 203031969 U CN203031969 U CN 203031969U
- Authority
- CN
- China
- Prior art keywords
- slide block
- hydraulic cylinder
- connecting rod
- hydraulic system
- mould
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Press Drives And Press Lines (AREA)
Abstract
The utility model relates to a combination drive press machine which comprises a tool body, a slide block, a mould-attitude regulating mechanism, a connecting rod, an eccentric rotation mechanism, a mechanical transmission mechanism, a hydraulic system and a hydraulic cylinder. The slide block comprises a first slide block and a second slide block. The mechanical transmission mechanism and the eccentric rotation mechanism are arranged on the tool body. A connecting rod upper hole is formed in the upper portion of the connecting rod. The connecting rod upper hole is connected with the eccentric rotation mechanism. The lower portion of the connecting rod is connected with the upper portion of the mould-attitude regulating mechanism. The lower portion of the mould-attitude regulating mechanism is connected with the first slide block. The hydraulic cylinder is connected with the first slide block. The hydraulic cylinder is arranged on the second slide block. The hydraulic cylinder is connected with the hydraulic system and drives the hydraulic cylinder and the second slide block to move through drive of the hydraulic system. The hydraulic system is added based on a traditional mechanical press machine, so that the combination drive press machine can meet multiple processing technic requirements in a process of product compression moulding.
Description
Technical field
The utility model relates to a kind of combination flooding motor press, belong to electric and the mechanical ﹠ electrical technology field.
Background technology
At the metal forming manufacture field, hydraulic press machine and mechanical press are two kinds of main equipments, and hydraulic press machine production efficiency is low, hydraulic system maintenance is difficult and cost is higher.Traditional mechanical press lacks flexibility, can not reach the needs of different processing technologys, to the processing request of some special process, just need reach the requirement of production with two kinds of different forcing presses.
The utility model content
At the deficiency that exists on the prior art, the utility model provides a kind of combination flooding motor press of new structure.
The utility model is to realize by the following technical solutions:
A kind of combination flooding motor press comprises lathe fuselage, slide block, the high governor motion of mould, connecting rod, eccentric rotating mechanism, mechanical transmission mechanism, hydraulic system, hydraulic cylinder, and described slide block comprises first slide block and second slide block; Described mechanical transmission mechanism and eccentric rotating mechanism are installed on the lathe fuselage, and the top of described connecting rod has hole on the connecting rod, and the hole is connected with eccentric rotating mechanism on the connecting rod, and the bottom of described connecting rod is connected with the top of the high governor motion of mould; The bottom of the high governor motion of described mould is connected with first slide block, described hydraulic cylinder is connected with first slide block, and described hydraulic cylinder is installed on second slide block, and described hydraulic cylinder connects hydraulic system, by the driving of hydraulic system, drive the movement of hydraulic cylinder and second slide block.
Above-mentioned eccentric rotating mechanism is bent axle or eccentric wheel.
The motor of the driving of above-mentioned mechanical transmission mechanism and hydraulic system is common electric machine or servomotor.
Above-mentioned hydraulic cylinder and first slide block are by being threaded.
Above-mentioned hydraulic cylinder is connected by flange with first slide block.
The utility model compared with prior art useful effect is: the utility model has added fluid power system on the basis of traditional mechanical press, makes this equipment can satisfy the multiple processing technology requirement in the product pressure forming process.
Description of drawings
Describe the utility model in detail below in conjunction with the drawings and specific embodiments;

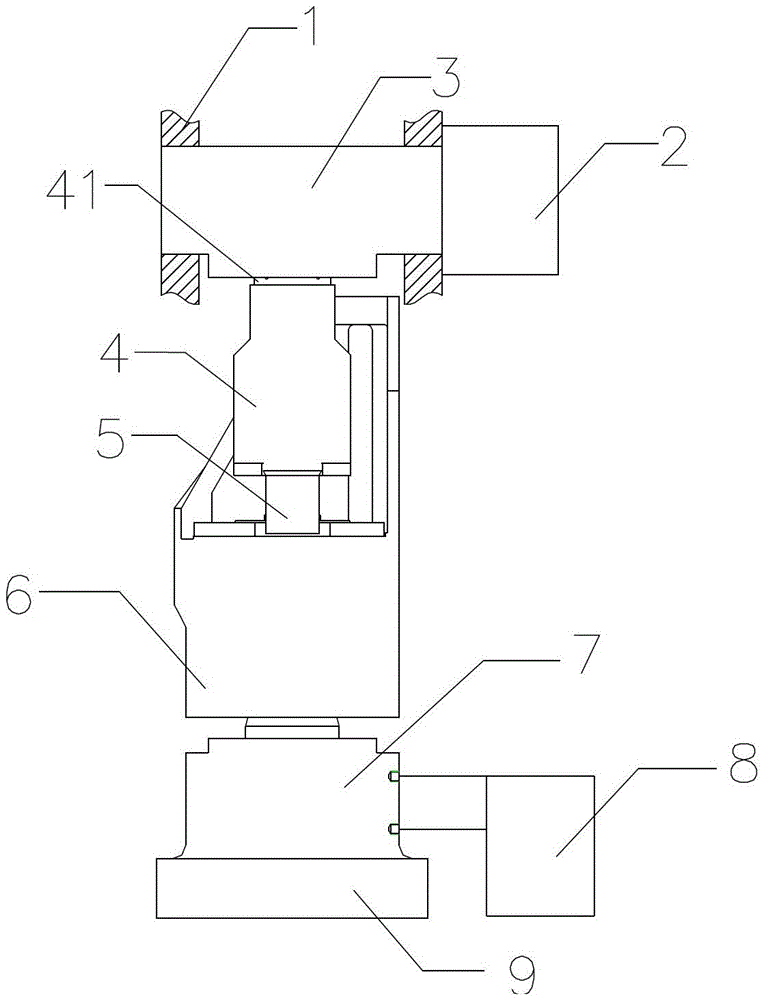

Fig. 1 is structural representation of the present utility model.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, below in conjunction with the specific embodiment, further set forth the utility model.
As shown in Figure 1, a kind of combination flooding motor press comprises lathe fuselage 1, slide block, the high governor motion 5 of mould, connecting rod 4, eccentric rotating mechanism 3, mechanical transmission mechanism 2, hydraulic system 8, hydraulic cylinder 7, and described slide block comprises first slide block 6 and second slide block 9; Described mechanical transmission mechanism 2 and eccentric rotating mechanism 3 are installed on the lathe fuselage 1, and the top of described connecting rod 4 has hole 41 on the connecting rod, and hole 41 is connected with eccentric rotating mechanism 3 on the connecting rod, and the bottom of described connecting rod 4 is connected with the top of the high governor motion 5 of mould; The bottom of the high governor motion 5 of described mould is connected with first slide block 6, described hydraulic cylinder 7 is connected with first slide block 6, and described hydraulic cylinder 7 is installed on second slide block 9, and described hydraulic cylinder 7 connects hydraulic system 8, by the driving of hydraulic system 8, drive the movement of hydraulic cylinder 7 and second slide block 9.
As preferred version, above-mentioned eccentric rotating mechanism 3 is bent axle or eccentric wheel.
As preferred version, the motor of the driving of above-mentioned mechanical transmission mechanism 2 and hydraulic system 8 is common electric machine or servomotor.
As preferred version, above-mentioned hydraulic cylinder 7 and first slide block 6 are by being threaded.
As preferred version, above-mentioned hydraulic cylinder 7 is connected by flange with first slide block 6.
More than show and described basic principle of the present utility model and principal character and advantage of the present utility model.The technical staff of the industry should understand; the utility model is not restricted to the described embodiments; that describes in above-described embodiment and the specification just illustrates principle of the present utility model; under the prerequisite that does not break away from the utility model spirit and scope; the utility model also has various changes and modifications, and these changes and improvements all fall in claimed the utility model scope.The claimed scope of the utility model is defined by appending claims and equivalent thereof.
Claims (5)
1. combination flooding motor press, it is characterized in that: comprise lathe fuselage, slide block, the high governor motion of mould, connecting rod, eccentric rotating mechanism, mechanical transmission mechanism, hydraulic system, hydraulic cylinder, described slide block comprises first slide block and second slide block; Described mechanical transmission mechanism and eccentric rotating mechanism are installed on the lathe fuselage, and the top of described connecting rod has hole on the connecting rod, and the hole is connected with eccentric rotating mechanism on the connecting rod, and the bottom of described connecting rod is connected with the top of the high governor motion of mould; The bottom of the high governor motion of described mould is connected with first slide block, described hydraulic cylinder is connected with first slide block, and described hydraulic cylinder is installed on second slide block, and described hydraulic cylinder connects hydraulic system, by the driving of hydraulic system, drive the movement of hydraulic cylinder and second slide block.
2. a kind of combination flooding motor press according to claim 1, it is characterized in that: described eccentric rotating mechanism is bent axle or eccentric wheel.
3. a kind of combination flooding motor press according to claim 1, it is characterized in that: the motor of the driving of described mechanical transmission mechanism and hydraulic system is common electric machine or servomotor.
4. a kind of combination flooding motor press according to claim 1 is characterized in that: described hydraulic cylinder and first slide block are by being threaded.
5. a kind of combination flooding motor press according to claim 1, it is characterized in that: described hydraulic cylinder is connected by flange with first slide block.
