Abstract
The utility model relates to raw material delivery equipment, and particularly relates to a biomass raw material delivery device, which can be jointed and matched with a biomass raw material storage system, and effectively overcomes the defect of high possibility of wearing. The biomass raw material delivery device comprises a material storage hopper and a belt delivery machine, wherein the material storage hopper is formed by communicating at least two discharge chambers with a feeding chamber respectively; and discharge openings of the discharge chambers are respectively opposite to a belt of the belt conveyor. The biomass raw material delivery device provided by the utility model has the advantages of compact structure, simplicity in operation, reliable technology, stable operation, high delivery efficiency, wide application range, high economical efficiency and high practical applicability, can be widely applied to a raw material delivery process in industrial production in multiple industries, has good market prospect.
Description
Technical field
The utility model relates to a kind of raw material load transfer device, relates in particular to a kind of biomass material feedway.
Background technology
The raw material conveying is the important step in suitability for industrialized production, and its operation conditions directly affects the normal operation of each operation of downstream.The advantages such as band conveyor is that raw material is carried common equipment, has a speed governing flexible, simple to operate, and is easy to maintenance are widely used in suitability for industrialized production.But band conveyor also has the problems such as easy wearing and tearing in actual use simultaneously.In order to solve these practical problemss, many researchists have proposed the modification scheme of multiple band conveyor, but due to these scheme majorities for band conveyor itself, do not take into full account the equipment that is associated with band conveyor, so various schemes have certain limitation, restricted application.The conveying technology of biomass material is the research emphasis that the biomass energy scale utilizes always; the conveying technology that exploitation combines with the biomass material stocking system has important realistic meaning; at present few for research in this respect; and fail to solve well being connected and matching problem between biomass material stocking system and raw material load transfer device; so practicality is not strong; therefore, existing living beings conveying technology has yet to be improved and developed.
Summary of the invention
The utility model provides a kind of biomass material feedway, has effectively solved the problem that is connected mutually and mates with the biomass material stocking system, has also overcome the shortcoming of easy wearing and tearing.
For achieving the above object, the utility model is taked following technical scheme:
A kind of biomass material feedway comprises storage bin hopper and band conveyor, and storage bin hopper is communicated with the pan feeding chamber respectively by at least two discharge chambers and forms, and the discharging opening of discharge chamber aligns with the belt of band conveyor respectively.
The storage bin hopper that above-mentioned feedway will have the raw material storage effect combines with the band conveyor with raw material conveying effect, makes whole apparatus structure compact, takes up room little; Storage bin hopper adopts the structure of a plurality of discharge chambers and a plurality of discharging openings, has significantly lowered the total amount that the belt of band conveyor bears, and the wearing and tearing of effectively having lowered band conveyor have extended service life.in reinforced process, by the biomass material stocking system, raw material is added in storage bin hopper, raw material is through the pan feeding chamber of storage bin hopper, enter each discharge chamber, the belt that falls into band conveyor from the discharging opening of discharge chamber again transmits, the pan feeding chamber of storage bin hopper and the device for discharging of biomass material stocking system are complementary, thereby realized that above-mentioned feedway is connected with the direct of device for discharging, simplified the raw material supply flow process, while is in conjunction with the speed governing means of Belt Conveying, improved the mechanization of whole raw material course of conveying, automatization level, further improved the raw material transport efficiency, reduced the conveying cost.
Reveal falling into belt process and raw material course of conveying on belt in order to prevent raw material, the discharging opening width is less than belt width, the discharging opening both sides of discharge chamber are provided with envelope material baffle plate along the Belt Conveying direction, and the gap between envelope material baffle plate and belt is not more than 2cm.
The weight that when falling into belt in order further to alleviate raw material, belt bears, discharge chamber is gradually-reducing shape towards the discharging opening direction, has shared the weight of most of raw material, the raw material weight that falls from discharging opening is reduced, thereby the raw material weight that falls into belt also reduces.In order to control the discharging speed of each discharging opening, can also be provided with switching regulaor at the discharging opening of discharge chamber simultaneously.
The utility model compact conformation, simple to operate, technology is reliable, stable, transport efficiency is high, applied widely, economy and practical, can be widely used in the industrial raw material course of conveying of conglomerate good market prospect.
Description of drawings

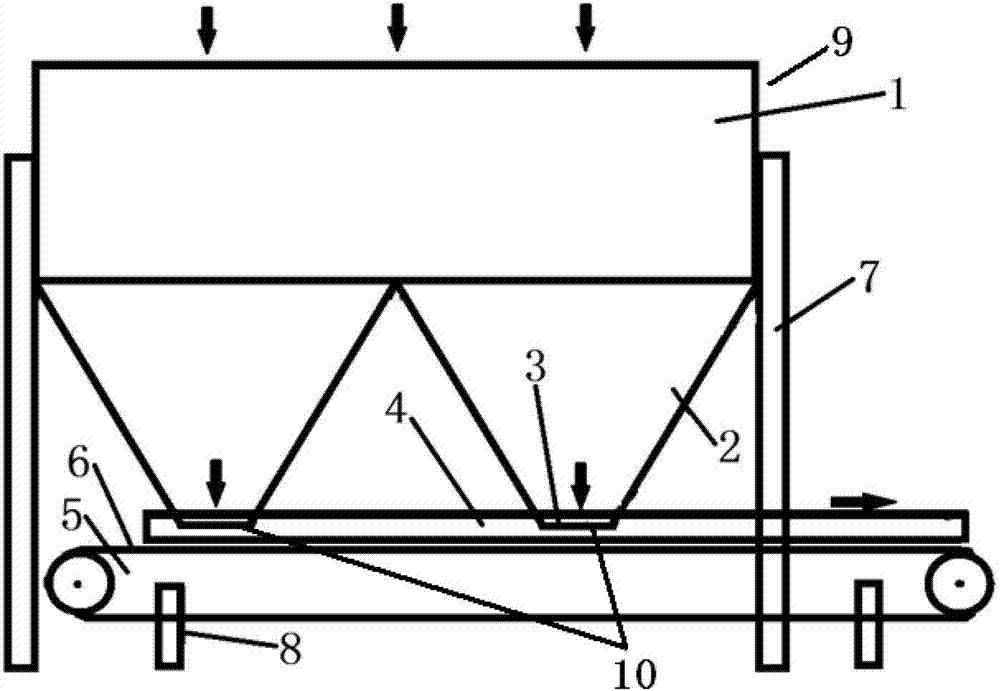

Fig. 1 is the main TV structure schematic diagram of embodiment;
Fig. 2 is the left TV structure schematic diagram of embodiment.
Description of reference numerals: 1-pan feeding chamber; The 2-discharge chamber; The 3-discharging opening; 4-envelope material baffle plate; The 5-band conveyor; The 6-belt; 7-storage bin hopper support; The 8-belt conveyor support; The 9-storage bin hopper; The 10-switching regulaor.
The specific embodiment
Below in conjunction with drawings and Examples, the utility model content is described further.
as Fig. 1, shown in 2, embodiment comprises storage bin hopper 9 and band conveyor 5, storage bin hopper 9 is arranged on storage bin hopper support 7, band conveyor 5 is arranged on belt conveyor support 8, storage bin hopper 9 is communicated with pan feeding chamber 1 respectively by two discharge chambers 2 and forms, the discharging opening 3 of discharge chamber 2 aligns with the belt 6 of band conveyor 5 respectively, discharging opening 3 width are less than belt 6 width, discharging opening 3 both sides of discharge chamber 2 are provided with envelope material baffle plate 4 along belt 6 throughput directions, gap between envelope material baffle plate 4 and belt 6 is 1cm, discharge chamber 2 is gradually-reducing shape from top to bottom, discharging opening 3 is provided with switching regulaor 10.
As shown in Figure 1, 2, in reinforced process, can use forklift that raw material is added in storage bin hopper, also can raw material be added in storage bin hopper 9 by raw material temporary storage equipments such as flexible freight containers, raw material enters each discharge chamber 2 through the pan feeding chamber 1 of storage bin hopper 9, discharging opening 3 from storage bin hopper 9 bottoms falls into belt 6 again, the delivery speed of raw material can be regulated by the motor speed of band conveyor 5, and the raw material at belt 6 edges is subject to sealing the constraint of material baffle plate 4 in course of conveying, prevented the raw material leakage.The interior raw material total amount of storage bin hopper 9 major part is shared by discharge chamber 2, has reduced the wearing and tearing to belt 6, regulates discharging speed by switching regulaor 10.
Obviously; the above-mentioned specific embodiment of the present utility model is only for the utility model example clearly is described; and be not to be restriction to the utility model embodiment; to those skilled in the art; can also easily make on the basis of the above description other pro forma variation or substitute, and within these changes or substitute also will be included in the protection domain that the utility model determines.
Claims (6)
1. a biomass material feedway, comprise storage bin hopper and band conveyor, it is characterized in that: described storage bin hopper is communicated with the pan feeding chamber respectively by at least two discharge chambers and forms, and the discharging opening of discharge chamber aligns with the belt of band conveyor respectively.
2. feedway as claimed in claim 1 is characterized in that: described discharging opening both sides are provided with envelope material baffle plate along the Belt Conveying direction.
3. feedway as claimed in claim 2, it is characterized in that: the gap between described envelope material baffle plate and belt is not more than 2cm.
4. as claim 1 or 2 or 3 described feedways, it is characterized in that: described discharging opening width is less than belt width.
5. feedway as claimed in claim 1, it is characterized in that: described discharge chamber is gradually-reducing shape towards the discharging opening direction.
6. feedway as claimed in claim 1, it is characterized in that: described discharging opening is provided with switching regulaor.
