CN203016597U - Multifunctional simple plate with sucking discs - Google Patents
Multifunctional simple plate with sucking discs Download PDFInfo
- Publication number
- CN203016597U CN203016597U CN 201220649657 CN201220649657U CN203016597U CN 203016597 U CN203016597 U CN 203016597U CN 201220649657 CN201220649657 CN 201220649657 CN 201220649657 U CN201220649657 U CN 201220649657U CN 203016597 U CN203016597 U CN 203016597U
- Authority
- CN
- China
- Prior art keywords
- sucking discs
- plate
- sucker
- groove
- sucking
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Hooks, Suction Cups, And Attachment By Adhesive Means (AREA)
- Supports Or Holders For Household Use (AREA)
Abstract
The utility model relates to daily supplies, in particular to a multifunctional simple plate with sucking discs. The multifunctional simple plate with the sucking disc is composed of a plate top and a support frame, wherein the sucking discs are fixed at on end of the plate top, a groove is formed at the bottom end of the plate top, and clamping grooves are formed in two sides, perpendicular to the sucking disc, of the bottom end of the plate top. The support frame comprises a cross rod and two rotary rods, the cross rod is matched with the clamping grooves, one ends of the two rotary rods are perpendicularly fixed on the cross rod, the other ends of rotary rods are provided with rotary shafts and sucking discs, and the rotary shaft can rotate by 180 degrees. When the plate with the sucking discs is absorbed on a wall, a groove position matched with a support rod is chosen according to an available space, meanwhile, the supporting rod is absorbed on the wall, and thus a daily sundry box can be placed or writing can be conducted conveniently by means of the multifunctional simple plate with the sucking discs.
Description
Technical field
The utility model relates to a kind of articles for daily use, is specially a kind of band sucker multiplex place easy plane.
Background technology
In the bathroom, when particularly having a bath in the public bathhouse, we usually can not find one can put the soap box, and the place of towel is very inconvenient; Sometimes, when lecture or meeting, often only have stool, we remember that thing has to originally to be placed on both legs, record like this, and writing is unintelligible, and efficient is also very low.
Summary of the invention
Technical problem to be solved in the utility model is: design a kind of easy plane and can deposit flexibly in daily life different article.
The technical solution of the utility model is: a kind of band sucker multiplex place easy plane, formed by plate face and bracing frame, one end of plate face is fixed with sucker, plate face bottom has groove, and the bottom has draw-in groove in sucker vertical two sides, and bracing frame comprises a cross bar and two bull sticks, cross bar and draw-in groove match, one end of two bull sticks all is vertically fixed on cross bar, and the other end has rotating shaft and sucker, and rotating shaft can 180 degree rotations.
The beneficial effects of the utility model are: will be adsorbed in the plate of sucker on wall, this moment, the groove position that selection coordinates with support bar also was adsorbed in wall with support bar simultaneously, can conveniently deposit daily undertray or write according to free space.
Description of drawings

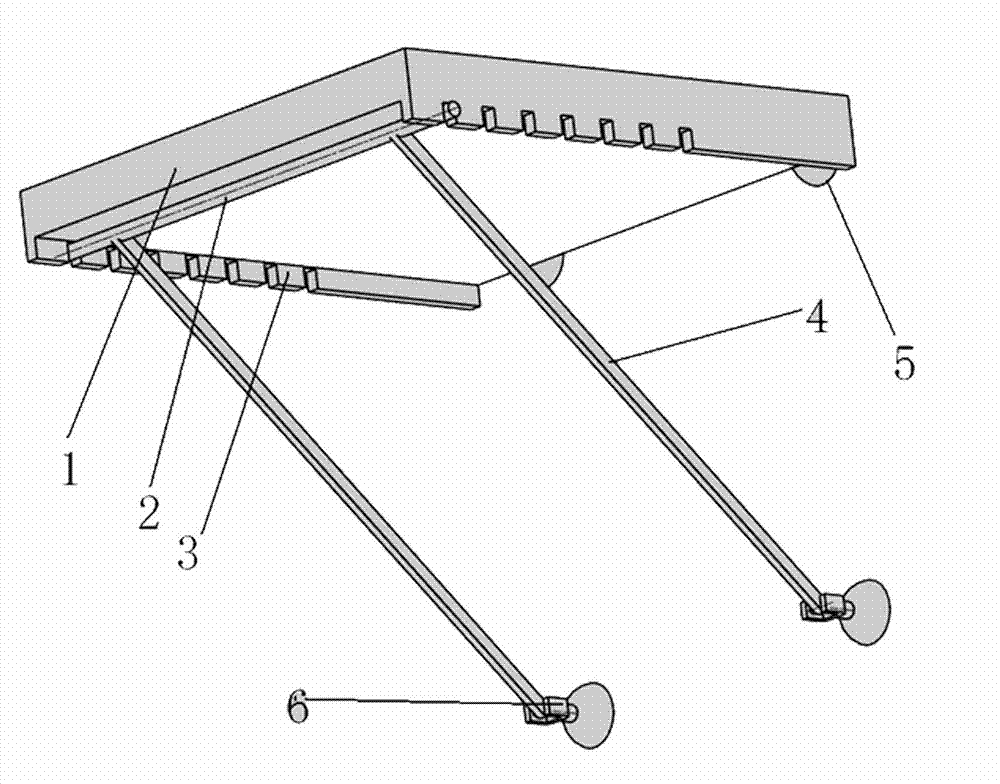

Fig. 1 is the utility model structural representation.
Wherein, 1, the plate face, 2, cross bar, 3, draw-in groove, 4, bull stick, 5, sucker, 6, rotating shaft.
The specific embodiment
As shown in Figure 1: the utility model is band sucker multiplex place easy plane, formed by plate face and bracing frame, one end of plate face is fixed with sucker, plate face bottom has groove, and the bottom has draw-in groove in sucker vertical two sides, and bracing frame comprises a cross bar and two transfer bars, cross bar and draw-in groove match, one end of two bull sticks is vertically fixed on cross bar, and the other end has rotating shaft and sucker, and rotating shaft can 180 degree rotations.
The utility model is simple in structure, and institute takes up space littlely, and various use can be arranged, and can be used for the bathroom and places bath article, as bookshelf, is affixed on after stool desk as zero time during meeting in the study, in the kitchen as kitchen cabinet.When the utility model uses, the plate face with sucker is adsorbed on wall, this moment, the draw-in groove position that selection coordinates with cross bar also was adsorbed in wall with the bull stick sucker simultaneously, so just can use according to free space.
Claims (1)
1. band sucker multiplex place easy plane, it is characterized in that: formed by plate face and bracing frame, one end of plate face is fixed with sucker, plate face bottom has groove, the bottom has draw-in groove in sucker vertical two sides, and bracing frame comprises a cross bar and two bull sticks, and cross bar and draw-in groove match, one end of two bull sticks all is vertically fixed on cross bar, and the other end has rotating shaft and sucker.
