Abstract
The utility model discloses a deformable multifunctional furniture device, comprising a bedside box body (1), a bed side box body (2), a bed center box body (3) and a bed tail box body (4), wherein a turnover plate (21) and a slide bar (22) form the bed side box body (2) and the bed tail box body (4); and an electric appliance and a mechanical component which are used for rising up are arranged below a table plate (31) of the bed center box body (3). By adopting the deformable multifunctional furniture device, the furniture is compact; and the functions of the furniture are increased, so as to solve the problem of undersized family space and save the money for a user.
Description
Technical field
The utility model relates to a kind of furniture, especially can be out of shape, and collection bedding, dining table and the integrated multi-functional furniture of sofa.
Background technology
A lot of furniture can not be put or purchase at present a lot of people's narrow and small, the young wage-earners' financial strain in living space, and therefore, a kind of furniture that gathers multi-function in integral whole is very practical.
Design a kind of Multifunctional transformable furniture very necessary for this reason.
Summary of the invention
According to background technology, the purpose of this utility model is to avoid above-mentioned deficiency, and a kind of collection bedding, dining table, wardrobe and the integrated multi-function modular furniture of sofa are provided.
To achieve these goals, the utility model is achieved through the following technical solutions:
a kind of multi-function modular furniture device, mainly by headstock housing (1), bed side box body (2), in bed, casing (3) and tailstock casing (4) form, wherein: bed side box body (2) and tailstock casing (4) are made of returning face plate (21) and slide bar (22), in bed, casing (3) is by table (31), motor (32), tooth bar (33), electric machine support (34), support bar (35), lock set (36), fixed mount (37) and lower box (38) consist of, table (31) is handled by motor (32) and is risen, returning face plate (21) is dug and is consisted of the backrest appliance, otherwise table (31) descends, returning face plate (21) is turned down to fasten and is formed a Combined-type bedridden.
Owing to adopting technique scheme, the utlity model has following advantage and effect:
1, it is multi-functional that the utility model integrates bedding, dining table, wardrobe and sofa, convenient and practical;
2, the utility model compact conformation, simple, be easy to promote, working service and repairing are simple and easy.
Description of drawings

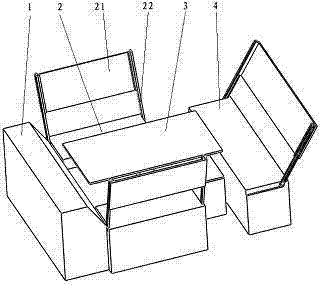

Fig. 1 is that the utility model desk opens and uses view;
Fig. 2 is that the utility model uses view as bedding;
Fig. 3 is the utility model desk liftout attachment schematic diagram.
The specific embodiment
By Fig. 1 to Fig. 3 as can be known, a kind of multi-function modular furniture device, mainly by headstock housing 1, bed side box body 2, in bed, casing 3 and tailstock casing 4 form, wherein: bed side box body 2 and tailstock casing 4 consist of by returning face plate 21 and slide bar 22, in bed, casing 3 is made of table 31, motor 32, tooth bar 33, electric machine support 34, support bar 35, lock set 36, fixed mount 37 and lower box 38, table 31 can be handled by motor 32 and rise, returning face plate 21 can be dug and consist of the backrest appliance, otherwise table 31 descends, and returning face plate 21 is turned down to fasten and formed a Combined-type bedridden.
Separately know, when device uses as desk and sofa function, returning face plate 21 and slide bar 22 is turning opens, and returning face plate 21 is fixed on slide bar 22, the backrest that this moment, returning face plate 21 can be used as sofa uses; Case tailstock body 4 occupation modes in like manner.
After returning face plate 21 and slide bar 22 are opened and are fixed, can start casing 3 motions in bed, after starting switch, motor 32 rotates, and rotate this moment together with gear that motor is connected, and gear rotates and promotes the tooth bar assembly and move upward, with table pull 31 eject after, support bar 35 use lock sets 36 are fixedly supported on the fixed mount 37 of lower box 38, and this moment, assembly for table was in full open position, can normally use.
, the position of headstock housing 1, a side box body 2, assembly for table 3 and tailstock casing 4 can be adjusted when using as bedding when device, and returning face plate is built be got final product.
Claims (1)
1. multi-function modular furniture device, mainly by headstock housing (1), bed side box body (2), in bed, casing (3) and tailstock casing (4) form, it is characterized in that: bed side box body (2) and tailstock casing (4) are made of returning face plate (21) and slide bar (22), in bed, casing (3) is by table (31), motor (32), tooth bar (33), electric machine support (34), support bar (35), lock set (36), fixed mount (37) and lower box (38) consist of, table (31) is handled by motor (32) and is risen, returning face plate (21) is dug and is consisted of the backrest appliance, otherwise table (31) descends, returning face plate (21) is turned down to fasten and is formed a Combined-type bedridden.
