Abstract
The utility model discloses a mortar consistency determination device comprising a bracket, an indicating dial, a test cone, a conical container and a pedestal connected with the bracket. The bracket is provided with a first cross arm and a second cross arm, which both are perpendicular to the bracket, wherein the first cross arm is provided with a measuring bar capable of driving a pointer in the indication dial to rotate, the measuring bar is connected with one end of a slide bar through a linkage piece, the slide bar is clamped on the second cross arm by a garter spring clamp, the other end of the slide bar is provided with the test cone, the pedestal under the test cone is provided with the conical container of which the inner conical surface is marked with an inner marking line, and the inner marking line is arranged at a part 1cm away from a port of the conical container. The mortar consistency determination device can control the quantity of mortar in the conical container, can prevent pollution to the test devices caused by overflow of superfluous mortar, and can improve the accuracy of the determination result; and in the determination process, the mortar consistency determination device can reduce the influence on the test result caused by friction so as to improve the determination accuracy, and can directly read the mortar consistency value from the indicating dial, and thus, the determination process is simplified.
Description
Technical field
The utility model relates to a kind of construction timber testing tool technical field, a kind of mortar consistency measuring device specifically.
Background technology
The technical development speed of premixing mortar is swift and violent, in process to the premixing mortar quality testing, no matter be to detect or factory testing into factory, what at first measure is exactly slurry consistency, adjust the consumption of water consumption and additive according to the size of slurry consistency value, experimental implementation is according to industry standard " JGJ/T 70-2009 building mortar key property method of testing standard ".
Mortar consistency tester is the mobility of measuring mortar, and general mobility is called again denseness, and the denseness of mortar is the standard round cone with certain geometrical shape and weight, relies on himself weight freely to sink to the degree of depth that sinks in the mortar potpourri and represents.Tighten screw when the standard cone no longer sinks in the mortar, rotational pin is female, makes the so far degree of depth of tooth bar, can read the sinkage of surveying on dial plate, can find with this degree of depth and sink to accordingly volume.Mortar must have good workability before sclerosis, comprising mobility, and the explanation good fluidity that the amount of sinking to is large.In when operation, the experimenter is the Mortar mix container of once packing into, and the examination cone is transferred to most advanced and sophisticated and mortar Surface Contact, tightens setscrew, tooth bar side lever lower end rigidly connected touch the slide bar upper end, and with on the pointer zero adjustment; Turn on setscrew, simultaneously with manual time-keeping, fixed screw immediately after 10 seconds with contact slide bar upper end, tooth bar side lever lower end, is read submergence depth from index dial, is the slurry consistency value.But the general mortar consistency tester that uses, can't accurately control what of the mortar of packing in conical vessel, and the people intuitively the height at command range conical vessel top easily produce error, if the mortar overfill of packing in conical vessel, under centrum, backwardness can cause mortar excessive, pollutes experimental apparatus; If the mortar of packing into is excessive apart from the conical vessel distance from top, can make final reading produce deviation,
The utility model content
For solving the mortar amount in the uncontrollable conical vessel of packing in prior art, cause the phenomenons such as experimental apparatus pollutes, reading generation deviation, the utility model provides a kind of mortar consistency measuring device, is provided with internal standard line in the conical vessel of this device.
the utility model is to address the above problem the technical scheme that adopts to be: a kind of mortar consistency measuring device, comprise support, display disc, the examination cone, conical vessel and the base that is connected with support, be provided with all the first transverse arm and the second transverse arm with support vertical on support, described the first transverse arm is provided with and can drives the measuring staff that the display disc pointer rotates, measuring staff is connected with an end that is clipped in the second transverse arm upper slide bar by garter spring by linkage piece, the other end of slide bar is provided with the examination cone, base under the examination cone is provided with the conical vessel that internal conical surface is marked with internal standard line, internal standard line is located at apart from conical vessel port one cm position.
The axis of described slide bar and the center superposition of conical vessel.
The beneficial effects of the utility model: conical vessel internal conical surface of the present utility model is provided with the 1cm internal standard line, can control the mortar amount of packing in conical vessel, prevent from polluting because the mortar amount too much causes the excessive experimental apparatus that causes of mortar, improved the accuracy of measurement result; In measuring process, after being returned to zero, unclamps display disc the garter spring folder, and linkage piece glides and makes measuring staff drive the pointer rotation of display disc, reduced the impact of friction on experimental result, improve measuring accuracy, can directly read the slurry consistency value on display disc, simplified measuring process.
Description of drawings

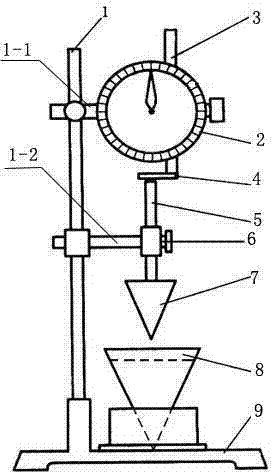

Fig. 1 is structural representation of the present utility model;
Reference numeral: 1, support; 1-1, the first transverse arm; 1-2, the second transverse arm; 2, display disc; 3, measuring staff; 4, linkage piece; 5, slide bar; 6, garter spring folder; 7, examination cone; 8, conical vessel; 9, base.
Embodiment
In order to understand better the utility model, below in conjunction with drawings and Examples, the utility model is further described.
as shown in Figure 1, a kind of mortar consistency measuring device, comprise support 1, display disc 2, examination cone 7, conical vessel 8 and the base 9 that is connected with support 1, be provided with the first all vertical with support 1 transverse arm 1-1 and the second transverse arm 1-2 on support 1, the first transverse arm 1-1 is provided with and can drives the measuring staff 3 that display disc 2 pointers rotate, measuring staff 3 by linkage piece 4 be connected by garter spring folder 6 ends that are clipped in the second transverse arm 1-2 upper slide bar 5, the other end of slide bar 5 is provided with examination cone 7, base 9 under examination cone 7 is provided with the conical vessel 8 that internal conical surface is marked with internal standard line, internal standard line is located at apart from conical vessel 8 port one cm positions.
The center superposition of the axis of described slide bar 5 and conical vessel 8.
When not using this device, slide bar 5 is subjected to the clamping action of garter spring folder 6 and is fixed on the second transverse arm 1-2, and this moment, linkage piece 4 was in horizontality; When carrying out the denseness test, the mortar of required measurement is packed in conical vessel 8, the mortar face with the reading zeroing of display disc 2, then unclamps the garter spring folder 6 on the second transverse arm 1-2 lower than the 1cm internal standard line on conical vessel 8 internal conical surfaces, simultaneously with manual time-keeping, slide bar 5 glides and makes linkage piece 4 drive vertically down motion of measuring staff 3, clamps immediately garter spring folder 6 in the time of 10 seconds, reads submergence depth from display disc 2, be accurate to 1mm, be the consistometric value of surveying.
Claims (2)
1. mortar consistency measuring device, comprise support (1), display disc (2), examination cone (7), conical vessel (8) and the base (9) that is connected with support (1), be provided with all first transverse arm (1-1) and second transverse arm (1-2) vertical with support (1) on support (1), it is characterized in that: described the first transverse arm (1-1) is provided with and can drives the measuring staff (3) that display disc (2) pointer rotates, measuring staff (3) is connected with an end that is clipped in the slide bar (5) on the second transverse arm (1-2) by garter spring folder (6) by linkage piece (4), the other end of slide bar (5) is provided with examination cone (7), base (9) under examination cone (7) is provided with the conical vessel (8) that internal conical surface is marked with internal standard line, internal standard line is located at apart from conical vessel (8) port one cm position.
2. a kind of mortar consistency measuring device according to claim 1, is characterized in that: the center superposition of the axis of described slide bar (5) and conical vessel (8).
