Abstract

The utility model relates to a portable small wall lamp with a sucker. The small wall lamp is provided with a bottom plate, the sucker is arranged on one side of the bottom plate, and the other side of the bottom plate is connected with a bulb. A hemispherical transparent lampshade hinged with the bottom plate is arranged outside the bulb, a power source box with a switch is arranged on the top of the bottom plate, and a telescopic power source plug and a storage battery are arranged in the power source box. The storage battery and the switch are connected with the bulb through wires in the bottom plate. The small wall lamp is simple in structure, convenient and flexible, convenient to operate, convenient to carry, capable of sucking on required place conveniently, satisfies requirements for lighting of places such as cupboards and has higher practical value.

Description

The little wall lamp of portable sucker
Technical field
The utility model relates to a kind of light fixture, the little wall lamp of especially a kind of portable sucker.
Background technology
The crowd knows, people are cabinet and wardrobe etc. are local when seeking thing, and often because the light problem does not see the cupboard the inside, and general light fixture is all fixing or inconvenience is mobile, and people's life is brought very large inconvenience, and solution is not preferably also arranged so far.
The utility model content
In order to solve the above problems, the utility model proposes the little wall lamp of portable sucker, this wall lamp structure is simple, convenient, flexible, easy and simple to handle, the user can conveniently be adsorbed on wall lamp the place that needs, and easy to carry, satisfy the demand of the local illuminations such as cabinet, have practical value preferably.
The technical scheme that its technical problem that solves the utility model adopts is: the little wall lamp of this portable sucker comprises chassis, sucker, bulb, lampshade, wire, battery, power pack, plug and switch; Described little wall lamp has a chassis; Described chassis simultaneously is provided with a sucker, and another side is connected with a bulb; Described bulb outside is provided with a hemispherical Transparent lamp shade hinged with the chassis; Top, described chassis is provided with a power pack with switch, and this power pack inside is provided with a telescopic attaching plug and a battery; Described battery is connected inside chassis with switch wire is connected with bulb.
The beneficial effects of the utility model are: the little wall lamp structure of this portable sucker is simple, convenient, flexible, easy and simple to handle, the user can conveniently be adsorbed on wall lamp the place that needs, and easy to carry, satisfy the local demands of throwing light on such as cabinet, have practical value preferably.
Description of drawings
The utility model is described in further detail below in conjunction with drawings and Examples.

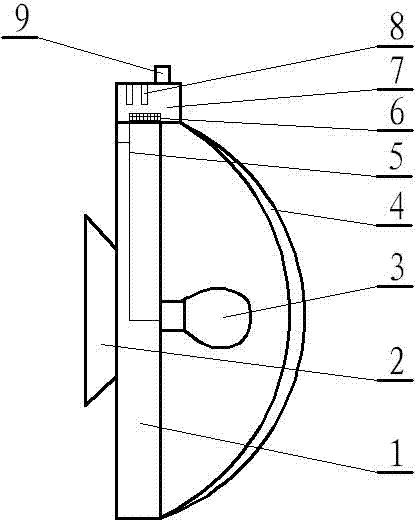

Accompanying drawing 1 is the example structure schematic diagram in the little wall lamp of this portable sucker vertical section.
In figure, 1. chassis, 2. sucker, 3. bulb, 4. lampshade, 5. wire, 6. battery, 7. power pack, 8. plug, 9. switch.
The specific embodiment
In accompanying drawing 1, the little wall lamp of this portable sucker comprises chassis 1, sucker 2, bulb 3, lampshade 4, wire 5, battery 6, power pack 7, plug 8 and switch 9; Described little wall lamp has a chassis 1; Described chassis 1 one side is provided with a sucker 2, and another side is connected with a bulb 3; Described bulb 3 outsides are provided with a hemispherical Transparent lamp shade 4 hinged with chassis 1; 1 top, described chassis is provided with a power pack 7 with switch 9, and this power pack 7 inside are provided with a telescopic attaching plug 8 and a battery 6; The wire 5 that described battery 6 is connected with switch by 1 inside, chassis is connected with bulb 3; The user can be adsorbed on wall lamp the cabinet inwall, opens switch 9, namely can throw light on, and by raising an end of lampshade 4, namely can change bulb 3.

Claims (1)

1. the little wall lamp of portable sucker, comprise chassis (1), sucker (2), bulb (3), lampshade (4), wire (5), battery (6), power pack (7), plug (8) and switch (9); Described little wall lamp has a chassis (1); Described chassis (1) one side is provided with a sucker (2), and another side is connected with a bulb (3); It is characterized in that: described bulb (3) outside is provided with a hemispherical Transparent lamp shade (4) hinged with chassis (1); Top, described chassis (1) is provided with a power pack with switch (9) (7), and this power pack (7) inside is provided with a telescopic attaching plug (8) and a battery (6); Described battery (6) is connected 9 with switch) be connected with bulb (3) by the inner wire (5) in chassis (1).
