The utility model relates to the field of medical equipment, and discloses a portable first-aid box for clinical transfer. In the utility model, the first-aid box has a built-in double-layer multiple partition mini-inner box. When first aiding, the box cover is quickly pulled in the opposite direction on both sides, and the built-in folding rod drives the double-layer multiple partition inner box to be highlighted. Different kinds of first aid medicine and infusion materials, and mark the medicine label, easy to take, better than the previous "vegetable basket" to place first aid medicine, the classification is unclear, easy to take the wrong medicine during first aid, needles and glass produced during first aid during transportation The safety device is placed in the configured sharps box to avoid contamination and accidental injury. After the rescue, the sharps box can be removed and dumped at a fixed place. It is easy to operate, convenient for first aid, and saves rescue time.

Description

Clinical transhipment Portable rescue case

Technical field

This utility model relates to medical instruments field, particularly clinical transhipment Portable rescue case.

Background technology

While transporting the critical patient clinically, the change of illness state of burst easily appears, as patient respiratory, cardiac arrest, may occur in elevator or in the road of transhipment, transported in the critical patient way in the past, ununified configure dedicated first-aid kit, just with a plastic basket, various first aid using medicine and first-aid supply are contained in to the basket the inside more temporarily, can not identify, when thing is more, in disorder, take very inconvenient, and the sharp instrument article that produce in the process of suing and labouring do not have the container of appointment to place, throw out without care conveniently, easily stab, the time of incuring loss through delay rescue patient.

The utility model content

The purpose of this utility model is to provide a kind of clinical transhipment Portable rescue case, each inner box is placed various first aid medicine and transfusion material, and dated drug identifier, be convenient to take, before being better than, " vegetable basket " formula is placed first aid medicine, and unclear classification, easily take medicine by mistake during first aid, the syringe needle in transit produced during first aid and glass peace are cutd open and are placed in the sharp instrument box configured, and avoid polluting and accident is hurted sb.'s feelings.

For solving the problems of the technologies described above, embodiment of the present utility model discloses a kind of clinical transhipment Portable rescue case, comprising: box body (1), lid (2) and sharp instrument box (3);

The edge of the upper relative both sides of lid (2) is hinged by hinge (5) and box body (1) respectively, and lid (2) top is provided with handle (4);

Lid (2) never the both sides of hinge (5) central shaft to position be divided into two, the snap close (6) that the lid that is divided into two halves arranges by the lid top links together;

Sharp instrument box (3) is fixed on the lateral surface of box body (1) one side;

The interior space that box body (1) and lid (2) form is divided into three layers; Long folding rod (10) be take hinge (12) and is placed in the side of ground floor space (7) as axle, and with together with box body (1) side walls hinged; Short folding rod (11) be take hinge (12) and is placed in the side of second layer space (8) as axle, and with together with box body (1) side walls hinged; The interior space of box body (1) is the 3rd sheaf space (9).

Compared with prior art, the main distinction and effect thereof are this utility model embodiment:

The mini inner box of a plurality of separations of the built-in bilayer of this first-aid kit, during first aid, lid is drawn to both sides rightabout rapid, built-in folding rod drives double-deck a plurality of separation inner boxs and highlights, each inner box is placed various first aid medicine and transfusion material, and dated drug identifier, be convenient to take, before being better than, " vegetable basket " formula is placed first aid medicine, unclear classification, easily take medicine during first aid by mistake, the syringe needle in transit produced during first aid and glass peace are cutd open and are placed in the sharp instrument box configured, and avoid polluting and accident is hurted sb.'s feelings.

Further, the glass of the middle generation of suing and labouring peace is cutd open with syringe needle and is placed in the sharp instrument box configured, and the medical worker has been played to protective effect, can also take off sharp instrument box and topple over to fixed location after the end of suing and labouring, easy to operate.

Further, a plurality of mini inner boxs of built-in bilayer, can place various first aid medicine according to the requirement of each section office self, rationally utilizes limited resource space, takes conveniently.

Further, the setting of label, for various first aid medicines and transfusion material, sign is distinct, is convenient to fetch, and facilitates first aid, saves rescue time.

The accompanying drawing explanation

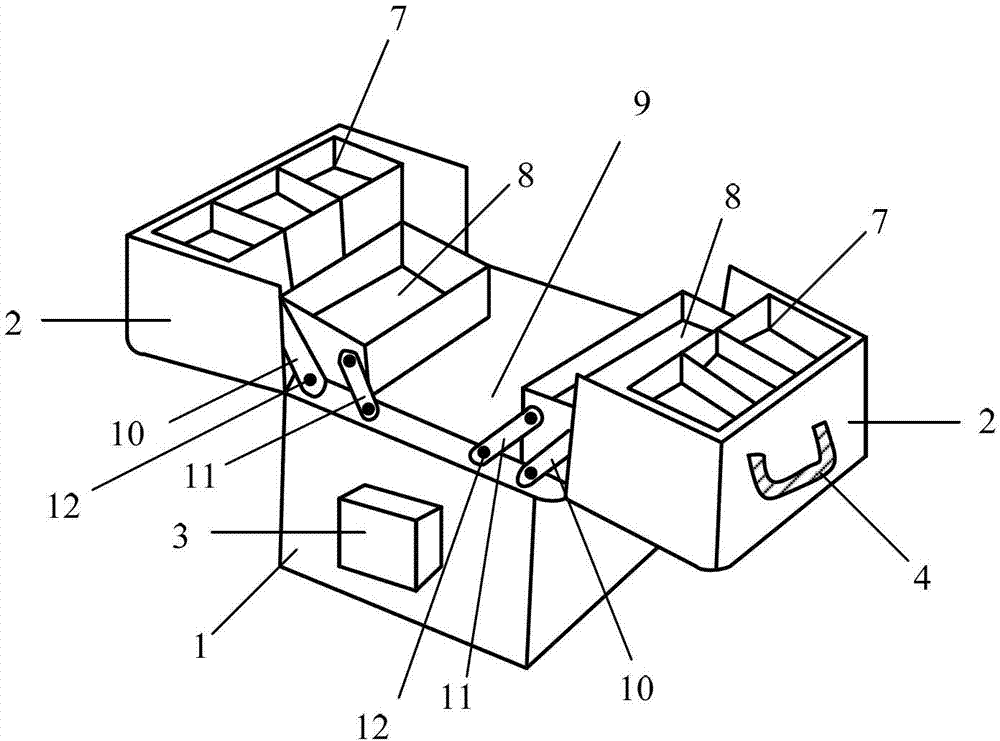

Fig. 1 is the structural representation of a kind of clinical transhipment Portable rescue case in this utility model the first embodiment;

Fig. 2 is the structural representation of a kind of clinical transhipment Portable rescue case in this utility model the first embodiment.

The specific embodiment

In the following description, in order to make the reader understand the application better, many ins and outs have been proposed.But, persons of ordinary skill in the art may appreciate that even without these ins and outs and the many variations based on following each embodiment and modification, also can realize each claim of the application technical scheme required for protection.

For making the purpose of this utility model, technical scheme and advantage clearer, below in conjunction with accompanying drawing, embodiment of the present utility model is described in further detail.

This utility model the first embodiment relates to a kind of clinical transhipment Portable rescue case.Fig. 1 and Fig. 2 are the structural representations of this clinical transhipment Portable rescue case.

Specifically, as depicted in figs. 1 and 2, this clinical transhipment Portable rescue case comprises: box body (1), lid (2) and sharp instrument box (3).

Preferably, box body (1) and lid (2) adopt the polypropylene engineering plastic die cast.

Certainly, this is preferred embodiment a kind of, and in other embodiment, box body (1) and lid (2) also can adopt other material, and other technique is made.

Injury from sharp utensil is the common injured factor of medical worker, and the syringe needle particularly produced when first aid in transit and peel off peace and cut open, because there is no special release position, as arbitrarily thrown out without care, not only can be stabbed oneself, also can prick others, pollutes.

The glass peace of generation of suing and labouring is cutd open with syringe needle and is placed in the sharp instrument box configured, and the medical worker has been played to protective effect, can also take off sharp instrument box and topples over to fixed location suing and labouring after finishing, easy to operate.

The edge of the upper relative both sides of lid (2) is hinged by hinge (5) and box body (1) respectively, and lid (2) top is provided with handle (4).

During use, one carry conveniently, convenient and swift.

Lid (2) never the both sides of hinge (5) central shaft to position be divided into two, the snap close (6) that the lid that is divided into two halves arranges by the lid top links together.

Sharp instrument box (3) is fixed on the lateral surface of box body (1) one side.

Preferably, the whole body of sharp instrument box (3), fix with tinsel, utilizes 2 small suckers, is adsorbed on the lateral surface of box body (1) one side, in road, can not come off because of jolting.

In other embodiment, sharp instrument box (3) also can be fixed by another way.

The interior space that box body (1) and lid (2) form is divided into three layers.Long folding rod (10) be take hinge (12) and is placed in the side of ground floor space (7) as axle, and with together with box body (1) side walls hinged.Short folding rod (11) be take hinge (12) and is placed in the side of second layer space (8) as axle, and with together with box body (1) side walls hinged.The interior space of box body (1) is the 3rd sheaf space (9).

When lid (2) covers when box body (1) is upper, ground floor space (7) and second layer space (8) folding top that is positioned over the 3rd sheaf space (9).

When lid (2), while opening, ground floor space (7) and second layer space (8) are trapezoidal expansion.

Ground floor space (7) becomes several inner boxs by baffle for separating.

Second layer space (8) becomes several inner boxs by baffle for separating.

Preferably, in the front of each inner box, label, marking title and the metering of corresponding rescue medication on label.

A plurality of mini inner boxs of built-in bilayer, can place various first aid medicine according to the requirement of each section office self, rationally utilizes limited resource space, takes conveniently.The setting of label, for various first aid medicines and transfusion material, sign is distinct, is convenient to fetch, and facilitates first aid, saves rescue time.

Various first-aid medicines are placed in ground floor space (7), and second layer space (8) place various syringes and all kinds of transfusion leather strap, and all kinds of fluid infusion are placed in the 3rd space (9).

In other embodiment, each sheaf space also can, according to the requirement of each section office self, be placed various first aid medicine and first-aid supply.

Further, preferably, be provided with the braces of adjustable in length on the lateral wall of box body (1), more convenient to carry.

In sum, this clinical transhipment Portable rescue case, the mini inner box of a plurality of separations of built-in bilayer, during first aid, lid is drawn to both sides rightabout rapid, built-in folding rod drives double-deck a plurality of separation inner boxs and highlights, each inner box is placed various first aid medicine and transfusion material, and dated drug identifier, be convenient to take, before being better than, " vegetable basket " formula is placed first aid medicine, and unclear classification, easily take medicine by mistake during first aid, the syringe needle in transit produced during first aid and glass peace are cutd open and are placed in the sharp instrument box configured, and avoid polluting and accident is hurted sb.'s feelings.

It should be noted that, in the claim and description of this patent, relational terms such as the first and second grades only is used for an entity or operation are separated with another entity or operating space, and not necessarily requires or imply between these entities or operation the relation of any this reality or sequentially of existing.And, term " comprises ", " comprising " or its any other variant are intended to contain comprising of nonexcludability, thereby make the process, method, article or the equipment that comprise a series of key elements not only comprise those key elements, but also comprise other key elements of clearly not listing, or also be included as the intrinsic key element of this process, method, article or equipment.In the situation that not more restrictions, the key element that " comprises " and limit by statement, and be not precluded within process, method, article or the equipment that comprises described key element and also have other identical element.

Although by reference some preferred implementation of the present utility model, this utility model is illustrated and describes, but those of ordinary skill in the art should be understood that and can do various changes to it in the form and details, and do not depart from spirit and scope of the present utility model.

Claims

1. A portable first aid box for clinical transfer, characterized in that it comprises: box body (1), box cover (2) and sharps box (3);

The edges on the opposite sides of the lid (2) are respectively hinged together with the box body (1) through hinges (5), and a handle (4) is arranged above the lid (2);

The box cover (2) is divided into two from the central axial position on both sides of the hinge (5), and the box cover divided into two halves is connected together by a lock (6) provided above the box cover;

The sharps box (3) is fixed on the outer surface of one side of the box body (1);

The inner space formed by the box body (1) and the box cover (2) is divided into three layers; the long folding rod (10) is placed on the side of the first floor space (7) with the hinge (12) as the axis, and is connected with the box body (1 ) sidewalls are hinged together; the short folding rod (11) is placed on the side of the second floor space (8) with the hinge (12) as the axis, and is hinged together with the sidewall of the box body (1); the box body ( 1) The inner space is the third floor space (9). the

2. The clinical transfer portable first-aid box according to claim 1, characterized in that, when the lid (2) is closed on the box body (1), the first layer of space (7) and the second layer of space (8) ) is folded and placed above the third floor space (9). the

3. The clinical transfer portable first aid box according to claim 2, characterized in that, when the box cover (2) is opened, the first layer space (7) and the second layer space (8) expand in a trapezoidal shape. the

4. The clinical transfer portable first aid box according to claim 3, characterized in that, the whole body of the sharps box (3) is fixed with a wire, and is adsorbed on one side of the box body (1) by two small suction cups on the outer side. the

5. The clinical transfer portable first aid box according to claim 3, characterized in that, the first layer of space (7) is divided into several inner boxes by partitions. the

6. clinical transfer portable first aid box according to claim 5, is characterized in that, the second floor space (8) is divided into several inner boxes by dividing plate. the

7. The clinical transfer portable first aid box according to claim 6, characterized in that a label is attached to the front of each inner box, and the name and measurement of the corresponding first aid medicine are marked on the label. the

8. The portable first-aid box for clinical transfer according to claim 7, characterized in that, the first layer of space (7) places various first aid medicines, the second layer of space (8) places various syringes and various types of leather straps for infusion, The third space (9) places various infusion fluids. the

9. The clinical transfer portable first aid box according to claim 8, characterized in that, the box body (1) and the box cover (2) are molded by die-casting of polypropylene engineering plastics. the

10. The clinical transfer portable first aid box according to claim 9, characterized in that, the outer wall of the box body (1) is provided with a strap with adjustable length. the
