Abstract

The utility model relates to a multifunctional sling chair which comprises a body. The bottom surface of the body is arc-shaped, a sunshade device is arranged on the head portion of the body, a storage groove is formed in one side of the body, the sunshade comprises a sunshade and a framework piece which is installed in the inner surface of the sunshade and is shrinkable, the framework piece is composed of a plurality of frameworks which are arc-shaped, two ends of the frameworks are fixed with the edges of the body through a same pin shaft, and the framework piece can rotate and shrink through pin shaft. The multifunctional sling chair is novel in structure, multiple in functions and humanized in design. When a user wants to read books, eat food, drink beverages and the like, the user can get the books, food and the beverages as long as stretching out hands. According to the design of the sunshade, the fact that the user gives up outdoors rest due to the fact that sunshine is dazzling is avoided, cost is low, and structure is simple.

Description

A kind of Multifunctional lounging chair

Technical field

The utility model relates to a kind of furniture, be specifically related to a kind of can storing, leisurely and carefree, practical Multifunctional lounging chair.

Background technology

Chaise longue is one of furniture with novel type and function and usage of Qing Dynasty's appearance, and chaise longue provides a kind of mode of loosening from body angle, and physical relaxation also causes psychological loosening.In the rhythm of life of day by day accelerating now, be that white collar crowd, designer, old man etc. need the health relaxed, using chaise longue to be used for having a rest is a kind of all well and good selection.

As everyone knows, existing used leisure reclining chair function ratio is more single, generally can only be used for allowing the people lie or sitting, and for other effect seldom, along with the raising of people's living standard with to the pursuit of personalized furniture, the design of existing used leisure reclining chair can not meet people's demand.

Chinese patent notification number CN 2506138 Y, August 21 2002 day for announcing, name is called chaise longue, this application case discloses a kind of chaise longue, belong to furniture facility technology field, be applicable to the use of lying fallow, by handrail, backrest face, the sitting face of lying, put leg face and foreleg, in leg, back leg and backrest leg form, the backrest face that handrail slip iron is hinged, the sitting face of lying, to put the leg face be that hard weedtree the fourth of the twelve Earthly Branches, tenon are fixedly connected with, and leg and stull are metallic stainless steel columns.Its weak point is, the function singleness of chaise longue.

The utility model content

The purpose of this utility model is the defect in order to solve existing chaise longue function singleness and a kind of Multifunctional lounging chair is provided.

To achieve these goals, the utility model is by the following technical solutions:

A kind of Multifunctional lounging chair, comprise body, and described body bottom surface is curved, and the body head is provided with the parasols device, and body one side has storage trough.In the technical program, the bottom surface of body is curved, and the element of cradle is dissolved in chaise longue, after the busy work in one day that is through with, by chaise longue put to outdoor and respite in the above for a moment, body and mind is loosened more, storage trough can be placed the objects such as beverage, mobile phone or books; During afternoon respite, if the eyes are affected by the sunlight, but the pull-up parasols can not feel sick because of sunlight when having a rest.

As preferably, described parasols device comprises parasols and the contractile skeleton that is contained in the parasols inner surface, and skeleton is comprised of some skeletons, and skeleton is arc, the two ends of described skeleton and body edges are fixed by same bearing pin, and skeleton can rotate contraction by bearing pin.In the technical program, parasols is collapsible, and the user can pack up or open parasols according to oneself requirement, designs more humane.

As preferably, the body upper surface is for sitting the Soft Roll face that lie for the people.In the technical program, the Soft Roll face allows the user lie by more comfortable seat.

The beneficial effects of the utility model:

1) the utility model novel structure, diverse in function, humanization designing, the user thinks that when rest reading, edible food, beverage etc. only need stretch out one's hand and can take;

2) parasols design of the present utility model can allow the user without abandoning having a rest out of doors because the eyes are affected by the sunlight, and cost is low, simple in structure.

The accompanying drawing explanation

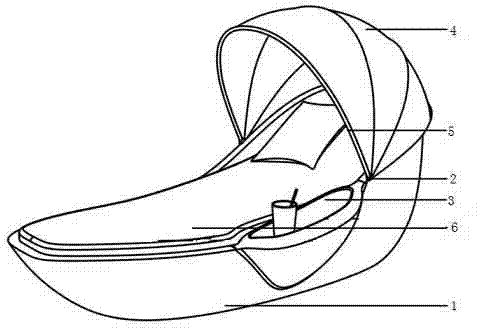

Fig. 1 is a kind of structural representation of the present utility model.

In figure, 1, body; 2, parasols device; 3, storage trough 4, parasols; 5, skeleton; 6, Soft Roll face.

The specific embodiment

Below in conjunction with specific embodiment and accompanying drawing, the utility model is further explained:

With reference to Fig. 1, a kind of Multifunctional lounging chair, comprise body 1, and described body 1 bottom surface is curved, and body 1 head is provided with parasols device 2, and body one side has storage trough 3.Parasols device 2 comprises parasols 4 and the contractile skeleton 5 that is contained in parasols 4 inner surfaces, skeleton 5 is comprised of some skeletons, skeleton is arc, the two ends of described skeleton and body edges are fixed by same bearing pin, and skeleton 5 can rotate and shrink body 1 upper surface for sitting the Soft Roll face 6 of lying for the people by bearing pin.

Chaise longue is designed to the appearance of cradle, after the busy work in one day that is through with, by chaise longue put to outdoor and respite in the above for a moment, body and mind is loosened more, storage trough can be placed the objects such as beverage, mobile phone or books; During afternoon respite, if the eyes are affected by the sunlight, but the pull-up parasols can not feel sick because of sunlight when having a rest.

Claims

1. a Multifunctional lounging chair, comprise body (1), it is characterized in that, described body (1) bottom surface is curved, body (1) head is provided with parasols device (2), body one side has storage trough (3), described parasols device (2) comprises parasols (4) and the contractile skeleton (5) that is contained in parasols (4) inner surface, skeleton (5) is comprised of some skeletons, skeleton is arc, the two ends of described skeleton and body edges are fixed by same bearing pin, and skeleton (5) can rotate contraction by bearing pin.

2. a kind of Multifunctional lounging chair according to claim 1, is characterized in that, body (1) upper surface is for sitting the Soft Roll face (6) of lying for the people.
