Abstract
The utility model discloses a teaching aid for English word translation training. Practicing balls adopting tumbler design are arranged in a square box of the teaching aid, and English word patterns are arranged at the tops of the ball surfaces. Multiple rows of hemispherical grooves are evenly arranged on a practicing ball placing stand in the ball box, and the upper surfaces of the grooves are provided with Chinese translation characters corresponding to the English word patterns. A magnet is inlayed on the left side groove edge of each groove, and an iron sheet is inlayed at each junction position of hollow bodies and solid bodies on the left sides of the ball surfaces of the practicing balls. The teaching aid for English word translation training has the advantages of integrating knowledge and interestingness and having wide application range, is especially suitable for group practice and competition and can effectively improve learning interesting and translation level of users.
Description
Technical field
The utility model relates to a kind of English word translation training aid.
Background technology
In learning English, the word translation exercise is an important content of carrying throughout.Even if possessed certain English level, also need to continue the training of this respect.Because English glossary quantity just now looks like a slice sea, the major part that people have skillfully grasped is all some common wordss wherein, and when people set foot in some special dimensions, people also need grasp enough specialized vocabularies.Have, along with the mankind's development and progress, English common wordss itself are also in continuous expansion again, and untimely replenishing will be fallen behind.Therefore, the English word translation exercise is the conventional subject that we must often adhere to., in the word translation exercise, the intelligent interest type training tool of some particular design of employing, not only be conducive to increase learning interest, also can improve learning efficiency significantly.
Summary of the invention
Goal of the invention of the present utility model is to provide a kind of English word translation training aid, and this teaching aid not only can help people to increase fast vocabulary rapidly, can also improve people's learning interest.
The technical solution of the utility model is: this English word translation training aid is contained in a rectangular box, and the box body of rectangular box is identical with the lid shape, interconnects by hinge.Medicine ball is housed in rectangular box, and the episphere of medicine ball is hollow body, and lower semisphere is solid, on the episphere end face with the English word pattern.Plane formula medicine ball laying rack is housed in box body, evenly is provided with the hemispheric groove of many rows on the medicine ball laying rack, the upper surface of groove is with the middle translation word corresponding with English word pattern on the medicine ball end face.The left side of groove groove along on stud with a magnet, stud with an iron sheet at the hollow body in medicine ball sphere left side and the intersection of solid.
Using method of the present utility model is first all medicine ball to be carried out " shuffling " in lid, makes it to be disordered state.After the beginning timing, with hand or chopsticks, medicine ball is picked up, be put on laying rack among the groove with translation word in correspondence.Because medicine ball has adopted in midair, half real roly-poly type designs, determined upper and lower to stationary state, stud with magnet due on the left of the laying rack upper groove, the left side of medicine ball sphere studs with iron sheet, and magneticaction has been determined again the left and right orientation under its stationary state.The English word that can guarantee medicine ball sphere top faces the practitioner.
The utility model has the advantages that this English word translation training aid integrates intellectual and interest, the difficulty of word setting can deeply can be easy, has the scope of application widely.Be particularly suitable for carrying out the exercise contest of some groups, can effectively improve user's learning interest and translation skill.This teaching aid can also be used for the translation between two kinds of different foreign language words except being used for the translation between Chinese and English word.
Description of drawings
Below in conjunction with the drawings and specific embodiments, the utility model is described in detail.

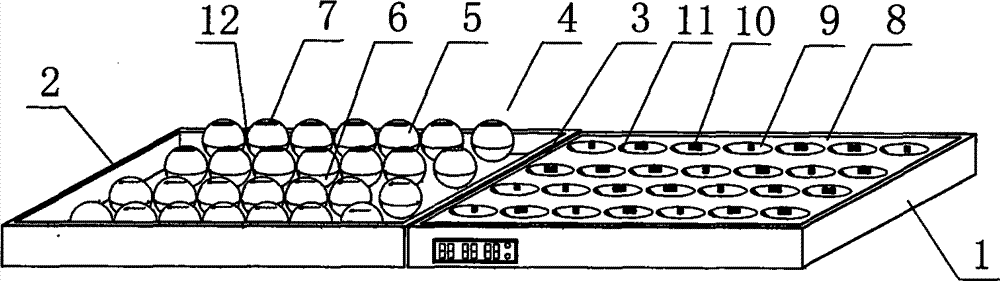

Fig. 1 is structural representation of the present utility model.
Fig. 2 is the structural representation of medicine ball and groove in Fig. 1.
Number in the figure:
1, box body 2, lid 3, hinge 4, medicine ball 5, hollow section
6, solid area 7, English word pattern 8, medicine ball laying rack 9, groove
10, middle translation word 11, magnet 12, iron sheet.
Embodiment
Example
As shown in Figure 1, this English word translation training aid is contained in a rectangular box, and the box body 1 of rectangular box is identical with lid 2 shapes, interconnects by hinge 3.Medicine ball 4 is housed in rectangular box, and the episphere of medicine ball 4 is hollow body 5, and lower semisphere is solid 6, for roly-poly type designs, on the episphere end face with English word pattern 7.
Plane formula medicine ball laying rack 8 is housed in box body 2, evenly is provided with the hemispheric groove 9 of many rows on medicine ball laying rack 8, the upper surface of groove 9 is with the middle translation word 10 corresponding with English word pattern 7 on medicine ball 4 end faces.The left side of groove 9 groove along on stud with a magnet 11, stud with an iron sheet 12 at the hollow body 5 in medicine ball sphere left side and the intersection of solid 6.See Fig. 2.
Claims (1)
1. an English word is translated training aid, it is characterized in that: this English word translation training aid is contained in a rectangular box, and the box body of rectangular box (1) is identical with lid (2) shape, interconnects by hinge (3); Medicine ball (4) is housed in rectangular box, and the episphere of medicine ball (4) is hollow body (5), and lower semisphere is solid (6), on the episphere end face with English word pattern (7); Plane formula medicine ball laying rack (8) is housed in box body (2), evenly be provided with many row's hemispheric grooves (9) on medicine ball laying rack (8), the upper surface of groove (9) is with the middle translation word (10) corresponding with English word pattern (7) on medicine ball (4) end face; The left side groove of groove (9) along on stud with a magnet (11), stud with an iron sheet (12) at the intersection of the upper sphere left side hollow body (5) of medicine ball (4) and solid (6).
