CN202932893U - Practical stomatoscope - Google Patents
Practical stomatoscope Download PDFInfo
- Publication number
- CN202932893U CN202932893U CN 201220532581 CN201220532581U CN202932893U CN 202932893 U CN202932893 U CN 202932893U CN 201220532581 CN201220532581 CN 201220532581 CN 201220532581 U CN201220532581 U CN 201220532581U CN 202932893 U CN202932893 U CN 202932893U
- Authority
- CN
- China
- Prior art keywords
- handle
- mirror
- stomatoscope
- utility
- practical
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Dental Tools And Instruments Or Auxiliary Dental Instruments (AREA)
Abstract
The utility model discloses a practical stomatoscope which comprises a handle and a scope, wherein the handle adopts a telescopic structure, one end of the handle is connected with the scope, the other end of the handle is detachably connected with a hook needle, a flashlight is further arranged on one side of the handle, and the flashlight is connected with the handle through a universal pipe. According to the utility model, the hook needle and a light source are integrally combined with the stomatoscope, the hook needle and the flashlight serving as a light source are not required to be collocated individually, and the practical stomatoscope is enabled to be more flexible and convenient in operation, and is time-saving and labor-saving.
Description
Technical field
This utility model belongs to medical instruments field, is specifically related to a kind of dental mirror of practicality.
Background technology
Clinically, common dental mirror function singleness only has and visits the mirror function, sometimes needs to use bearded needle when giving patient diagnosis, but present spy mirror and bearded needle are and separate, and have brought inconvenience to health care worker; And when using dental mirror, generally all can illuminate with lamp, present dental mirror is all to utilize independent light source, when sufferer is more, can bother very much.
Summary of the invention
Technical problem to be solved in the utility model is for above-mentioned the deficiencies in the prior art, and a kind of dental mirror of practicality is provided, and it is simple in structure, and is convenient and practical.
The technical scheme that this utility model adopts is: a kind of dental mirror of practicality, comprise handle and visit mirror, described handle is a telescopic structure, and an end of handle is connected with the spy mirror, the other end bearded needle that removably connects, one side of described handle also is provided with a pocket lamp, and this pocket lamp is connected with handle by a Universal pipe.
As preferably, describedly be detachably connected as clamping.
The beneficial effects of the utility model are: this utility model is combined as a whole bearded needle and light source and dental mirror.No longer need independent configuration bearded needle and the pocket lamp that sends light source, make it more flexible in operation, convenient, time saving and energy saving.
Description of drawings

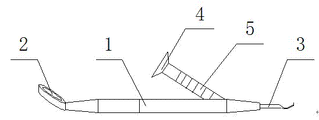

Fig. 1 is structural representation of the present utility model.
In figure: 1, hands handle; 2, visit mirror; 3, bearded needle; 4, pocket lamp; 5, Universal pipe.
The specific embodiment
Below in conjunction with the accompanying drawings and the specific embodiments this utility model is described in further detail.
Embodiment: as shown in Figure 1, this utility model comprises handle 1 and spy mirror 2, and described handle 1 is a telescopic structure, and an end of handle 1 is connected with spy mirror 2, other end clamping one bearded needle 3, a side of described handle 1 also is provided with a pocket lamp 4, and this pocket lamp 4 is connected with handle 1 by a Universal pipe 5.
This utility model is combined as a whole bearded needle 3 and light source and dental mirror.No longer need independent configuration bearded needle 3 and the pocket lamp 4 that sends light source, make it more flexible in operation, convenient, time saving and energy saving.
Claims (2)
1. the dental mirror of a practicality, comprise handle (1) and visit mirror (2), it is characterized in that: described handle (1) is a telescopic structure, and an end of handle (1) is connected with spy mirror (2), the other end bearded needle (3) that removably connects, one side of described handle (1) also is provided with a pocket lamp (4), and this pocket lamp (4) is connected with handle (1) by a Universal pipe (5).
2. the dental mirror of practicality according to claim 1 is characterized in that: describedly be detachably connected as clamping.
