Abstract
一种新型物流周转箱，包括箱体、箱内壁、加强筋，所述箱体的底部设有加强筋，箱体的两个底角设有箱角，箱体底部设有箱内壁，所述箱内壁与箱外壁设有钢板，使箱体形成三层结构。
A new type of logistics turnover box, including a box body, a box inner wall, and reinforcing ribs, the bottom of the box body is provided with reinforcing ribs, the two bottom corners of the box body are provided with box corners, and the bottom of the box body is provided with a box inner wall. The inner wall of the box and the outer wall of the box are provided with steel plates, so that the box body forms a three-layer structure.
Description
技术领域： Technical field:
本实用新型涉及一种物流行业广泛应用的周转箱，具体是涉及一种新型物流周转箱。 The utility model relates to a turnover box widely used in the logistics industry, in particular to a novel logistics turnover box.
背景技术： Background technique:
随着现代物流业的飞速发展，周转箱的用量越来越广泛、使用场合也越来越多，但是，现有技术中的周转箱，一般采用塑料铸造成型，由于周转箱的底板经常受压，因此周转箱容易磨损，利用的时间不长。 With the rapid development of the modern logistics industry, turnover boxes are used more and more widely, and there are more and more use occasions. However, the turnover boxes in the prior art are generally molded by plastic casting, because the bottom plate of the turnover box is often under pressure. , so the turnover box is easy to wear and the use time is not long.
实用新型内容： Utility model content:
针对上述不足，本实用新型的目的在于提供一种美观、不易损坏、方便清洗的一种新型物流周转箱，该周转箱将箱体的两个底边角处设计成双层加强结构。 In view of the above shortcomings, the purpose of this utility model is to provide a new type of logistics turnover box that is beautiful, not easy to damage, and easy to clean. The turnover box is designed with a double-layer reinforced structure at the two bottom corners of the box body.
本实用新型解决其技术问题所采用的技术方案是： The technical scheme that the utility model solves its technical problem adopts is:
一种新型物流周转箱，包括箱体、箱内壁、加强筋，所述箱体的底部设有加强筋，箱体的两个底角设有箱角，箱体底部设有箱内壁，所述箱内壁与箱外壁设有钢板，使箱体形成三层结构。 A new type of logistics turnover box, including a box body, a box inner wall, and reinforcing ribs, the bottom of the box body is provided with reinforcing ribs, the two bottom corners of the box body are provided with box corners, and the bottom of the box body is provided with a box inner wall. The inner wall of the box and the outer wall of the box are provided with steel plates, so that the box body forms a three-layer structure.
本实用新型的有益效果是： 本实用新型设计合理、操作方便、结构简单、外观美观、不易损坏，通过设置加强筋和钢板，可使周转箱使用寿命大幅度延长。 The beneficial effects of the utility model are as follows: The utility model has reasonable design, convenient operation, simple structure, beautiful appearance, and is not easy to be damaged, and the service life of the turnover box can be greatly extended by setting reinforcing ribs and steel plates.
附图说明： Description of drawings:

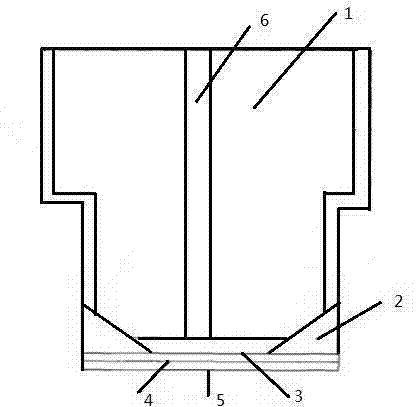

图1是一种新型物流周转箱的结构示意图： Figure 1 is a schematic diagram of the structure of a new type of logistics turnover box:
附图标记说明：1、箱体，2、箱角，3、箱内壁，4、钢板，5、箱外壁，6、加强筋。 Explanation of reference signs: 1. box body, 2. box corner, 3. box inner wall, 4. steel plate, 5. box outer wall, 6. reinforcing rib.
具体实施方式： Detailed ways:
一种新型物流周转箱，包括箱体（1）、箱内壁（3）、加强筋（6），所述箱体（1）的底部设有加强筋（6），箱体（1）的两个底角设有箱角（2），箱体（1）底部设有箱内壁（3），所述箱内壁（3）与箱外壁（5）设有钢板（4），使箱体（1）形成三层结构，通过设置加强筋（6）和钢板（4），可使周转箱使用寿命大幅度延长。 A new type of logistics turnover box, including a box body (1), an inner wall of the box (3), and a reinforcement rib (6). The bottom of the box body (1) is provided with a reinforcement rib (6). A bottom corner is provided with a box corner (2), and the bottom of the box body (1) is provided with a box inner wall (3), and the box inner wall (3) and the box outer wall (5) are provided with steel plates (4), so that the box body (1) ) to form a three-layer structure, and the service life of the turnover box can be greatly extended by setting the reinforcing rib (6) and the steel plate (4).
