CN202919401U

CN202919401U - Novel leisure type desk

Info

Publication number: CN202919401U
Application number: CN 201220681918
Authority: CN
Inventors: 梁光胜; 魏敏; 赖程鹏; 谢裕清; 蒋玮栋; 崔文哲; 熊雪艳
Original assignee: North China Electric Power University
Current assignee: North China Electric Power University
Priority date: 2012-12-11
Filing date: 2012-12-11
Publication date: 2013-05-08
Anticipated expiration: 2022-12-11

Abstract

The utility model discloses a desk and particularly a novel leisure type desk which consists of air vent and feeding holes, detachable desktop glass, a desk chamber, a fish jar, desk legs, and a feeding tube, wherein the desk chamber is fixedly mounted above the four desk legs which are vertically arranged, the fish jar is mounted in the desk chamber, the detachable desktop glass is fixed above the desk chamber, and front parts and rear parts of upper parts of left and right walls of the desk chamber below the detachable desktop glass are respectively provided with four air vent and feeding holes. The novel leisure type desk is advantaged by simple and reasonable design, ease of operation, improvement of study and work environment, and joy added to life.

Description

A kind of Novel leisure formula desk

Technical field

The utility model relates to a kind of desk, particularly a kind of Novel leisure formula desk.

Background technology

Along with quickening and the growth in the living standard of people's rhythm of life, it is fine that increasing people thirst for comfortable working environment, can be in fine working and learning simultaneously, more Our Nature again, thus reduce tired, the efficient of raising work.But present desk seldom has such theory in design, based on this starting point, the utility model is utilizing limited space, from the principle of being convenient to implement and safeguard, with desk with view and admire fish jar and combine, a kind of novel leisure type desk design is proposed.This scheme can also be appreciated lively and lovely fish when satisfying the daily study and work requirement of people.

The utility model content

To thirst for comfortable working environment not fine for satisfying people in the design of present desk for the utility model, can well work at work and deficiency that can Our Nature, proposed a kind of Novel leisure formula desk.

A kind of Novel leisure formula desk, this desk is comprised of ventilation hold concurrently feeding hole 1, detachable desk surface glass 2, table chamber 3, fish jar 4, table leg 5, and this desk also comprises TF 6, wherein,

Article four, the top of vertically placing table leg 5 is installed with a chamber 3, fish jar 4 is equipped with in 3 inside in the table chamber, detachable desk surface glass 2 be fixed on a chamber 4 above, the front and rear on wall top, left and right in the table chamber 4 below detachable desk surface glass 2 offers respectively four ventilations that are connected with fish jar 4 feeding holes 1 of holding concurrently.

The beneficial effects of the utility model: the utility model simplicity of design is reasonable, and easy operating is conducive to improve the study and work environment, for life increases enjoyment.

Description of drawings

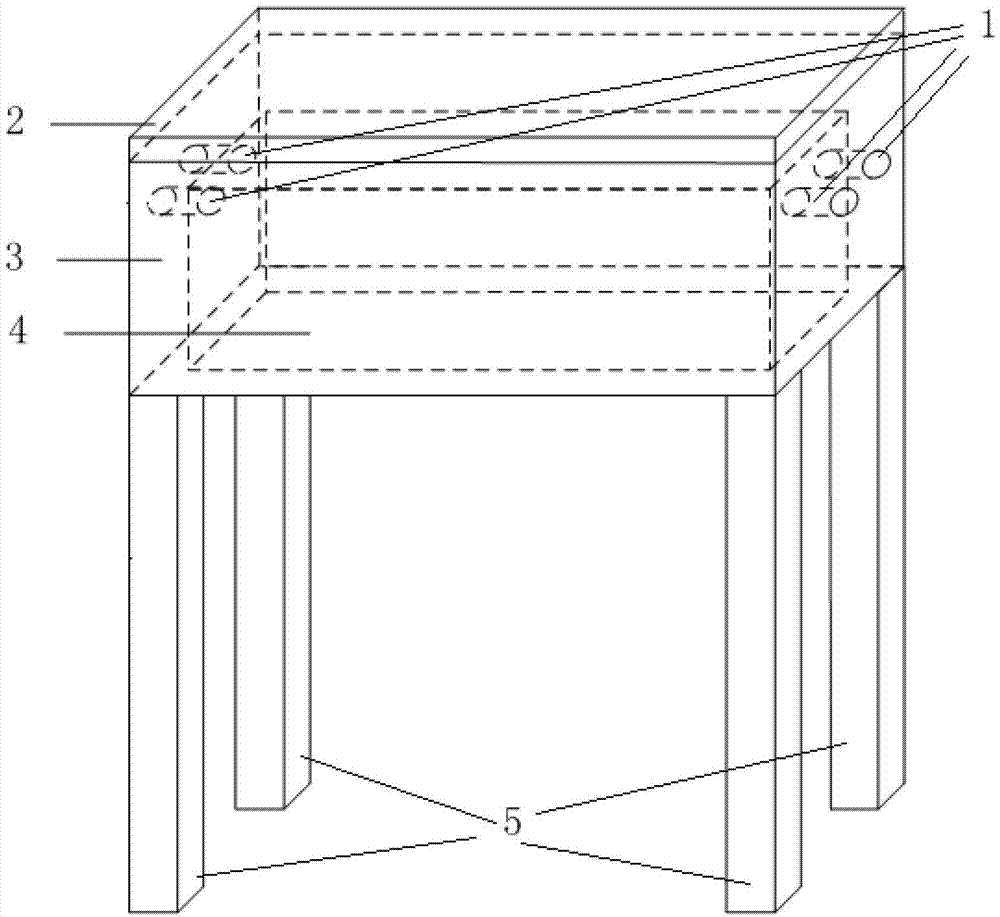

Fig. 1 is the overall structure schematic diagram;

Fig. 2 is the TF structural representation;

Wherein, 1-ventilation hold concurrently feeding hole, 2-detachable desk surface glass, 3-table chamber, 4-fish jar, 5-table leg, 6-TF.

The specific embodiment

As illustrated in fig. 1 and 2, the specific embodiment of the utility model design is as follows:

During 1, as desk, the using method with general desk of the utility model design is the same, when the user need to learn or work, only needs that book or computer are put in desktop and gets final product.

2, when needs are changed the water in fish jar or cleaned fish jar, detachable desk surface glass 2 can be removed, after water to be changed is completed or cleaned and completes, then detachable desk surface glass 2 be covered.

3, when needs during to the fish feeding, the user can directly be placed on the fish food in TF 6, and TF 6 is inserted the ventilation feeding hole 1 of holding concurrently, and after certain angle that tilts, the fish food can slip in fish jar 4 due to Action of Gravity Field, has so just realized to the fish feeding.

Claims

1. a Novel leisure formula desk, is characterized in that, this desk is comprised of the double feeding hole (1) of taking a breath, detachable desk surface glass (2), a chamber (3), fish jar (4), table leg (5), and this desk also comprises TF (6), wherein,

Article four, the top of the table leg (5) of vertically placing is installed with a chamber (3), detachable desk surface glass (2) be fixed on a chamber (4) above, in the inside in table chamber (3), fish jar (4) is housed, the front and rear on the wall top, left and right in the table chamber (3) below detachable desk surface glass (2) offers respectively the double feeding hole (1) of four ventilations that is connected with fish jar (4).
