The utility model discloses a punching riveting die with multiple punches, and the punching riveting die with multiple punches includes a base plate. A stamping template moving top-and bottom is arranged on the base plate, multiple punches are arranged on the lower surface of the template, and a stamping base template is arranged on the base plate corresponding to the multiple punches. The punching riveting die with the multiple punches has a reasonable structure, and is provided with the multiple punches so as to carry out the punching riveting operation at multiple positions of the workpiece under the punching action of a press, greatly improve the production efficiency and to shorten the production cycle.

Description

A kind of be provided with a plurality of drifts rush the riveting mould
Technical field
The utility model relates to the riveting equipment that rushes, particularly a kind of be provided with a plurality of drifts rush the riveting mould.
Background technology
In the prior art, in suitability for industrialized production, usually need the working pressure machine to workpiece rush, the processing such as riveting operation, existing pattern is generally single drift, does not have special-purpose mould, can only rush, station of riveting at every turn, efficient is very low, is difficult to satisfy need of production.
Summary of the invention
The purpose of this utility model is, for the problems referred to above, provide a kind of reasonable in design be provided with a plurality of drifts rush the riveting mould, it is provided with a plurality of drifts, thereby can be under the one-shot effect of forcing press rush the riveting operation to what workpiece carried out a plurality of positions, greatly improve production efficiency, shortened the production cycle.
The technical scheme that the utility model adopts for achieving the above object is:
A kind of be provided with a plurality of drifts rush the riveting mould, it comprises base plate, is provided with a punching template moving up and down in this base plate, is provided with several drifts in the lower surface of this template, on this base plate to being provided with a punching press bed die by several drifts.
Described drift is fixed on this punching template by a fixed block.
Described base plate is provided with some guide rods, and this punching template can be placed on the described guide rod up or down.
The beneficial effects of the utility model are: the utility model is rational in infrastructure, and it is provided with a plurality of drifts, thereby can be under the one-shot effect of forcing press rushes the riveting operation to what workpiece carried out a plurality of positions, has greatly improved production efficiency, has shortened the production cycle.
Below in conjunction with accompanying drawing and embodiment, the utility model is further specified.
Description of drawings

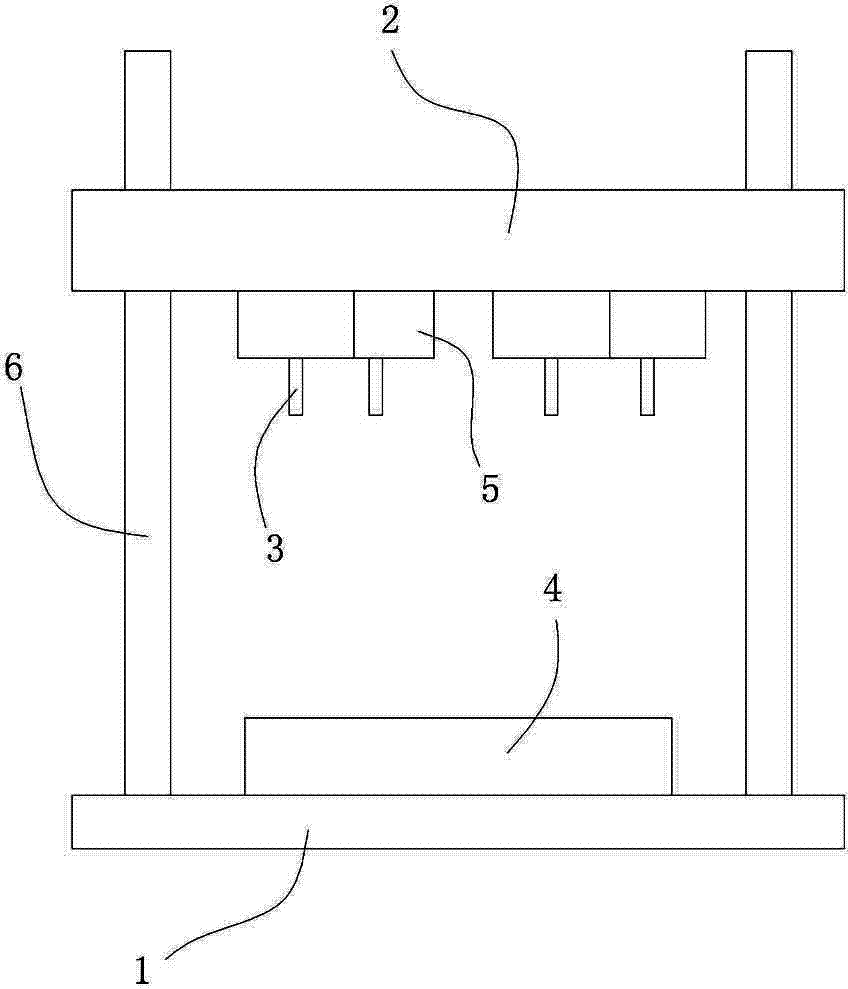

Fig. 1 is structural representation of the present utility model.
The specific embodiment
Embodiment: see Fig. 1, the utility model is a kind of be provided with a plurality of drifts rush the riveting mould, it comprises base plate 1, be provided with a punching template 2 moving up and down in this base plate 1, lower surface in this template is provided with several drifts 3, on this base plate 1 to being provided with a punching press bed die 4 by several drifts 3.
Described drift 3 is fixed on this punching template 2 by a fixed block 5.
Described base plate 1 is provided with some guide rods 6, and this punching template 2 can be placed on the described guide rod 6 up or down.
The utility model is rational in infrastructure, and it is provided with a plurality of drifts 3, thereby can be under the one-shot effect of forcing press rushes the riveting operation to what workpiece carried out a plurality of positions, has greatly improved production efficiency, has shortened the production cycle.
As described in the utility model embodiment, rush the riveting mould with other of the same or similar structure of the utility model are provided with a plurality of drifts, all in the utility model protection domain.

Claims (3)

  1. One kind be provided with a plurality of drifts rush the riveting mould, it comprises base plate, it is characterized in that: be provided with a punching template moving up and down in this base plate, be provided with several drifts in the lower surface of this template, on this base plate to being provided with a punching press bed die by several drifts.
  2. According to claim 1 be provided with a plurality of drifts rush the riveting mould, it is characterized in that, described drift is fixed on this punching template by a fixed block.
  3. According to claim 1 be provided with a plurality of drifts rush the riveting mould, it is characterized in that, described base plate is provided with some guide rods, this punching template can be placed on the described guide rod up or down.
