Abstract
The utility model discloses a convenient thermos which comprises a thermos cover, a thermos cork, a handle and a thermos body. The convenient thermos is characterized in that the thermos cork is fixed below the thermos cover, the thermos cover is connected with a pressing handle through a supporting lever, a fulcrum of the supporting lever is fixed at the position of a thermos neck of the thermos body, and the pressing handle is installed in the handle. The convenient thermos is simple in structure, convenient to operate and capable of bringing conveniences for daily life of people.
Description
Technical field
The utility model belongs to the articles for daily use field, relates to a kind of thermos bottle.
Background technology
Thermos bottle, the product of the indispensability of people's daily life.The thermos bottle of selling in the market, wooden bottle stopper is what to separate with body; Hold on the other hand water tumbler people, need when falling hot water on one side, need cup is put down, use again hand-lifting bottle falling plug pouring.Such two hands are switched back and forth, and pouring is very inconvenient.
Summary of the invention
For the deficiency that prior art exists, the purpose of this utility model is, a kind of Convenient type thermos bottle is provided, and can use the same hand to open easily or closed closure when picking up thermos bottle.
In order to realize above-mentioned task, the utility model adopts following technical scheme to be achieved:
A kind of Convenient type thermos bottle comprises bottle cap, bottle stopper, handle and body, it is characterized in that, bottle stopper is cemented in below the bottle cap, and bottle cap connects by support lever and by palmistry, and the support lever fulcrum is fixed on the bottleneck of body, is installed in handle inside by hand.
Description of drawings

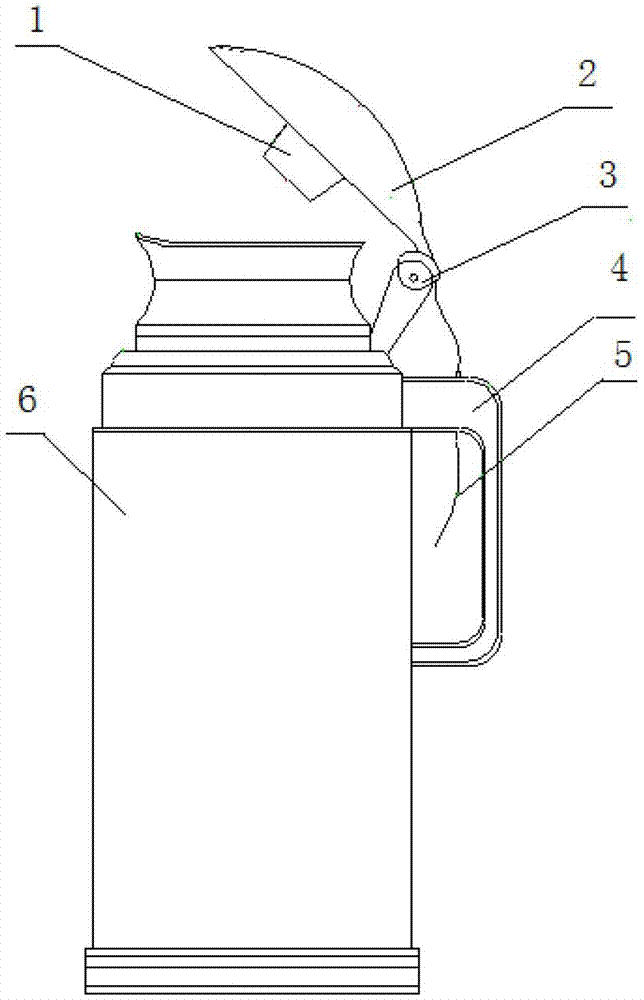

Fig. 1 is the side structure schematic diagram of Convenient type cap when partially opening;
Fig. 2 is the side structure schematic diagram of Convenient type cap when closing;
Fig. 3 is the Facad structure schematic diagram of Convenient type cap when opening fully.
Wherein, each part has: the 1-bottle stopper, and the 2-bottle cap, the 3-support lever, the 4-handle, 5-presses hand, the 6-body.
Below in conjunction with drawings and Examples particular content of the present utility model is described in more detail.
The specific embodiment
Below provide specific embodiment of the utility model, need to prove that the utility model is not limited to following specific embodiment, all equivalents of doing on present techniques scheme basis all fall into protection domain of the present utility model.
Defer to technique scheme, as shown in Figure 1, when needs during toward cup the inside pouring, the people can take cup on the other hand, takes on the other hand thermos bottle, and pinches simultaneously and press hand 5, bottle cap 2 and with it fixed bottle stopper 1 also just upwardly open, at this time pouring is just very efficient and convenient.After being finished down water, unclamping and press hand 5, bottle cap 2 can fall automatically, and bottle stopper 1 also just embeds in the bottleneck tightly simultaneously, as shown in Figure 2, can keep well water temperature.As shown in Figure 3, when people in the water bottle during dress water, only pinch the tightlyest by hand 5 with handle, bottle cap 2 will be opened to maximum angle, water receiving is very convenient.
Claims (1)
1. Convenient type thermos bottle, comprise bottle stopper (1), bottle cap (2), handle (4) and body (6), it is characterized in that, bottle stopper (1) is cemented in below the bottle cap (2), bottle cap (2) by support lever (3) with link to each other by hand (5), support lever (3) fulcrum is fixed on the bottleneck of body (6), is installed in handle (4) inside by hand (5).
