Abstract

The utility model relates to the field of furniture technology, and in particular to a combination furniture. The utility model includes a bed, a cabinet and a table; wherein the cabinet includes a wardrobe and a shoe cabinet, the shoe cabinet is located on the left side of the rear of the bed and fits with the rear side of the bed, the wardrobe is located on the right side of the rear of the bed, a gap is provided between the wardrobe and the bed, and a ladder is provided in the gap, the upper end of the ladder is connected to the upper end of the front side of the shoe cabinet, the cabinet is provided at the upper rear of the shoe cabinet, and the right end of the cabinet is connected to the wardrobe. The utility model integrates a bed, a cabinet and a table into one, which is convenient for study and life and can improve the comfort of life.

Description

a combination of furniture

technical field

The utility model relates to the technical field of furniture, in particular to a combined furniture.

Background technique

With the development of society, people have higher and higher requirements for the comfort of life. At present, in student apartments, beds, cabinets, and tables are all separated; It is not always possible to find a place in the study room or classroom, which brings great inconvenience to study. At the same time, the cabinet is far away from the bed, so it is very inconvenient to change pajamas at night.

Contents of the invention

The purpose of the utility model is to provide a combined furniture for the deficiencies of the prior art. The combined furniture integrates a bed, a cabinet and a table to facilitate study and life.

In order to achieve the above object, the utility model is realized through the following technical solutions.

A combination of furniture, including a bed, a cabinet and a table; wherein the cabinet includes a wardrobe and a shoe cabinet, the shoe cabinet is located on the rear left side of the bed and is attached to the rear side of the bed, the wardrobe is located on the rear right side of the bed, and the wardrobe There is a gap between the bed and the bed, and a ladder is arranged in the gap. The upper end of the ladder is connected to the upper front end of the shoe cabinet. The table is arranged at the upper rear of the shoe cabinet, and the right end of the table is connected to the wardrobe.

Further, the bed is a bunk bed, including an upper bed board and a lower bed board, wherein the upper end surface of the upper bed board is higher than the upper end surface of the shoe cabinet.

Further, a small cabinet or drawer is provided at the lower right end of the table.

Further, the bed is provided with a tailgate.

Further, support boards are provided on both sides of the bed.

Furthermore, a window is provided in the middle of the support plate.

The orientation names such as left and right in this application document are intended to help explanation, not to limit the technical solution.

The beneficial effect of the utility model is that: the utility model integrates a bed, a cabinet and a table into one body, which is convenient for study and life, and can improve the comfort of life.

Description of drawings

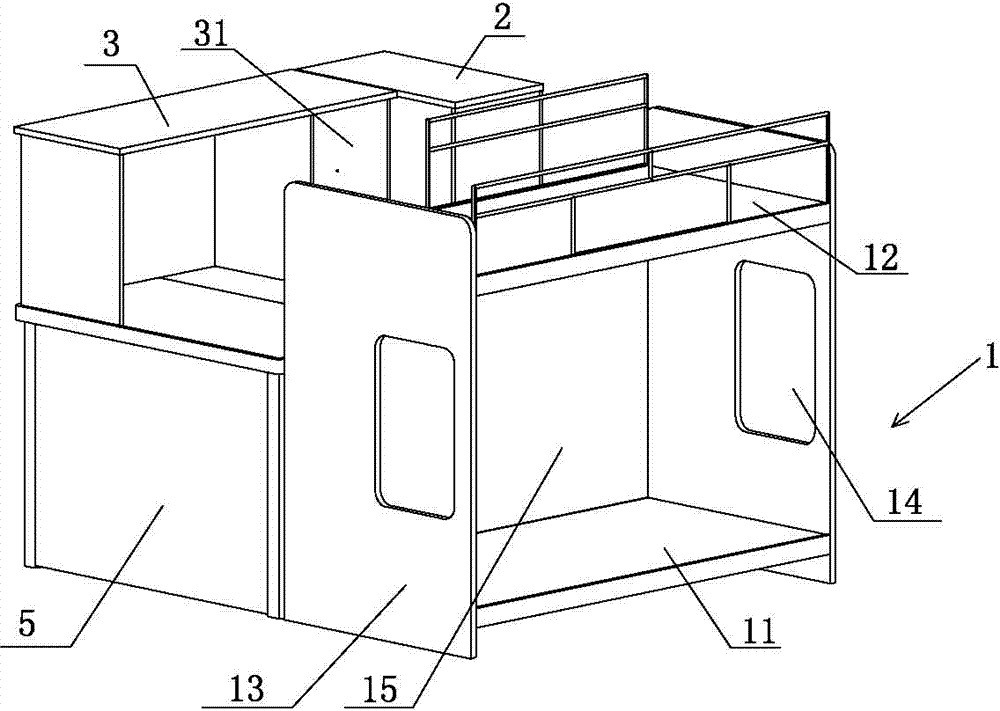

Fig. 1 is the structural representation of the utility model.

FIG. 2 is a schematic diagram of another perspective of FIG. 1 .

Reference signs:

1——Bed 2—Wardrobe

3——Table 4——Ladder

5——Shoe cabinet 11——Bottom board

12——upper board 13——support board

14 - window 15 - tailgate

31 - small cabinet.

Detailed ways:

Referring to Fig. 1 and Fig. 2, the utility model will be described in detail below in conjunction with the accompanying drawings.

A combination of furniture, including a bed 1, a cabinet and a table 3; wherein the cabinet includes a wardrobe 2 and a shoe cabinet 5, the shoe cabinet 5 is located on the rear left side of the bed 1 and is attached to the rear side of the bed 1, and the wardrobe 2 Located on the right side of the rear of the bed 1, there is a gap between the wardrobe 2 and the bed 1 and a ladder 4 is provided in the gap, the upper end of the ladder 4 is connected to the front upper end of the shoe cabinet 5, and the table 3 is arranged on the shoe cabinet 5 and the right end of table 3 is connected with wardrobe 2.

When this embodiment is implemented, in order to improve the space utilization rate, the left side of the shoe cabinet 5 is flush with the left side of the bed 1; The right side of the shoe cabinet is flush; the utility model integrates the bed 1, the cabinet and the table 3, which is convenient for life and study. When learning is required, the table 3 can be used by directly climbing to the top of the shoe cabinet 5 through the ladder 4; and the cabinet It is very close to bed 1, and it is very convenient to change clothes. At the same time, the right end of the table 3 is connected with the wardrobe 2, which can reduce table legs and save materials.

Further, the bed 1 is a bunk bed, including an upper bed board 12 and a lower bed board 11 , wherein the upper end surface of the upper bed board 12 is higher than the upper end surface of the shoe cabinet 5 .

Set bed 1 as a bunk bed for two people, saving space. Certainly also can be that the upper bed board 12 is used for sleeping, and the lower bed board 11 is used for preventing articles.

Further, a small cabinet 31 or a drawer is provided at the lower right end of the table 3 .

Small cabinets 31 or drawers are provided, which can be used to place articles, such as books; avoid piling up on the desktop and waste the use area of the desktop.

Further, the bed 1 is provided with a tailgate 15 .

Tailgate 15 is set, bed 1 is separated from the working area behind it, and does not interfere with each other; simultaneously tailgate 15 can be used as the supporting part of shoe cabinet 5 front side, makes the top plate of shoe cabinet 5 can bear bigger gravity.

Further, support boards 13 are provided on both sides of the bed 1 .

The upper and lower beds are supported by the support plate 13, so that the bed is more stable.

Furthermore, a window 14 is provided in the middle of the support plate 13 .

Setting the window 14 in the middle of the support plate 13 can increase the field of view; meanwhile, it can also be used for temporarily placing items.

The above content is only a preferred embodiment of the present utility model. For those of ordinary skill in the art, according to the idea of the present utility model, there will be changes in the specific implementation and scope of application. The content of this specification should not be understood as Limitations on the Invention.
