CN202897055U - Drinking water container with adjustable volume - Google Patents
Drinking water container with adjustable volume Download PDFInfo
- Publication number
- CN202897055U CN202897055U CN 201220495386 CN201220495386U CN202897055U CN 202897055 U CN202897055 U CN 202897055U CN 201220495386 CN201220495386 CN 201220495386 CN 201220495386 U CN201220495386 U CN 201220495386U CN 202897055 U CN202897055 U CN 202897055U
- Authority
- CN
- China
- Prior art keywords
- main body
- container
- drinking water
- water container
- lid
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Portable Outdoor Equipment (AREA)
- Closures For Containers (AREA)
Abstract
The utility model discloses a drinking water container with an adjustable volume, and belongs to the technical field of living tools. The drinking water container comprises a cover and a container body. The container body is in a cylindrical structure, and comprises a body upper portion and a body lower portion. A telescopic pipe portion is connected between the body upper portion and the body lower portion. The telescopic pipe portion is formed by connecting a plurality of telescopic joints, and then a ripple-shaped hollow pipe is formed. The upper end of the body upper portion extends so as to form a body neck portion and a bottleneck. The cover is connected with the body neck portion in a threaded mode. The drinking water container is a compressional type container. A user can compress a bottle body as drink in the container gradually reduces so that size of the drinking water container can be reduced. The drinking water container is convenient to carry.
Description
Technical field
The utility model relates to a kind of drinking vessel, belongs to technical field of living goods.
Background technology
At present, people travel outdoors, when going on business, bottled mineral water, green tea, fruit juice etc. are the equipment of its indispensability often.Beverage in bottle has been drunk after the part, and the idle volume of understanding some takes up room.Although the beverage bottle of small size is arranged on the market, often can not satisfy again customer's the demand of quoting, so in the urgent need to the portable drinking vessel that substantially can satisfy again the drinking-water demand.
Summary of the invention
In order to overcome above-mentioned the deficiencies in the prior art part, the utility model provides a kind of volume adjustable drinking vessel, the design of employing Compressible, along with the water in the bottle reduces gradually, the purpose that the user can reach reduced volume, be convenient for carrying by compressing bottle.
The utility model is achieved by the following technical solution: the drinking vessel that a kind of volume is adjustable, it comprises lid and container body, described container body is cylindrical-shaped structure, container body comprises main body top and bottom part body, be connected with telescopic pipe section between main body top and the bottom part body, described telescopic pipe section is formed by connecting by a plurality of slip joints, form the corrugated hollow tube, the upper end on described main body top is stretched out and is formed main body neck and bottleneck, and described lid is connected with the main body neck thread.
The shell of described lid covers the first half and the described main body neck on described main body top, and the inner chamber top layer of lid is fixed with coupling link, and coupling link is connected with described main body neck thread to downward-extension.
The beneficial effects of the utility model are: container body of the present utility model adopts telescopic pipe section, for Compressible designs, and along with the beverage in the container reduces gradually, the purpose that the user can reach reduced volume, be convenient for carrying by compressing bottle.Lid can prevent bottleneck by external environmental by actv., but can work as a noggin usefulness, and is easy to use, simple in structure.
Description of drawings
The below further specifies the utility model with embodiment with reference to the accompanying drawings.

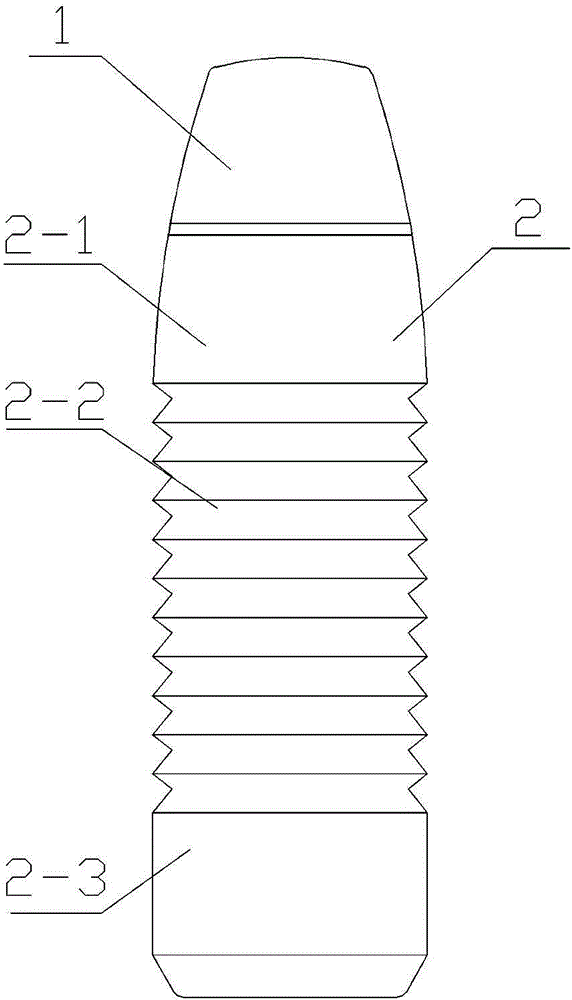

Fig. 1 is the utility model structural representation;
Fig. 2 is scheme drawing after the utility model compression;
Fig. 3 is the utility model lid connection diagram.
Among the figure, 1, lid; 1-1, coupling link; 2, container body; 2-1, main body top; 2-2, telescopic pipe section; 2-3, bottom part body; 2-4, main body neck.
The specific embodiment
The adjustable drinking vessel of a kind of volume as shown in Figure 1 and Figure 2, it comprises lid 1 and container body 2, described container body 2 is cylindrical-shaped structure, container body 2 comprises main body top 2-1 and bottom part body 2-3, be connected with the 2-2 of telescopic pipe section between main body top 2-1 and the bottom part body 2-3, the described telescopic pipe 2-2 of section is formed by connecting by a plurality of slip joints, form the corrugated hollow tube, the upper end of described main body top 2-1 is stretched out and is formed main body neck 2-4 and bottleneck, and described lid 1 is threaded with main body neck 2-4.
As shown in Figure 3, the shell of described lid 1 covers the first half and the described main body neck 2-4 of described main body top 2-1, and the inner chamber top layer of lid 1 is fixed with coupling link 1-1, and coupling link 1-1 is threaded with described main body neck 2-4 to downward-extension.
Container body of the present utility model adopts telescopic pipe section, and for Compressible designs, along with the beverage in the container reduces gradually, the user can compress bottle as shown in Figure 2, the purpose that reach reduced volume, is convenient for carrying.Lid can prevent bottleneck by external environmental by actv., but can work as a noggin usefulness, and is easy to use, simple in structure.
Claims (2)
1. drinking vessel that volume is adjustable, it is characterized in that: it comprises lid (1) and container body (2), described container body (2) is cylindrical-shaped structure, container body (2) comprises main body top (2-1) and bottom part body (2-3), be connected with telescopic pipe section (2-2) between main body top (2-1) and the bottom part body (2-3), described telescopic pipe section (2-2) is formed by connecting by a plurality of slip joints, form the corrugated hollow tube, the upper end on described main body top (2-1) is stretched out and is formed main body neck (2-4) and bottleneck, and described lid (1) is threaded with main body neck (2-4).
2. the adjustable drinking vessel of volume according to claim 1, it is characterized in that: the shell of described lid (1) covers the first half and the described main body neck (2-4) on described main body top (2-1), the inner chamber top layer of lid (1) is fixed with coupling link (1-1), and coupling link (1-1) is threaded with described main body neck (2-4) to downward-extension.
