本实用新型公开的一种一次性男用尿不湿，涉及医疗辅助用具技术领域，包括吸收尿液的尿不湿垫体(1)、所述尿不湿垫体吸收尿液一面处引出容纳男性阴茎并引流尿液至尿不湿垫体的接尿装置(2)。该用具既能让患者于术中随意排尿，又不会影响血管穿刺及污染术区。
The utility model discloses a disposable men's diaper, which relates to the technical field of medical aids, and comprises a urine-absorbing diaper body (1), and the urine-absorbing side of the diaper body is led out and accommodated. A urine receiving device (2) for a male penis and for draining urine to a diaper pad body. The device not only allows the patient to urinate freely during the operation, but also does not affect the blood vessel puncture and pollute the operation area.
Description
Technical field
This utility model relates to medical appurtenance technical field, is specifically related to a kind of disposable diaper that is applicable to male patient in the row intervene operation.
Background technology
Intervene operation needs intravascular to enter to carry out in the body operation technique more, and the path of often selecting is femoral artery or the femoral vein of inguinal region.This zone need to keep aseptic condition during operation, all need go preserved skin and strict sterilization before the art.But the object of intervene operation mostly is the adult, and most of intervene operation only need to carry out local anesthesia, and adding in the art can a large amount of normal saline of infusion, so as long as operating time is slightly long, and the patient all can face the problem of urinating under waking state.Female patient is because the difference of physiological structure, can be under buttocks the care product such as place mat diaper.But the male adopts the way of urethral catheterization before the art more, and urethral catheterization is to extremely painful medical measure, especially middle-aging male of patient Lai Shuoshi, and urethral catheterization is unusual pain not only, but also a series of complication such as hematuria, urinary tract infection can occur because of injury of urethra.Patient's misery, hospital stays and medical expense have usually been increased in the real work because of this measure of urethral catheterization.
Summary of the invention
Technical problem to be solved in the utility model is exactly that physiological structure characteristics according to the male design a kind of disposable diaper, can allow arbitrarily urinate in patient's Rhizoma Atractylodis Macrocephalae, can not affect again vascular puncture and pollute the art district.
In order to solve the problems of the technologies described above, this utility model adopts following technical scheme:
A kind of disposable men's diaper, comprising that the diaper pad that absorbs urine, described baby diaper pad bulk absorption urine are simultaneously located to draw holds male penis and drainage of urine to the chamber pot device of diaper pad.
Further, described chamber pot device and diaper pad are set to one or combine by the mode of combining closely.
Further, the Surgidressing or the cotton rope that are connected with human body away from the one end setting of diaper pad of described chamber pot device.
Be better to implement the invention, described chamber pot device is set to the condom shape made by elastomeric material, and condom is near diaper pad one end opening, and opening part and diaper pad closely are sewed together.
Be better to implement the invention, described chamber pot device is set to the cavity pipe of the parcel male penis made with material with the baby diaper pad bulk phase, is provided with the guiding gutter of water conservancy diversion urine in the described cavity pipe, and described guiding gutter extends to the diaper pad.
Further, described cavity pipe arranged outside watertight composition.
Because adopt technique scheme, the invention possesses following beneficial effect:
The invention is by drawing the chamber pot device at the diaper pad, this chamber pot device be fit to male's physiological structure characteristics and with urine drainage to the diaper pad, realized to allow and arbitrarily urinated in patient's Rhizoma Atractylodis Macrocephalae, can not affect again vascular puncture and pollute the effect in art district.
Description of drawings

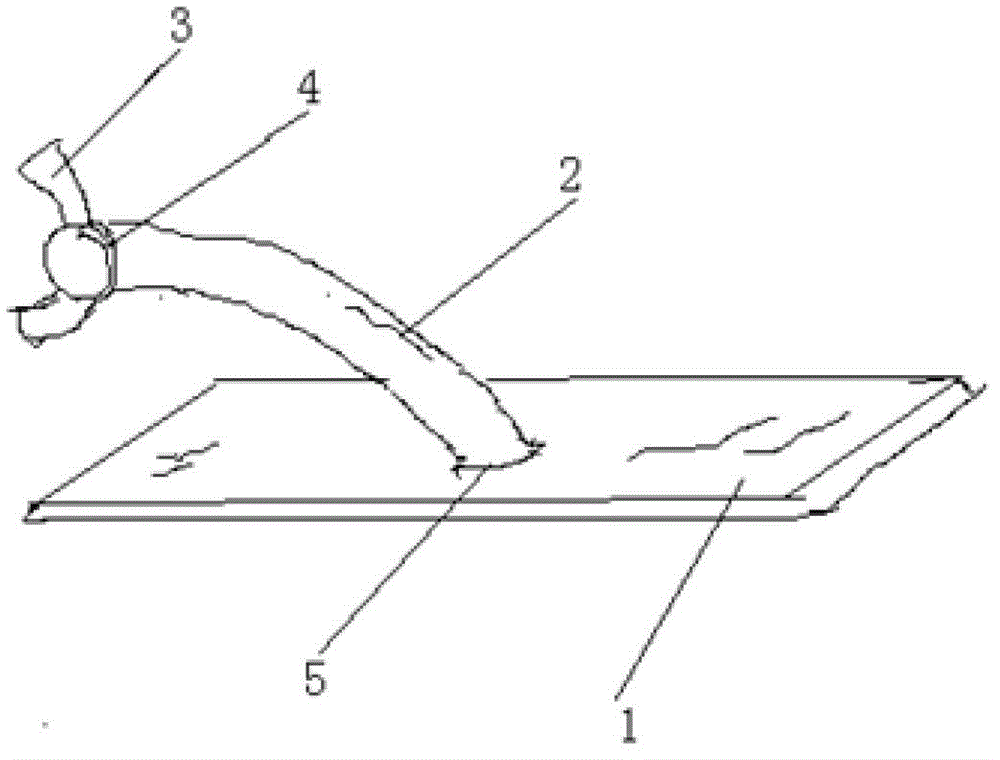

Fig. 1 is the structural representation of a preferred implementation of the invention;
The specific embodiment
Such as Fig. 1, preferred embodiment of the invention adopts vegetative fiber material Time of Fluff Slurry and the hydroscopic high-molecular resin side of making pad type diaper body 1, and size reaches more than the 2000ml for requiring can absorb urine.From the positive tubulose chamber pot device 2 of drawing of diaper body, this chamber pot device is made by quality of rubber materials, as the condom shape, but long than condom, and the equal opening in two ends requires soft, smooth, good springiness, and itself and diaper body are structure as a whole, closely make junction 5, guarantees that urine drainage is to diaper.The top collar extension 4 of chamber pot device 2 has larger retractility, and diameter can be fit to most of Chinese adult male penis, and collar extension is with two Surgidressings 3.
During clinical practice, advise the patient to put down before the art and crouch in operating-table, take off medicated clothing, the lower part of the body is exposed, and this diaper body 1 as under the buttocks, then is worn over tubulose chamber pot device 2 on the penis between two lower limbs, and being adhesively fixed by Surgidressing and patient skin gets final product.Postoperative is carefully uncovered Surgidressing, takes off chamber pot device 2 from penis, can connect the diaper body and take away together processing.
Another preferred embodiment of the invention, only be that chamber pot device 2 set-up modes are different from a upper embodiment, in the present embodiment chamber pot device 2 and diaper body 1 are set to one, specifically chamber pot device 2 is set to the cavity pipe of the parcel male penis made with material with the baby diaper pad bulk phase, be provided with the guiding gutter of water conservancy diversion urine in the described cavity pipe, described guiding gutter extends to the diaper pad, in order to ensure not polluting the art district, in the cavity pipe outside watertight composition is set further.
