CN202891790U

CN202891790U - Multipurpose window cleaner

Info

Publication number: CN202891790U
Application number: CN 201220433289
Authority: CN
Inventors: 王永东
Original assignee: NINGBO SHIJIA SANITARY WARE Co Ltd
Current assignee: NINGBO SHIJIA SANITARY WARE Co Ltd
Priority date: 2012-08-29
Filing date: 2012-08-29
Publication date: 2013-04-24
Anticipated expiration: 2022-08-29

Abstract

A multifunctional window cleaner is an integer formed by connecting a window cleaning plate with a cleaning body, a water wiper and a rod. The window cleaning plate is an integer formed by connecting a transverse plate and a turning rod extended out by a handle rod through a handle rod tube port, the water wiper is connected with the handle rod through the turning rod, the water wiper can be drawn out from the handle rod, and the rod is connected with the handle rod into a whole through a lock catch joint. The multifunctional window cleaner is simple and compact in structure and small in size, the window cleaning plate is cleaned while the water wiper is used for enabling water marks to be wiped cleanly, and operation is time-saving and labor-saving. The water wiper is directly inserted in the handle rod of the window cleaning plate in a connected mode, and a limited space is not occupied. On a lower position, the multifunctional window cleaner can be contacted with a glass window to be operated without the need of connection of a long rod, if the water wiper is drawn out from the handle rod to be changed into two independent pieces, an inner handle rod or the handle rod can be directly and independently held to be operated, various requirements of consumers are met, usage is convenient and flexible, and cleaning effects are good. The multifunctional window cleaner is especially suitable for cleaning of glass windows with large height in hotels, victualing houses, halls or lobbies of restaurants, and the like or for being used in household villas and compound floors, and the utilization rate is high.

Description

Multifunctional window cleaner

Technical field

The utility model relates to a kind of Combined cleaning tool, and is particularly detachable, separately, use separately or together, and easy to use, Multifunctional window cleaner flexibly.

Background technology

China Patent No. 200420028995.4 " Multifunctional window cleaner ", " 200920294567.7 the dual-purpose window cleaner of rotary type ", " 201020132479.1 window cleaner ", though all disclose a kind of with wiping luffer boards, wiper, the window cleaner of handle, can clean with the scrubbing cloth of wiping on the luffer boards, left water mark strikes off and cleans out after will cleaning by windshield wiper blade again, reach the purpose of effective cleaning glass pane, but their wiping luffer boards, windshield wiper blade all is overall structure and is fixed on the handle, can not dismantle, separately, there is certain limitation, use also inconvenience, can not satisfy consumer's multiple needs.

Summary of the invention

Technical problem to be solved in the utility model is: a kind of Multifunctional window cleaner is provided, simple and compact for structure, volume is little, can be whole or dismounting separately use separately, and easy to use, flexible, cleaning effect is good, and the suitable especially high windowpane of story height is scraped cleaned use.

The technical scheme in the invention for solving the above technical problem is: Multifunctional window cleaner, the integral body that is connected into by wiping luffer boards, wiper and bar with wiping body forms, the integral body that described wiping luffer boards are connected into through the extended turnover bar in handle rod tube mouth place by transverse plate, handle bar, described wiper is connected with the handle bar by the turnover bar, wiper also can be extracted from the handle bar, and described bar connects into integral body by snap close joint and handle bar.

Compared with prior art, the utility model has the advantage of: this window wiper structure is simply compact, volume is little, cleans on one side wipe luffer boards, Yi Bian wiper is laborsaving during the operation joint just with the washmarking scraping.The wiper that consists of window cleaner directly is plugged in the handle bar with the wiping luffer boards of wiping body, does not take the confined space.If in the lower, need not extension bar and just can touch windowpane operation, wiper can be extracted from the handle bar and become two separate piece, separate, directly hold interior handle bar or handle bar separately and operate, satisfy consumer's multiple requirement.If also have place not in place or sordid after the cleaning, as required, increase to wipe again or scrape the number of times part of covering the shortage, easy to use, flexible, cleaning effect is good.The other adjustable in length of bar, useful snap close joint, expansion joint, handle joint come the length of extension bar, satisfy the cleaning dedusting of differing heights windowpane, the very high windowpanes of story height such as the suitable especially hall to hotel, restaurant, dining room, hall clean or use in family's villa, compound floor, and the scope of application is wide, utilization rate is high.

Description of drawings

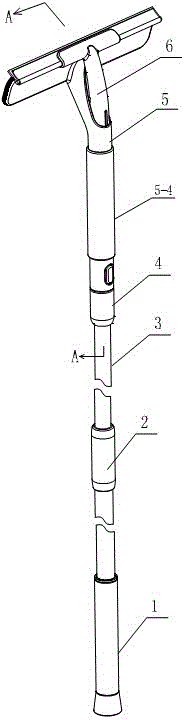

Fig. 1, structural representation of the present utility model (insertion of wiper forward).

Fig. 2, structural representation of the present utility model (taking away wiper).

Fig. 3, structural representation of the present utility model (wiper oppositely inserts).

The structural representation of Fig. 4, snap close joint.

The structural representation of Fig. 5, expansion joint.

Fig. 6, handle head structural representation.

Fig. 7, wiping louver configuration schematic diagram.

Fig. 8, wiper structural representation.

The A of Fig. 9, Fig. 1-A cutaway view Amplified image.

The specific embodiment

Below in conjunction with accompanying drawing embodiment of the present utility model is further described.

Wiper 6 by scraping blade 6-1, scrape bar 6-2, interior handle bar 6-4, handle bar head 6-5 connect into, scraping blade is that sheet rubber is placed on by scraping in the bar 6-2 that metal material is made, the forward and backward outer surface of interior handle bar corresponding section is fluted to be locating slot 6-3.

Also have corresponding on the outer surface before and after the handle bar head 6-5 and by the locating slot 6-3 that extends on the interior handle bar, there is opening at corresponding locating slot place on it, as shown in Figure 8.

Wiping body 5-1 is pasted and fixed on the inner surface of transverse plate 5-2, and wiping body can be that the water imbibitions such as sponge, flannelette, rag are strong, flexible material is made.

Wiping luffer boards 5 is connected into via the turnover bar 5-3 that handle rod tube mouth extends on the transverse plate by transverse plate 5-2, handle bar 5-5.

There is up-small and down-big, upper shallow lower dark special-shaped cavity 5-31 on turnover bar 5-3 one surface, and another relative surface forms the parallel cavity 5-33 in both sides in the middle of extending to transverse plate 5-2 inner surface by the two side gripper shoe, such as Fig. 3, shown in Figure 9.

On the inwall of special-shaped cavity 5-31 and extend to handle bar inwall two corresponding positions, there is the positioning bar 5-32 of projection to cooperate with two locating slot 6-3 on the wiper, wiper can not rotated in handle bar 5-5, allow simultaneously its insertion or play rapidly positioning action when extracting.

Also tightly overlapping in the middle of the handle bar 5-5 outer surface has overcoat 5-4, is convenient to hand and grips operation, and the waist hole that two correspondences are arranged on the tube wall of lower end is lockhole 5-6, and there is Internal Pipe Thread at the inner tubal wall place of lockhole top, as shown in Figure 7.

Snap close joint 4 is the ladder pipe, there is gas thread 4-3 the upper end, there is dividing plate 4-4 the centre, and U-shaped opening 4-1 is arranged on the middle tube wall, forms a shell fragment in the opening, one end of shell fragment has raised kidney-shaped button 4-2, snap close joint 4 inserts handle bar 5-5 lower ends, and button 4-2 is buckled in the lockhole 5-6, and the Internal Pipe Thread place that also is tightened on the handle bar inner tubal wall with the gas thread 4-3 of upper end is fixed, make snap close joint 4 connect into integral body with wiping luffer boards 5, as shown in Figure 9.

Bar 3 is divided into upper and lower two sections, and the two ends of epimere fasten respectively in snap close joint 4 and expansion joint 2, and the two ends of hypomere are tightly inserted respectively in expansion joint 2 and the handle head 1 and connected into bar 3.

With wiper 6 forwards, the reverse insertion in the handle bar 5-5 that wipes on the luffer boards 5, window cleaner is assembled into, such as Fig. 1, shown in Figure 3 respectively.

Handle 1 tightly inserts the integral body that is fixed in the handle tube 1-2 with rosette 1-3, as shown in Figure 6 by the lower end of handle head 1-1.

Expansion joint 2 connects into integral body by tube 2-2, Taper Pipe 2-1, and the integral body that is fixed into of overcoat sheathing 2-3 as shown in Figure 5, all is prior art again.

During use, if the very low available hand of windowpane is directly held handle bar 5-5 operation, wipe the glass window with the wiping body 5-1 on the transverse plate, with the wiper 6 on the window cleaner water mark is scraped totally simultaneously, or with wiper take out rotate again 180 the degree turn over a face, scrape the water mark dried with wiper 6 again.

Grasp use by the operator as required, if windowpane is very high, will connect by snap close joint 4, expansion joint 2, handle head 1 barre 3 on handle bar 5-5, spreading uses, such as Fig. 1, Fig. 2, shown in Figure 3.

Claims

1. Multifunctional window cleaner, the integral body that is connected into by wiping luffer boards (5), wiper (6) and the bar (3) of being with wiping body (5-1) forms, it is characterized in that the integral body that described wiping luffer boards (5) are connected into through the handle rod tube mouth extended turnover bar in place (5-3) by transverse plate (5-2), handle bar (5-5), described wiper (6) is connected with handle bar (5-5) by turnover bar (5-3), wiper (6) also can be extracted from the handle bar, and described bar (3) connects into integral body by snap close joint (4) and handle bar (5-5).

2. Multifunctional window cleaner according to claim 1, it is characterized in that described wiper (6) by scraping blade (6-1), scrape bar (6-2), interior handle bar (6-4), handle bar head (6-5) connect into, the forward and backward outer surface of described interior handle bar (6-4) corresponding section is fluted to be locating slot (6-3), also have corresponding on the outer surface before and after the handle bar head (6-5) and by the locating slot (6-3) that extends on the interior handle bar, there is opening at corresponding locating slot place on it.

3. Multifunctional window cleaner according to claim 1, it is characterized in that there is up-small and down-big, upper shallow lower dark special-shaped cavity (5-31) on described turnover bar (5-3) surface, another relative surface forms the parallel cavitys in both sides (5-33) for extended to transverse plate (5-2) inner surface by the two side gripper shoe in the middle of, on the inwall of special-shaped cavity (5-31) and extend to handle bar inwall two corresponding positions, there is the positioning bar (5-32) of projection to cooperate with two locating slots (6-3) on the wiper (6).

4. Multifunctional window cleaner according to claim 1 is characterized in that the middle also tight cover of described handle bar (5-5) outer surface has overcoat (5-4), and the waist hole that two correspondences are arranged on the tube wall of lower end is lockhole (5-6), and there is Internal Pipe Thread at the inner tubal wall place of lockhole top.

5. Multifunctional window cleaner according to claim 4, it is characterized in that described snap close joint (4) is the ladder pipe, there is gas thread (4-3) upper end, there is dividing plate (4-4) centre, on the middle tube wall U-shaped opening (4-1) is arranged, form a shell fragment in the opening, one end of shell fragment has raised kidney-shaped button (4-2), snap close joint (4) inserts handle bar (5-5) lower end, and button (4-2) is buckled in the lockhole (5-6), the Internal Pipe Thread place that gas thread (4-3) on also using is tightened on the handle bar inner tubal wall is fixed, and makes snap close joint (4) and wiping luffer boards (5) connect into integral body.
