Abstract
The utility model relates to a dust collection device with a secondary dust collection function. The dust collection device comprises a cyclone separator and a second dust collector, wherein a material inlet is formed in a circumferential wall of the cyclone separator; a material outlet is formed in the lower end of the cyclone separator; a dust collection pipe is arranged at the center of the top of the cyclone separator; a filtering net is arranged at a lower port of the dust collection pipe; an upper port of the dust collection pipe is connected with a main dust collection pipeline; the material outlet of the cyclone separator is connected with a rotary valve; the secondary dust collector is arranged below the rotary valve; a feeding opening of the secondary dust collector is connected with an outlet of the rotary valve; and an air exhausting opening of the secondary dust collector is communicated with the main dust collection pipeline through a secondary dust collection pipeline. The dust collection device disclosed by the utility model can greatly reduce dust content of dust-collecting crushed materials and avoids wasting the crushed materials.
Description
Technical field
The utility model relates to the device of a kind of automobile plastic fuel tank crushed material dedusting, particularly a kind of dust arrester with final dusting function.
Background technology
Plastic fuel tank owing to deburring, scrap etc. can produce a lot of waste materials, is to reduce manufacturing cost in manufacture process, reduces pollutant emission, need to pulverize reuse to waste material, can carry a lot of dust in the crushed material, must be removed.
In the prior art, often by cyclone separator crushed material and dust separation are come.The circle wall of cyclone separator is provided with material inlet, and the lower end of cyclone separator is provided with material outlet, and the top center of cyclone separator is provided with dust and takes over, and the upper port that dust is taken over is connected with dust sucting pipeline.Crushed material enters the cyclone separator from material inlet, under centrifugal force and self gravitation effect that whirlwind produces, crushed material moves downward to the material outlet discharge along the circle wall of cyclone separator, because the suction function of dust sucting pipeline, dust is taken over from dust with air-flow and entered dust sucting pipeline.There is following weak point in existing dust arrester: also have a lot of dust in the crushed material after the dedusting 1.; 2. the dust after the dedusting contains a large amount of crushed materials, causes the significant wastage of cost.
The utility model content
The purpose of this utility model is, overcomes problems of the prior art, and a kind of dust arrester with final dusting function is provided, and can greatly reduce the dustiness in the crushed material after the dedusting.
For solving above technical problem, a kind of dust arrester with final dusting function of the present utility model, comprise cyclone separator, the circle wall of described cyclone separator is provided with material inlet, the lower end of described cyclone separator is provided with material outlet, the top center of described cyclone separator is provided with dust and takes over, and the upper port that described dust is taken over is connected with main dust sucting pipeline; The material outlet of described cyclone separator is connected with rotary valve, the below of described rotary valve is provided with secondary filter, the charging aperture of described secondary filter is connected with the outlet of described rotary valve, and the exhaust outlet of described secondary filter is communicated with described main dust sucting pipeline by the secondary dust sucting pipeline.
With respect to prior art, the utility model has been obtained following beneficial effect: crushed material enters the cyclone separator from material inlet, under centrifugal force and self gravitation effect that whirlwind produces, crushed material moves downward to material outlet along the circle wall of cyclone separator, enter secondary filter through rotary valve, rotary valve can make material pass through, and also plays simultaneously the pass wind action, and the gas circuit of cyclone separator and secondary filter is sealed mutually; Dust in secondary filter in the crushed material is by Re-isolation, and crushed material is purified; Because the suction function of dust sucting pipeline, the dust that cyclone separator and secondary filter are separated all enters dust sucting pipeline with air-flow.
As preferred version of the present utility model, the lower port that described dust is taken over is provided with filter screen.Lighter dust can enter dust sucting pipeline by filter screen, and filter screen can prevent effectively that crushed material from entering dust sucting pipeline, avoids the waste of crushed material.
As further preferred version of the present utility model, described secondary filter comprises interconnective top cylindrical shell and bottom cylindrical shell, described exhaust outlet is connected on the circle wall of described top cylindrical shell, be provided with the conical pipe with top cylindrical shell coaxial line in the cylindrical shell of described top, it is outer as described charging aperture that the upper port of described conical pipe is stretched out the top cylindrical shell, be provided with height low arc plate all around in center under the described conical pipe, the lower port of described bottom cylindrical shell is shunk as discharging opening to axis, and the upper port of described bottom cylindrical shell is provided with a plurality of air admission holes and each air admission hole and evenly distributes along the lower end periphery of described top cylindrical shell.Crushed material falls into from conical pipe, fall the middle part at arc plate, then from the peripheral landing of arc plate, discharge from discharging opening at last, crushed material is when falling, and dust is kicked up, because the negative pressure swabbing action of main dust sucting pipeline, air-flow enters secondary filter from air admission hole, and the dust of kicking up is taken out of, and crushed material is further purified.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail, accompanying drawing only provides reference and explanation usefulness, and is non-in order to limit the utility model.

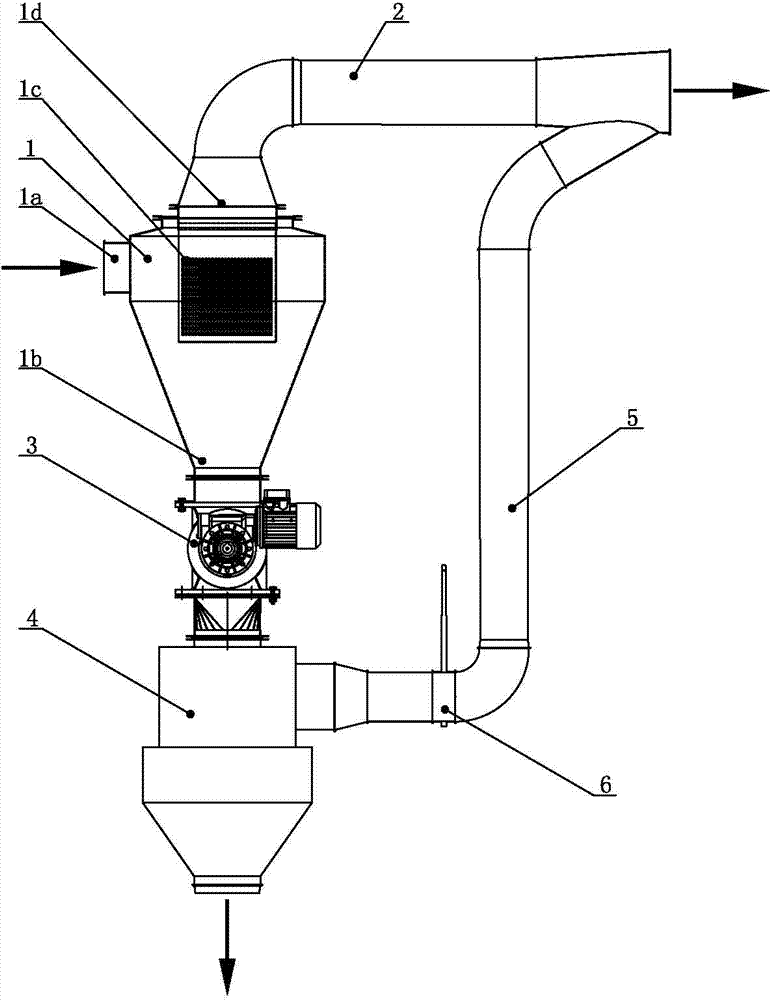

Fig. 1 is the structural representation that the utlity model has the dust arrester of final dusting function.
Fig. 2 is the front view of secondary filter.
Fig. 3 is the top view of Fig. 2.
Fig. 4 is along the cutaway view of A-A among Fig. 3.
Fig. 5 is the stereogram of Fig. 2.
Among the figure: 1. cyclone separator; 1a. material inlet; 1b. material outlet; 1c. filter screen; 1d. dust is taken over; 2. main dust sucting pipeline; 3. rotary valve; 4. secondary filter; 4a. top cylindrical shell; 4a1. exhaust outlet; 4b. conical pipe; 4b1. charging aperture; 4c. bottom cylindrical shell; 4c1. discharging opening; 4c2. air admission hole; 4d. arc plate; 5. secondary dust sucting pipeline; 6. air door.
The specific embodiment
As shown in Figure 1, the utlity model has the dust arrester of final dusting function, comprise cyclone separator 1, the circle wall of cyclone separator 1 is provided with material inlet 1a, the lower end of cyclone separator 1 is provided with material outlet 1b, the top center of cyclone separator 1 is provided with dust and takes over 1d, and the lower port that dust is taken over 1d is provided with filter screen 1c, and the upper port that dust is taken over 1d is connected with main dust sucting pipeline 2; The material outlet 1b of cyclone separator 1 is connected with rotary valve 3, the below of rotary valve 3 is provided with secondary filter 4, the charging aperture 4b1 of secondary filter 4 is connected with the outlet of rotary valve 3, the exhaust outlet 4a1 of secondary filter 4 is communicated with main dust sucting pipeline 2 by secondary dust sucting pipeline 5, and the air door 6 of regulating air quantity is installed on the secondary dust sucting pipeline 5.
Extremely shown in Figure 5 such as Fig. 2, secondary filter 4 comprises interconnective top cylindrical shell 4a and bottom cylindrical shell 4c, exhaust outlet 4a1 is connected on the circle wall of top cylindrical shell 4a, be provided with the conical pipe 4b with top cylindrical shell coaxial line in the cylindrical shell 4a of top, it is outer as charging aperture 4b1 that the upper port of conical pipe 4b is stretched out top cylindrical shell 4a, be provided with height low arc plate 4d all around in center under the conical pipe 4b, the lower port of bottom cylindrical shell 4c is shunk as discharging opening 4c1 to axis, and the upper port of bottom cylindrical shell 4c is provided with a plurality of air admission hole 4c2 and each air admission hole and evenly distributes along the lower end periphery of top cylindrical shell 4a.
In the work, crushed material enters the cyclone separator 1 from material inlet 1a, under centrifugal force and self gravitation effect that whirlwind produces, crushed material moves downward to material outlet 1b along the circle wall of cyclone separator 1, because the suction function of main dust sucting pipeline 2, lighter dust can enter main dust sucting pipeline 2 with air-flow by filter screen 1c, and filter screen 1c can prevent effectively that crushed material from entering main dust sucting pipeline 2, avoids the waste of crushed material; Then crushed material enters secondary filter 4 through rotary valve 3, in secondary filter 4, crushed material falls into from conical pipe 4b, falls the middle part at arc plate 4d, then from the peripheral landing of arc plate 4d, discharge from discharging opening 4c1 at last, crushed material is when falling, and dust is kicked up, because the negative pressure swabbing action of main dust sucting pipeline 2, air-flow enters secondary filter 4 from air admission hole 4c2, and the dust of kicking up is taken out of, and crushed material is further purified.
The above only is the better possible embodiments of the utility model, and is non-so limit to scope of patent protection of the present utility model.In addition to the implementation, the utility model can also have other embodiments.All employings are equal to the technical scheme of replacement or equivalent transformation formation, all drop in the protection domain of the utility model requirement.
Claims (3)
1. dust arrester with final dusting function, comprise cyclone separator, the circle wall of described cyclone separator is provided with material inlet, the lower end of described cyclone separator is provided with material outlet, the top center of described cyclone separator is provided with dust and takes over, and the upper port that described dust is taken over is connected with main dust sucting pipeline; The material outlet of described cyclone separator is connected with rotary valve, it is characterized in that: the below of described rotary valve is provided with secondary filter, the charging aperture of described secondary filter is connected with the outlet of described rotary valve, and the exhaust outlet of described secondary filter is communicated with described main dust sucting pipeline by the secondary dust sucting pipeline.
2. the dust arrester with final dusting function according to claim 1 is characterized in that: the lower port that described dust is taken over is provided with filter screen.
3. the dust arrester with final dusting function according to claim 1 and 2, it is characterized in that: described secondary filter comprises interconnective top cylindrical shell and bottom cylindrical shell, described exhaust outlet is connected on the circle wall of described top cylindrical shell, be provided with the conical pipe with top cylindrical shell coaxial line in the cylindrical shell of described top, it is outer as described charging aperture that the upper port of described conical pipe is stretched out the top cylindrical shell, be provided with height low arc plate all around in center under the described conical pipe, the lower port of described bottom cylindrical shell is shunk as discharging opening to axis, and the upper port of described bottom cylindrical shell is provided with a plurality of air admission holes and each air admission hole and evenly distributes along the lower end periphery of described top cylindrical shell.
