Abstract
本实用新型公开了一种具有便携式组装结构的多功能电视机后壳，包括，设置在后壳上的散热孔，位于后壳底部中央位置的底座安装槽，位于后壳中央的挂架安装孔，以及设置在所述后壳右侧的“L”型槽，其中，所述后壳上还设置有外置模块安装槽，与所述外置模块安装槽固定连接的外置模块；所述后壳的底部还设置有扬声器安装槽；通过在后壳上设置可方便拆卸和安装的外置模块；并且将电视机的主要电子器件设置在外置模块内，同时外置模块体积小、质量轻且方便拆卸，电视机发生故障时只要将外置模块拆下进行维护即可，故此可以方便的对电视机进行售后维护和维修；还可以根据用户的需要设置外置模块的功能，可以满足不同用户对电视机具有多功能的需求。
The utility model discloses a multifunctional television back shell with a portable assembly structure, comprising a heat dissipation hole arranged on the back shell, a base mounting groove located at the central position of the bottom of the back shell, a bracket mounting hole located at the center of the back shell, and an "L"-shaped groove arranged on the right side of the back shell, wherein the back shell is also provided with an external module mounting groove, and an external module fixedly connected to the external module mounting groove; the bottom of the back shell is also provided with a speaker mounting groove; an external module that can be easily disassembled and installed is arranged on the back shell; and the main electronic components of the television are arranged in the external module, and the external module is small in size, light in weight and easy to disassemble, and when the television fails, it only needs to remove the external module for maintenance, so the television can be conveniently maintained and repaired after sales; the function of the external module can also be set according to the needs of the user, and the needs of different users for the television to have multiple functions can be met.
Description
Technical field
The utility model relates to back cover field, TV Festival, relates in particular to a kind of multi-function TV set back cover with portable package assembly.
Background technology
Development along with science and technology, the function of television set not only is confined to play the function of TV signal, for the existing television set of the demand that satisfies people's daily life integrated increasing electronic equipment, affect videocorder (VCR), on-line module etc. such as DVD player, cassette.
Such as Chinese patent application 200520060448.9 disclosed a kind of multi-function TV sets, it is characterized in that, comprise and have procapsid, the body of back casing and be installed on intrinsic display module, the television module main circuit board, the DVD module, VCR module and being used for main circuit board, the screening arrangement that DVD module and VCR module three shield mutually, wherein DVD module and VCR module comprise respectively its circuit board separately and play mechanism, the DVD module is connected with the DVD interface of television module main circuit board, the VCR module is connected the VCR interface and is connected with TV template main circuit board, the CD entrance of described DVD module and the cassette tape entrance of described VCR module expose from body.Its integrated various electronic of the multi-function TV set that this patent application provides for people can satisfy the multiple needs of people's life; But when facilitating for people, owing to increased new structure in conventional television, make the complexity of the structure change of television set, the failure rate of television set obviously improves; When television set breaks down, because the volume ratio of television set is large and deadweight is larger, the great inconvenience that brings for user's maintenance.
The utility model content
The purpose of this utility model is to propose a kind of multi-function TV set back cover with Portable assembled structure, back cover setting can be for convenience detach external module, and the interior equipment of multi-functional module can be set as required, can satisfy the user television set is had multi-functional demand, the main electronic device of television set all is arranged in the external multi-functional module simultaneously, and external multi-functional modular volume is little, quality is light and for convenience detach, the after-sales service after being convenient to television set and breaking down.
For reaching this purpose, the utility model by the following technical solutions:
A kind of multi-function TV set back cover with Portable assembled structure, comprise, be arranged on the louvre on the back cover, be positioned at the floor installation groove of back cover bottom center position, be positioned at the hanger installing hole of back cover central authorities, and " L " type groove that is arranged on described back cover right side, wherein, also be provided with the external module mounting groove on the described back cover, the external module that is fixedly connected with described external module mounting groove;
The bottom of described back cover also is provided with the loud speaker mounting groove.
As a kind of preferred version of above-mentioned television rear shell, described external module comprises TV main circuit board module, DVD module, on-line module or VCR module at least.
As a kind of preferred version of above-mentioned television rear shell, the front of described external module has radiator window, and its lateral surface has the transfer of data mouth, and the medial surface corresponding with described lateral surface also has the data pin that carries out transfer of data with the inside television device.
A kind of preferred version as above-mentioned television rear shell, the front of described external module also has the mounting ear seat, be provided with screwed hole on the described mounting ear seat, described external module is fixed by the screw and the described back cover that pass described screwed hole and be arranged on the installing hole on the back cover.
As a kind of preferred version of above-mentioned television rear shell, also be provided with guide rail positioning structure on the back side of answering with described vis-a-vis on the described external module; Be provided with the guide rail locating groove that matches with described guide rail positioning structure in the described external module mounting groove.
As a kind of preferred version of above-mentioned television rear shell, be respectively arranged with a guide rail locating groove on four jiaos at the back side of described external module.
As a kind of preferred version of above-mentioned television rear shell, the sound mouth of described loud speaker is positioned at the downside panel of described back cover.
As a kind of preferred version of above-mentioned television rear shell, the bottom symmetry of described shell be provided with two described loud speaker mounting grooves.
As a kind of preferred version of above-mentioned television rear shell, described external module is external multifunction module, integrated at least two kinds in TV main circuit board module, DVD module, on-line module or the VCR module in the described external multifunction module.
The beneficial effects of the utility model are: the utility model provides a kind of multi-function TV set back cover with Portable assembled structure, by the external module of can be for convenience detach and installing is set at back cover, the main electronic device of television set all is arranged in the external module simultaneously, when breaking down, safeguards as long as external module pulled down by television set, because the external module volume is little, quality is light and for convenience detach, can carry out after-sales service and maintenance to television set easily; The function of external module can be set according to user's needs simultaneously, can satisfy different from television set is had multi-functional demand.
Description of drawings

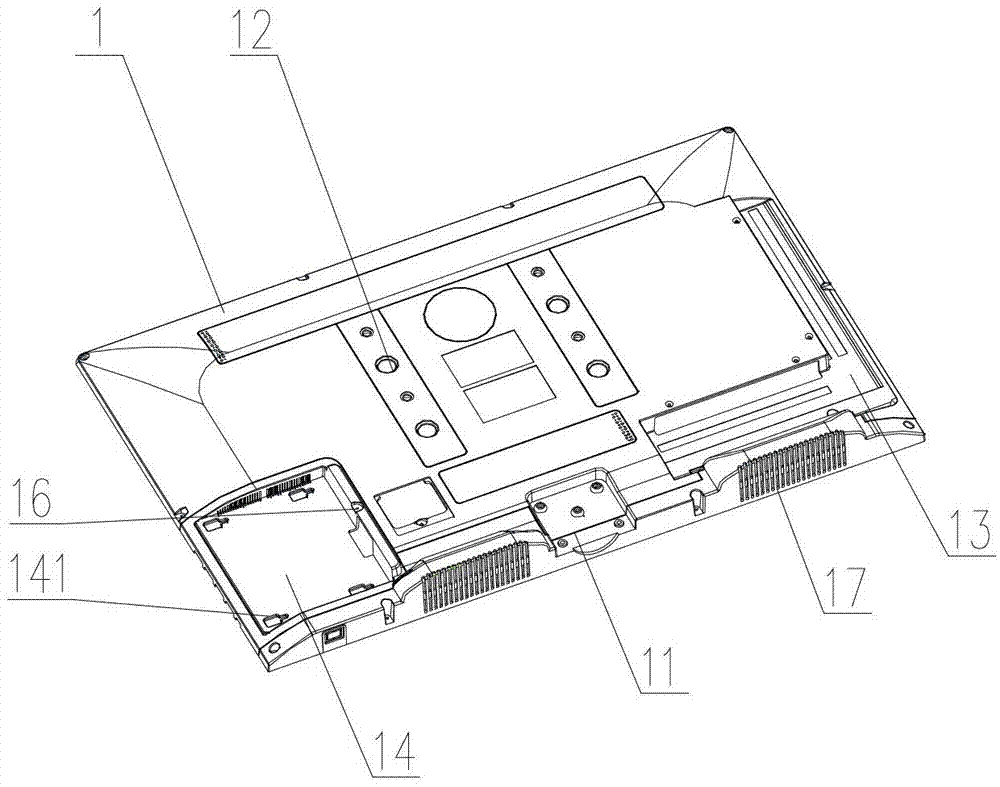

Fig. 1 is the external structure schematic diagram of the shell that provides of the utility model embodiment;
Fig. 2 is the structural representation of the external module that provides of the utility model embodiment;
Fig. 3 is the schematic diagram of another angle of the external module that provides of the utility model embodiment;
Fig. 4 is the partial schematic diagram that the external module that provides of the utility model embodiment and shell match.
Wherein:
1: back cover; 11: the floor installation groove; 12: the hanger installing hole; 13: " L " type groove; 14: the external module mounting groove; 15: external module; 16: installing hole; 17: the loud speaker mounting groove;
141: locating groove; 151: radiator window; 152: the transfer of data mouth; 153: data pin; 154: the mounting ear seat; 155: location structure; 1541: screwed hole.
Embodiment
Further specify the technical solution of the utility model below in conjunction with accompanying drawing and by embodiment.
Shown in Fig. 1 ~ 4, a kind of multi-function TV set back cover with Portable assembled structure, it comprises the louvre (not shown) that is arranged on the back cover 1, be positioned at the floor installation groove 11 of back cover 1 bottom center position, be positioned at the hanger installing hole 12 of back cover central authorities, and " L " type groove 13 that is arranged on the back cover right side, wherein, also be provided with external module mounting groove 14 on the back cover, external module mounting groove 14 is used for the installation of external module 15, in this execution mode, external module 15 is fixed in the external module mounting groove 14; The bottom of back cover 1 also is provided with loud speaker mounting groove 17, the sound mouth of the loud speaker of this loud speaker mounting groove 17 is arranged on the following side plate of back cover 1, and, be symmetrically arranged with two loud speaker mounting grooves 17 in the bottom of shell 1, the bottom that loud speaker is arranged shell 1 is conducive to hiding of sound mouth in order to strengthen the aesthetic property of television set outward appearance.
The front of external module 15 has radiator window 151, and this radiator window 151 is for the ease of the heat radiation of external module 15, and radiator window 151 also can be offered in other position of external module 15 certainly; The side of external module 15 has transfer of data mouth 152, and transfer of data mouth 152 is used for and outer signals device (such as antenna) carries out exchanges data, and the medial surface corresponding with lateral surface also has the data pin 153 that carries out transfer of data with the inside television device.
The front of external module 15 also has mounting ear seat 154, is provided with screwed hole 1541 on this mounting ear seat 154, and external module 15 is fixing with back cover 1 by the installing hole 16 that passes this screwed hole 1541 and be arranged on the back cover 1.
Also be provided with guide rail positioning structure 155 on the back side of answering with vis-a-vis on the external module 15, be provided with the guide rail locating groove 141 that matches with guide rail positioning structure in the external module mounting groove 14 simultaneously, in this execution mode, external module 15 back side corner locations are respectively arranged with a guide rail positioning structure 155.
Because external module 15 is by guide rail positioning structure 155 and guide rail locating groove 141 and back cover 1 engagement connection, and fix by a screw, so, the dismounting of external module 15 and install more convenient, need only during dismounting screw is unclamped, then promoting gently external module 15 can pull down external module 15, during installation, external module 15 is promoted along the guide rail direction, make guide rail positioning structure 155 and 141 engagings of guide rail locating groove, then make and be screwed the installation that to finish external module 15, because the main circuit device of television set all concentrates in the external module 15, when TV broke down, as long as external module 15 is keeped in repair, the installation and removal of external module 15 were more convenient simultaneously, for the after-sales service of television set brings great convenience, when television set breaks down, at needs television set integral body is not removed maintenance, as long as external module is keeped in repair.
Know-why of the present utility model has below been described in conjunction with specific embodiments.These are described just in order to explain principle of the present utility model, and can not be interpreted as by any way the restriction to the utility model protection range.Based on explanation herein, those skilled in the art does not need to pay performing creative labour can associate other embodiment of the present utility model, and these modes all will fall within the protection range of the present utility model.
Claims (9)
1. multi-function TV set back cover with Portable assembled structure, comprise, be arranged on the louvre on the back cover, be positioned at the floor installation groove of back cover bottom center position, be positioned at the hanger installing hole of back cover central authorities, and " L " type groove that is arranged on described back cover right side, it is characterized in that, also be provided with the external module mounting groove on the described back cover, the external module that is fixedly connected with described external module mounting groove;
The bottom of described back cover also is provided with the loud speaker mounting groove.
2. television rear shell according to claim 1 is characterized in that, described external module comprises TV main circuit board module, DVD module, on-line module or VCR module at least.
3. television rear shell according to claim 2, it is characterized in that, the front of described external module has radiator window, and its lateral surface has the transfer of data mouth, and the medial surface corresponding with described lateral surface also has the data pin that carries out transfer of data with the inside television device.
4. television rear shell according to claim 3, it is characterized in that, the front of described external module also has the mounting ear seat, is provided with screwed hole on the described mounting ear seat, and described external module is fixed by the screw and the described back cover that pass described screwed hole and be arranged on the installing hole on the back cover.
5. television rear shell according to claim 4 is characterized in that, also is provided with guide rail positioning structure on the back side of answering with described vis-a-vis on the described external module; Be provided with the guide rail locating groove that matches with described guide rail positioning structure in the described external module mounting groove.
6. television rear shell according to claim 5 is characterized in that, is respectively arranged with a guide rail locating groove on four jiaos at the back side of described external module.
7. television rear shell according to claim 1 is characterized in that, the sound mouth of described loud speaker is positioned at the downside panel of described back cover.
8. television rear shell according to claim 7 is characterized in that, the bottom symmetry of described back cover be provided with two described loud speaker mounting grooves.
9. the described television rear shell of any one according to claim 1 ~ 8, it is characterized in that, described external module is external multifunction module, integrated at least two kinds in TV main circuit board module, DVD module, on-line module or the VCR module in the described external multifunction module.
