Abstract
The utility model relates to a flashlight and overcomes the defects in the prior art that the flashlight is insufficient in illumination and limited in the illumination range. The flashlight is characterized in that the flashlight is battery-powered and comprises a main flashlight body, a battery bin, a fixing shaft and at least one auxiliary flashlight body. The battery bin, the fixing shaft and the auxiliary flashlight body are arranged in the main flashlight body. A main light source is arranged on the front portion of the main flashlight body. An auxiliary light source is arranged on the front portion of the auxiliary flashlight body. A first end of the fixing shaft is fixedly connected with the main flashlight body. The auxiliary flashlight body is hinged with the fixing shaft. The flashlight has good illumination and large illumination range, and is small in storage space in use.
Description
Technical field
The utility model is a kind of illuminations, particularly relates to a kind of flashlight.
Background technology
Flashlight, it is a kind of illuminations commonly used, in general, the structure of flashlight all is consistent, light source of a battery compartment, when such flashlight had caused illumination, illumination and illumination zone were all limited, when some field survivorships and open-air the camping, such flashlight illumination is not enough and the limited shortcoming of illumination zone just has been completely exposed.So a kind of exploitation of the flashlight that better illumination and larger illumination zone arranged is imperative.
China Patent No. CN201184502U, open day on January 21st, 2009, a kind of flashlight is disclosed, comprise the flashlight body, the afterbody of flashlight body is provided with lighter body, and flashlight body and lighter body are hinged, and the hinged place is that the right side of flashlight body afterbody and the left side at lighter body top are hinged, the right side at lighter body top is provided with the elastic card with draw-in groove, and the left side of flashlight body afterbody is provided with the projection that matches with draw-in groove on the elastic card.Still there is the not enough and limited shortcoming of illumination zone of flashlight illumination in such flashlight.
Summary of the invention
The purpose of this utility model is to have the not enough and limited problem of illumination zone of flashlight illumination for solving prior art, and a kind of flashlight that better illumination and larger illumination zone are arranged is provided.
The technical scheme that its technical problem that solves the utility model adopts is: a kind of flashlight, battery-powered, described flashlight comprises main torch, is arranged on battery compartment, fixed axis and at least one auxiliary torch in the main torch, the front portion of described main torch is provided with main light source, the front portion of described auxiliary torch is provided with secondary light source, the first end of described fixed axis is fixedly connected with main torch, and described auxiliary torch is all hinged with described fixed axis.Arrange like this, the auxiliary torch of rotation, demonstrations of secondary light source and main light source can being staggered, switch on to this moment, and the floor light of auxiliary torch can be arranged, and better illumination and larger illumination zone are arranged.
As preferably, described main torch and described auxiliary torch are all cylindrical.Arrange like this, auxiliary torch and main torch can be placed with a cylindrical form, and be simple in structure.
As preferably, described flashlight has the first auxiliary torch and second auxiliary two auxiliary torches of torch, the bottom surface of the described first auxiliary torch and the front end face of described main torch are fitted, and the front end face of the bottom surface of the described second auxiliary torch and the described first auxiliary torch is fitted.Arrange like this, guaranteed that auxiliary torch and main torch can be perfect superimposed, the parking space when having guaranteed to use is less.
As preferably, described main light source and described secondary light source are all battery-powered, and described fixed axis is quill shaft, is equipped with connecting line in the described fixed axis, one end of described connecting line is connected with described battery, and the other end of described connecting line is connected with described secondary light source.Arrange like this, only need a battery compartment can finish the power supply of three light sources.
As preferably, be provided with master switch on the described main torch.Can carry out overall control to light source like this, simple to operate.
Substantial effect of the present utility model is: the utility model can have better illumination and larger illumination zone, and the parking space during use is less.
Description of drawings

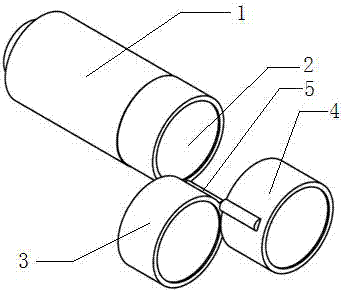

Fig. 1 is a kind of structural representation of the present utility model.
Among the figure: 1, main torch, the 2, main light source, 3, first auxiliary torch, the 4, second auxiliary torch, 5, fixed axis.
The specific embodiment
Below by specific embodiment, and by reference to the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment:
A kind of flashlight (referring to accompanying drawing 1), battery-powered, flashlight comprises main torch 1, is arranged on battery compartment, fixed axis 5 and two auxiliary torches in the main torch 1, flashlight has the first auxiliary torch 3 and second auxiliary 4 two auxiliary torches of torch, the front portion of main torch 1 is provided with main light source 2, the front portion of auxiliary torch is provided with secondary light source, and the first end of fixed axis 5 is fixedly connected with main torch 1, and auxiliary torch is all hinged with fixed axis 5.Main torch 1 and auxiliary torch are all cylindrical.The bottom surface of the first auxiliary torch 3 and the front end face of main torch 1 are fitted, and the front end face of the bottom surface of the second auxiliary torch 4 and the first auxiliary torch 3 is fitted.Main light source 2 and secondary light source are all battery-powered, and fixed axis 5 is quill shaft, is equipped with connecting line in the fixed axis 5, and an end of connecting line is connected with battery, and the other end of connecting line is connected with secondary light source.Be provided with master switch on the main torch 1.
When present embodiment uses, the user can control respectively the light source of opening all light sources and only opening the second auxiliary torch by master switch, if only open the light source of the second auxiliary torch, do not need to rotate so secondary light source, if the control master switch is all opened all light sources, so, present embodiment needs rotation the first auxiliary torch and the second auxiliary torch, so that can provide preferably illumination.
Above-described embodiment is a kind of better scheme of the present utility model, is not that the utility model is done any pro forma restriction, also has other variant and remodeling under the prerequisite that does not exceed the technical scheme that claim puts down in writing.
Claims (5)
1. flashlight, battery-powered, it is characterized in that: described flashlight comprises main torch, is arranged on battery compartment, fixed axis and at least one auxiliary torch in the main torch, the front portion of described main torch is provided with main light source, the front portion of described auxiliary torch is provided with secondary light source, the first end of described fixed axis is fixedly connected with main torch, and described auxiliary torch is all hinged with described fixed axis.
2. flashlight according to claim 1, it is characterized in that: described main torch and described auxiliary torch are all cylindrical.
3. flashlight according to claim 2, it is characterized in that: described flashlight has the first auxiliary torch and second auxiliary two auxiliary torches of torch, the bottom surface of the described first auxiliary torch and the front end face of described main torch are fitted, and the front end face of the bottom surface of the described second auxiliary torch and the described first auxiliary torch is fitted.
4. flashlight according to claim 2, it is characterized in that: described main light source and described secondary light source are all battery-powered, described fixed axis is quill shaft, be equipped with connecting line in the described fixed axis, one end of described connecting line is connected with described battery, and the other end of described connecting line is connected with described secondary light source.
5. it is characterized in that: be provided with master switch on the described main torch according to claim 1 and 2 or 3 or 4 described flashlights.
