Abstract

The utility model discloses an analgesia pump remote monitoring system. The analgesia pump remote monitoring system comprises a sensor module (1), an input module (2), a data processing module (3), a general packet radio service (GPRS) wireless communication module (4) and a monitoring center (5), wherein the sensor module (1) and the input module (2) are respectively connected with the data processing module (3), and the data processing module (3) is connected with the monitoring center (5) through the GPRS wireless communication module (4). The analgesia pump remote monitoring system can conduct a whole process tracing in the transfusion process of the analgesia pump. All parameters and data on the analgesia pump in the transfusion process are transmitted to relative departments or the monitoring center through the GPRS wireless transmission network. Medical personnel can see operating condition of a plurality of transfusion pumps including velocity, pressure, alarming and the like information through a large screen in the monitoring room according to transmitted relative data, and can remote control the analgesia pump when abnormal condition occurs.

Description

The analgesia pump long distance control system
Technical field
This utility model relates to a kind of analgesia pump monitoring system, is exactly a kind of novel intelligent analgesia pump long-distance monitorng device specifically.
Background technology
Venous transfusion, injection are the most frequently used clinical treatment methods.But for some particular patient's, in transfusion, when injection, must be equipped with suitable transfusion speed according to medicine and patient's situation different.Some particular patient's are had relatively high expectations for amount of infusion and flow, and traditional Artificial Control flow mode can not adapt to for these particular patient's, has certain medical-risk.Simultaneously traditional " monitoring infusion " task is heavy: mainly held a concurrent post by families of patients, professional caregiver or sufferer, waste a large amount of manpowers, and malpractice is more, the sufferer mental pressure is also larger, " monitoring infusion is difficult " be the transfusion at night especially, the problems such as sufferer and entourage are drowsiness have been given the medical personnel greatly inconvenience, can not in time find and give treatment to when being in an emergency.
Summary of the invention
The purpose of this utility model is to have overcome deficiency of the prior art, designed a kind of more hommization, intelligentized analgesia pump transfusion monitoring device, this device can carry out all-the-way tracking to the analgesia pump infusion process, by the GPRS wireless-transmission network the various supplemental characteristics on the analgesia pump in the infusion process are transferred to each relevant section office or Surveillance center, medical personnel can see that from the giant-screen of Control Room the operation conditions of many infusion pump comprises speed according to the related data of transmission, pressure, the information such as warning.Can long-range analgesia pump be controlled for some unusual situations.
This utility model is to realize by following technical scheme:
The analgesia pump long distance control system comprises: sensor assembly, input module, data processing module, GPRS wireless communication module, Surveillance center, sensor assembly links to each other with data processing module respectively with input module, and data processing module links to each other with Surveillance center by the GPRS wireless communication module.
Further, described data processing module adopts the atmege16 chip.
Further, described GPRS wireless communication module adopts the MC37i chip.
Further, described sensor assembly comprises infrared sensor, pressure transducer and ultrasonic sensor.
This utility model is compared with background technology, and the useful effect that has is:
Most medical monitoring equipment all belongs to bedside monitor, and effective monitoring distance of patient can only be confined to hospital's bedside.Thereby, analgesia pump monitoring system of the present utility model is passed through cordless communication network with the real time information of a plurality of patients' infusion process, deliver to infusion pump Surveillance center and carry out Centralized Monitoring, be conducive to infusion pump monitoring parameter and variation thereof that the medical worker observes many berths patient simultaneously, thereby increase work efficiency, reduce medical personnel's working strength.Seeking medical advice to people brings great convenience, and has obvious practical benefit and long-range social benefit.
Description of drawings

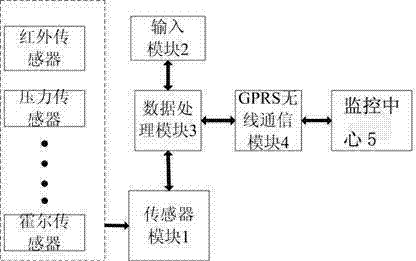

Fig. 1 is schematic diagram of the present utility model;
Fig. 2 is structural representation of the present utility model;
The specific embodiment
Below in conjunction with accompanying drawing analgesia pump monitoring system of the present utility model is described further.
Such as Fig. 1, shown in 2, analgesia pump supervising device of the present utility model comprises following structure: sensor assembly 1, input module 2, data processing module 3, GPRS wireless communication module 4, Surveillance center 5.
Sensor assembly 1 is the unit that utilizes various transfusions in the sensor acquisition analgesia pump infusion process, and these sensors comprise infrared sensor, Hall element and pressure transducer etc., and these data are sent into data processing module 3 process.
Input module 2 is patient and analgesia pump infusion information to be input in the data processing module 3 and by GPRS wireless communication module 4 be sent to Surveillance center 5.
Data processing module 3 mainly is through after the processing and amplifying with the various infusion parameter signals in the analgesia pump infusion process of sensor assembly 1 collection, send into data processing module 3 and carry out signal processing, be sent to monitoring infusion center 5 by GPRS cordless communication network 4 simultaneously, then carry out corresponding control operation.This data processing module 3 adopts low-power consumption, high efficiency atmege16, except can stablizing high-speed receiving, processing, transmission data, and can carry out automatization's processing and warning to other situations such as low pressure, power down.
GPRS wireless communication module 4 mainly is to give relevant section office or Surveillance center by the GPRS wireless-transmission network with the information transmissions such as some real-time parameters in the infusion process, and this system can monitor the operation conditions of a plurality of analgesia pumps simultaneously.When unusual condition occurring in the infusion process, warning message can be reported to the medical worker timely, by the medical worker anomalous event be processed timely.Simultaneously hospital sends to 3 pairs of transfusions of data processing module according to the real time information of other some devices with feedback command and adjusts.The GPRS module adopts the MC37i chip in the GPRS wireless communication module 4, this chip has low in energy consumption, the functions such as supported data, short message and fax, integrated complete radio circuit and GPRS baseband processor, complete GSM and the wave point of GPRS are provided, can realize two-way communication with atmege16 by RS-232.The data that collected by sensor assembly 1 are given atmege16 and are carried out obtaining packet data package after the analyzing and processing, and atmege16 sends to packet data package GPRS module MC37i chip again.The MC37i chip sends the data that obtain through GPRS network, carry out entering the external network the Internet after the protocol conversion via gateway GSN again and be communicated at last Surveillance center 5.Surveillance center 5 carries out Treatment Analysis and demonstrates concrete infusion information at host computer packet again, and abnormal conditions are in time made warning.Surveillance center 5 also can give any infusion pump with data and pass down the line by reverse transmission, can in time some parameter situations be made amendment and proofread and correct.
The display of Surveillance center 5 is can each infusion pump ruuning situation of clear real-time demonstration, and can carry out real time modifying and abnormal conditions are made warning to some parameters (such as flow, flow velocity).
Shown in the above and the figure only is preferred implementation of the present utility model.Should be pointed out that for the person of ordinary skill of the art under the prerequisite that does not break away from this utility model principle, can also make some modification and improvement, these also should be considered as belonging to protection domain of the present utility model.

Claims (4)

1. analgesia pump long distance control system, comprise: sensor assembly (1), input module (2), data processing module (3), GPRS wireless communication module (4), Surveillance center (5) is characterized in that: described sensor assembly (1), input module (2) link to each other with data processing module (3) respectively, and data processing module (3) links to each other with Surveillance center (5) by GPRS wireless communication module (4).
2. analgesia pump long distance control system as claimed in claim 1 is characterized in that: described data processing module (3) employing atmege16 chip.
3. analgesia pump long distance control system as claimed in claim 1 or 2 is characterized in that: described GPRS wireless communication module (4) employing MC37i chip.
4. analgesia pump long distance control system as claimed in claim 1, it is characterized in that: described sensor assembly (1) comprises infrared sensor, pressure transducer and ultrasonic sensor.
CN 201220525905 2012-10-15 2012-10-15 Analgesia pump remote monitoring system Expired - Fee Related CN202859867U (en)
