Abstract
The utility model relates to a deodorant floor drain. The deodorant floor drain comprises a cylinder and a water permeable panel which is arranged on the cylinder, wherein a floor drain core is arranged in the cylinder and is connected with the bottom of the cylinder to form a ring-shaped water storage cavity; a floor drain core cover is arranged at the lower end of the water permeable panel; and the inner diameter of the floor drain core cover is greater than the outer diameter of the floor drain core. The deodorant floor drain has the advantages that (1) the water storage cavity is formed between the floor drain core and the cylinder and can form a water seal with the floor drain core cover, so that odor in a drainage pipeline can be prevented from entering indoor under normal conditions, and the rooms are kept clean; (2) the water permeable panel and the cylinder are relatively independent of each other and convenient to replace, so that cost is reduced; and (3) a through hole is formed in the water permeable panel and is connected with a washing machine for drainage, so that the deodorant floor drain is reasonable in structure.
Description
Technical field
The utility model relates to the discharge structure technical field, especially relates to a kind of odour-proof floor drain.
Background technology
Indoor in order to prevent that foul smell in the drainage pipe is dispersed into, the method that generally adopts of people people is that the drainage pipe in the washroom in shelter, kitchen etc. arranges one section S shape trap at present.Can store a certain amount of water in this S shape trap, form water seal, drainage pipe is cut off, have preferably odor-resistant result, but be stopped up the rear dredging that is difficult for by foreign material.
And result in blockage in order to prevent foreign material from entering drainage pipe, people install floor drain in the water inlet of drainage pipe usually.Existing floor drain generally comprises housing and filters cover plate, and the top of housing is provided with opening, filters cover plate and detachably is installed on the opening on housing top, filters cover plate and is provided with the inlet opening, and the bottom of housing is provided with delivery port.When sewage entered drainage pipe through floor drain, the foreign material in the sewage were filtered cover plate and block, and filtered sewage then enters from the inlet opening in the cavity of housing and enters drainage pipe through the delivery port of housing bottom.But the foreign material of this floor drain in can only elimination sewage, and do not have the function of isolation foul smell.
Therefore, a kind of appearance of odour-proof floor drain is necessary.
The utility model content
The utility model is to provide a kind of odour-proof floor drain for solving the problems of the technologies described above.
The technical problem that the utility model solves realizes by the following technical solutions:
A kind of odour-proof floor drain comprises cylindrical shell, and is arranged on the permeable panel on the described cylindrical shell, wherein, is provided with leakage core in the inside of described cylindrical shell, and described leakage core is connected with the bottom of described cylindrical shell, and forms annular storage chamber; The lower end of described permeable panel is provided with Lou core cover, and the interior diameter of described leakage core cover is greater than the external diameter of described leakage core.
Further, be provided with through hole at the center of described permeable panel, so that check drainage pipe.
Further, described through hole is provided with baffle plate.
Further, on described cylindrical shell, also be provided with annular slot, so that fixing described permeable panel.
Further, described leakage core cover is fixed on the described permeable panel by dowel.
The beneficial effect that the utlity model has is: (1) is provided with storage chamber leaking between core and the cylindrical shell, this storage chamber with leak the core cover and can form water seal, it is indoor to prevent that under normal circumstances foul smell etc. in the water drain pipeline from entering into, and guarantees indoor cleaning; (2) relatively independent between permeable panel and the cylindrical shell, it is convenient to change, and reduces cost; (3) be provided with through hole at permeable panel, be used for connecting washing machine drainage, rational in infrastructure.
Description of drawings

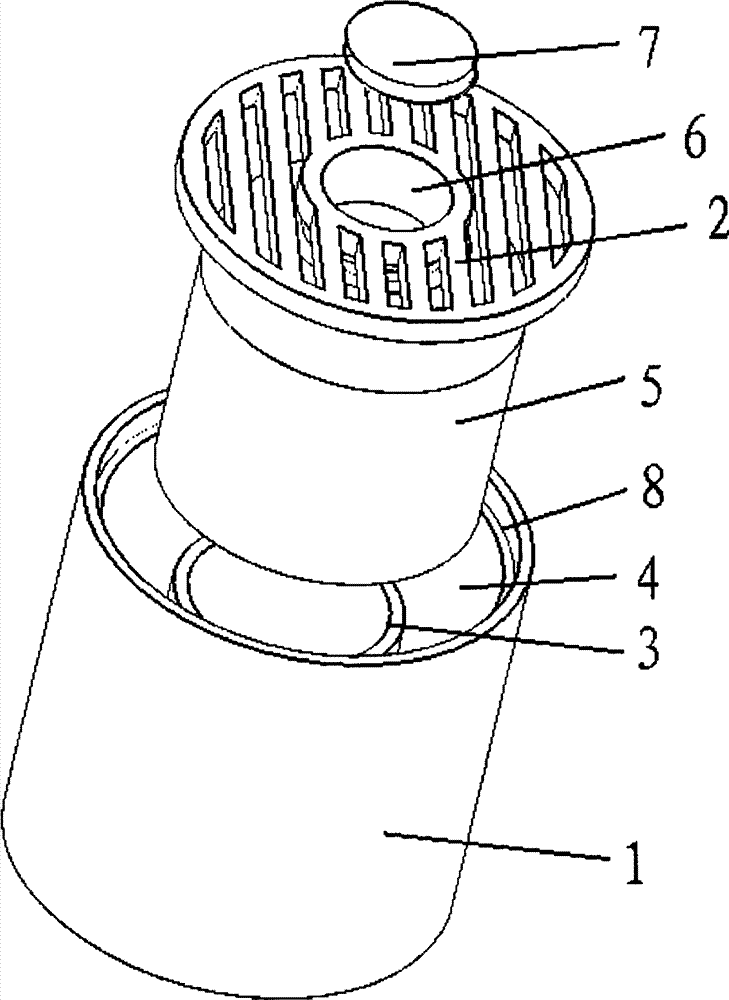

Fig. 1 is the utility model: a kind of structural representation of odour-proof floor drain;
Fig. 2 is the utility model: a kind of cross-sectional view of odour-proof floor drain;
Among the figure: 1-cylindrical shell, the permeable panel of 2-, 3-leak core, 4-storage chamber, 5-leakage core cover, 6-through hole, 7-baffle plate, 8-annular slot, 9-dowel.
The specific embodiment
For technological means, creation characteristic that the utility model is realized, reach purpose and effect is easy to understand, below in conjunction with concrete diagram, further set forth the utility model.
Shown in Fig. 1-2, a kind of odour-proof floor drain comprises cylindrical shell 1, and is arranged on the permeable panel 2 on the cylindrical shell 1, wherein, is provided with Lou core 3 in the inside of cylindrical shell 1, leaks core 3 and is connected with the bottom of cylindrical shell 1, and form annular storage chamber 4; The lower end of permeable panel 2 is provided with Lou core cover 5, leaks the interior diameter of core cover 5 greater than the external diameter that leaks core 3.
Be provided with through hole 6 at the center of permeable panel 2, so that check drainage pipe; Through hole 6 is provided with baffle plate 7.
On cylindrical shell 1, also be provided with annular slot 8, so that fixing permeable panel 2.
Leaking core cover 5 is fixed on the permeable panel 2 by dowel 9.
The utility model is provided with storage chamber 4 leaking between core 3 and the cylindrical shell 1, this storage chamber 4 with leak core cover 5 and can form water seal, it is indoor to prevent that under normal circumstances foul smell etc. in the water drain pipeline from entering into, and guarantees indoor cleaning.
Because relatively independent between permeable panel 2 and the cylindrical shell 1, it is convenient to change, and reduces cost.
Be provided with through hole 6 at permeable panel 2, be used for connecting washing machine drainage, rational in infrastructure.
More than show and described basic principle of the present utility model and principal character and advantage of the present utility model.The technician of the industry should understand; the utility model is not restricted to the described embodiments; that describes in above-described embodiment and the manual just illustrates principle of the present utility model; under the prerequisite that does not break away from the utility model spirit and scope; the utility model also has various changes and modifications, and these changes and improvements all fall in claimed the utility model scope.The claimed scope of the utility model is defined by appending claims and equivalent thereof.
Claims (5)
1. an odour-proof floor drain comprises cylindrical shell, and is arranged on the permeable panel on the described cylindrical shell, it is characterized in that, is provided with leakage core in the inside of described cylindrical shell, and described leakage core is connected with the bottom of described cylindrical shell, and forms annular storage chamber; The lower end of described permeable panel is provided with Lou core cover, and the interior diameter of described leakage core cover is greater than the external diameter of described leakage core.
2. a kind of odour-proof floor drain according to claim 1 is characterized in that, is provided with through hole at the center of described permeable panel.
3. a kind of odour-proof floor drain according to claim 2 is characterized in that, described through hole is provided with baffle plate.
4. a kind of odour-proof floor drain according to claim 1 is characterized in that, also is provided with the annular slot for fixing described permeable panel on described cylindrical shell.
5. a kind of odour-proof floor drain according to claim 1 is characterized in that, described leakage core cover is fixed on the described permeable panel by dowel.
