CN202847051U - Packaging box with damp-proof function - Google Patents

Packaging box with damp-proof function Download PDF

Info

Publication number
CN202847051U
CN202847051U CN 201220545198 CN201220545198U CN202847051U CN 202847051 U CN202847051 U CN 202847051U CN 201220545198 CN201220545198 CN 201220545198 CN 201220545198 U CN201220545198 U CN 201220545198U CN 202847051 U CN202847051 U CN 202847051U
Authority
CN
China
Prior art keywords
proof function
paper
damp
pallet
packaging box
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN 201220545198
Other languages
Chinese (zh)
Inventor
陆波
郭建明
是伟强
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
CHANGZHOU HONGYE PACKING MATERIAL Co Ltd
Original Assignee
CHANGZHOU HONGYE PACKING MATERIAL Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by CHANGZHOU HONGYE PACKING MATERIAL Co Ltd filed Critical CHANGZHOU HONGYE PACKING MATERIAL Co Ltd
Priority to CN 201220545198 priority Critical patent/CN202847051U/en
Application granted granted Critical
Publication of CN202847051U publication Critical patent/CN202847051U/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Abstract

The utility model belongs to the field of packaging boxes and particularly relates to a corrugated paper packaging box with a damp-proof function. The packaging box with the damp-proof function comprises a pallet, frontal wall plates and lateral wall plates, wherein the frontal wall plates and the lateral wall plates are symmetrically arranged, the frontal wall plates are arranged at the upper side and the lower side of the pallet, and the lateral wall plates are arranged at the left side and the right side of the pallet; and the packaging box with the damp-proof function is characterized in that each frontal wall plate or each lateral wall plate comprises two layers of surface papers, core papers are arranged between the two layers of the surface papers and are in corrugated shapes, and plastic waterproof layers are adhered onto the outer surfaces of the two layers of the surface papers. According to the packaging box provided by the utility model, the damp proofing can be well realized, the strength and the shape of a box body can be guaranteed, and goods can be well supported and positioned.

Description

Packing case with moisture-proof function
Technical field
The utility model belongs to the packing case field, particularly a kind of corrugated-paper packaging box with moisture-proof function.
Background technology
The material day of wooden-box package is becoming tight, and the utilization rate of timber is lower, cost is higher, and with the wooden case that timber is made, shockproof properties is poor, and the parasitosis of timber evil also has influence on the quality of timber, the packing case that plastics or foam are made is difficult for reclaiming, and can cause serious environmental pollution, and no matter be the packing case that wooden case or plastics or foam are made, the casing of packing case is subject to easily the impact of temperature and deforms.Carton is more and more applied on the packing by people, and it is convenient light and handy, and cost is low, body is light, is convenient to loading and unloading and transportation.But the easy moisture absorption of the packing case of paper structure, fearness wet, and deform easily under the environment of humidity.
Summary of the invention
The utility model has designed a kind of packing case with moisture-proof function for the deficiencies in the prior art, can be damp proof preferably, guarantee intensity and the shape of casing, and can support preferably and locate goods.
The utility model is achieved through the following technical solutions:
Packing case with moisture-proof function, it comprises pallet, symmetrically arranged positive coaming plate and gusset plate, described positive coaming plate is arranged on the up and down both sides of pallet, the gusset plate is arranged on the left and right sides of pallet, it is characterized in that: described positive coaming plate and gusset plate comprise two-layer table paper, be provided with core paper between the described two-layer table paper, described core paper is the structure of corrugated, and the outer surface of described two-layer table paper is pasted with the plastics waterproofing layer.
Fill by hygroscopic material between the two-layer table paper of described positive coaming plate and gusset plate and the core paper, when breaking appears in the plastics waterproofing layer on the table paper, the hygroscopic material that arranges between table paper and the core paper can absorb the moisture content that enters packing case, prevent that moisture content from further spreading, guarantee on the one hand the stability of packing box structure, also guaranteed on the other hand the security of Bale Cargo.
Adopt glue bonding between described two-layer table paper and the core paper.
In sum, the beneficial effects of the utility model are: packing case described in the utility model has preferably humidity resistance, can carry out one to goods preserves preferably and supports, avoid goods in transportation, to be damaged, packing case described in the utility model has long service life simultaneously, can recycle and reuse, reduce wananty costs.
Description of drawings

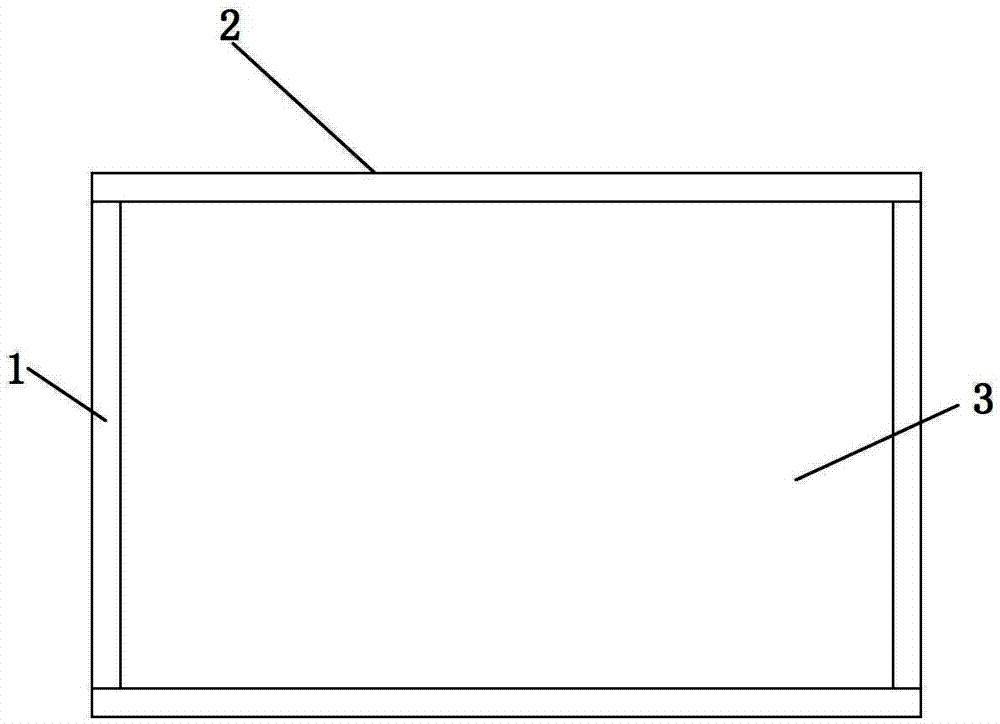

Fig. 1 is structural representation of the present utility model,
Fig. 2 is the generalized section of gusset plate and positive coaming plate;
1 is the gusset plate among the figure, and 2 is positive coaming plate, and 3 is pallet, and 4 is core paper, and 5 are table paper, and 6 are the plastics waterproofing layer, and 7 is hygroscopic material.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described further.
The packing case with moisture-proof function as depicted in figs. 1 and 2, it comprises pallet 3, symmetrically arranged positive coaming plate 2 and gusset plate 1, described positive coaming plate 2 is arranged on the up and down both sides of pallet 3, gusset plate 1 is arranged on the left and right sides of pallet 3, it is characterized in that: described positive coaming plate 2 and gusset plate 1 comprise two-layer table paper 5, be provided with core paper 4 between the described two-layer table paper 5, described core paper 4 is the structure of corrugated, and the outer surface of described two-layer table paper 5 is pasted with plastics waterproofing layer 6.
Fill by hygroscopic material 7 between the two-layer table paper 5 of described positive coaming plate 2 and gusset plate 1 and the core paper 4, when breaking appears in the plastics waterproofing layer on the table paper, the hygroscopic material that arranges between table paper and the core paper can absorb the moisture content that enters packing case, prevent that moisture content from further spreading, guarantee on the one hand the stability of packing box structure, also guaranteed on the other hand the security of Bale Cargo.
Adopt glue bonding between described two-layer table paper 5 and the core paper 4.
In sum, the beneficial effects of the utility model are: packing case described in the utility model has preferably humidity resistance, can carry out one to goods preserves preferably and supports, avoid goods in transportation, to be damaged, packing case described in the utility model has long service life simultaneously, can recycle and reuse, reduce wananty costs.

Claims (3)

1. the packing case that has moisture-proof function, it comprises pallet, symmetrically arranged positive coaming plate and gusset plate, described positive coaming plate is arranged on the up and down both sides of pallet, the gusset plate is arranged on the left and right sides of pallet, it is characterized in that: described positive coaming plate and gusset plate comprise two-layer table paper, be provided with core paper between the described two-layer table paper, described core paper is the structure of corrugated, and the outer surface of described two-layer table paper is pasted with the plastics waterproofing layer.
2. the packing case with moisture-proof function according to claim 1 is characterized in that: fill by hygroscopic material between the two-layer table paper of described positive coaming plate and gusset plate and the core paper.
3. the packing case with moisture-proof function according to claim 1 is characterized in that: adopt glue bonding between described two-layer table paper and the core paper.
