The utility model discloses a novel diving-type inhale wine decanter which comprises a cup body and is characterized in that a cavity is arranged in the cup body, a liquid outlet passage which is communicated with the cavity is arranged on the lower portion of the cup body, and a diving-type inhale device is arranged between the cavity and the liquid outlet passage. The novel diving-type inhale wine decanter is characterized in that the diving-type inhale device comprises an inhale seat which is arranged in the liquid outlet passage, a liquid guide passage is arranged in the inhale seat, an inhale opening which is communicated with the liquid guide passage is arranged on the side wall of the inhale seat, an inhale pipe is connected on the inhale opening, and one end of the inhale pipe is arranged on the upper portion of the cup body. The utility model aims at providing the novel diving-type inhale wine decanter which is simple in structure, rapid in decanting process and convenient to use in order to overcome the defects in the prior art.
Description
Technical field
The utility model relates to the air-breathing device for sobering drunken people of a kind of Novel submersible.
Background technology
Be sealed in for a long time the interior grape wine of bottle because the tannin in the grape wine can not get abundant oxidation, usually have one peculiar smell, affect mouthfeel vinous and fragrance.Before drinking grape wine, usually to sober up.The effect of sobering up is to allow red wine and air fully mix contact the fragrance that makes tannin oxidation, abundant release sealing.Traditional process of sobering up generally all needs a night or longer time.It is found that a large amount of air is mixed with grape wine, can shorten the required time of sobering up.Occurred multiple device for sobering drunken people on the market, still, present device for sobering drunken people itself and contact with air are in poor shape for this reason, can't make " being sunk into sleep " tannin for many years softening and fully discharge the fragrance of sealing fully, have affected mouthfeel vinous and quality.
The utility model content
The purpose of this utility model is in order to overcome weak point of the prior art, to provide a kind of simple in structure, and the process of sobering up is fast, the air-breathing device for sobering drunken people of Novel submersible easy to use.
In order to achieve the above object, the utility model adopts following scheme:
The air-breathing device for sobering drunken people of a kind of Novel submersible, include cup, it is characterized in that: in described cup, be provided with cavity, be provided with the liquid outlet channel that is connected with described cavity in described cup bottom, between described cavity and liquid outlet channel, be provided with the submersible type getter device.
The air-breathing device for sobering drunken people of aforesaid a kind of Novel submersible, it is characterized in that described submersible type getter device includes the air-breathing seat that is arranged in the described liquid outlet channel, in described air-breathing seat, be provided with the drain passage, be provided with the air entry that is connected with described drain passage at described air-breathing seat sidewall, be connected with air intake duct at described air entry, described air intake duct one end is arranged on described cup top.
The air-breathing device for sobering drunken people of aforesaid a kind of Novel submersible is characterized in that being provided with storage tank at described cup inwall, and described air intake duct is arranged in the described storage tank.
The air-breathing device for sobering drunken people of aforesaid a kind of Novel submersible is characterized in that being provided with connecting portion at described cup outer wall is provided with the installing hole that is communicated with described cavity in described connecting portion, and described air intake duct is arranged in the described installing hole.
The air-breathing device for sobering drunken people of aforesaid a kind of Novel submersible is characterized in that described cup is a tapered cup.
The air-breathing device for sobering drunken people of aforesaid a kind of Novel submersible is characterized in that being provided with a plurality of separatory catch at described air-breathing seat one end, forms a liquid outlet between the adjacent separatory catch.
In sum, the utility model with respect to its beneficial effect of prior art is:
The utility model is simple in structure, easy for installation, only need red wine is poured into the cavity of cup in the use procedure, in the process of red wine through the liquid outlet channel whereabouts, drain passage in the air-breathing seat will produce negative pressure, air will fully mix from suction in the air intake duct and with red wine, reaches the purpose of Quick sobering, and is easy to use.
Description of drawings

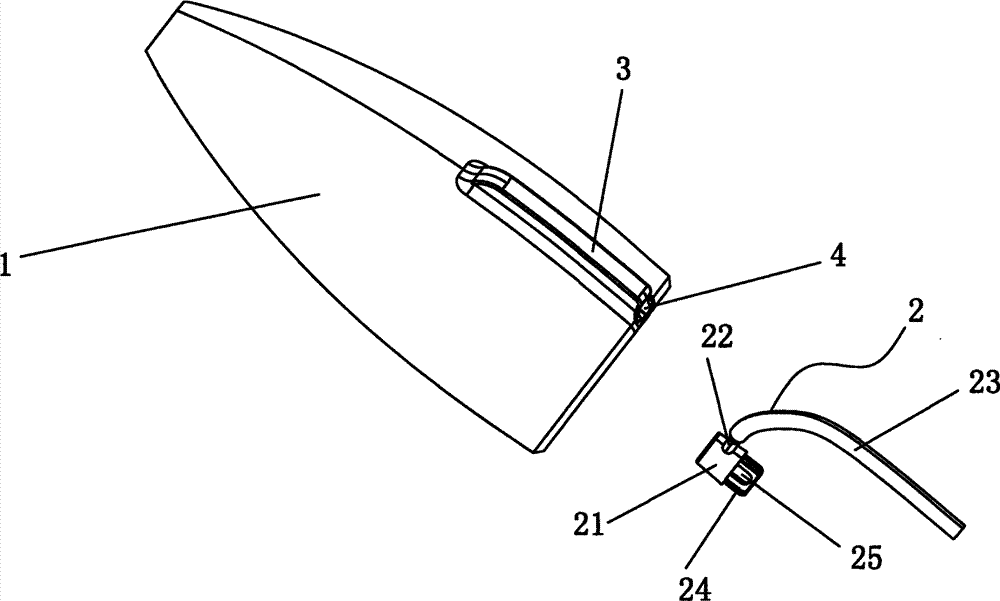

Fig. 1 is perspective exploded view of the present utility model;
Fig. 2 is overlooking surface figure of the present utility model.
The specific embodiment
Below in conjunction with description of drawings and the specific embodiment the utility model is further described:
The air-breathing device for sobering drunken people of a kind of Novel submersible shown in Fig. 1 to 2, include cup 1, in described cup 1, be provided with cavity, be provided with the liquid outlet channel that is connected with described cavity in described cup 1 bottom, between described cavity and liquid outlet channel, be provided with submersible type getter device 2.
Submersible type getter device 2 described in the utility model includes the air-breathing seat 21 that is arranged in the described liquid outlet channel, in described air-breathing seat 21, be provided with the drain passage, be provided with the air entry 22 that is connected with described drain passage at described air-breathing seat 21 sidewalls, be connected with air intake duct 23 at described air entry 22, described air intake duct 23 1 ends are arranged on described cup 1 top.
The first mounting means of the utility model air intake duct 23 is provided with storage tank at described cup 1 inwall, and described air intake duct 23 is arranged in the described storage tank.
The second mounting means of air intake duct 23 in the utility model is provided with connecting portion 3 at described cup 1 outer wall and is provided with the installing hole 4 that is communicated with described cavity in described connecting portion 3, and described air intake duct 23 is arranged in the described installing hole 4.Wherein said connecting portion 3 can be worked as handle and be used.
Operation principle of the present utility model:
Red wine is poured in the cavity of cup, flows out downwards from liquid outlet channel, in the process of red wine through the liquid outlet channel whereabouts, drain passage in the air-breathing seat will produce negative pressure, air will fully mix from suction in the air intake duct and with red wine, reaches the purpose of Quick sobering, and is easy to use.
Claims (6)
1. air-breathing device for sobering drunken people of Novel submersible, include cup (1), it is characterized in that: in described cup (1), be provided with cavity, be provided with the liquid outlet channel that is connected with described cavity in described cup (1) bottom, between described cavity and liquid outlet channel, be provided with submersible type getter device (2).
2. the air-breathing device for sobering drunken people of a kind of Novel submersible according to claim 1, it is characterized in that described submersible type getter device (2) includes the air-breathing seat (21) that is arranged in the described liquid outlet channel, in described air-breathing seat (21), be provided with the drain passage, be provided with the air entry (22) that is connected with described drain passage at described air-breathing seat (21) sidewall, be connected with air intake duct (23) at described air entry (22), described air intake duct (23) one ends are arranged on described cup (1) top.
3. the air-breathing device for sobering drunken people of a kind of Novel submersible according to claim 2 is characterized in that being provided with storage tank at described cup (1) inwall, and described air intake duct (23) is arranged in the described storage tank.
4. the air-breathing device for sobering drunken people of a kind of Novel submersible according to claim 2, it is characterized in that being provided with connecting portion (3) at described cup (1) outer wall is provided with the installing hole (4) that is communicated with described cavity in described connecting portion (3), described air intake duct (23) is arranged in the described installing hole (4).
5. the air-breathing device for sobering drunken people of a kind of Novel submersible according to claim 1 is characterized in that described cup (1) is a tapered cup.
6. the air-breathing device for sobering drunken people of a kind of Novel submersible according to claim 2, it is characterized in that being provided with a plurality of separatory catch (24) at described air-breathing seat (21) one ends, form an inlet (25) between the adjacent separatory catch (24).
