Abstract

The utility model relates to a desk and a chair which are used in a study room of a library, in particular to an integrated study room desk and chair which combines the desk and the chair together. The chair comprises a square chair face, two front legs and two back legs, wherein the two front legs and the two back legs are arranged below the chair face and are movably connected through rotating shafts. Openings are respectively arranged in the upper portions of the two front legs, blocking openings are respectively arranged in the middle portions of the two front legs, the middle portions of the two back legs are connected through a blocking rod, so the blocking rod is enabled to be clamped in the blocking openings when the front legs and the back legs are opened relative to the chair face, and the blocking rod is further enabled to be clamped in the openings when the front legs and the back legs are closed relative to the chair face. The legs are two segments of columns which are coaxially fixed and connected in a vertical mode, the diameter of the column at the upper end is small, and the diameter of the column at the lower end is big. The column at the upper end is provided with a round sleeve which can move vertically and rotate horizontally, and the round sleeve is connected with the chair face through a connecting rod. The integrated study room desk and chair is simple in structure, convenient to use, small in occupied space and easy to popularize.

Description

Integral type room for individual study tables and chairs
Technical field
The utility model relates to desk and chair, especially the two integral type room for individual study tables and chairs that combine that a kind of library room for individual study uses.
Background technology
Now, college students ' studies by oneself in scheduled time in the library becomes a kind of universal phenomenon, and the library is that every student in reading room and room for individual study study has been equipped with desk and chair.At present; the desk and the chair that use in the library of school or reading room mostly are greatly split type, and chair often can occur and leave about, even the phenomenon of losing; and split type desk and chair take up room larger, and the staff is very inconvenient when clearing up.
The utility model content
In order to solve the problems of the technologies described above, the utility model proposes a kind of integral type room for individual study tables and chairs, it is simple in structure, and is easy to use, occupies little space, and is easy to promote.
The technical scheme that the utility model adopts is: a kind of integral type room for individual study tables and chairs, comprise square desktop, be arranged on the table leg of described desktop below, the chair that is connected with described table leg, two forelegs and two back legs that described chair comprises square seat and is arranged on described seat below and is flexibly connected by rotating shaft, described two forelegs top arranges respectively gap, the middle part arranges respectively the gear mouth, described two back legs middle part connects by pin, so that described foreleg and back leg when opening with respect to seat described pin be stuck in the described gear mouthful, also so that described foreleg and back leg when closed with respect to seat described pin be stuck in the described gap; Described table leg is up and down coaxial being fixedly connected with of two sections cylinders, and its upper end body diameter is little, and the lower end body diameter is large, is equipped with on the cylinder of upper end can move up and down and the circle cover of left-right rotation, and described circle cover is connected with described seat by connecting rod.
As a kind of optimal way of the present utility model, when described foreleg and back leg were opened with respect to seat, the bottom that the circle that is connected with described seat by described connecting rod overlaps was higher than the upper surface of the lower end cylinder of described table leg.
The beneficial effects of the utility model are: integral type room for individual study tables and chairs are by being fixed together desk and chair by rotatable connecting rod, make it easy to carrying, make simultaneously tables and chairs supporting, especially chair can not lost, by rotating the distance that to regulate between the tables and chairs, adapt to the comfortable use of people of different heights during use; Can with the foreleg of chair and back leg be upwards folded up and chair is rotated to the desk below when not using, so that these tables and chairs take up room is less, be convenient to the staff to the cleaning of room for individual study.
Description of drawings

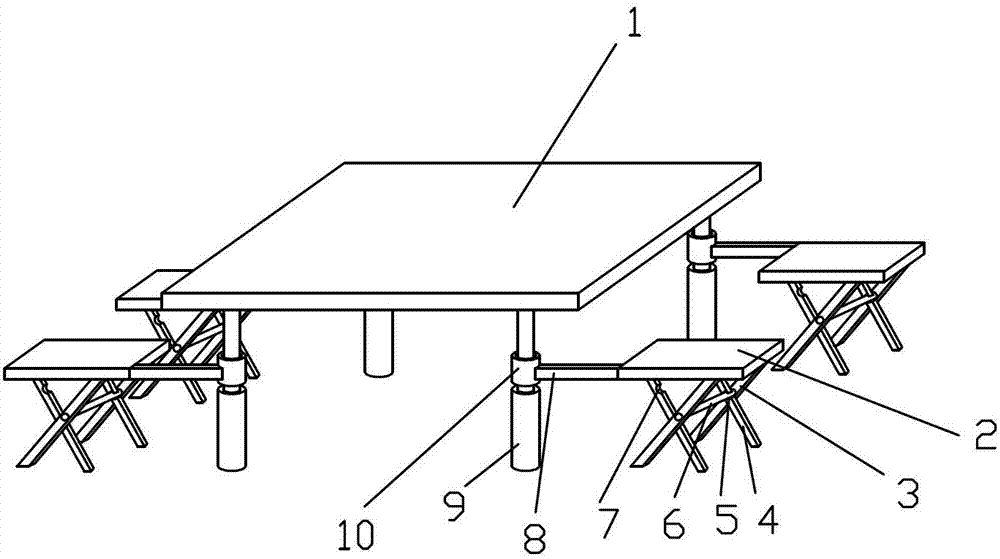

Fig. 1 is the structural representation of integral type room for individual study tables and chairs.
Fig. 2 is the Chair structure schematic diagram that is under the folded state.
Fig. 3 is that integral type room for individual study tables and chairs use state diagram.
The specific embodiment
The integral type room for individual study tables and chairs that the utility model relates to be for solve existing tables and chairs take up room larger, can't regulate the tables and chairs spacing from technical problem propose, its structure is as shown in Figure 1.A kind of integral type room for individual study tables and chairs, comprise square desktop 1, be arranged on the table leg 9 of described desktop 1 below, the chair that is connected with described table leg 9, described chair comprises square seat 2 and is arranged on described seat 2 belows and passes through two forelegs 4 and two back legs 3 that rotating shaft 11 is flexibly connected, described two foreleg 4 tops arrange respectively gap 7, the middle part arranges respectively gear mouth 5, described two back leg 3 middle parts connect by pin 6, so that described foreleg 4 and back leg 3 when opening with respect to seat 2 (when using chair) described pin 6 be stuck in the described gear mouthfuls 5, also so that described foreleg 4 and back leg 3 when closed with respect to seat 2 (when not using chair) described pin 6 be stuck in the described gap 7, as shown in Figure 2.
Described table leg 9 is up and down coaxial being fixedly connected with of two sections cylinders, and its upper end body diameter is little, and the lower end body diameter is large, is equipped with on the cylinder of upper end to move up and down the also circle cover 10 of left-right rotation, and described circle cover 10 passes through connecting rod 8 and is connected with described seat 2.
The student can open two forelegs 4 and two back legs 3 of chair downwards with respect to seat 2 when using these tables and chairs, and pin 6 is stuck in the gear mouthfuls 5, forms chair, and can adapt to different height by the distance that rotation connecting rod 8 be regulated Cain and Abel.Stopping study when not using these tables and chairs, can two forelegs 4 and two back legs 3 of chair are upwards closed with respect to seat 2, pin 6 is stuck in the gap 7, and rotation connecting rod 8 places chair below the desk, as shown in Figure 3.
In addition, when described foreleg 4 and back leg 3 were opened with respect to seat 2, the bottom of the circle cover 10 that is connected with described seat 2 by described connecting rod 8 was higher than the upper surface of the lower end cylinder of described table leg 9.Like this, when chair is in the use state, circle cover 10 can not contact with the lower end cylinder, when the student is sitting in the chair learning, what bear student's body weight is seat 2, foreleg 4, back leg 3 and pin 6, rather than connecting rod 8, therefore make the connecting rod 8 can be and distortion even fracture, be convenient to prolong tables and chairs service life.

Claims (2)

1. integral type room for individual study tables and chairs, comprise square desktop, be arranged on the table leg of described desktop below, the chair that is connected with described table leg, it is characterized in that: two forelegs and two back legs that described chair comprises square seat and is arranged on described seat below and is flexibly connected by rotating shaft, described two forelegs top arranges respectively gap, the middle part arranges respectively the gear mouth, described two back legs middle part connects by pin, so that described foreleg and back leg when opening with respect to seat described pin be stuck in the described gear mouthful, also so that described foreleg and back leg when closed with respect to seat described pin be stuck in the described gap; Described table leg is up and down coaxial being fixedly connected with of two sections cylinders, and its upper end body diameter is little, and the lower end body diameter is large, is equipped with on the cylinder of upper end can move up and down and the circle cover of left-right rotation, and described circle cover is connected with described seat by connecting rod.
2. integral type room for individual study tables and chairs according to claim 1 is characterized in that: when described foreleg and back leg were opened with respect to seat, the bottom of the circle cover that is connected with described seat by described connecting rod was higher than the upper surface of the lower end cylinder of described table leg.
