Abstract
本实用新型涉及一种新型手机充电器，包括充电器本体(1)、插头(2)和输出线(3)，充电器本体(1)设有一个壳体(4)，壳体(4)为一个两端粗中间细的卷轴，输出线(3)缠绕在壳体(4)的中部，电源插头(2)设在壳体(4)的底端，在壳体(4)的顶端设有一个吸盘(5)。由于本新型手机充电器的壳体为一个卷轴，卷轴能把输出线收卷和缠绕在壳体的中部，因此能避免输出线相互缠绕而打结的现象，并且吸盘能把充电的手机吸附固定在壳体上，从而能保护手机以防意外跌落而受损。
The utility model relates to a new mobile phone charger, which comprises a charger body (1), a plug (2) and an output line (3). The charger body (1) is provided with a shell (4), and the shell (4) It is a spool with two ends thick and thin in the middle, the output wire (3) is wound in the middle part of the casing (4), the power plug (2) is arranged at the bottom of the casing (4), and the top of the casing (4) is set There is a suction cup (5). Since the housing of the mobile phone charger of the present invention is a reel, the reel can wind up and wind the output wires in the middle of the housing, thus avoiding the phenomenon that the output wires are intertwined and knotted, and the suction cup can absorb and fix the charging mobile phone On the case, it can protect the phone from accidental drop and damage.
Description
Technical field
The utility model relates to a kind of charger, particularly a kind of charger for mobile phone.
Background technology
Charger for mobile phone is the most frequently used a kind of charger; traditional charger for mobile phone is made of charger body, plug and output line; because output line is long and without the structure of rolling output line; therefore not only output line is in disorder not attractive in appearance; and often can occur mutually to twine and the phenomenon of knotting; in addition mobile phone often can occur by the phenomenon that touches down and damage without the fixing structure of mobile phone in charger body.
Summary of the invention
The technical problems to be solved in the utility model is: overcomes the deficiency of conventional mobile phone charger, provides a kind of output line can not occur mutually to twine and the phenomenon of knotting, and the fixing Novel mobile phone charger of mobile phone.
Solve the problems of the technologies described above, the technical solution adopted in the utility model is:
A kind of Novel mobile phone charger comprises charger body, plug and output line, and charger body is provided with a housing, housing is the thick middle thin spools in two ends, output line is wrapped in the middle part of housing, and attaching plug is located at the bottom of housing, is provided with a sucker on the top of housing.
The beneficial effects of the utility model are after adopting technique scheme:
Because the housing of this Novel mobile phone charger is a spool; spool can and be wrapped in the middle part of housing the output line rolling; therefore the phenomenon that can avoid output line mutually to twine and tie a knot; and sucker can be absorbed and fixed at the mobile phone of charging on the housing, thereby can protect mobile phone in case accidental fall and impaired.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail:

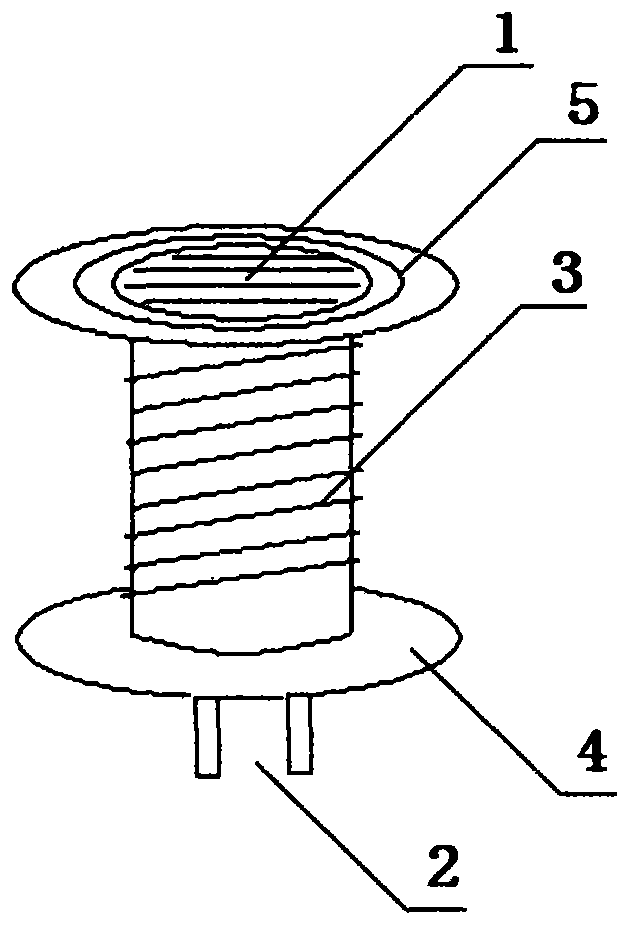

Accompanying drawing 1 is the structural representation of an embodiment of this Novel mobile phone charger.
Embodiment
As shown in Figure 1: a kind of Novel mobile phone charger, comprise charger body 1, plug 2 and output line 3, charger body 1 is provided with a housing 4, housing 4 is the thick middle thin spools in two ends, output line 3 is wrapped in the middle part of housing 4, attaching plug 2 is located at the bottom of housing 4, is provided with a sucker 5 on the top of housing 4.
In the process of using this Novel mobile phone charger, mobile phone and the output line 3 of needs charging are linked together, then unnecessary output line 3 is wrapped in the middle part of housing 4, and by sucker 5 mobile phone is adsorbed on the top of housing 4, plug 2 is plugged in the supply socket gets final product at last.
Claims (1)
1. Novel mobile phone charger, comprise charger body (1), plug (2) and output line (3), charger body (1) is provided with a housing (4), it is characterized in that: housing (4) is the thick middle thin spools in two ends, output line (3) is wrapped in the middle part of housing (4), attaching plug (2) is located at the bottom of housing (4), is provided with a sucker (5) on the top of housing (4).
