CN202837966U - Information prompting system for safety instrument storehouse - Google Patents
Information prompting system for safety instrument storehouse Download PDFInfo
- Publication number
- CN202837966U CN202837966U CN 201220228660 CN201220228660U CN202837966U CN 202837966 U CN202837966 U CN 202837966U CN 201220228660 CN201220228660 CN 201220228660 CN 201220228660 U CN201220228660 U CN 201220228660U CN 202837966 U CN202837966 U CN 202837966U
- Authority
- CN
- China
- Prior art keywords
- module
- control unit
- main control
- environmental data
- storehouse
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model discloses an information prompting system for a safety instrument storehouse, which is suitable for real-time monitoring of the environment of the safety instrument storehouse. The system comprises a master control unit (1), an environment data acquisition module (2), an environment data storage module (16), an environment parameter threshold storage module (3), an alarm module (4), a wireless sending module (5) and a wireless receiving module (6), wherein the master control unit (1) controls other modules, so that other parts can be carried out according to the control of the master control unit in the working process so as to realize rapid verification and authorization of work staff information. The information prompting system of the utility model can realize real-time monitoring of multiple parameters of the safety instrument storehouse, and can timely emit alarming to inform an administrator when a threshold is exceeded, thereby greatly reducing the workload of the administrator, and having great significance in unattended prevention against fire hazards.
Description
Technical field
The utility model relates to a kind of storehouse environmental monitoring system, relates in particular to a kind of managing security tools and instruments warehouse information prompt system.
Background technology
Managing security tools and instruments mostly is extraordinary instrument, and for the having relatively high expectations of storage environment, the environment of storehouse may directly have influence on the performance of instrument, and therefore suitable storehouse environment is that the Work tool that ensures safety can can't harm the important step of preservation.The content of the storehouse environmental monitoring of managing security tools and instruments is more and more, and require more and more higher, the manual record means that adopt at present, information delay and deal with data are loaded down with trivial details, and can't accomplish Real Time Monitoring, can't accomplish in time to notify the keeper when having the emergency situations such as fire to occur, more and more can not satisfy high-level detection demand.
Summary of the invention
The technical problems to be solved in the utility model, provide a kind of managing security tools and instruments warehouse information prompt system, its can the on-line real time monitoring storehouse the parameter value of water level information, storehouse smokescope, storehouse humidity and storehouse temperature of dehumidifier condensate water gatherer, and can when numerical value transfinites, give the alarm and in time notify the keeper.
For solving the problems of the technologies described above, the utility model institute managing security tools and instruments warehouse information prompt system,
Comprise:
Main control unit;
The environmental data collecting module, its data output end links to each other with main control unit, be used for to gather various environmental datas in the storehouse, and with the environmental data real-time Transmission that gathers to main control unit;
The environmental data memory module, its signal input part links to each other with the main control unit signal output part, is used for the environmental data that main control unit obtains is stored;
Environmental parameter threshold value memory module, its signal output part links to each other with main control unit, is used for the safety door limit value of each environmental parameter of storage, and the safety door limit value of each environmental parameter is basic as the environmental data comparison that the environmental data collecting module gathers;
Alarm module, its data input pin links to each other with main control unit, is used for carrying out the alarm command that main control unit sends.
As the restriction to aforesaid way, this system also comprises wireless sending module and wireless receiving module, and the input end of wireless sending module links to each other with main control unit, and wireless receiving module is accepted the information that wireless sending module sends by wireless transmission.
As the restriction to aforesaid way, described environmental data collecting module comprises water level information collecting unit, storehouse smokescope collecting unit, storehouse humidity collection unit and the storehouse temperature collecting cell that the water level value to the dehumidifier condensate water gatherer of storehouse gathers.
As the restriction to aforesaid way, described environmental parameter threshold value memory module comprises water level threshold value storage unit, smokescope threshold value storage unit, humidity threshold value storage unit and temperature threshold values storage unit.
As the restriction to aforesaid way, this system also comprises display module, display module can show the environmental data information of the environmental data collecting module that main control unit is received in real time, also the data that are stored in the environmental data memory module can be carried out historical playback.
Description of drawings

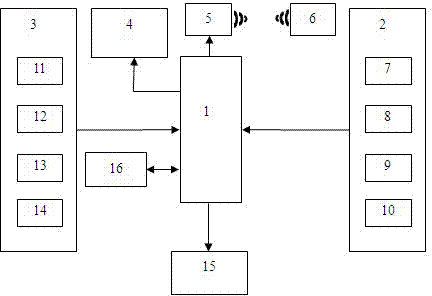

Fig. 1 is integrated connection block diagram of the present utility model;
Among the figure: 1-main control unit, 2-environmental data collecting module, 3-environmental parameter threshold value memory module, 4-alarm module, 5-wireless sending module, 6-wireless receiving module, 7-water level information collecting unit, 8-smokescope collecting unit, 9-humidity collection unit, 10-temperature collecting cell, 11-water level threshold value storage unit, 12-smokescope threshold value storage unit, 13-humidity threshold value storage unit, 14-temperature threshold values storage unit, 15-display module, 16-environmental data memory module.
Embodiment
Embodiment
Be illustrated in figure 1 as managing security tools and instruments warehouse information prompt system of the present utility model, comprise:
Be connected with environmental data collecting module 2 take sensor as core parts at the signal input part of main control unit 1, be integrated with the water level information collecting unit 7 take level sensor as core parts, the smokescope collecting unit 8 take smoke transducer as core parts on this mould, the humidity collection unit 9 take humidity sensor as core parts and the temperature collecting cell take temperature sensor as core parts 10.Environmental data collecting module 2 sends the environmental data that collects to main control unit 1, and then main control unit 1 is receiving to such an extent that environmental data stores in the environmental data memory module 16.
Environmental parameter threshold value memory module 3, its data output end links to each other with main control unit 1, is used for the safety door limit value of each environmental parameter of storage, and the data that are used for gathering with environmental data collecting module 2 as basic numerical value compare.Be integrated with water level threshold value storage unit 11 in environmental parameter threshold value memory module 3, smokescope threshold value storage unit 12, humidity threshold value storage unit 13, temperature threshold values storage unit 14, the standard gate limit value that is used for needed each environmental parameter of storage security Work tool, and with these standard gate limit values as comparing in main control unit 1 with comparing of 2 image data of environmental data collecting module is basic.
Alarm module 4, its data input pin links to each other with main control unit 1, the integrated warning device corresponding with the environmental parameter kind on the alarm module 4, and the collection value of which kind of parameter surpasses threshold value, then have main control unit 1 to send instruction, alarm module is carried out main corresponding alarm command.
Claims (5)
1. managing security tools and instruments warehouse information prompt system,
It is characterized in that comprising:
Main control unit (1);
Environmental data collecting module (2), its data output end links to each other with main control unit (1), be used for to gather environmental data in the storehouse, and with the environmental data real-time Transmission that gathers to main control unit (1);
Environmental data memory module (16), its signal input part links to each other with main control unit (1) signal output part, is used for the environmental data that main control unit (1) obtains is stored;
Environmental parameter threshold value memory module (3), its signal output part links to each other with main control unit (1), the safety door limit value that is used for each environmental parameter of storage, and the safety door limit value of each environmental parameter is basic as the environmental data comparison that environmental data collecting module (2) gathers;
Alarm module (4), its data input pin links to each other with main control unit (1), is used for carrying out the alarm command that main control unit sends.
2. managing security tools and instruments warehouse information prompt system according to claim 1,
It is characterized in that:Also comprise wireless sending module (5) and wireless receiving module (6), the input end of wireless sending module (5) links to each other with main control unit (1), and wireless receiving module (6) is accepted the information that wireless sending module (5) sends by wireless transmission.
3. managing security tools and instruments warehouse information prompt system according to claim 1 and 2,
It is characterized in that:Described environmental data collecting module (2) comprises water level information collecting unit (7), storehouse smokescope collecting unit (8), storehouse humidity collection unit (9) and the storehouse temperature collecting cell (10) that the water level value to the dehumidifier condensate water gatherer of storehouse gathers.
4. managing security tools and instruments warehouse information prompt system according to claim 3,
It is characterized in that:Described environmental parameter threshold value memory module (3) comprises water level threshold value storage unit (11), smokescope threshold value storage unit (12), humidity threshold value storage unit (13) and temperature threshold values storage unit (14).
5. managing security tools and instruments warehouse information prompt system according to claim 1,
It is characterized in that:Also comprise display module (15), be used for the environmental data of environmental data memory module (16) is shown in real time.
