Abstract
The utility model relates to a small-sized agricultural machine hoisting machine, comprising a long support, a short support, a sliding assembly, a transverse beam and a hoisting assembly, wherein one end of the transverse beam is connected with the long support and the other end of the transverse beam is connected with the short support; the sliding assembly is movably mounted on the transverse beam; and the sliding assembly can freely slide on the transverse beam and the hoisting assembly is connected onto the sliding assembly. The small-sized agricultural machine hoisting machine disclosed by the utility model has a small whole machine volume and light weight, and is simple to transfer when being used for field operation; and in a hoisting process, the hoisting is stable and an agricultural machine does not turn on one side when the heavier agricultural machine is hoisted.
Description
Technical field
The utility model relates to a kind of agriculture accessory machinery for farm work, relates in particular to for the hoisting machine that shifts at the field machine of farm work.
Background technology
China hills, mountain area are vast in territory, and agriculture terraced fields, terrace land are more, and small-scale agricultural machinery is ploughed, plants, broadcasts, received facility and will progressively popularize, and mechanization of agriculture progressively realizes.Because topography and landform character is complicated, making the transfer of field machine farm work facility is a great problems, needs to solve.And the device that is used at present the mechanical equipment transfer mainly contains following several:
1, application number is CN200720091997.1, the applying date is on September 26th, 2007, the Chinese utility model patent that name is called hoisting machine discloses a kind of hoisting machine, comprises winding plant, column and is rotatably installed in the arm of column upper end, and winding plant and arm are wholely set.The lower end of arm is installed with the rotation installation sleeve, and the axis of rotation installation sleeve and arm arm body have an axis body in obtuse angle on the column, and arm is installed in rotation on the axis body by the rotation installation sleeve, is equiped with bearing between axis body and rotation installation sleeve; Be installed with erecting frame on the rotation installation sleeve outer wall, described winding plant is installed on this erecting frame.This patent machine volume is larger, Heavy Weight, and when being used for agriculture terraced fields, the terrace land in China hills, mountain area, mobile, difficult.Because the area of terraced fields is less, and exists diff-H, when shifting field machine with this patent, lifting is unstable, and hoisting weight is light, may turn on one's side when lifting by crane than hoisting machinery.
2, application number is CN94206235.3, and the applying date is on February 28th, 1994, and the Chinese utility model patent that name is called Simple crane discloses a kind of Simple crane, can solve the equipment hoisting without the low-lying setting of highway.Can adopt the spider of installing mutually with the setting vertical columns, hinged assembly pulley 10 on crossbeam 8 ends of spider is walked around assembly pulley with steel rope and has been hung hook 11; The two ends of the vertical shaft 4 of spider are equipped with bearing (2,5) and are stuck in clamp 7 and upper and lower leading sheave (1,6) on the connecting element, and steel rope is fastened on the cylinder on the hand push winch 13 through two leading sheaves.Hook hangs the equipment of liter with drum rotating, by artificial rotation spider equipment is hung out, hoisting machine with after unload with car and push away away, be fit to disperse lifting operation point lifting operation.Because this patent can dismantle, when being used for agriculture terraced fields, the terrace land in China hills, mountain area, mobile, carrying is simple.But this patent all needs disassembly and assembly once when a setting of every movement on the one hand, has expended a large amount of production times, and operating efficiency is low; The touchdown point of this patent concentrates on a place on the other hand, utilizes the arm lifting to be hung equipment, and during lifting, lifting is unstable, may turn on one's side when lifting by crane than hoisting machinery.
The utility model content
In order to overcome defects, the utility model provides a kind of small-scale agricultural machinery hoisting machine, and this hoisting machine machine volume is little, lightweight, shifts when being used for farm work simply, and when lifting, lifting is stable, also can not turn on one's side when lifting by crane heavier field machine.
In order to solve the problems of the technologies described above, the technical solution adopted in the utility model is:
A kind of small-scale agricultural machinery hoisting machine, it is characterized in that: comprise long struts, sprag, slide assemblies, crossbeam and lifting assembly, described crossbeam one end links to each other with long struts, the described crossbeam other end links to each other with sprag, described slide assemblies is movably arranged on the crossbeam, this slide assemblies can be free to slide at crossbeam, and described lifting assembly is connected on the slide assemblies.
Be provided with strut bar between described long struts and the crossbeam, this strut bar one end is fixed on the long struts, and the other end is fixed on the crossbeam.
Be provided with strut bar between described sprag and the crossbeam, this strut bar one end is fixed on the sprag, and the other end is fixed on the crossbeam.
Described lifting assembly comprises assembly pulley, manual slide fastener and suspension hook, and described assembly pulley is connected on the slide assemblies, and manually slide fastener is wrapped on the assembly pulley, and suspension hook is fixedly mounted on the assembly pulley.
Described slide assemblies is slider roller, and slider roller is arranged on the crossbeam.
Described slide assemblies is guideway, and guideway is installed on the crossbeam.
Described long struts is expansion link.
Described crossbeam is H-girder.
Described long struts has two and link to each other with crossbeam by bearing pin, and described sprag has two and link to each other with crossbeam by bearing pin.
The utlity model has following advantage:
1, the simple long struts of the utility model utilization, sprag, slide assemblies, crossbeam and lifting assembly have just formed one and have been easy to the loop wheel machine installing, dismantle.Sprag is placed in the highly higher terraced fields, long struts is placed in the highly lower terraced fields, is free to slide at crossbeam by slide assemblies, has realized the transfer of field machine between terraced fields are fast, has reached laborsaving, saves time, efficient purpose.
2, be fixed with strut bar on the utility model long struts and the crossbeam, this strut bar one end is fixed on the long struts, and the other end is fixed on the crossbeam, is fixed with strut bar on sprag and the crossbeam, this strut bar one end is fixed on the sprag, and the other end is fixed on the crossbeam.Strut bar can be reinforced between long struts and the crossbeam, the connection between sprag and the crossbeam, so that the utility model can the heavier field machine of hoisting weight.
3, the utility model lifting assembly comprises assembly pulley, manual slide fastener and suspension hook, and assembly pulley is connected on the slide assemblies, and manually slide fastener is wrapped on the hand assembly pulley, and suspension hook is fixedly mounted on the assembly pulley.The assembly pulley that arranges, manual slide fastener and suspension hook have been realized the manual lifting of field machine, do not relate to any power plant, save the energy.In use, only need the manual slide fastener of pulling can realize the transfer of field machine between terraced fields, simple to operate, easy to use.
4, long struts of the present utility model is set to expansion link, its objective is when reality is used, and the user can regulate long struts so that substantially maintenance level of H-girder is lifted by crane steadily according to the actual height of terraced fields is poor.Because it is different local that touchdown point is distributed in, stressed evenly, thereby so that the utility model can not turn on one's side.
5, the utility model long struts has two and link to each other with crossbeam by bearing pin, and described sprag has two and link to each other with crossbeam by bearing pin.Whole loop wheel machine is just just as a slat seat, support by four legs because touchdown point is distributed on four legs, stressed evenly, thereby so that the utility model can not turn on one's side.
Description of drawings

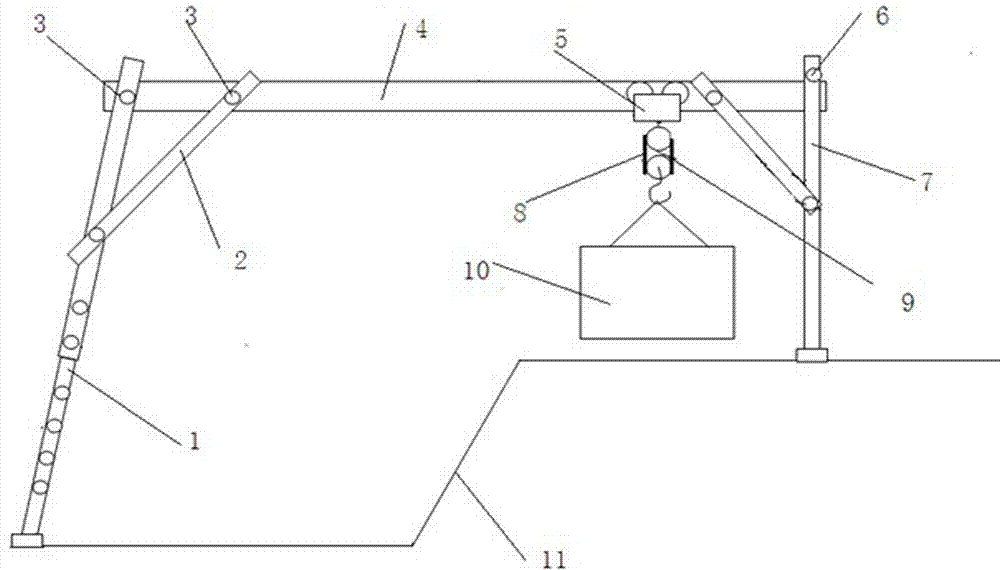

Fig. 1 is the utility model integral structure scheme drawing;
Mark 1, long struts among the figure, 2, strut bar, 3, bearing pin, 4, crossbeam, 5, slide assemblies, 6, cross bar, 7, sprag, 8, assembly pulley, 9, manual slide fastener, 10, field machine, 11, terraced fields.
The specific embodiment
Embodiment 1
As shown in Figure 1, present embodiment provides a kind of small-scale agricultural machinery hoisting machine, comprise long struts 1, sprag 7, slide assemblies 5, crossbeam 4 and lifting assembly, described crossbeam 4 one ends link to each other with long struts 1, described crossbeam 4 other ends link to each other with sprag 7, described slide assemblies 5 is movably arranged on the crossbeam 4, and this slide assemblies 5 can be free to slide at crossbeam 4, and described lifting assembly is connected on the slide assemblies.
The slide assemblies of present embodiment is the slider roller that is installed on the crossbeam 4, and slider roller is stuck on the track of crossbeam 4.The lifting assembly comprises assembly pulley 8 and manual slide fastener 9,8 li in assembly pulley is provided with movable pulley and fixed pulley, manually slide fastener 9 is wrapped on movable pulley and the fixed pulley, utilize movable pulley and manual slide fastener 9, the user is laborsaving and simple to operate when the lifting field machine, sprag 7 is placed on 11 li of highly higher terraced fields during use, long struts 1 is placed on 11 li of highly lower terraced fields, be free to slide at crossbeam 4 by slide assemblies 5, realized the transfer of field machine between terraced fields are fast, reached laborsaving, save time, efficient purpose.In order to guarantee stable the landing of whole lifting function, long struts 1 and sprag 7 are two and link to each other with crossbeam 4 by bearing pin 2, and whole loop wheel machine is just just as a slat seat, support by four legs, because touchdown point is distributed on four legs, stressed evenly, thereby so that present embodiment can not turn on one's side.Connect with cross bar 6 between two sprags 7, two long struts 1 also connect with cross bar 6.Long struts 1, sprag 7, crossbeam 4 have just consisted of the frame main body of lifting machine like this.
As shown in Figure 1, present embodiment is on the basis of embodiment 1, be fixed with strut bar 2 on long struts 1 and the crossbeam 4, these strut bar 2 one ends are fixed on the long struts 1, the other end is fixed on the crossbeam 4, be fixed with strut bar 2 on sprag 7 and the crossbeam 4, these strut bar 2 one ends are fixed on the sprag 7, and the other end is fixed on the crossbeam 4.Be connected with bearing pin 3 between long struts 1 and the crossbeam 4, be connected with bearing pin 3 between strut bar 2 and the long struts 1, connect with bearing pin 3 between sprag 7 and the crossbeam 4, be connected with bearing pin 3 between strut bar 2 and the sprag.Strut bar 2 can be reinforced between long struts 1 and the crossbeam 4, the connection between sprag 7 and the crossbeam 4, so that present embodiment can the heavier field machine of hoisting weight.Its main purpose is to reinforce long struts 1 and crossbeam 4, reinforces sprag 7 and crossbeam, improves the stability of whole machine.The slide assemblies 5 of present embodiment also can be guideway, as long as can realize that the slide assemblies that is free to slide all can be installed on the crossbeam 4 at crossbeam 4.
As shown in Figure 1, originally be implemented on the basis of embodiment 1 or 2, the lifting assembly comprises assembly pulley 8, manual slide fastener 9 and suspension hook, assembly pulley 8 is connected on the slide assemblies 5,8 li in assembly pulley is provided with movable pulley and fixed pulley, manually slide fastener 9 is wrapped on movable pulley and the fixed pulley, and suspension hook is fixedly mounted on the pulley assembly.The assembly pulley 8 that arranges, manual slide fastener 9 and suspension hook have been realized the manual lifting of field machine, do not relate to any power plant, save the energy.In use, only need the manual slide fastener 9 of pulling can realize the transfer of field machine between terraced fields, simple to operate, easy to use.
Embodiment 4
As shown in Figure 1, originally be implemented on the basis of embodiment 1 or 2, long struts 1 is set to expansion link, crossbeam is H-girder, be provided with the track that slides for slider roller at H-girder, its objective is that when reality is used the user can regulate long struts so that substantially maintenance level of H-girder is lifted by crane steadily according to the actual height of terraced fields is poor.Because it is different local that touchdown point is distributed in, stressed evenly, thereby so that the utility model can not turn on one's side.
Working process of the present utility model is:
When field machine will be transferred to adjacent terraced fields (height above sea level is lower) from terraced fields (height above sea level is higher), lean against field machine on the ridge first or (selection favorable terrain on the field bund, the narrowest ridge, field bund), then (step of assembling loop wheel machine is as follows: the sprag tree directly is installed on the higher terraced fields of height above sea level to assemble loop wheel machine, crossbeam is installed on the sprag, length according to crossbeam is installed in long struts on the lower terraced fields of height above sea level, adjust the height of long struts, so that make substantially maintenance level of H-girder, slide assemblies is installed on the crossbeam, will lifts by crane at last assembly and be installed on the slide assemblies.) fastened field machine with steel rope, field machine is lifted on the suspension hook, spur manual slide fastener, make field machine hang ground, then forward field machine to the other end from an end of H-girder, spur again manual slide fastener field machine is transferred, until steadily land, take down steel rope, realized that just the field of field machine is shifted.The process that shifts is lifted by crane farming-translation-put down exactly.
Claims (8)
1. small-scale agricultural machinery hoisting machine, it is characterized in that: comprise long struts (1), sprag (7), slide assemblies (5), crossbeam (4) and lifting assembly, described crossbeam (4) one ends link to each other with long struts (1), described crossbeam (4) other end links to each other with sprag (7), described slide assemblies (5) is movably arranged on the crossbeam (4), this slide assemblies (5) can be free to slide in crossbeam (4), and described lifting assembly is connected on the slide assemblies (5).
2. a kind of small-scale agricultural machinery hoisting machine according to claim 1, it is characterized in that: be provided with strut bar (2) between described long struts (1) and the crossbeam (4), these strut bar (2) one ends are fixed on the long struts (1), and the other end is fixed on the crossbeam (4).
3. a kind of small-scale agricultural machinery hoisting machine according to claim 1 and 2, it is characterized in that: be provided with strut bar (2) between described sprag (7) and the crossbeam (4), these strut bar (2) one ends are fixed on the sprag (7), and the other end is fixed on the crossbeam (4).
4. a kind of small-scale agricultural machinery hoisting machine according to claim 1, it is characterized in that: described lifting assembly comprises assembly pulley (8), manual slide fastener (9) and suspension hook, described assembly pulley (8) is connected on the slide assemblies (5), manually slide fastener (9) is wrapped on the assembly pulley (8), and suspension hook is fixedly mounted on the assembly pulley (8).
5. a kind of small-scale agricultural machinery hoisting machine according to claim 1, it is characterized in that: described slide assemblies (5) is slider roller, and slider roller is arranged on the crossbeam (4).
6. a kind of small-scale agricultural machinery hoisting machine according to claim 1, it is characterized in that: described slide assemblies (5) is guideway, and guideway is installed on the crossbeam (4).
7. a kind of small-scale agricultural machinery hoisting machine according to claim 1 is characterized in that: described long struts (1) is expansion link, and described crossbeam (4) is H-girder.
8. according to claim 1,2,4,5,6 or 7 described a kind of small-scale agricultural machinery hoisting machines, it is characterized in that: described long struts (1) has two and link to each other with crossbeam (4) by bearing pin (3), and described sprag (7) has two and pass through bearing pin (3) and link to each other with crossbeam (4).
