CN202825811U - Working position apparatus of fender-guard decorative sheet - Google Patents

Working position apparatus of fender-guard decorative sheet Download PDF

Info

Publication number
CN202825811U
CN202825811U CN 201220459244 CN201220459244U CN202825811U CN 202825811 U CN202825811 U CN 202825811U CN 201220459244 CN201220459244 CN 201220459244 CN 201220459244 U CN201220459244 U CN 201220459244U CN 202825811 U CN202825811 U CN 202825811U
Authority
CN
China
Prior art keywords
working position
fender
position apparatus
decorative sheet
frame support
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Fee Related
Application number
CN 201220459244
Other languages
Chinese (zh)
Inventor
吴应举
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Hefei Changqing Machinery Co Ltd
Original Assignee
Hefei Changqing Machinery Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Hefei Changqing Machinery Co Ltd filed Critical Hefei Changqing Machinery Co Ltd
Priority to CN 201220459244 priority Critical patent/CN202825811U/en
Application granted granted Critical
Publication of CN202825811U publication Critical patent/CN202825811U/en
Anticipated expiration legal-status Critical
Expired - Fee Related legal-status Critical Current

Links

Images

Landscapes

  • Handcart (AREA)

Abstract

The utility model discloses working position apparatus of a fender-guard decorative sheet. The working position apparatus of the fender-guard decorative sheet comprises a base. Traveling wheels are installed at the lower end of the base. The working position apparatus of the fender-guard decorative sheet is characterized in that a timber frame is fixedly installed at the upper end of the base, a dummy plate is arranged in the middle of the timber frame, the dummy plate and the timber frame which is arranged at two sides of the dummy plate constitute two placing chambers, two sides of the dummy plate and the corresponding side edges of the timber frame are respectively provided with support rods which are matched with the fender-guard decorative sheet, and the support rods are sequentially and evenly distributed at the side edges of the dummy plate of the two placing chambers and the side edges of the timber frame with equal interval. The working position apparatus of the fender-guard decorative sheet has the advantages of being reasonable in structure and design, capable of ensuring that a work piece does not deform in the process of transportation, no collision and scratch occur on the surface and the like, capable of satisfying left / right symmetry of parts placing and changing a direction when the work piece is taken, capable of greatly simplifying the parts taking procedure of an operator on site in the process of using, savable in time and effort and high in work efficiency.

Description

A kind of bumper decorative panel working position apparatus
Technical field
The utility model relates to a kind of working position apparatus, relates in particular to a kind of bumper decorative panel working position apparatus.
Background technology
The bumper decorative panel must guarantee that in transportation workpiece is indeformable, the surface is without phenomenons such as the scuffings of colliding with, but its operation measure mostly is to carrying behind its parcel again in the prior art, its troublesome poeration, easily distortion, and hand labor intensity is large when batch production, wastes time and energy inefficiency.
The utility model content
The purpose of this utility model is in order to remedy the deficiency of prior art, a kind of bumper decorative panel working position apparatus is provided, solved the bumper decorative panel and must guarantee that in transportation workpiece is indeformable, the surface is without phenomenons such as the scuffings of colliding with, troublesome poeration easily is out of shape simultaneously, and hand labor intensity is large, waste time and energy the problems such as inefficiency.
The utility model is achieved through the following technical solutions:
A kind of bumper decorative panel working position apparatus, include base, described base lower end is equipped with road wheel, it is characterized in that: described base upper end is installed with frame support, the middle part of described frame support is provided with dividing plate, the frame support of described dividing plate and both sides has consisted of two holding chambers, be respectively equipped with the support bar that cooperates with the bumper decorative panel on the frame support side corresponding with it of described dividing plate both sides, described support bar is successively on the side of the equally spaced dividing plate that is distributed on two holding chambers and frame support.
Described base and frame support are combined by several square tubes solderings respectively.
Described road wheel includes locating wheel and universal wheel, and is installed in the base lower end by backing plate, and the road wheel of described base front end is universal wheel, and the road wheel of rear end is locating wheel.
This working position apparatus can guarantee that in transportation workpiece is indeformable, the surface is without phenomenons such as the scuffings of colliding with, tool contracts in the inboard in the device processes such as lifting, the position of not interfering with workpiece, satisfied product left/right symmetrical member and placed, the transposing direction has been simplified execute-in-place worker pickup operation greatly in the use procedure when pickup, time saving and energy saving, high efficiency.
The utility model has the advantages that:
The utility model reasonable in design can guarantee in the transportation that workpiece is indeformable, and the surface is without phenomenons such as the scuffings of colliding with, satisfied product left/right symmetrical member and placed, the transposing direction has been simplified execute-in-place worker pickup operation greatly in the use procedure when pickup, time saving and energy saving, high efficiency.
Description of drawings

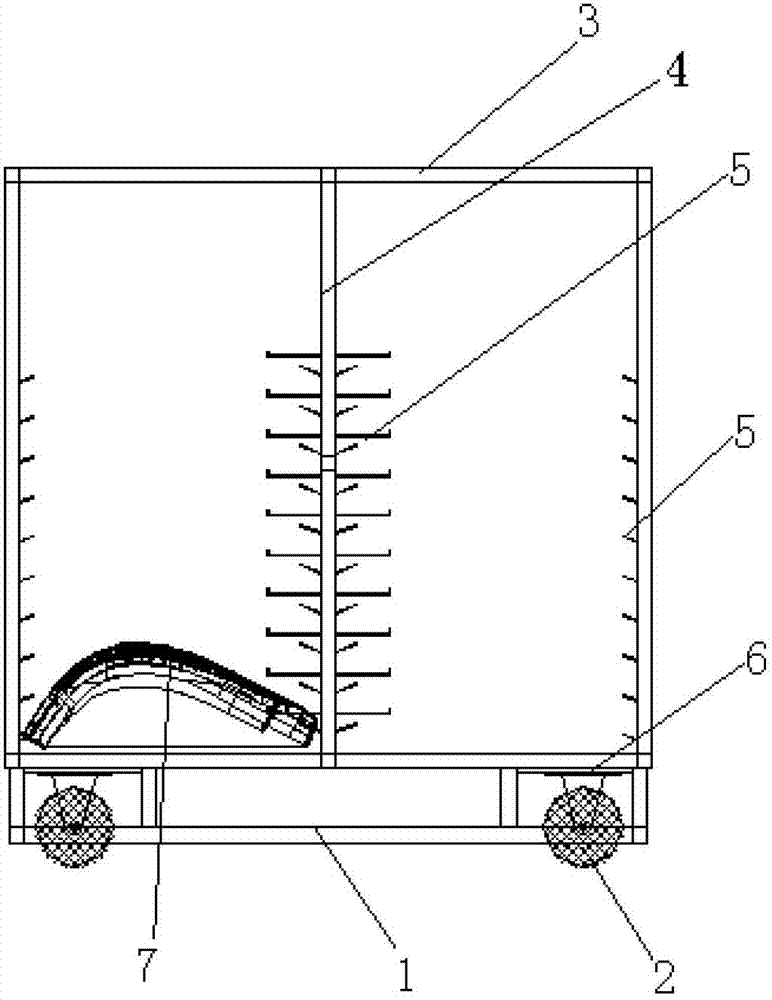

Fig. 1 is the utility model front view.
Fig. 2 is the utility model top view.
Fig. 3 is the utility model left view.
The specific embodiment
Referring to accompanying drawing, a kind of bumper decorative panel working position apparatus, include base 1, base 1 lower end is equipped with road wheel 2, base 1 upper end is installed with frame support 3, and the middle part of frame support 3 is provided with dividing plate 4, and dividing plate 4 has consisted of two holding chambers with the frame support 3 of both sides, be respectively equipped with the support bar 5 that cooperates with bumper decorative panel 7 on frame support 3 sides corresponding with it of dividing plate 4 both sides, support bar 5 is successively on the side of the equally spaced dividing plate 4 that is distributed on two holding chambers and frame support 3; Base 1 and frame support 3 are combined by several square tubes solderings respectively; Road wheel 2 includes locating wheel and universal wheel, and is installed in base 1 lower end by backing plate 6, and the road wheel of base 1 front end is universal wheel, and the road wheel of rear end is locating wheel.

Claims (3)

1. bumper decorative panel working position apparatus, include base, described base lower end is equipped with road wheel, it is characterized in that: described base upper end is installed with frame support, the middle part of described frame support is provided with dividing plate, the frame support of described dividing plate and both sides has consisted of two holding chambers, be respectively equipped with the support bar that cooperates with the bumper decorative panel on the frame support side corresponding with it of described dividing plate both sides, described support bar is successively on the side of the equally spaced dividing plate that is distributed on two holding chambers and frame support.
2. bumper decorative panel working position apparatus according to claim 1, it is characterized in that: described base and frame support are combined by several square tubes solderings respectively.
3. bumper decorative panel working position apparatus according to claim 1, it is characterized in that: described road wheel includes locating wheel and universal wheel, and be installed in the base lower end by backing plate, the road wheel of described base front end is universal wheel, and the road wheel of rear end is locating wheel.
