CN202821969U

CN202821969U - Treatment tray

Info

Publication number: CN202821969U
Application number: CN 201220542577
Authority: CN
Inventors: 周晓燕; 王萧逸; 闫妍; 周新哲; 张玲玲; 袁正江
Original assignee: First Affiliated Hospital of Henan University of Science and Technology
Current assignee: First Affiliated Hospital of Henan University of Science and Technology
Priority date: 2012-10-23
Filing date: 2012-10-23
Publication date: 2013-03-27
Anticipated expiration: 2022-10-23

Abstract

The utility model provides a treatment tray, and relates to a medical instrument. The treatment tray comprises the treatment tray (5) body and separating plates. The treatment tray (5) is in a square structure. The corners of the square structural treatment tray (5) are in circular arc transition. The separating plates are arranged inside the treatment tray (5). The inside of the treatment tray (5) are partitioned off into a plurality of grooves by the separating plates. The plurality of the grooves are independent to each other. Due to the fact that the treatment tray is divided into a primary groove and auxiliary grooves by the separating plates, different kinds of objects which are placed into the treatment tray are enabled to be separated by separating plates, and cross infection is avoided. When treatment is finished, and the treatment tray is cleaned, only an edge tool box and a sewage box need taking out, wherein the edge tool box and the sewage box are placed into the treatment tray, edge tool injury is effectively avoided, and time for arranging the treatment tray is reduced.

Description

A kind of pallet for the treatment of

[technical field]

This utility model relates to a kind of medical apparatus and instruments, is specifically related to a kind of pallet for the treatment of.

[background technology]

At present, the treatment dish that uses during the work such as the nurse infuses clinically is a square enamel pallet, place syringe in the pallet, the articles for use such as sterilized bottle and tourniquet, because the articles for use such as sterilized bottle in the treatment dish can not be located placement, when work, the article of placing in the treatment dish are shifted easily, mixed in together, and the cotton swab after using, the medical productses such as sharp weapon do not have fixing place to place, usually be to throw away in the treatment dish, so that not the cleaning supplies of usefulness and the pollution articles for use of usefulness place in same space, therefore, usually can occur in the pollution articles for use of usefulness and the treatment dish not that the cleaning supplies of usefulness mix, cause the pollution of cleaning supplies, sharp weapon in the treatment rubbish cause the generation of the situations such as nursing staff's pricking wound easily; And after the treatment end, the nurse puts the treatment dish in order, need to expend very large workload, causes the nursery work Efficiency Decreasing, and number reduces during Direct Nursing.

[summary of the invention]

In order to overcome the deficiency in the background technology, the utility model discloses a kind of pallet for the treatment of, this utility model is divided into major trough and auxiliary groove by dividing plate with the treatment dish, so that different types of article of putting into wherein have dividing plate to intercept, avoid cross infection, after treatment finishes during cleaning treatment dish, the sharp disposable container and the dirt box that only need to put into are wherein taken out and get final product, have effectively avoided the sharp weapon injury and have shortened the time of putting the treatment dish in order.

For achieving the above object, this utility model adopts following technical scheme:

A kind of pallet for the treatment of comprises treatment dish body and dividing plate, and described treatment dish is square structure, and the treatment dish corner of square structure is arc transition, is provided with dividing plate in the inside for the treatment of dish, will be separated into a plurality of separate grooves in the treatment dish by described dividing plate.

Described treatment dish, described dividing plate comprises " L " shape dividing plate and a plurality of short slab, " L " shape dividing plate is arranged on a jiao in the treatment dish, between the inwall of the lateral surface of " L " shape dividing plate and treatment dish, be provided with a plurality of short slabs, make described " L " shape dividing plate, short slab and treatment dish form a major trough and a plurality of auxiliary groove.

Described treatment dish is provided with at least five short slabs between the inwall of the lateral surface of " L " shape dividing plate and treatment dish, " L " shape dividing plate and short slab are separated into a major trough and a plurality of auxiliary groove with the treatment dish.

Described treatment dish, described " L " shape dividing plate and short slab are set to integrative-structure.

Owing to adopt aforesaid technical scheme, the utlity model has following beneficial effect:

Treatment dish described in the utility model, by dividing plate the treatment dish is divided into major trough and auxiliary groove, so that different types of article of putting into wherein have dividing plate to intercept, avoid cross infection, when clearing up the treatment dish after treatment finishes, the sharp disposable container and the dirt box that only need to put into are wherein taken out and get final product, have effectively avoided the sharp weapon injury and have shortened the time of putting the treatment dish in order; Dividing plate is movable to be placed, and the treatment dish of life-time service needs cleaning and sterilizing, only needs dividing plate is taken out, respectively cleaning and sterilizing.

[description of drawings]

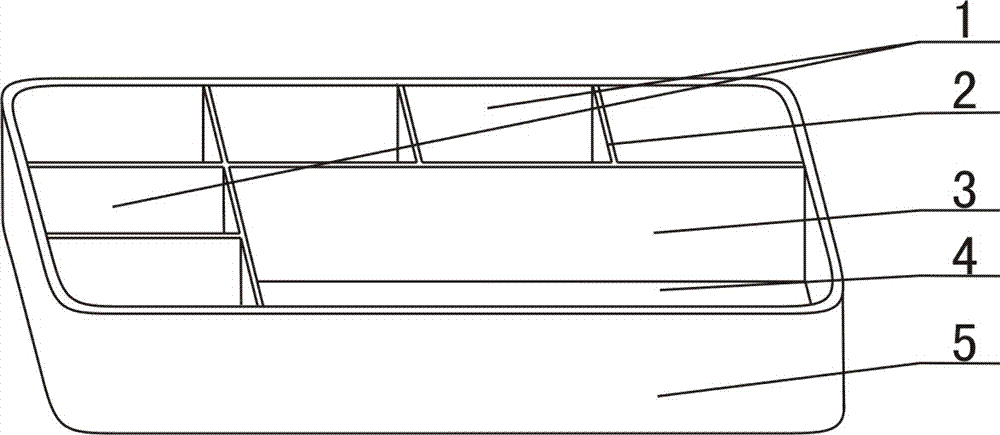

Fig. 1 is structural representation of the present utility model;

Fig. 2 is the structural representation of this utility model use procedure;

In the drawings: 1, auxiliary groove; 2, short slab; 3, " L " shape dividing plate; 4, major trough; 5, treatment dish; 6, hole; 7, tube-sealing solution sleeve; 8, An Er iodine flask sleeve; 9, aseptic cotton carrier is placed sleeve; 10, loam cake; 11, test tube putting hole; 12, test tube rack; 13, sharp disposable container handle; 14, sharp disposable container; 15, dirt box handle; 16, dirt box.

[specific embodiment]

Can explain in more detail the present invention by the following examples, open the purpose of this utility model is intended to protect all changes and improvements in this utility model scope, and this utility model is not limited to the following examples;

1 ~ 2 described treatment dish by reference to the accompanying drawings, comprise that treatment coils 5 bodies and dividing plate, described treatment dish 5 is square structure, and it is arc transition that 5 corners are coiled in the treatment of square structure, inside at treatment dish 5 is provided with dividing plate, will be separated into a plurality of separate grooves in the treatment dish 5 by described dividing plate; Described dividing plate comprises " L " shape dividing plate 3 and a plurality of short slab 2, " L " shape dividing plate 3 is arranged on a jiao in the treatment dish 5, between the inwall of the lateral surface of " L " shape dividing plate 3 and treatment dish 5, be provided with a plurality of short slabs 2, make described " L " shape dividing plate 3, short slab 2 and treatment dish 5 form a major trough 4 and a plurality of auxiliary grooves 1; Be provided with at least five short slabs 2 between the inwall of the lateral surface of " L " shape dividing plate 3 and treatment dish 5, " L " shape dividing plate 3 and short slab 2 are separated into a major trough 4 and a plurality of auxiliary groove 1 with treatment dish 5; Described " L " shape dividing plate 3 and short slab 2 are set to integrative-structure.

Implement treatment dish described in the utility model, during use, in major trough 4, place the medical equipments such as syringe or transfusion device, three auxiliary grooves 1 are placed tube-sealing solution sleeve 7, An Er iodine flask sleeve 8 and aseptic cotton carrier according to use habit place the cleaning supplies such as sleeve 9, open tube-sealing solution sleeve 7, An Er iodine flask sleeve 8 and aseptic cotton carrier and place the loam cake 10 of sleeve 9, from hole 6, take cleaning supplies; In two auxiliary grooves 1, place respectively sharp disposable container 14 and dirt box 16, sharp weapon are pulled out and placed to sharp weapon after sharp disposable container 14 is used for using, the dirt that produces in therapeutic process is placed in the dirt box 16, for the ease of placing blood sampling test tube, holding test tubes frame 12 in an auxiliary groove 1, blood sampling test tube can be placed in the test tube putting hole 11 of test tube rack 12; Because each zone has dividing plate to intercept, the article of putting into wherein can not contact, and avoid cross infection, after treatment finishes during cleaning treatment dish, only need that sharp disposable container 14 and dirt box 16 are taken out cleaning and get final product; Wherein be respectively equipped with sharp disposable container handle 13 and dirt box handle 15 on the sidewall of sharp disposable container 14 and dirt box 16, take out when being convenient to clear up; Dividing plate is movable to be placed, and the treatment dish of life-time service needs cleaning and sterilizing, only needs dividing plate is taken out, respectively cleaning and sterilizing.

The putting order and put the elaboration that type is just carried out for the ease of understanding using method of the present utility model of article in related auxiliary groove 1 and the major trough 4 in the present embodiment, user can carry out putting of type of goods and quantity according to concrete condition.

This utility model does not describe part in detail and is prior art.

The embodiment that selects in this article for open the purpose of this utility model currently thinks to suit, but will be appreciated that, this utility model is intended to comprise that all belong to all changes and the improvement of the interior embodiment of this design and this utility model scope.

Claims

1. treat pallet for one kind, comprise treatment dish (5) body and dividing plate, it is characterized in that: described treatment dish (5) is square structure, treatment dish (5) corner of square structure is arc transition, inside at treatment dish (5) is provided with dividing plate, will be separated into a plurality of separate grooves in the treatment dish (5) by described dividing plate.

2. treatment dish according to claim 1, it is characterized in that: described dividing plate comprises " L " shape dividing plate (3) and a plurality of short slab (2), " L " shape dividing plate (3) is arranged on a jiao in the treatment dish (5), between the inwall of the lateral surface of " L " shape dividing plate (3) and treatment dish (5), be provided with a plurality of short slabs (2), make described " L " shape dividing plate (3), short slab (2) and treatment dish (5) form a major trough (4) and a plurality of auxiliary groove (1).

3. treatment dish according to claim 1, it is characterized in that: be provided with at least five short slabs (2) between the inwall of the lateral surface of " L " shape dividing plate (3) and treatment dish (5), " L " shape dividing plate (3) and short slab (2) are separated into a major trough (4) and a plurality of auxiliary groove (1) with treatment dish (5).

4. treatment dish according to claim 1, it is characterized in that: described " L " shape dividing plate (3) and short slab (2) are set to integrative-structure.
