Abstract
The utility model provides a base station apparatus, relating to the field of machinery design. The integral size of the base station apparatus can be reduced to be convenient for camouflage. The base station apparatus includes an antenna and a module, the base station apparatus further includes an installing member fixedly connected with the module, the installing member fixes the module on a rod member or on a wall surface, and the base station apparatus also includes an antenna adjusting part arranged between the antenna and the module and movably connected with the antenna and the module, the antenna adjusting part includes an X axis rotating part and a Y axis rotating part, the X axis rotating part enables the antenna to rotate by taking the X axis direction as the axis, and the X axis direction is parallel to the length direction of the module, the Y axis rotating part enables the antenna to rotate by taking the Y axis direction as the axis, and the Y axis direction is parallel to the height direction of the module. The base station apparatus is applicable to a base station.
Description
Technical field
The utility model relates to mechanical design field, relates in particular to a kind of base station equipment.
Background technology
Along with the progressively increase of people to the wireless telecommunications demand, Virtual network operator need to provide better wireless signal to cover and more jumbo base station access capability, but the town region resident worries the base station equipment radiation effect, therefore need to pretend newly-built equipment, and it is got integrated into environment.
In order to realize the camouflage demand of base station equipment, antenna and base station equipment can be integrated, in the prior art, usually with built-in antenna at RRU (Remote Radio Unit, Remote Radio Unit) or integrated BTS (Base Transceiver Station, base transceiver station) adjustment to antenna is realized by the adjustment to the angle modulation arm of RRU or integrated BTS installed part in inside.But the overall volume of this base station equipment is larger, is difficult for camouflage.
The utility model content
Embodiment of the present utility model provides a kind of base station equipment, can reduce the base station equipment overall volume, is convenient to camouflage.
For achieving the above object, embodiment of the present utility model adopts following technical scheme:
On the one hand, provide a kind of base station equipment, comprising: antenna and module, described base station equipment also comprises:
With the installed part that described module is fixedly connected with, described installed part is used for described module is fixed on rod member or metope;
Between described antenna and described module, with described antenna be connected the antenna adjustment part that module activities is connected, described antenna adjustment part comprises:
The X-axis rotating part that described antenna is rotated take X-direction as the axle center, described X-direction are the direction parallel with described block length direction;
The Y-axis rotating part that described antenna is rotated take Y direction as the axle center, described Y direction are the direction parallel with described module short transverse.
Described antenna adjustment part also comprises: the column connector, and the axis of described column connector is parallel with described X-axis;
Described X-axis rotating part comprises:
On the direction of parallel described X-axis, be positioned at the vertical holding screw on described column connector left side and/or right side;
Be fixedly connected with described module, the vertical connecting plate of part between described column connector and described vertical holding screw, be provided with manhole on the described vertical connecting plate, by passing the described vertical holding screw of described manhole, described vertical connecting plate is connected with described column connector;
Described Y-axis rotating part comprises:
On the direction of parallel described Y-axis, be positioned at the horizontal holding screw of described column connector upside and/or downside;
Be fixedly connected with described antenna, the horizontal connecting plate of part between described column connector and described horizontal holding screw, be provided with manhole on the described horizontal connecting plate, by passing the described horizontal holding screw of described manhole, described horizontal connecting plate is connected with described column connector.
Described base station equipment also comprises:
Be positioned on the described horizontal connecting plate, with the horizontal angle modulation scale of arc that described column connector concentric arranges, the axis of described column connector is described Y direction;
Be positioned at the vertical angle modulation scale of arc on the described vertical connecting plate, the line at the center of circle of the vertical angle modulation scale of described arc and the center of described column connector is described X-direction.
Described antenna comprises: the antenna fixed part of antenna body and fixing described antenna body.
Described base station equipment also comprises:
Can fasten with described module or fastening containment vessel, it is inner that described antenna is positioned at described containment vessel, and described containment vessel is non-metal case.
Described containment vessel is plastic casing.
Described installed part is for hanging wall spare or pole spare.
Described module is radio frequency remoto module RRU or integrated base transceiver station BTS.
The utility model embodiment provides a kind of base station equipment, comprising: antenna and module, and described base station equipment also comprises: with the installed part that described module is fixedly connected with, described installed part is used for described module is fixed on rod member or metope; Between described antenna and described module, with described antenna be connected the antenna adjustment part that module activities is connected, described antenna adjustment part comprises: the X-axis rotating part that described antenna is rotated take X-direction as the axle center, described X-direction are the direction parallel with described block length direction; The Y-axis rotating part that described antenna is rotated take Y direction as the axle center, described Y direction are the direction parallel with described module short transverse.So, compared with prior art, installed part is fixedly connected with module, rather than the angle modulation arm that dynamically is connected with module, so corresponding reducing of volume of installed part, simultaneously, between antenna and module, with described antenna be connected antenna adjustment part that module activities is connected and can finish the angle modulation function of angle modulation arm in the prior art, therefore, on the basis that reaches phase homologous angles purpose, the volume of base station equipment integral body is corresponding to be reduced, thereby is convenient to camouflage.
Description of drawings
In order to be illustrated more clearly in the utility model embodiment or technical scheme of the prior art, the below will do simple the introduction to the accompanying drawing of required use in embodiment or the description of the Prior Art, apparently, accompanying drawing in the following describes only is embodiment more of the present utility model, for those of ordinary skills, under the prerequisite of not paying creative work, can also obtain according to these accompanying drawings other accompanying drawing.

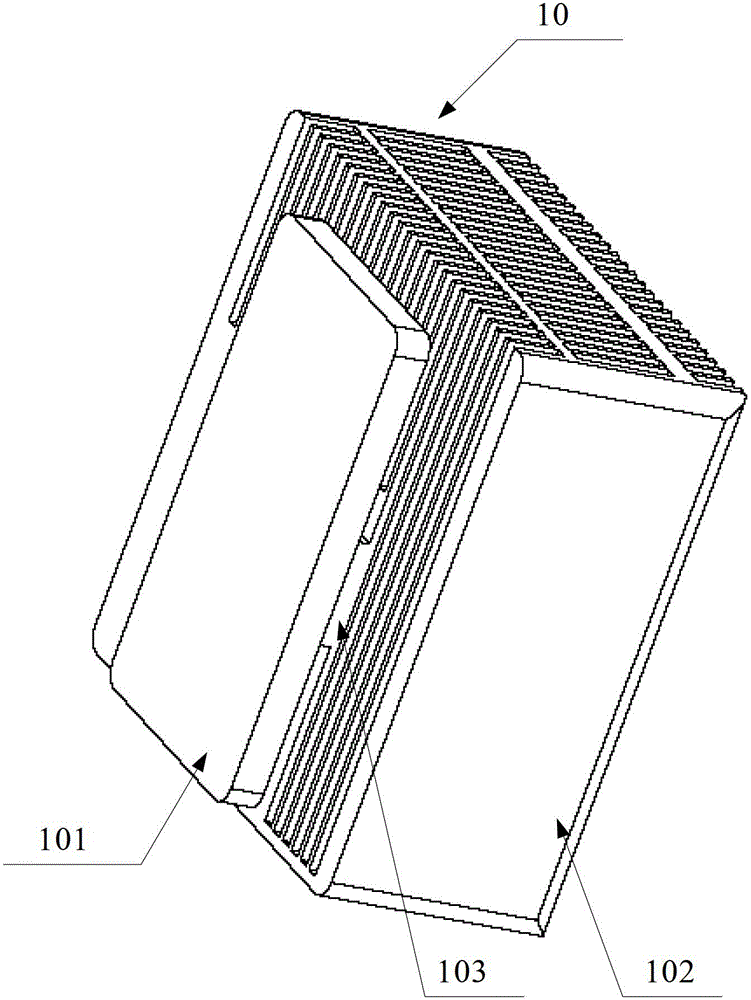

A kind of base station equipment structure schematic diagram that Fig. 1 provides for the utility model embodiment;
The another kind of base station equipment structure schematic diagram that Fig. 2 provides for the utility model embodiment;
Fig. 3 cooperates schematic diagram for a kind of adapter that the utility model embodiment provides with extension wall spare;
A kind of antenna adjustment part structural representation that Fig. 4 provides for the utility model embodiment;
Another base station equipment structure schematic diagram that Fig. 5 provides for the utility model embodiment.
Embodiment
Below in conjunction with the accompanying drawing among the utility model embodiment, the technical scheme among the utility model embodiment is clearly and completely described, obviously, described embodiment only is the utility model part embodiment, rather than whole embodiment.Based on the embodiment in the utility model, those of ordinary skills are not making the every other embodiment that obtains under the creative work prerequisite, all belong to the scope of the utility model protection.
The utility model embodiment provides a kind of base station equipment 10, as shown in Figure 1, comprise: antenna 101 and module 102, example, this antenna 101 can comprise: the antenna fixed part of antenna body and fixing described antenna body, this antenna fixed part can be antenna holder, and antenna body can be fixed by screws in antenna holder, can reduce like this damage of antenna.
Especially, this base station equipment 10 also comprises:
The installed part (Fig. 1 does not indicate) that is fixedly connected with module 102, described installed part are used for described module 102 is fixed on rod member or metope.
Between antenna 101 and module 102, with the antenna adjustment part 103 that described antenna 101 and described module 102 are flexibly connected, as shown in Figure 2, described antenna adjustment part 103 can comprise:
The X-axis rotating part 1031 that antenna 101 is rotated take X-direction as the axle center, described X-direction are the direction (in Fig. 2 directions X) parallel with described module 102 length directions.
The Y-axis rotating part 1032 that described antenna 101 is rotated take Y direction as the axle center, described Y direction are the direction (in Fig. 2 Y-direction) parallel with described module 102 short transverses.Need to prove that because the module volume is larger, a part that has only drawn module among Fig. 2 is done and schematically illustrated.Especially, X-direction and Y direction among Fig. 2 just illustrate, in actual applications, and in order to reach the adjustment of aerial angle, the suitably translation of X-direction and Y direction.
Need to prove that the installed part that the utility model embodiment provides can be to hang wall spare or pole spare.Adapter on the module can by screw with hang wall spare and be connected base station equipment is fixed on the metope, this adapter also can be fixedly connected with pole spare by screw, so that base station equipment is fixed on the rod member.Example, when module need to be hung the wall installation, as shown in Figure 3, adapter 20 can comprise installs adaptor 201 and anti-loose spring slice 202, the extension wall installed part 301 of hanging wall spare 30 by with adaptor 201 clampings are installed, and adaptor 201 be installed connected as one, anti-loose spring slice 202 is used for preventing from hanging wall installed part 301 and skids off from adaptor 201 is installed, then hang wall spare 30 and hang on the metope by devices such as screws, simultaneously, module also is fixed on the metope accordingly.Because it is little a lot of to hang the volume ratio robotic arm of wall spare or pole spare, so the overall volume of base station equipment is corresponding reduces.
So, compared with prior art, installed part is fixedly connected with module, rather than the angle modulation arm that dynamically is connected with module, so the volume of installed part is corresponding reduces.Simultaneously, between antenna and module, with described antenna be connected antenna adjustment part that module activities is connected and can finish the angle modulation function of angle modulation arm in the prior art, therefore, on the basis that reaches phase homologous angles purpose, the volume of base station equipment integral body is corresponding to be reduced, thereby is convenient to camouflage.
Further, as shown in Figure 2, in the utility model embodiment, antenna adjustment part 103 also comprises: column connector 1033, the axis of described column connector 1033 are Y direction.This column connector can be used as the strutting piece of X-axis rotating part and Y-axis rotating part, need to prove, the shape of described column connector can have multiple, such as cylinder, and the perhaps column of hollow, the utility model does not limit this.
Y-axis rotating part 1032 specifically comprises: on the direction of parallel described Y-axis, be positioned at the horizontal holding screw 1032a of described column connector 1033 upsides and/or downside; Be fixedly connected with described antenna 101, the level 23 connecting plate 1032bs of part between described column connector 1033 and described horizontal holding screw, be provided with manhole on the described horizontal connecting plate 1032b, by passing the described horizontal holding screw 1032a of described manhole, described horizontal connecting plate 1032b is connected with described column connector 1033.Above-mentioned horizontal holding screw 1032a can have 1 or 2, when horizontal holding screw is 1, this horizontal holding screw is positioned at any side of described column connector upside and downside, when horizontal holding screw was 2, this horizontal holding screw can lay respectively at upside and the downside of described column connector.Simultaneously, on described horizontal connecting plate 1032b, the horizontal angle modulation scale 1034 of arc that arranges with described column connector 1033 concentrics can also be set, as shown in Figure 4, the axis of described column connector is Y direction; Example, suppose that described horizontal holding screw is positioned at the upside of described column connector, when needs are adjusted the angle of antenna around Y-axis, can rotate this horizontal holding screw, make this horizontal holding screw loosening, so, frictional force between column connector and the horizontal connecting plate reduces, rotable antenna, the corresponding rotation of horizontal connecting plate that is connected with this antenna, at column connector upside fixing pointer is set, observe the horizontal angle modulation scale of arc and change with respect to the angle at this pointer tip, want the angle adjusted until reach, antenna stops the rotation, then rotate horizontal holding screw, make this horizontal holding screw tightening, so, the frictional force between horizontal connecting plate and the column connector increases, horizontal connecting plate can't rotate, so antenna is corresponding fixing.Especially, horizontal connecting plate 1032b only has part to draw among Fig. 4.
Need to prove, the horizontal angle modulation scale of above-mentioned arc and the vertical angle modulation scale of arc can be semicircle the distributions, this semicircular center scale can be set to zero degree, and the distribution of scale can be that even distribution can be non-homogeneous distribution also, and the utility model does not limit this.The horizontal angle modulation scale of arc and arranging of the vertical angle modulation scale of arc can be improved the angle modulation precision.
Further; as shown in Figure 5; base station equipment 10 can also comprise: can fasten with module 102 or fastening containment vessel 104; antenna 101 is positioned at described containment vessel 104 inside, and when not having containment vessel, this base station equipment 10 as shown in Figure 1; when having containment vessel; this containment vessel can fasten with module or obtain as shown in Figure 5 cube by screw fastening, and this containment vessel is non-metal case, such as plastic casing.This containment vessel can be protected antenna, avoids the mechanical damage of antenna, and its size is complementary with size of antenna, can fasten with module or fastening after antenna is wrapped up fully.
In the prior art, base station equipment needs when mounted to adjust the angle modulation arm and reaches the installation that antenna is in fixed angle, and the base station equipment that the utility model embodiment provides can be before respective cell be installed, angle to antenna is adjusted, only need to it be installed on the relevant position by installed part, so installation process is simple.After installation; if aerial angle need to continue to adjust in the use procedure; in the prior art; when adjusting the angle modulation arm; module and antenna rotate simultaneously; and the base station equipment that the utility model embodiment provides only needs containment vessel is pulled down, and the antenna adjustment part is adjusted accordingly, and then with screw containment vessel is mounted on the module.Comparatively simple in adjustment process.
Need to prove that above-mentioned module can be RRU, also can be comprise have Base Band Unit, the BTS integrated module of carrier frequency unit and control unit.
The base station equipment that the utility model embodiment provides, compared with prior art, installed part is fixedly connected with module, rather than the angle modulation arm that dynamically is connected with module, so corresponding reducing of volume of installed part, simultaneously, between antenna and module, with described antenna be connected antenna adjustment part that module activities is connected and can finish the angle modulation function of angle modulation arm in the prior art, therefore, on the basis that reaches phase homologous angles purpose, the volume of base station equipment integral body is corresponding to be reduced, thereby is convenient to camouflage.
The above; it only is embodiment of the present utility model; but protection range of the present utility model is not limited to this; anyly be familiar with those skilled in the art in the technical scope that the utility model discloses; can expect easily changing or replacing, all should be encompassed within the protection range of the present utility model.Therefore, protection range of the present utility model should be as the criterion with the protection range of described claim.
Claims (8)
1. a base station equipment is characterized in that, comprising: antenna and module, and described base station equipment also comprises:
With the installed part that described module is fixedly connected with, described installed part is used for described module is fixed on rod member or metope;
Between described antenna and described module, with described antenna be connected the antenna adjustment part that module activities is connected, described antenna adjustment part comprises:
The X-axis rotating part that described antenna is rotated take X-direction as the axle center, described X-direction are the direction parallel with described block length direction;
The Y-axis rotating part that described antenna is rotated take Y direction as the axle center, described Y direction are the direction parallel with described module short transverse.
2. base station equipment according to claim 1 is characterized in that, described antenna adjustment part also comprises: the column connector, and the axis of described column connector is parallel with described X-axis;
Described X-axis rotating part comprises:
On the direction of parallel described X-axis, be positioned at the vertical holding screw on described column connector left side and/or right side;
Be fixedly connected with described module, the vertical connecting plate of part between described column connector and described vertical holding screw, be provided with manhole on the described vertical connecting plate, by passing the described vertical holding screw of described manhole, described vertical connecting plate is connected with described column connector;
Described Y-axis rotating part comprises:
On the direction of parallel described Y-axis, be positioned at the horizontal holding screw of described column connector upside and/or downside;
Be fixedly connected with described antenna, the horizontal connecting plate of part between described column connector and described horizontal holding screw, be provided with manhole on the described horizontal connecting plate, by passing the described horizontal holding screw of described manhole, described horizontal connecting plate is connected with described column connector.
3. base station equipment according to claim 2 is characterized in that, described base station equipment also comprises:
Be positioned on the described horizontal connecting plate, with the horizontal angle modulation scale of arc that described column connector concentric arranges, the axis of described column connector is described Y direction;
Be positioned at the vertical angle modulation scale of arc on the described vertical connecting plate, the line at the center of circle of the vertical angle modulation scale of described arc and the center of described column connector is described X-direction.
4. according to claim 1 to the described base station equipment of 3 any one claims, it is characterized in that described antenna comprises: the antenna fixed part of antenna body and fixing described antenna body.
5. base station equipment according to claim 4 is characterized in that, described base station equipment also comprises:
Can fasten with described module or fastening containment vessel, it is inner that described antenna is positioned at described containment vessel, and described containment vessel is non-metal case.
6. base station equipment according to claim 5 is characterized in that, described containment vessel is plastic casing.
7. each or 5 or 6 described base station equipments is characterized in that according to claim 1-3,
Described installed part is for hanging wall spare or pole spare.
8. base station equipment according to claim 7 is characterized in that,
Described module is radio frequency remoto module RRU or integrated base transceiver station BTS.
