Abstract
The utility model relates to a water heater auxiliary heating device, including assisting heater and temperature controller. The temperature control automated inspection assists the temperature of intaking of heater, sends corresponding control command after contrasting with preset temperature, and the starting and closing of heater are assisted in automatic control, have solved general firing equipment and need manual control, awkward problem. The utility model discloses still relate to a water heating system, including main heating equipment with water heater auxiliary heating device, when main heating equipment's leaving water temperature can not satisfy the user demand, can the automatic start assist the heater to do further heating to water, ensure that the user can obtain hot water at any time.
Description
[technical field]
The utility model relates to hot-water heating system, and is particularly a kind of as the matching used assisted heating device of water heater and a kind of water heating system.
[background technology]
Water heater generally enters common people family, becomes one of essential equipment of people's daily life.Solar water heater is energy-conservation because of it, the economic dispatch characteristic, is subject to users' welcome.
Solar water heater is that the heat energy that utilizes solar energy to transform heats water, and owing to technical reason, at present, solar water heater is generally deposited the slow problem of firing rate.Simultaneously, run into the cloudy day, rain or evening etc. when the sunshine deficiency, the solar water heater firing rate is slower, can't satisfy the needs that the user uses hot water at any time, the solar water heater of announcing such as CN1405513A.
In some situation, the solar water heater leaving water temperature is suitable at the beginning, but in the use procedure, the hot water amount can reduce gradually, water temperature is corresponding reduction also, because the solar water heater firing rate is slow, the user has in use, enable manually separately other firing equipments further heating is done in water outlet, use procedure is very inconvenient.
[utility model content]
The first purpose of the present utility model is to provide a kind of assisted heating device of water heater, automatically detects water temperature and automatically controls the startup of auxiliary heater and close, and use procedure is simple, convenient.
The second purpose of the present utility model is to provide a cover easy to use and can obtain at any time the water heating system of hot water.
For realizing the first purpose of the present utility model, the utility model adopts following technical scheme:
A kind of water heater assisted heating device comprises the auxiliary heater with water inlet pipe, also comprises temperature controller, and this temperature controller comprises:
Temperature sensor is connected in the water inlet pipe of auxiliary heater to survey the water temperature of intaking and to generate temperature signal;
Control module, receive above-mentioned water temperature signal, the temperature value that characterizes at above-mentioned water temperature signal sends instruction and starts described auxiliary heater heating during less than preset temperature value, the temperature value that characterizes at above-mentioned water temperature signal is during more than or equal to preset temperature value, do not start or closes described auxiliary heater.
Preferably, described temperature controller comprises that also can be regulated a preset temperature, and the temperature preset component that is connected with described control module, selects the needs of water temperature to satisfy different user.After the user preset temperature, the temperature preset component can generate signal and send to control module, and described control module sends control instruction according to the water temperature signal and the preset temperature signals that receive, controls the startup of auxiliary heater and closes.
Described auxiliary heater can be electric heater or gas heater, for reaching the purpose of rapid heating, is preferably gas heater.
For realizing the second purpose of the present utility model, the water heating system that the utility model provides, its technical scheme is as follows:
A kind of water heating system comprises main firing equipment and described water heater assisted heating device with outlet pipe, and the outlet pipe of described main firing equipment is connected with the water inlet pipe of described auxiliary heater.
The outlet pipe of described main firing equipment both can directly link to each other with the water inlet pipe of described auxiliary heater, as directly connecting by flange connection, also can link to each other by intermediate member, but should guarantee that both are connected, make the water outlet of main firing equipment enter the water inlet pipe of auxiliary heater, become the water inlet of auxiliary heater.
Described main firing equipment can be the slow water heaters of various firing rates, such as solar water heater.
Compared with prior art, comprise temperature controller in the utility model water heater assisted heating device, can according to the water temperature of measuring automatically the auxiliary heater of control startup and close, need not the startup of the auxiliary heater of user's manual operation or close, easy to use.The novel water heating system that relates to of this use, comprise main firing equipment and water heater assisted heating device, temperature controller in the described water heater assisted heating device can be measured the water outlet of main firing equipment, it also is the inflow temperature of auxiliary heater, can not satisfy when this water temperature in the situation of user's needs, the auxiliary heater of automatically starting heats water rapidly, satisfy the needs that the user uses hot water at any time, especially the solar water heater heating is slow to have solved single water heater, be subjected to inside even from weather large, can't satisfy the problem that the user uses hot water at any time.
[description of drawings]
Fig. 1 is the schematic diagram of auxiliary heater among the utility model assisted heating device the first embodiment;
Fig. 2 is the schematic diagram of temperature controller among the utility model the first embodiment;
Fig. 3 is the schematic diagram of the utility model water heating system.
[specific embodiment]
Below in conjunction with drawings and Examples the utility model is further described:

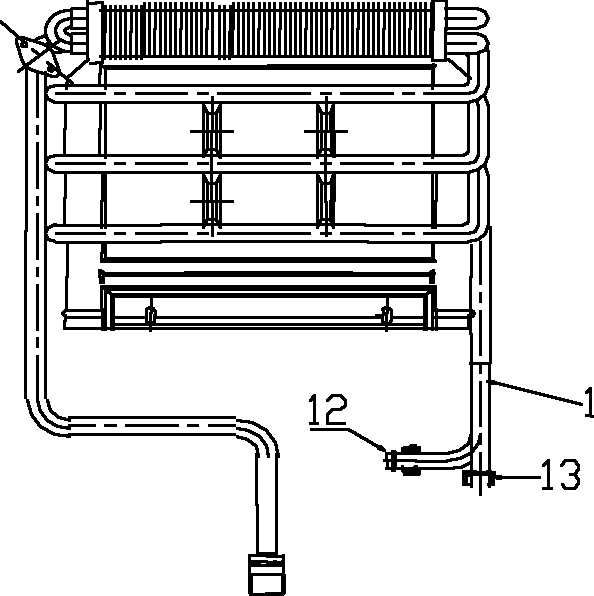

See also Fig. 1, Fig. 1 is the schematic diagram of auxiliary heater among the utility model assisted heating device the first embodiment.Auxiliary heater has water inlet pipe 1, and water inlet pipe 1 is provided with port one 2 and 13, and wherein port one 2 is the water inlet of water inlet pipe 1, is connected with the delivery port of water heater or other firing equipments.Port one 3 is connectors of temperature controller and water inlet pipe 1, and the temperature sensor 4 in the temperature controller places in the water inlet pipe 1 by port one 3, with the inflow temperature of accurate measurement water inlet pipe 1.For guaranteeing that temperature sensor 4 can measure inflow temperature, answer the difference in height between control port 12 and the port one 3, guarantee that the temperature detection part of temperature sensor 4 can fully touch the water inlet of the water inlet pipe 1 of flowing through.
See also Fig. 2, Fig. 2 is the schematic diagram of temperature controller in the utility model assisted heating device.This temperature controller comprises temperature preset component 2, control module 3 and temperature sensor 4.
Temperature sensor 4 is used for measuring the inflow temperature of auxiliary heater, and after recording inflow temperature, temperature sensor 4 can send a temperature signal to control module 3.Be the measure water temperature, temperature sensor 4 preferably places in the pipeline of auxiliary heater feed water flow warp, should guarantee that simultaneously the temperature detection part of temperature sensor 4 has sufficient the contact with water inlet.In the utility model, temperature sensor 4 places the water inlet pipe 1 of auxiliary heater by port one 3.
Control module 3 is connected respectively with temperature preset component 2, temperature sensor 4 and auxiliary heater, be used for receiving the preset temperature signals of temperature preset component 2 transmissions and the water inlet water temperature signal that temperature sensor 4 sends, and send control instruction according to the signal that receives, thereby control the startup of auxiliary heater and close.The concrete control mode of control module 3 is: after receiving the water inlet water temperature signal that default water temperature signal that temperature preset component 2 sends and temperature sensor 4 send, the water temperature of two characterization is compared, the water inlet water temperature that records when temperature sensor 4 is during less than default temperature, then send enabled instruction, start auxiliary heater water inlet is done to heat; The water inlet water temperature that records when temperature sensor 4 is then sent out code during more than or equal to default temperature, does not start or closes auxiliary heater.
Auxiliary heater described in the utility model can be various water heaters, such as electric heater, gas heater, but is preferably the fast gas heater of firing rate.
When assisted heating device described in the utility model used, at first by the temperature preset component 2 default required temperature of temperature controller, after temperature was preset and finished, temperature preset component 2 was namely sent default water temperature signal to control module 3 to the user.Feed water flow is behind the water inlet pipe of auxiliary heater, and the temperature sensor 4 of temperature controller records the temperature into water, sends a water inlet water temperature signal to control module 3 simultaneously.After control module 3 receives above-mentioned two water temperature signals, the temperature of its sign is compared, the water inlet water temperature that records when temperature sensor 4 is then sent enabled instruction during less than default temperature, starts auxiliary heater water inlet is done to heat; The water inlet water temperature that records when temperature sensor 4 is then sent out code during more than or equal to default temperature, does not start or closes auxiliary heater.
The utility model detects water temperature by temperature sensor 4, comes temperature-sensitive with respect to the user in the mode that health contacts with water, and is more accurate.On the other hand, when temperature sensor 4 detects inflow temperature and can not satisfy user's hot water user demand, can automatically connect auxiliary heater water inlet is heated, need not the user and manually boot, easy to use.Simultaneously, when the hot water that reaches the user when inflow temperature uses and to need, then do not start auxiliary heater, when being user-friendly to, can not cause the waste of resource yet.
Such scheme only is the first embodiment of the present utility model, and the utility model also can be taked other work-around solutions.Can place in the pipeline that main firing equipment water outlet flows through such as temperature sensor 4.Alternatively, this uses in the control module 3 of novel described temperature controller can built-in a certain fixed temperature, and need not temperature preset component 2.Send corresponding control instruction behind the water temperature that control module 3 sends the temperature sensor 4 that receives and this fixed temperature.In such cases, built-in fixed temperature is equivalent to the temperature of user preset in the control module 3.
See also Fig. 3, Fig. 3 is the schematic diagram of water heating system described in the utility model.
Water heating system described in the utility model comprises the main firing equipment with outlet pipe, and the assisted heating device that is formed by auxiliary heater and temperature controller, wherein the outlet pipe of main firing equipment is connected with the water inlet pipe of auxiliary heater, the water outlet of main firing equipment enters in the water inlet pipe 1 of additional hot device after via its outlet pipe, becomes the water inlet of auxiliary heater.
The user is when using described water heater funnel, should in the temperature controller of assisted heating device, preset first required hot water temperature, then start main firing equipment and maybe the water that stores after the main firing equipment heating is emitted by the outlet pipe of main firing equipment, enter the water inlet pipe 1 of auxiliary heater.Temperature sensor 4 records the water temperature that flowed out by main firing equipment less than the temperature of user preset in described temperature controller, in the time of can not satisfying the user and use the demand of hot water, can at once start auxiliary heater water is made Fast Heating, guarantee that the user can obtain hot water at any time.
The utility model is by set temperature controller and auxiliary heater, can not satisfy when use demand at the leaving water temperature of main firing equipment, and the auxiliary heater of automatically starting is done further to heat to water, can satisfy the user demand that the user obtains hot water at any time.
For reaching the purpose of rapid heating, auxiliary heater person can be electric heater, but is preferably gas heater, and main firing equipment can be solar water heater.
Adopt water heating system described in the utility model, solar water heater environmental protection, energy-conservation characteristic both can have been utilized, simultaneously can also pass through post bake, remedy solar water heater in the situation of sunshine deficiency, heating causes the user can't obtain at any time hot water slowly, awkward problem can satisfy the needs that the user obtains hot water at any time.
In brief, above embodiment is only in order to illustrate the utility model and the described technical scheme of unrestricted the utility model; Therefore, although this specification has been described in detail the utility model with reference to each above-mentioned embodiment,, those of ordinary skill in the art should be appreciated that still and can make amendment or be equal to replacement the utility model; And all do not break away from technical scheme and the improvement thereof of spirit and scope of the present utility model, and it all should be encompassed in the middle of the claim scope of the present utility model.
Claims (8)
1. a water heater assisted heating device comprises the auxiliary heater with water inlet pipe, it is characterized in that: also comprise temperature controller, this temperature controller comprises:
Temperature sensor is connected in the water inlet pipe of auxiliary heater to survey the water temperature of intaking and to generate temperature signal;
Control module, receive above-mentioned water temperature signal, the temperature value that characterizes at above-mentioned water temperature signal sends instruction and starts described auxiliary heater heating during less than preset temperature value, the temperature value that characterizes at above-mentioned water temperature signal is during more than or equal to preset temperature value, do not start or closes described auxiliary heater.
2. water heater assisted heating device according to claim 1, it is characterized in that: described temperature controller also comprises the temperature preset component that is connected with described control module, with preset temperature and generate preset temperature signals and send to control module.
3. water heater assisted heating device according to claim 1 and 2, it is characterized in that: described auxiliary heater is gas heater.
4. water heater assisted heating device according to claim 1 and 2, it is characterized in that: described auxiliary heater is electric heater.
5. a water heating system comprises the main firing equipment with outlet pipe, it is characterized in that: also comprise a water heater assisted heating device claimed in claim 1, the outlet pipe of described main firing equipment is connected with the water inlet pipe of described auxiliary heater.
6. water heating system according to claim 5, it is characterized in that: the outlet pipe of described main firing equipment directly links to each other with the water inlet pipe of described auxiliary heater.
7. water heating system according to claim 6, it is characterized in that: the outlet pipe of described main firing equipment is connected by flange with the water inlet pipe of described auxiliary heater.
8. described arbitrary water heating system according to claim 5-7, it is characterized in that: described main firing equipment is solar water heater.
