Abstract
一种多用途包装盒，它是由盒体、盒盖、内胆袋组成，其特征在于，盒体呈长方体结构，盒体上表面敞口，内胆袋内置于盒体内，盒盖亦呈长方体结构，盒盖的底面敞口，盒盖能盖合于盒体之上。本实用新型具有结构新颖、重量轻、适用范围广、定型效果好、可重复多次使用、操作简便、环保的特点。
A multi-purpose packaging box, which is composed of a box body, a box cover, and an inner bag. Cuboid structure, the bottom surface of the box cover is open, and the box cover can be closed on the box body. The utility model has the characteristics of novel structure, light weight, wide application range, good shaping effect, repeated use, simple operation and environmental protection.
Description
技术领域 technical field
本实用新型属于日常生活用品领域，涉及一种多用途包装盒。 The utility model belongs to the field of daily necessities and relates to a multipurpose packing box. the
背景技术 Background technique
人们去商店、商场或者专卖场购买个人电子产品时，这些电子产品都会用相配套的包装盒对其进行包装。当人们将这些带有包装盒的电子产品带回家后，这些包装盒就往往因为无用并且占用空间而被丢弃，又因为是只能与相应的电子产品相配套，所以就不能得到重复利用，这样最终会造成资源的浪费。 When people go to stores, shopping malls or specialty stores to buy personal electronic products, these electronic products will be packaged in matching boxes. When people take these electronic products with packaging boxes home, these packaging boxes are often discarded because they are useless and take up space, and because they can only be matched with corresponding electronic products, they cannot be reused. This will eventually result in a waste of resources. the
发明内容 Contents of the invention
为了弥补上述不足，本实用新型提供一种多用途包装盒，它不仅重量轻，而且适用于不同种类的个人电子产品，它还能重复多地循环利用，当某些个人电子产品暂时闲置不用的时候，它可以用来定型和储放这些个人电子产品，它具有结构新颖、重量轻、适用范围广、定型效果好、可重复多次使用、操作简便、环保的特点。 In order to make up for the above-mentioned shortcomings, the utility model provides a multi-purpose packaging box, which is not only light in weight, but also suitable for different types of personal electronic products. It can also be recycled repeatedly. When some personal electronic products are temporarily idle Sometimes, it can be used to shape and store these personal electronic products. It has the characteristics of novel structure, light weight, wide application range, good shaping effect, repeated use, easy operation and environmental protection. the
为了达到上述目的，本实用新型采取如下具体技术措施：一种多用途包装盒，它是由盒体、盒盖、内胆袋组成，其结构特征在于，盒体呈长方体结构，盒体上表面敞口，内胆袋内置于盒体内，盒盖亦呈长方体结构，盒盖的底面敞口，盒盖能盖合于盒体之上。 In order to achieve the above object, the utility model adopts the following specific technical measures: a multi-purpose packaging box, which is composed of a box body, a box cover, and an inner bag, and its structural feature is that the box body is a rectangular parallelepiped structure, and the upper surface Open, the liner bag is built in the box body, the box cover also has a cuboid structure, the bottom surface of the box cover is open, and the box cover can be closed on the box body. the
内胆袋内部填充有诸多小粒径的轻质材料，这些小粒径的轻质材料类砂粒 状并且具有一定的流动性，正是由于这种流动性能，使得内胆袋的可塑性很强，它能用来放置和定型多种不同种类、款式和型号的个人电子产品。 The interior of the liner bag is filled with many light materials with small particle sizes. These light materials with small particle sizes are sand-like and have a certain fluidity. It is precisely because of this fluidity that the plasticity of the liner bag is very strong. It can be used to hold and hold many different types, styles and models of personal electronic products. the
本实用新型的有益效果在于，它具有结构新颖、重量轻、适用范围广、定型效果好、可重复多次使用、操作简便、环保的特点。 The beneficial effect of the utility model is that it has the characteristics of novel structure, light weight, wide application range, good shaping effect, repeated use, easy operation and environmental protection. the
下面结合附图和实施例对本实用新型作更进一步说明。 Below in conjunction with accompanying drawing and embodiment the utility model is described further. the
附图说明 Description of drawings

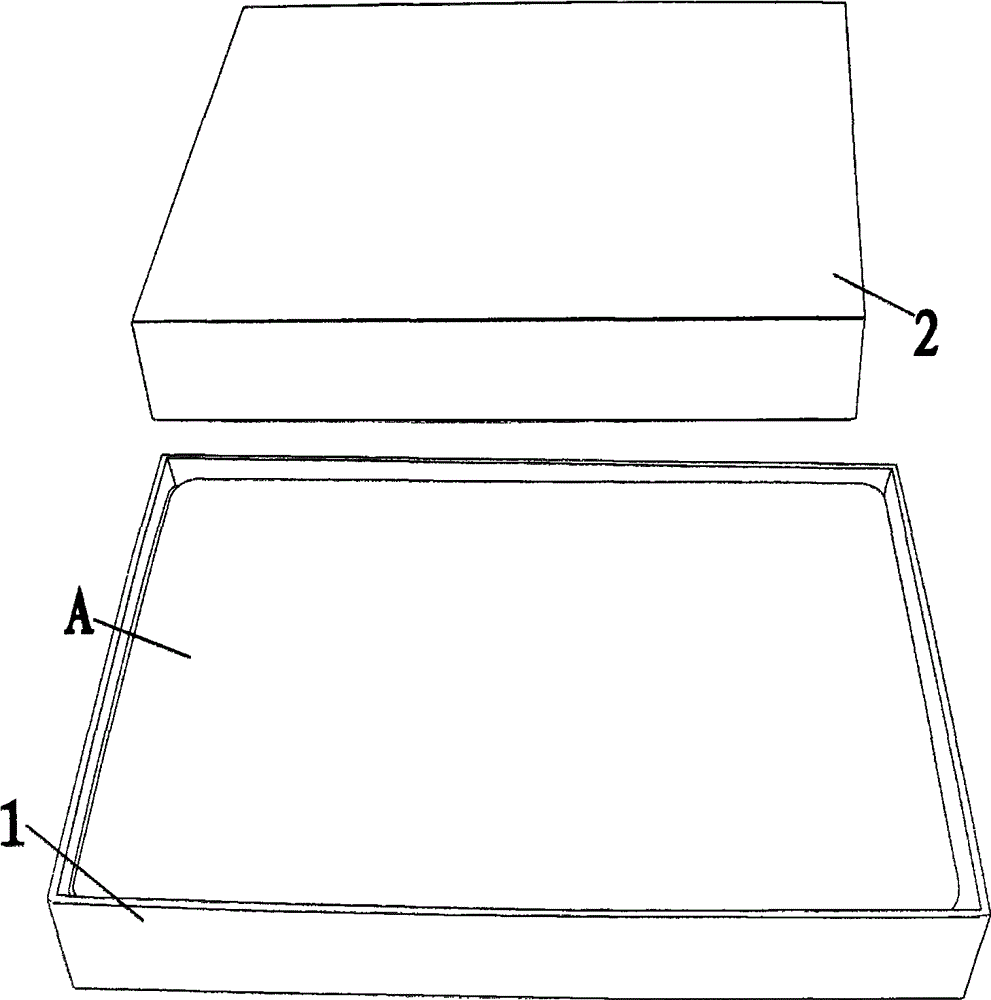

图1为本实用新型分解结构示意图。 Fig. 1 is a schematic diagram of the decomposition structure of the utility model. the
具体实施方式 Detailed ways
如图1所示，一种多用途包装盒，它是由盒体1、盒盖2、内胆袋A组成，其特征在于，盒体1呈长方体结构，盒体1上表面敞口，内胆袋A内置于盒体1内，内胆袋A内部设置有多个小粒径轻质填充料，盒盖2亦呈长方体结构，盒盖2的底面敞口，盒盖2能盖合于盒体1之上。
As shown in Figure 1, a multi-purpose packaging box is composed of a box body 1, a
