Abstract
The utility model discloses a novel solar drinking water-mounted tank and belongs to novel solar heat-collection-mounted water tank. The novel solar drinking water-mounted tank is a solar engineering equipment component, and is especially suitable for a drinking water project and a sophisticated solar hot water project. The novel solar drinking water-mounted tank comprises a shell, a thermal-insulating layer, an external liner and a liner. The main designing idea of the novel solar drinking water-mounted tank is that the sealed combination of a liner inside a liner is utilized to overcome the defects that an old type-mounted water tank can not operate bearing pressure, can not feed water at any time, and can not achieve the sanitary standard for drinking water. The novel solar drinking water-mounted tank is novel in structure, and simple and convenient in process, is especially adaptable to be installed with an automatic controlling device in a matching mode, and achieves intelligentized control of solar drinking water engineering and solar exquisite product collecting and assembling engineering.
Description
Technical field
This utility model belongs to the multi pack water tank of new type solar collecting engineering.Be a kind of solar engineering equipment part, be particularly suitable for drinking water engineering and superior solar heating engineering.
Background technology
Now, mostly solar heating engineering is middle warm water collection dress engineering, belongs to circulating heating, and mostly used solar water multi pack water tank is to be comprised of inner bag, heat-insulation layer, shell, inner bag is connected with thermal-collecting tube sealing socket joint, and hot water is circulating-heating in inner bag and thermal-collecting tube directly.Its unfavorable factor shows: can not go up water during 1 Exposure to Sunlight, the explosion thermal-collecting tube because easily causing the rapid drawdown temperature.2 can not bearing operation because thermal-collecting tube be glass material can not pressure-bearing.3 do not reach sanitary standard, because inner bag and thermal-collecting tube ground seal belong to the rubber and plastic material, being heated easily to decompose does not reach standard for drinking.
Therefore its application limitation is very large.
Summary of the invention
For the deficiency of the above solar heating engineering multi pack water tank, ad hocly counted this new type solar energy drinking water multi pack water tank, its mentality of designing is the multi pack water tank that exploitation can reach drinking water standard.
Solution of the present utility model is: new type solar energy drinking water multi pack water tank is comprised of shell, heat-insulation layer, outer courage, inner bag; It is characterized in that: shell is to be coated in the outmost protective layer of multi pack water tank, is made by metal material or the engineering plastics of anti-thump; Outer courage is reserved thermal-collecting tube socket joint hole and heating working medium hand-hole, is made by metal material or engineering plastics; Inner bag is to be made by the grade metal material, reserves water inlet and delivery port; Place inner bag in the middle of the outer courage and make encapsulation process, outer courage is placed among the shell, filled with foaming material forms heat-insulation layer between outer courage and the shell.New type solar energy drinking water multi pack water tank has dividing of horizontally loaded type and vertically-loaded type, and its difference is that horizontally loaded type new type solar energy drinking water multi pack water tank downside has thermal-collecting tube socket joint hole, and there is thermal-collecting tube socket joint hole vertically-loaded type new type solar energy drinking water multi pack water tank both sides.
This new type solar energy drinking water multi pack water tank and the assembling of thermal-collecting tube socket joint form the cavity that seals between inner bag and the outer courage, heating working medium is injected wherein by the heating working medium hand-hole, and water injects inner bag by water inlet; The heat that solar energy heat collection pipe absorbs is at first passed to heating working medium, and heating working medium is passed to the water in the inner bag again, and this equipment both can bearing operation like this, had reached again standard for drinking, had also overcome thermal-collecting tube booster problem.
The beneficial effect of this utility model is: new type solar energy drinking water multi pack water tank has overcome the drawback of original multi pack water tank, both can bearing operation, reached again standard for drinking, and also overcome thermal-collecting tube booster problem.Be conducive to and the automation control appliance Matching installation, realize the intellectuality control of solar drinking Hydraulic Projects and solar energy elaboration collection dress engineering.
Description of drawings
Below in conjunction with accompanying drawing this utility model is further specified

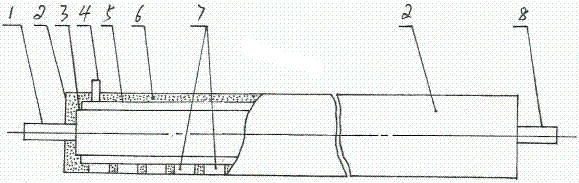

Accompanying drawing 1 is the horizontally loaded type structural representation of this utility model.
Accompanying drawing 2 is vertically-loaded type structural representations of this utility model.
1 delivery port, 2 shells, 3 inner bags, 4 heating working medium hand-holes, 5 outer courage 6 heat-insulation layers, 7 thermal-collecting tube socket joint holes, 8 water inlets among the figure
The specific embodiment
New type solar energy drinking water multi pack water tank is comprised of shell (2), heat-insulation layer (6), outer courage (5), inner bag (3); It is characterized in that: shell (2) is to be coated in the outmost protective layer of multi pack water tank, is made by metal material or the engineering plastics of anti-thump; Outer courage (5) is reserved thermal-collecting tube socket joint hole (7) and heating working medium hand-hole (4), is made by metal material or engineering plastics; Inner bag (3) is to be made by the grade metal material, reserves water inlet (8) and delivery port (1); Place inner bag (3) in the middle of the outer courage (5) and make encapsulation process, outer courage (5) is placed among the shell (2) filled with foaming material formation heat-insulation layer (6) between outer courage (5) and the shell (2).New type solar energy drinking water multi pack water tank has dividing of horizontally loaded type and vertically-loaded type, its difference is that horizontally loaded type new type solar energy drinking water multi pack water tank downside has thermal-collecting tube socket joint hole (7), and there is thermal-collecting tube socket joint hole (7) vertically-loaded type new type solar energy drinking water multi pack water tank both sides.
This new type solar energy drinking water multi pack water tank and the assembling of thermal-collecting tube socket joint, form the cavity of sealing between inner bag (3) and the outer courage (5), heating working medium is injected wherein by heating working medium hand-hole (4), and water injects inner bag (3) by water inlet (8); The heat that solar energy heat collection pipe absorbs is at first passed to heating working medium, and heating working medium is passed to the water in the inner bag (3) again, and this equipment both can bearing operation like this, had reached again standard for drinking, had also overcome thermal-collecting tube booster problem.
Claims (2)
1. new type solar energy drinking water multi pack water tank is comprised of shell (2), heat-insulation layer (6), outer courage (5), inner bag (3); It is characterized in that: shell (2) is to be coated in the outmost protective layer of multi pack water tank, is made by metal material or the engineering plastics of anti-thump; Outer courage (5) is reserved thermal-collecting tube socket joint hole (7) and heating working medium hand-hole (4), is made by metal material or engineering plastics; Inner bag (3) is to be made by the grade metal material, reserves water inlet (8) and delivery port (1); Place inner bag (3) in the middle of the outer courage (5) and make encapsulation process, outer courage (5) is placed among the shell (2) filled with foaming material formation heat-insulation layer (6) between outer courage (5) and the shell (2).
2. new type solar energy drinking water multi pack water tank according to claim 1, it is characterized in that: new type solar energy drinking water multi pack water tank has dividing of horizontally loaded type and vertically-loaded type, its difference is that horizontally loaded type new type solar energy drinking water multi pack water tank downside has thermal-collecting tube socket joint hole (7), and there is thermal-collecting tube socket joint hole (7) vertically-loaded type new type solar energy drinking water multi pack water tank both sides.
