CN202775191U - Folding stool - Google Patents
Folding stool Download PDFInfo
- Publication number
- CN202775191U CN202775191U CN 201220463535 CN201220463535U CN202775191U CN 202775191 U CN202775191 U CN 202775191U CN 201220463535 CN201220463535 CN 201220463535 CN 201220463535 U CN201220463535 U CN 201220463535U CN 202775191 U CN202775191 U CN 202775191U
- Authority
- CN
- China
- Prior art keywords
- seat board
- folding
- base
- tank body
- support frame
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Landscapes
- Special Chairs (AREA)
Abstract
本实用新型公开了一种折叠凳，占地空间小，便于存放。该折叠凳包括坐板，坐板下方设置有底座，坐板与底座之间连接有用于调节坐板距离底座的高度的折叠支撑架。所述折叠支撑架包括2个折叠杆，所述2个折叠杆分别设置在坐板的两端，所述折叠杆包括与坐板铰接的上杆以及与底座铰接的下杆，上杆和下杆铰接。坐板上设置有朝向底座的上槽体，所述底座上设置有朝向坐板的与上槽体匹配的下槽体，上槽体和下槽体扣合后形成用于容纳折叠支撑架的空腔。所述坐板的顶面设置有坐垫。由于设置有空腔，使得上槽体和下槽体扣合后可将折叠支撑架容纳在空腔内，这样显著减少了该折叠凳的占地空间，更加便于存放。
The utility model discloses a folding stool, which occupies a small space and is convenient for storage. The folding stool comprises a seat board, a base is arranged under the seat board, and a folding support frame for adjusting the height of the seat board from the base is connected between the seat board and the base. The folding support frame includes two folding rods, and the two folding rods are respectively arranged at both ends of the seat board, and the folding rods include an upper rod hinged with the seat board and a lower rod hinged with the base, the upper rod and the lower rod Rod hinged. The seat board is provided with an upper tank body facing the base, and the base is provided with a lower tank body matching the upper tank body facing the seat board, and the upper tank body and the lower tank body are fastened to form a folding support frame. cavity. A cushion is provided on the top surface of the seat board. Since the cavity is provided, the folding support frame can be accommodated in the cavity after the upper tank body and the lower tank body are fastened together, which significantly reduces the floor space occupied by the folding stool and is more convenient for storage.
Description
技术领域 technical field
本实用新型涉及一种日常生活领域应用的折叠凳。The utility model relates to a folding stool used in the field of daily life.
背景技术 Background technique
凳子是日常生活领域常用的一种工具。现有的凳子一般包括一个坐板，坐板底面连接有4个支脚。这种凳子的优点在于其支撑强度较高。但其占地面积较大，当不需要使用时，不便于存放。尤其在空间比较狭小的场合，更是如此。Stool is a tool commonly used in the field of daily life. Existing stools generally include a seat board, and four legs are connected to the bottom surface of the seat board. The advantage of this stool is its high support strength. However, it occupies a large area and is inconvenient to store when not in use. This is especially true in places where the space is relatively narrow.
实用新型内容 Utility model content
本实用新型解决的技术问题是提供一种便于存放的节省空间的折叠凳。The technical problem solved by the utility model is to provide a space-saving folding stool that is convenient for storage.
本实用新型解决其技术问题所采用的技术方案是：折叠凳，包括坐板，坐板下方设置有底座，坐板与底座之间连接有用于调节坐板距离底座的高度的折叠支撑架。The technical solution adopted by the utility model to solve the technical problem is: the folding stool includes a seat board, a base is arranged under the seat board, and a folding support frame for adjusting the height of the seat board from the base is connected between the seat board and the base.
进一步的是：所述折叠支撑架包括2个折叠杆，所述2个折叠杆分别设置在坐板的两端，所述折叠杆包括与坐板铰接的上杆以及与底座铰接的下杆，上杆和下杆铰接。Further, the folding support frame includes two folding rods, and the two folding rods are respectively arranged at both ends of the seat board, and the folding rods include an upper rod hinged with the seat board and a lower rod hinged with the base, The upper and lower rods are hinged.
进一步的是：坐板上设置有朝向底座的上槽体，所述底座上设置有朝向坐板的与上槽体匹配的下槽体，上槽体和下槽体扣合后形成用于容纳折叠支撑架的空腔。Further, the seat board is provided with an upper tank body facing the base, and the base is provided with a lower tank body facing the seat board and matched with the upper tank body, and the upper tank body and the lower tank body are fastened to form a container for accommodating Fold the cavity of the support frame.
进一步的是：所述坐板的顶面设置有坐垫。Further, a cushion is provided on the top surface of the seat board.
本实用新型的有益效果是：本实用新型的折叠凳在使用时可将折叠支撑架展开，使坐板远离底座形成一个凳子。当不需要使用时，可将折叠支撑架收拢，使坐板高度下降，节省了占地空间，便于存放。此外，由于设置有空腔，使得上槽体和下槽体扣合后可将折叠支撑架容纳在空腔内，这样显著减少了该折叠凳的占地空间，更加便于存放。The beneficial effects of the utility model are: the folding stool of the utility model can unfold the folding support frame when in use, so that the seat board is away from the base to form a stool. When not in use, the folding support frame can be folded to lower the height of the seat board, which saves floor space and is convenient for storage. In addition, since the cavity is provided, the folding support frame can be accommodated in the cavity after the upper tank body and the lower tank body are fastened together, which significantly reduces the floor space occupied by the folding stool and is more convenient for storage.
附图说明 Description of drawings

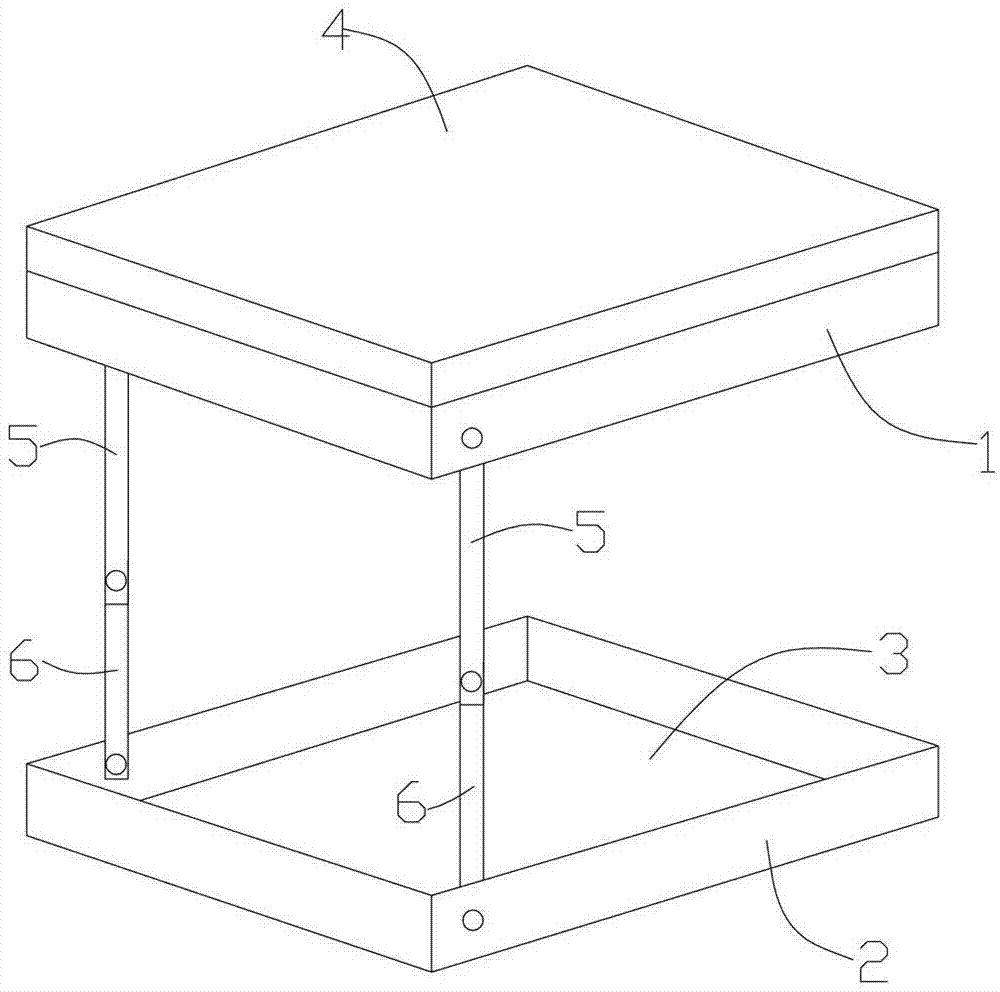

图1为本实用新型的折叠凳的示意图；Fig. 1 is the schematic diagram of folding stool of the present utility model;
图中标记为：坐板1，底座2，空腔3，坐垫4，上杆5，下杆6。Marked among the figure: seat plate 1, base 2, cavity 3, cushion 4, upper rod 5, lower rod 6.
具体实施方式 Detailed ways
下面结合附图和具体实施方式对本实用新型进一步说明。Below in conjunction with accompanying drawing and specific embodiment the utility model is further described.
如图1所示，本实用新型的折叠凳，包括坐板1，坐板1下方设置有底座2，坐板1与底座2之间连接有用于调节坐板距离底座的高度的折叠支撑架。使用时，将折叠支撑架展开，使坐板1的高度上升即可；不需要使用时，将折叠支撑架收拢，使坐板1的高度下降即可。As shown in Figure 1, the folding stool of the present invention includes a seat board 1, a base 2 is arranged below the seat board 1, and a folding support frame for adjusting the height of the seat board from the base is connected between the seat board 1 and the base 2. When in use, unfold the folding supporting frame to raise the height of the seat board 1; when not in use, fold the folding supporting frame so as to lower the height of the seat board 1.
上述折叠支撑架的实施方式有多种，例如可为现有技术中常用的十字交叉形折叠架。优选实施方式是：如图1所示，所述折叠支撑架包括2个折叠杆，所述2个折叠杆分别设置在坐板1的两端，所述折叠杆包括与坐板铰接的上杆5以及与底座铰接的下杆6，上杆5和下杆6铰接。这种折叠支撑架结构简单，便于安装，占地面积小。There are many implementations of the above-mentioned folding support frame, for example, it may be a cross-shaped folding frame commonly used in the prior art. A preferred embodiment is: as shown in Figure 1, the folding support frame includes two folding rods, the two folding rods are respectively arranged at both ends of the seat board 1, and the folding rods include an upper rod hinged with the seat board 5 and the lower rod 6 hinged with the base, the upper rod 5 and the lower rod 6 are hinged. The folding support frame has a simple structure, is easy to install, and occupies a small area.
在上述基础上，为了更加节省空间，如图1所示，坐板1上设置有朝向底座2的上槽体，所述底座2上设置有朝向坐板1的与上槽体匹配的下槽体，上槽体和下槽体扣合后形成用于容纳折叠支撑架的空腔3。当折叠支撑架收拢后可置于空腔3内，这样可显著减少占地空间。On the basis of the above, in order to save more space, as shown in Figure 1, the seat 1 is provided with an upper groove facing the base 2, and the base 2 is provided with a lower groove facing the seat 1 that matches the upper groove Body, the upper tank body and the lower tank body are fastened to form a cavity 3 for accommodating the folding support frame. When the folding support frame is folded, it can be placed in the cavity 3, which can significantly reduce the occupied space.
在上述基础上，为了增加使用的舒适度，所述坐板1的顶面设置有坐垫4。Based on the above, in order to increase the comfort of use, the top surface of the seat board 1 is provided with a cushion 4 .
