CN202774756U - Pen bag - Google Patents
Pen bag Download PDFInfo
- Publication number
- CN202774756U CN202774756U CN 201220486626 CN201220486626U CN202774756U CN 202774756 U CN202774756 U CN 202774756U CN 201220486626 CN201220486626 CN 201220486626 CN 201220486626 U CN201220486626 U CN 201220486626U CN 202774756 U CN202774756 U CN 202774756U
- Authority
- CN
- China
- Prior art keywords
- bag
- pen bag
- key ring
- electronic
- pen
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model provides a pen bag which comprises a bag body (1). The pen bag is characterized in that an electronic timer (2), an electronic calendar (3) and a key ring (4) are arranged on the bag body (1), wherein the key ring (4) is connected on the edge of a corner of the bag body (1), and the electronic timer (2) and the electronic calendar (3) are inlaid into the outer surface of the same side of the bag body (1). The pen bag has the advantages of being simple in structure, convenient to use, practical, low in cost, and strong in practicality. The pen bag facilitates realization of dates and time remaining of an exam for a student, and prevents a key from being forgot and lost.
Description
Technical field
The utility model relates to a kind of stationery, and more particularly, it relates to a kind of with the electronics count-down device, the pen bag of electronic calendar table and key ring.
Background technology
The pen bag function of at present student's use is few, and practicality is not strong, can only fill some stationeries, can not know the date by pen bag, and it is flurried at heart to cause because not knowing remaining time during examination, the impact examination.In the daily life, the situation of key appears leaving behind and losing in students often.Up to the present, not yet occur on the market a kind of with the electronics count-down device, the pen bag of electronic calendar table and key ring.
The utility model content
The utility model is for the deficiency of existing product, and provides a kind of simple in structure, and convenient and practical, cost is lower, practical pen bag.
Pen bag of the present utility model comprises bag, and described bag is provided with electronic timer, electronic calendar table and key ring, and described key ring is connected to the comer edge of bag, and described electronic timer, electronic calendar table are embedded on the same side outer surface of bag.
The beneficial effects of the utility model: (1) is simple in structure, is easy to make; (2) cost is lower, and is practical, be convenient to the student understand the date, be convenient to the student understand the examination remaining time, avoid leaving behind and losing key.
Description of drawings

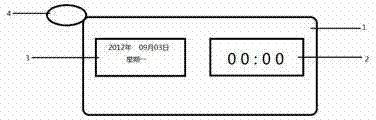

Fig. 1 is structural representation of the present utility model;
Among the figure: bag 1, electronics count-down device 2, electronic calendar table 3, key ring 4.
Specific embodiments
The utility model will be further described below in conjunction with accompanying drawing.
In Fig. 1, pen bag of the present utility model is by bag 1, electronics: timer 2, electronic calendar table 3, key ring 4 form.
Described bag 1 is provided with electronic timer 2, electronic calendar table 3 and key ring 4, and described key ring 4 is connected in the corner of bag 1, described electronic timer 2, electronic calendar table 3 is embedded on the surface of bag 1.
During use, can understand the date by electronic calendar table 3, can open electronic timer 2 before the examination, understand at any time the test time; Need to carry and when using key, key can be inserted in the key ring 4, can avoid leaving behind or losing.
Claims (1)
1. pen bag, comprise bag (1), it is characterized in that, described bag (1) is provided with electronic timer (2), electronic calendar table (3) and key ring (4), described key ring (4) is connected to the comer edge of bag (1), described electronic timer (2), and electronic calendar table (3) is embedded on the same side outer surface of bag (1).
