Abstract

The utility model discloses a disposable urine specimen collection device, and relates to a medical appliance. The disposable urine specimen collection device comprises a funnel, a collection pipe, a sealing plug and a soft strip, an outlet of the funnel is connected with an opening at the upper end of the collection pipe in a threaded manner, and the sealing plug is connected with the outer wall of the collection pipe through the soft strip. When the disposable urine specimen collection device is used, as the area of an opening at the upper end of the funnel is large, urine can smoothly flow into the collection pipe through the funnel and is effectively prevented from flowing to the outer surface of the device and hands of an operator, environmental pollution caused by the urine is avoided, and after the urine is collected, the funnel is unscrewed, separated from the collection pipe and discarded. After the funnel is separated from the collection pipe, the opening at the upper end of the collection pipe is plugged by the sealing plug, environmental pollution caused by smell dissipation is prevented, and the sanitary condition of a hospital cannot be affected. When taking and using a urine specimen, an inspector only needs to unplug the sealing plug and then pour the urine specimen in the collection pipe into an inspection test tube, and operation is quite convenient.

Description

The disposable urine sample collecting apparatus
Technical field
The utility model relates to a kind of medical instruments, more specifically to a kind of disposable urine sample collecting apparatus.
Background technology
Urine test is the supplementary means commonly used that diagnoses the illness clinically.In a lot of hospitals, patient adopts disposable urine sampling cup splendid attire urine usually, because this urine sampling cup rim of a cup is less, easily gets the outside surface of urine sampling cup and operator's hand when urine sampling, uses very inconvenient.Simultaneously because this urine sampling cup is opened type, urine specimen may be by extraneous foreign substance pollution, also can oxidative deformation, the easily result of impact check after sample is long placed in; When the censorship urine, smell dissipation affects the sanitary condition of hospital to environment.
Summary of the invention
The purpose of this utility model is the defective that exists for prior art, and a kind of simple in structure, disposable urine sample collecting apparatus that urine capture is convenient, healthy is provided.
In order to solve the problems of the technologies described above, the technical solution adopted in the utility model is as follows:
A kind of disposable urine sample collecting apparatus comprises funnel, collection tube, sealing-plug and soft band, and the outlet of funnel and collection tube upper end open are threaded connection, and sealing-plug is connected with the collection tube outer wall by soft band.
During use, because the area of funnel upper end open is larger, therefore urine can flow in the collection tube by funnel smoothly, effectively avoided urine to get the outside surface of device and operator's hand, also avoided the pollution of urine to environment, after urine capture is good, collection tube is outwarded winding, broken away to funnel and abandons.
After funnel breaks away from collection tube, sealing-plug is clogged the collection tube upper end open, prevent that smell dissipation to environment, affecting the sanitary condition of hospital.When the reviewer takes urine specimen, as long as sealing-plug is unpluged, then the urine specimen in the collection tube is poured into check and in vitro get final product, operation is very easy.
The utility model beneficial effect against existing technologies is, because the collection tube upper end open connects funnel, urine can flow in the collection tube by funnel smoothly, has effectively avoided urine to get the outside surface of urine sample collecting apparatus and operator's hand; Also be provided with sealing-plug on the collection tube, prevent that smell dissipation to environment, affecting the sanitary condition of hospital.
Below in conjunction with the drawings and specific embodiments the utility model is described further.
Description of drawings

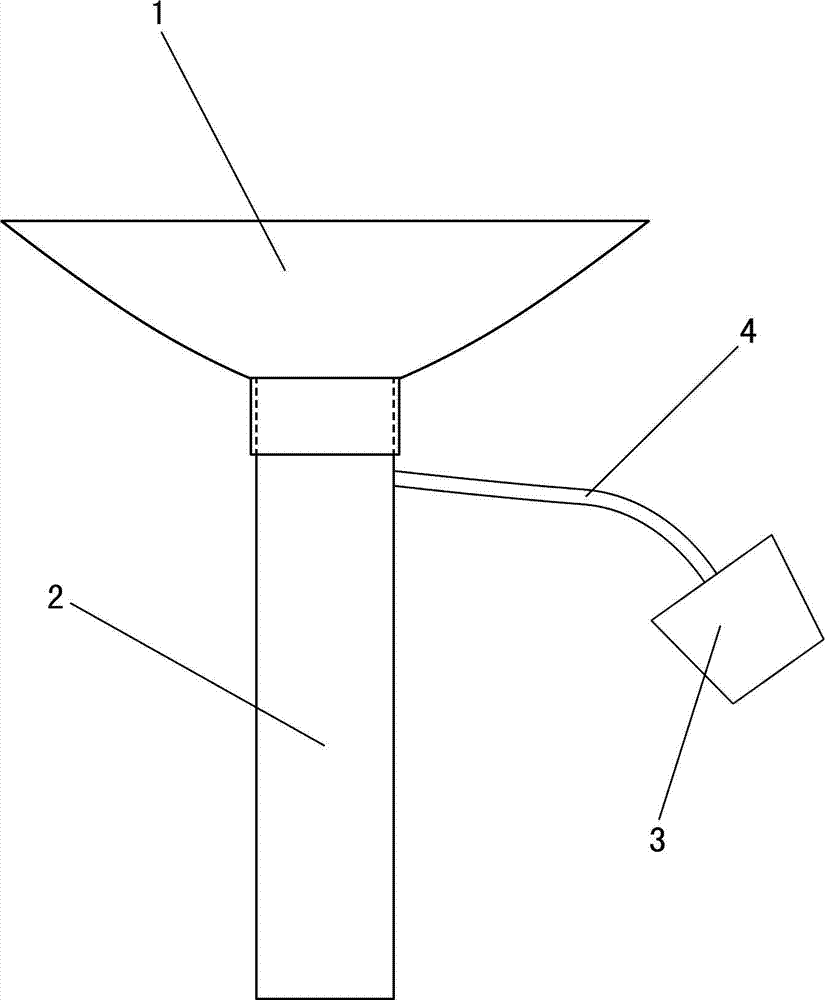

Fig. 1 is the structural representation of the utility model embodiment.
Embodiment
As shown in Figure 1, this disposable urine sample collecting apparatus comprises funnel 1, collection tube 2, sealing-plug 3 and softly is with 4 that the outlet of funnel 1 and collection tube 2 upper end open are threaded connection, and sealing-plug 3 is with 4 to be connected with collection tube 2 outer walls by soft.
During use, because the area of funnel 1 upper end open is larger, therefore urine can flow in the collection tube by funnel 1 smoothly, effectively avoided urine to get the outside surface of device and operator's hand, also avoided the pollution of urine to environment, after urine capture is good, collection tube 2 is outwarded winding, broken away to funnel 1 and abandons.
After funnel 1 breaks away from collection tube 2, sealing-plug 3 is clogged collection tube 2 upper end open, prevent that smell dissipation to environment, affecting the sanitary condition of hospital.When the reviewer takes urine specimen, as long as sealing-plug 3 is unpluged, then the urine specimen in the collection tube 2 is poured into check and in vitro get final product, operation is very easy.
The above is preferred embodiment of the present utility model only, is not to limit practical range of the present utility model; Be all equivalents of doing according to claim scope of the present utility model, be claim scope of the present utility model and cover.

Claims (1)

1. disposable urine sample collecting apparatus, it is characterized in that: comprise funnel, collection tube, sealing-plug and soft band, the outlet of funnel and collection tube upper end open are threaded connection, and sealing-plug is connected with the collection tube outer wall by soft band.
