Abstract
The utility model provides a light-emitting device and a lighting device. The mutual connection of light-emitting components can be simplified by the light-emitting device and the light-emitting device is good in color mixture and can improve the uniformity in color. The light-emitting device comprises a baseplate (21) and a plurality of light-emitting components (22) with different illuminant colors, and the different illuminant colors are same in number, and the plurality of components (22) are arranged on the baseplate (21) with a plurality of illuminant colors, and each of the illuminant colors is arrayed in multiple columns on roughly concentric circles with different radius, or on polygonal circles in different sizes but in a roughly same center, and each of the positions of the columns in the circle direction is arranged in staggered mode. The mutual connection of light-emitting components can be simplified by the light-emitting device and the light-emitting device is good in color mixture and can improve the uniformity in color.
Description
Technical field
Embodiment of the present utility model relates to a kind of light-emitting component with light emitting diode (below be called LED (Light Emitting Diode)) etc. as the light-emitting device of light source and the lighting device that possesses this light-emitting device.
Background technology
Recently, along with high output, the high efficiency of LED, developed and used LED to use and can expect the lighting device of long lifetime as light source at indoor or outdoors.This lighting device is that a plurality of LED are installed on the substrate to obtain the brightness of regulation, such as basis (base) illumination that is used as being installed on the ceiling surface etc.
On the other hand, variation along with life style, as the function that these lighting devices are required, expectation is not only around illuminating simply, and the environment around will considering or light impact that organism is caused etc., decorate out the light space that meets living scene (scene), with comfortableness of satisfying the user etc.
Therefore, for example attempt on the substrate LED of a plurality of illuminant colours sequentially being arranged on the circumference, photochromic to give colour mixture ornamental to improve with these.
The prior art document
Non-patent literature
Non-patent literature 1: sell LED lamp affixed to the ceiling " EVERLEDS " series | news release | news | Panasonic's company information | Panasonic [network retrieval on September 5th, 2011] (http://panasonic.co.jp/corp/news/official.data/data.dir/jn11012 6-2/jn110126-2.html)
But, in aforesaid situation, might cause to be used for the LED of a plurality of illuminant colours Wiring pattern connected to one another (pattern) is complicated at substrate.
The utility model content
The utility model is to finish in view of above-mentioned problem, its purpose is the lighting device that a kind of light-emitting device is provided and possesses this light-emitting device, described light-emitting device can be simplified light-emitting component connection each other, and colour mixture well can realize inhomogeneity raising.
The light-emitting device of embodiment of the present utility model comprises: substrate; And each illuminant colour is with the light-emitting component of quantity, be installed on the substrate, be a plurality of illuminant colours, and its every kind illuminant colour is arranged in the different roughly concentric circles of radius with being multiple row or varies in size but make the center on roughly the same polygonal week, and staggers and configure in the position of the Zhou Fangxiang of the row that make these in each other.
Described light-emitting device comprises the light-emitting component of the coloured light that turns white, and in the outside and the inboard of the row of the light-emitting component of described a plurality of illuminant colours, and arranges and installs making the center circle identical with described circle or polygon or be row ground polygonal week.
The lighting device of embodiment of the present utility model comprises described light-emitting device and ignition device, and ignition device is to the control of lighting a lamp of the light-emitting component in this light-emitting device.
The effect of utility model
According to embodiment of the present utility model, the lighting device that a kind of light-emitting device can be provided and possess this light-emitting device, described light-emitting device can be simplified light-emitting component connection each other, and colour mixture well can realize inhomogeneity raising.
Description of drawings
Fig. 1 is the stereogram of the lighting device of expression embodiment of the present utility model.
Fig. 2 is the exploded perspective view of the front surface side of expression lighting device of the present utility model.
Fig. 3 is the exploded perspective view of the rear side of expression lighting device of the present utility model.

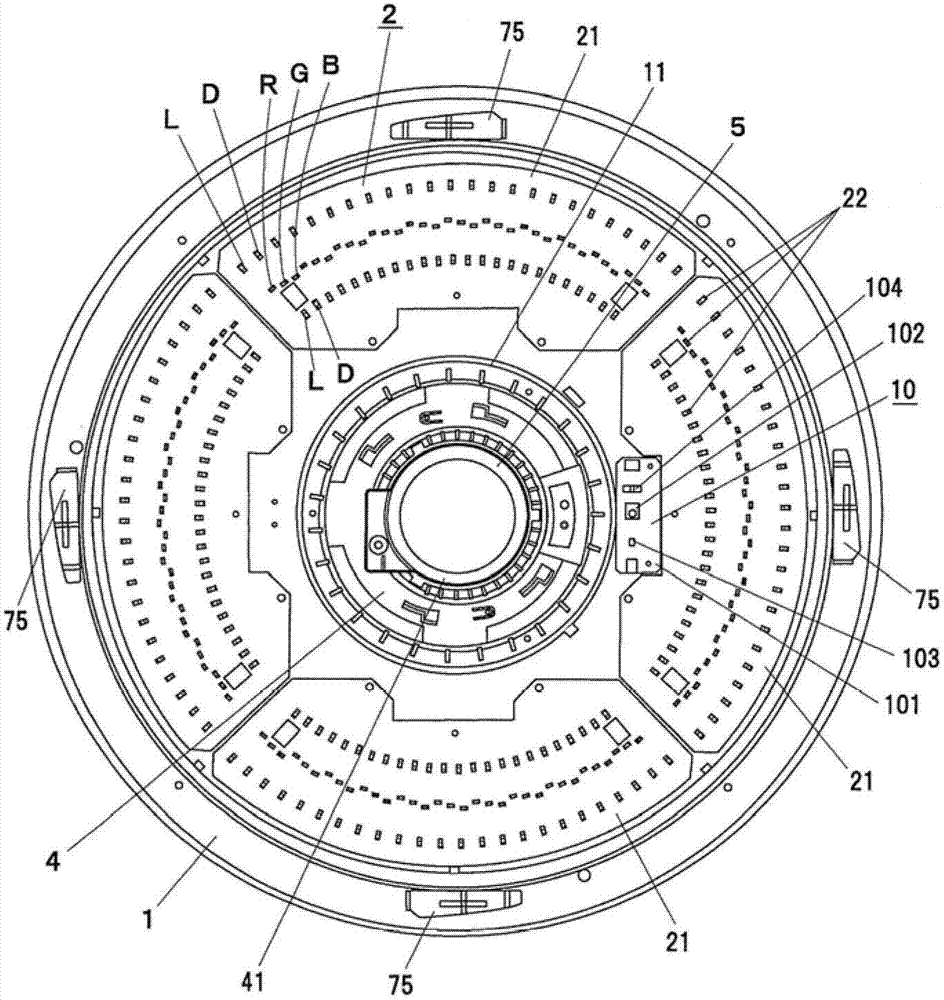

Fig. 4 removes lampshade (shade) and light source portion cover (cover) and the plane of expression in lighting device of the present utility model.
Fig. 5 is the stereogram of the rear side of expression lighting device of the present utility model.
Fig. 6 is the cutaway view that expression is installed on lighting device of the present utility model the state of ceiling surface.
Fig. 7 is the plane of the plate base in the expression light source portion.
Fig. 8 is the plane of a part of the Wiring pattern layer of expression substrate of the present utility model.
Fig. 9 is the wiring diagram of the connection status of expression light-emitting component.
Reference numeral:
1: device body (underframe)
2: light source portion
3: ignition device
4: central component
5: installation portion (adapter guide portion)
6: optical sensor
7: lampshade
7a: lampshade escutcheon
8: the cover member
9: the indirect light light source portion
10: the auxiliary component unit
11,35c, 41,71: opening
12,13: protuberance
21,91: substrate
21a: Wiring pattern layer
21b: reflecting layer
22,92: light-emitting component (LED)
25: the light source portion cover
35: the ignition device cover
35a: sidewall
35b: back face wall
36: elastic component
42: spatial portion
43: be subjected to optical window
51: snap openings
74: lampshade is installed metal parts
75: lampshade is accepted metal parts
81: see through section
93: cover
101: cell substrate
102: the infrared remote control signal acceptance division
103: the light-emitting component that altar lamp is used
104: the channel setting switch
A: adapter
Ae, Ce: electrode
B: blueness
C: device installed surface (ceiling surface)
Cb: distributor (ceiling lamp holder main body)
Cn: connector
D: color of sunshine
G: green
I: insulating regions
L: bulb look
R: redness
Rc: infra-red remote control transmitter
R1, r2, r3: radius
Sa, Sc: zone
The specific embodiment
Below, referring to figs. 1 through Fig. 9 embodiment of the present utility model is described.Fig. 1 to Fig. 6 represents lighting device, and Fig. 7 and Fig. 8 represent the part of light source portion.And Fig. 9 represents the wiring state of light source portion.In each figure, omit the distribution annexation illustrate by wire etc.In addition, also the repetitive description thereof will be omitted for same section mark same-sign.
The lighting device of present embodiment is to be installed to the lighting device that the ordinary residence that uses on the ceiling lamp holder main body is used, carry out indoor illumination by the light from the light source portion radiation, described ceiling lamp holder main body is arranged at the device installed surface and as distributor, described light source portion has a plurality of light-emitting components that are installed on the substrate.
Lighting device possesses device body 1, light source portion 2, ignition device 3, center (center) member 4 and installation portion 5.And then lighting device possesses optical sensor (sensor) 6, lampshade 7, cover member 8, indirect light light source portion 9 and auxiliary component unit (unit) 10.And, lighting device possesses electrically and is connected mechanically to adapter (adapter) A (with reference to Fig. 6) and infra-red remote control (remote control) transmitter Rc of ceiling lamp holder main body Cb, and described ceiling lamp holder main body Cb is arranged on the ceiling surface C as the device installed surface.This kind lighting device forms the outward appearance of spherical toroidal, with the shadow surface of front surface side as light, with rear side as the installed surface to ceiling surface C.The below sequentially illustrates these Constitution Elements.
To shown in Figure 6, the underframe (chassis) of device body 1 for having thermal conductivity is to form toroidal by the flat board of the metal material of cold-rolled steel sheet etc., and is formed with the opening 11 of the toroidal of configuration installation portion 5 described later in substantial middle section such as Fig. 2.The part of the toroidal of this opening 11 is outstanding and form profile shape about equally with installation portion 5 towards foreign side.
Outer circumferential side at opening 11 is formed with protuberance 12, and described protuberance 12 is for quadrangle shape and bight are the R shape, and outstanding towards rear side.And, at the outer circumferential side of device body 1, being formed with the protuberance 13 of circular ring-type, described protuberance 13 is outstanding towards rear side, and in other words, described protuberance 13 forms recess in the front surface side.
In the recess that is formed by protuberance 13, configuring the lampshade that lampshade 7 releasably is installed and accepting metal parts 75.These protuberances 12,13 are brought into play function mainly as the installation portion of the member that is installed on underframe, and, have the function of strengthening underframe intensity or the function that increases area of dissipation.
In addition, device body 1 is equivalent to underframe in the present embodiment, but also can be the member that is known as box body (case), reflecting plate or base plate.Generally speaking, light source portion 2 refers to the member or the part that set directly or indirectly, does not explain with being particularly limited.
In addition, the preferred use is divided into the substrate 21 of multi-disc, is formed integrally as a roughly circular plate base but also can use.
In addition, the material of substrate 21 when being made as insulating materials, applicable pottery (ceramics) material or synthetic resin material.And then when being made as metal-made, applicable metal basal substrate, described metal basal substrate are that the thermal conductivity the one side good and substrate plate that thermal diffusivity is excellent at aluminium etc. is laminated with insulating barrier.
Light-emitting component 22 is LED, and is the LED encapsulation (package) of surface installing type.This LED encapsulation is the Zhou Fangxiang along a plurality of circular substrates 21, spreads all over multiple row and installs, and be to install spreading all over 3 row different roughly concentrically ringed week of radius in the present embodiment.That is, spread all over the row of the row of row, outer circumferential side of interior all sides and described interior all sides and outer circumferential side row the centre row and install.
The LED encapsulation comprises substantially: led chip (chip) is provided in the cavity (cavity) that is formed by pottery or synthetic resin; And epoxy is the translucent resin of mold (mold) usefulness of resin or silicone (silicone) resin etc., seals this led chip.
The LED that lists encapsulation for the row that are installed in interior all sides and outer circumferential side, use illuminant colour to be the LED encapsulation of bulb look (L) with color of sunshine (D), namely, use the LED encapsulation of so-called white, these LED encapsulation are to open roughly uniformly-spaced and alternately to arrange in concentrically ringed all sky roughly to set.Led chip is the led chip that sends blue light.In translucent resin, sneaked into fluorophor, light for the white color system that can go out lamp bulb look (L), color of sunshine (D), the main red-emitting phosphors that uses yellow fluorophor or be used for replenishing red composition, described yellow fluorophor radiate the light that has the yellow system of complementary color relation with blue light.In addition, described so-called white comprises color of sunshine (D), white in daytime (N), white (W) or bulb look (L) etc.
For the encapsulation of the LED that lists in the middle of being installed in, use the LED encapsulation of sending a plurality of illuminant colours, particularly, use the LED encapsulation of sending redness (R), green (G), blue (B) light.Therefore, led chip is the led chip of difference burn red, green light, blue light, and the translucent resin that these led chips are used by mold seals.
The LED encapsulation of rubescent look (R) light that lists in the middle of being installed in, green (G) light, blueness (B) light be on circumference roughly sequentially with the order of red (R), green (G), blue (B), sky is opened roughly uniformly-spaced and continuously configuration.For the LED encapsulation of these rubescent look (R) light, green (G) light, blueness (B) light, each illuminant colour uses identical quantity, and each plate base 21 of cutting apart is installed the LED encapsulation of 11 each illuminant colours.Therefore, use on the whole the LED encapsulation of each 44 each illuminant colour.
Specifically, as as adding shown in the reference of Fig. 7 and Fig. 8, for the LED encapsulation of different rubescent look (R) light of these illuminant colours, green (G) light, blueness (B) light, every kind of illuminant colour is multiple row (3 row) and is arranged in radius on different roughly concentrically ringed weeks, and staggers and configure in the position of the Zhou Fangxiang of the row that make these in each other.
A slice in the substrate 21 that Fig. 7 represents to cut apart, Fig. 8 represents the part of the Wiring pattern layer 12a of this substrate 21.And, in Fig. 8, in order to represent the position relationship of Wiring pattern layer 12a and light-emitting component 22, be represented by dotted lines the part of light-emitting component 22 in explanation.
As shown in Figure 7, for the LED encapsulation of rubescent look (R) light, green (G) light, blueness (B) light, every kind of illuminant colour is at radius on different roughly concentrically ringed weeks, that is, the LED of rubescent look (R) light is encapsulated on roughly concentrically ringed week that LED is encapsulated in radius r 2, the LED of the look that turns blue (B) light is encapsulated in radius r 3 of radius r 1, green-emitting (G) light respectively sky and opens roughly and uniformly-spaced configure.And, the LED encapsulation row of the row of the LED encapsulation of the row of the LED of these rubescent look (R) light encapsulation, green-emitting (G) light and the look that turns blue (B) light each other in light-emitting component 22 be to stagger (representing with d on the diagram) and be configured in the position that makes Zhou Fangxiang.
In addition, the LED encapsulation is roughly rectangular shape in shape, is provided with the electrode A e of anode (anode) side at a short brink, is provided with the electrode Ce of negative electrode (cathode) side at another short brink.In addition, in explanation, represent the minor face of the electrode Ce side of cathode side with thick line.
As shown in Figure 8, substrate 21 is to be laminated with Wiring pattern layer 21a on the surface with insulating properties, and then is laminated with reflecting layer 21b thereon and forms.And, on substrate 21, the LED encapsulation that a plurality of light-emitting components 22 are installed is surface installing type.
Reflecting layer 21b is that spreading all over roughly, whole ground forms except the part of the part that each light-emitting component 22 and connecting electrode Ae, Ce are installed and connection connector (connector) Cn.That is, the part of each light-emitting component 22 and connecting electrode Ae, Ce and the part of connection connector are installed becomes the state that Wiring pattern layer 21a exposes on the surface, to connect light-emitting component 22 and connector.
Particularly, reflecting layer 21b be use white photic welding resistance type (photo solder type) etching resisting ink (resist ink) material and form, be the resist layer of the good white of reflection of light rate.
Each light-emitting component 22 is to be divided between a plurality of blocks that form by the insulating regions i of wire, and the insulating regions i that strides across the wire of relative narrower is welded in Wiring pattern layer 21a with the electrode Ce of the electrode A e of the anode-side of light-emitting component 22 and cathode side and connects.
More specifically, the regional Sa of the Wiring pattern layer 21a side that connects compared with the electrode A e of the anode-side of light-emitting component 22, the area of the regional Sc of the Wiring pattern layer 21a side that the electrode Ce of cathode side connects forms greatlyr.That is, in the mode of the relation that becomes Sa<Sc and form.
This kind light-emitting component 22 mainly produces heat at cathode side when luminous, the temperature of the electrode Ce of cathode side uprises.Therefore, the regional Sc of the Wiring pattern layer 21a side that connects by the electrode Ce that strengthens cathode side can utilize large tracts of land that the heat of generation is spread effectively and distributes, thereby the temperature that can suppress light-emitting component 22 rises.
Therefore, the illuminant colour that lists that is installed on interior all sides be bulb look (L) with the LED of color of sunshine (D) encapsulation in, alternately change electrode towards, the regional Sc of the Wiring pattern layer 21a side that is connected take the electrode Ce that guarantees cathode side for greatly.
On the other hand, be in the LED encapsulation of bulb look (L) and color of sunshine (D) at the illuminant colour that lists that is installed on outer circumferential side, the electrode Ce of cathode side is configured toward the outer side.Owing to existing the radiating effect in the outside than inboard high tendency, therefore the electrode Ce by making cathode side can expect the raising of thermal diffusivity toward the outer side.
Secondly, the LED of rubescent look (R) light that lists in the middle of being installed on, green (G) light, blueness (B) light encapsulates as mentioned above general configuration at radius on different roughly concentrically ringed weeks, and staggers and configure in the position of the Zhou Fangxiang of row in each other that makes at these.Therefore, when with illuminant colour be homochromy LED encapsulation when being connected in series as present embodiment, its connection can be simplified, particularly, the Wiring pattern layer 21a between connecting electrode can be simplified.
Suppose LED package arrangements with rubescent look (R) light, green (G) light, blueness (B) light on same circumference, then distribution is to avoid the LED encapsulation of adjacency agley, and it is intricate that the formation of Wiring pattern layer will become.
But, be disposed at radius on different roughly concentrically ringed weeks by as present embodiment, being staggered in the position of its all direction the LED of each illuminant colour encapsulation, thereby basically can on circumference, namely be the circular-arc homochromy LED encapsulation that connects (roughly linearity), therefore, can simplify its connection, and can make space (space) exist the zone of restriction to possess the enough and to spare of regulation, for example can simultaneously guarantee area as the Wiring pattern layer 21a of fin performance function for large, one side realizes connecting.
In addition, on the whole, the LED of each illuminant colour is encapsulated in the width that has regulation on the radial direction and arranges, and arranges in mode continuous on Zhou Fangxiang, so colour mixture is good and can improve uniformity.And, about radial direction, be the close configuration of LED encapsulation that becomes to the coloured light that turns white that lists of the row that are installed on interior all sides and outer circumferential side, therefore can expect the effect that becomes good with their mixed light.
And then, between the LED that the lists encapsulation of the LED of each illuminant colour encapsulation and the row that are installed on interior all sides and outer circumferential side, produce the zone of guaranteeing the space at radial direction, thereby can configure the part of connector Cn etc. effectively to apply flexibly the space at this area part.
In addition, as long as the regional Sc of the Wiring pattern layer 21a side that the regional Sa of the Wiring pattern layer 21a side that the electrode A e of the anode-side of light-emitting component 22 connects is connected with the electrode Ce of cathode side can become large mode and form with regional Sc, then its shape etc. is not particularly limited.
Fig. 9 represents the wiring state of each light-emitting component 22 on the plate base 21.Particularly, be installed on the row of interior all sides and the light-emitting component that lists 22 of outer circumferential side and comprise 2 lines (line), described 2 lines are that 4 series circuits are formed by connecting, and described 4 series circuits are 6 light-emitting components 22 to be connected in series form.Therefore, connecting at 1 line and adding up to 24 light-emitting components 22.And these series circuits are that to be divided into illuminant colour be that the light-emitting component group of bulb look (L) is connected with the light-emitting component group of color of sunshine (D).That is, in a series circuit, bulb look (L) can not mix existence with the light-emitting component 22 of color of sunshine (D).
On the other hand, the light-emitting component 22 of rubescent look (R) light that lists in the middle of being installed on, green (G) light, blueness (B) light is being connected in series 11 separately.And similarly, in these series circuits, the light-emitting component 22 of red (R), green (G), blue (B) can not mix existence.
The end of this kind connecting circuit is connected in connector Cn, in order to can be connected in the connector of substrate 21 of adjacency or the connector of mains side.
As mentioned above, in light source portion 2, configuring the different a plurality of light-emitting components 22 of illuminant colour, namely configuring the light-emitting component 22 of sending out bulb look (L) light, color of sunshine (D) light, redness (R) light, green (G) light, blueness (B) light, therefore by making these light-emitting component mixed lights, expressible photochromic scope is wide, by adjusting the light output of light-emitting component 22, can mix colours to photochromic.
In addition, LED both can directly be installed on substrate 21 with led chip, and, the LED of bullet cut also can be installed, mounting means or form are not particularly limited.
The light source portion 2 that consists of in this way as Fig. 4 and Fig. 6 typically shown in, substrate 21 is positioned at around the front surface side and opening 11 of device body 1, the installed surface of light-emitting component 22 is towards the front surface side, namely sets towards the direction of illumination of below.And, be close to the mode of the inner face side of device body 1 with the rear side of substrate 21, by installing such as the fixture of screw etc.Therefore, substrate 21 is and device body 1 thermal, conducts to device body 1 and distributed from rear side from the heat of substrate 21.
Such as Fig. 2 and shown in Figure 6, setting light source portion cover 25 in the front surface side of light source portion 2.Light source portion cover 25 is such as the lucite with insulating properties that comprises Merlon (polycarbonate) or acrylic resin (acryl resin) etc., and along the configuration of described light-emitting component 22 and be roughly circularly integrally formed, and so that light-emitting component 22 is included covered substrate 21 whole mode and set.
Therefore, will be through light source portion cover 25 from the light of light-emitting component 22 outgoing.And because whole of covered substrate 21, so charging part is covered by light source portion cover 25 and insulating properties is guaranteed.
On circuit substrate, be electrically connected adapter A side, and be connected in commercial ac power source via adapter A.Therefore, ignition device 3 receives this AC power and generates direct current output, and via wire this direct current output is supplied to light-emitting component 22, with control that light-emitting component 22 is lit a lamp.
This kind ignition device 3 shown in the reference that adds Fig. 5 as, be installed on ignition device cover 35 and covered, thereby be disposed at the rear side of device body 1.At this moment, circuit substrate is installed circuit component towards front surface side (diagram upper and lower side).
This ignition device cover 35 is such as Fig. 5 and shown in Figure 6, and the flange of front surface side (flange) is loaded the protuberance 12 in underframe, and and installed by spiral shell is solid.
And, in the rear side of ignition device cover 35, elastic component 36 is installed.Elastic component 36 is installed near it corresponding to the installation site of described a plurality of each indirect light light source portion 9.And this elastic component 36 is that front is installed towards the central portion direction.
The central component 4 that consists of in this way mainly as shown in Figure 6, the flange of rear side is fixed at underframe via light source portion cover 25 and installs.In addition, central component 4 can be installed on underframe, the mounting structure that it is concrete and indefinite directly or indirectly.
In addition, installation portion 5 may not be the member that is known as adapter guide portion etc.For example, also can be formed in the opening on device body 1 grade, mainly refer to as the ceiling lamp holder main body Cb of distributor in opposite directions and member or part that adapter A is engaged.
Optical sensor 6 is installed on substrate 61 as shown in Figure 6, with its light accepting part be subjected to optical window 43 in opposite directions mode and set and be installed in the spatial portion 42 of central component 4.Optical sensor 6 is illuminance transducer, comprises the sensor element of photodiode (photo diode) etc., with to around brightness detect and the mode of output detection signal is moved.Whereby, when bright on every side, being that light-emitting component 22 carries out light modulation (dim light) and the mode of lighting a lamp is controlled to light source portion 2.
And lampshade 7 comprises the mode of front surface side of the body 1 of light source portion 2 with covering, releasably is installed on the periphery edge of body 1.Particularly, by rotating lampshade 7, lampshade set on the lampshade 7 is installed metal parts 74 be sticked in lampshade and accept metal parts 75 and install, described lampshade is accepted metal parts 75 and is located in the protuberance 13 formed recesses by device body 1.
And when dismounting lampshade 7, direction opposite towards with installation the time is rotated lampshade 7, accepts engaging of metal parts 75 to remove lampshade installation metal parts 74 with lampshade, thus detachable described lampshade 7.
Indirect light light source portion 9 is provided in the rear side of device body 1, mainly has the function that illuminates ceiling surface.Such as Fig. 3, Fig. 5 and shown in Figure 6, indirect light light source portion 9 be positioned at installation portion 5 around and be equipped with a plurality ofly, and possess substrate 91 and be installed on a plurality of light-emitting components 92 on this substrate 91.
The substrate 91 that this light-emitting component 92 is installed is installed in the position everywhere on the sidewall 35a of described ignition device cover 35.At this moment, ignition device cover 35 forms roughly quadrangle, and substrate 91 is installed on the tabular surface of the linearity on this sidewall 35a, therefore can stably install.
And the sidewall 35a that consists of the installation portion of substrate 91 forms expand towards the front surface side skewed, so substrate 91 is the ceiling surface direction towards oblique upper, effectively shines towards the ceiling surface direction from the light of light-emitting component 92 outgoing.
And then mainly as shown in Figure 6, each indirect light light source portion 9 is by 93 coverings of cover of light transmission, and the section of the cover 93 of described light transmission forms expand towards rear side skewed.Therefore, be installed at lighting device under the state of ceiling surface C, during from the sidepiece of beneath lighting device, can be so that be installed in the elastic component 36 of ignition device cover 35 rear side and be difficult in sight.
And this cover 93 is with can not be from the mode of the part of the corresponding device body 1 of the rear side of outer side covers substrate 21 and form skewed and set.Therefore, can suppress to hinder phenomenon from the thermolysis of device body 1.
Light-emitting component 92 is similarly to be LED with described light source portion 2, and uses the LED encapsulation of surface installing type, and illuminant colour is the LED encapsulation of bulb look (L).And light-emitting component 92 is to use and the light-emitting component 22 of sending out bulb look (L) light of described light source portion 2 light-emitting component as same size.This light-emitting component 92 is connected in ignition device 3 and the control that is subject to lighting a lamp.
In addition, the cell substrate 101 of auxiliary component unit 10 is that adopting for aforesaid substrate 61 speech that optical sensor 6 is installed is another substrate, on the substrate 61 that optical sensor 6 is installed, light-emitting component 103 of using of installation infrared line remote signal acceptance division 102, altar lamp etc. not.Its reason is, optical sensor 6 has brightness and the automatic function of the luminance of control light-emitting component 22 around the detecting, is convenient to like this provide the lighting device that possesses this function and this two types the lighting device of lighting device that does not possess this function.
That is, when development does not possess the lighting device of function of automatic control luminance, can easily omit optical sensor 6 and central component 4 and realize.
Adapter A as shown in Figure 6, by the hook that is located at upper surface side electrically and be connected mechanically to the part of the furred ceiling lamp holder body Cb that is arranged on the ceiling surface C, be roughly cylindric, and in the both sides of perisporium, to be provided with a pair of fastener A1 to the side-prominent mode of periphery all the time by built-in spring (spring).This fastener A1 submerges by the action bars (lever) that is located at lower face side is operated.And, from this adapter A derivation the not shown power line (cord) that is connected to described ignition device 3 is arranged, and be connected with ignition device 3 via connector.
Infra-red remote control transmitter Rc is the specific encoded infra-red remote control control signal of the pulse type of transmission frequency 38kHz for example, such as being provided with pattern (mode) switching push button (button), full luminous point button, light modulation point button, altar lamp button and light-off button etc.By being that infrared remote control signal acceptance division 102 operates towards auxiliary component unit 10 with this remote-controlled transmitter Rc, can control the illumination condition of light source portion 2 and indirect light light source portion 9.
Next, illustrate that with reference to Fig. 6 ligthing paraphernalia is installed on the installment state of ceiling surface C.At first, with adapter A electrically and be connected mechanically to the ceiling lamp holder main body Cb that sets in advance on ceiling surface C.Under the state of the cover member 8 of dismantling ligthing paraphernalia, make on the one hand the snap openings 51 alignment adapter A of adapter guide portion, overcome on the one hand elastic component 36 elastic force and from the below with pushing away on hand device body 1, until the fastener A1 of adapter A positively is sticked in till the snap openings 51 of adapter guide portion, thereby carry out fitting operation.
Next, mounting cup member 8 is with the opening 41 of the central portion of covering and obstruction and ceiling lamp holder main body Cb central component 4 in opposite directions.
And, in dismounting during ligthing paraphernalia, cover removal member 8, the opening 41 by central component 4 operates action bars set among the adapter A, with the engaging of the fastener A1 that removes adapter A, thus detachable.
Be installed at ligthing paraphernalia under the installment state of ceiling surface C, during to ignition device 3 supply capability, to light-emitting component 22 energisings, each light-emitting component 22 is lit a lamp via the substrate 21 in the light source portion 2.From the light transmission light source portion cover 25 of light-emitting component 22 towards the outgoing of front surface side, through lampshade 7 diffusions and through the irradiation of backward foreign side.Therefore, can the regulation the luminous intensity distribution scope in to below throw light on.
Meanwhile, during to indirect light light source portion 9 energising, each light-emitting component 92 is lit a lamp, and from light-emitting component 92 cover 93 of the light transmission light transmission of square outgoing obliquely, and mainly exposes to ceiling surface in the mode of radiation around adapter guide portion 5.Therefore, it is bright that ceiling surface becomes, and can improve the brightness impression in space.
Because rear side and device body 1 thermal of substrate 21, the heat that therefore produces from light-emitting component 22 conducts to device body 1 effectively, and utilizes large tracts of land to be distributed.
As mentioned above, according to present embodiment, the LED package arrangements of a plurality of illuminant colours of rubescent look (R) light, green (G) light, blueness (B) light is at radius on different roughly concentrically ringed weeks, and staggers and configure in the position of the Zhou Fangxiang of the row that make these in each other.Therefore, can provide a kind of lighting device, can simplify light-emitting component 22 connection each other, and colour mixture is good and can realize inhomogeneity raising.
In addition, in the above-described embodiment, the situation that is equipped with a plurality of light-emitting components 22 of rubescent look (R) light, green (G) light, blueness (B) light in different roughly concentrically ringed week of radius is illustrated with being multiple row, arrange but also can for example be multiple row ground hexagonal week at the polygon that varies in size, and stagger and configure in the position of the Zhou Fangxiang of the row that make these in each other.
And then, the outside and the inboard of row that also can be in the light-emitting component 22 of described a plurality of illuminant colours, and make approximate centre on the polygonal week identical with described polygon, be the light-emitting component 22 that the coloured light that turns white was arranged and installed on row ground.In the situation of this kind form, also can play and above-mentioned same effect.
The utility model is not limited to the structure of above-mentioned embodiment, can carry out various distortion in the scope of the purport that does not break away from utility model.And above-mentioned embodiment is only pointed out as an example, is not intended to limit the scope of utility model.
Claims (3)
1. light-emitting device is characterized in that comprising:
Substrate; And
Each illuminant colour is with the light-emitting component of quantity, be installed on the described substrate, be a plurality of illuminant colours, and its every kind illuminant colour is arranged in the different concentric circles of radius with being multiple row or varies in size but center on identical polygonal week, and staggers and configure in the position of the Zhou Fangxiang of the row that make these in each other.
2. light-emitting device according to claim 1 is characterized in that comprising:
The turn white light-emitting component of coloured light in the outside and the inboard of the row of the light-emitting component of described a plurality of illuminant colours, and is arranged and is installed making the center circle identical with described circle or polygon or be row ground polygonal week.
3. lighting device is characterized in that comprising:
Described claim 1 or 2 described light-emitting devices; And
Ignition device is to the control of lighting a lamp of the light-emitting component in this light-emitting device.
Applications Claiming Priority (2)
Application Number | Priority Date | Filing Date | Title |
---|---|---|---|
JP2011199147A JP2013062108A (en) | 2011-09-13 | 2011-09-13 | Light-emitting device and lighting device |
JP2011-199147 | 2011-09-13 |
Publications (1)
Publication Number | Publication Date |
---|---|
CN202769565U true CN202769565U (en) | 2013-03-06 |
Family
ID=47776133
Family Applications (1)
Application Number | Title | Priority Date | Filing Date |
---|---|---|---|
CN201220342268XU Expired - Fee Related CN202769565U (en) | 2011-09-13 | 2012-07-13 | Light-emitting device and lighting device |
Country Status (4)
Country | Link |
---|---|
JP (1) | JP2013062108A (en) |
KR (1) | KR20130029000A (en) |
CN (1) | CN202769565U (en) |
TW (1) | TW201312041A (en) |
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN103322478A (en) * | 2013-07-01 | 2013-09-25 | 深圳市聚作照明股份有限公司 | Led ceiling lamp |
Families Citing this family (5)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
JP6270242B2 (en) * | 2014-02-19 | 2018-01-31 | 東芝ライテック株式会社 | lighting equipment |
JP6243301B2 (en) * | 2014-07-08 | 2017-12-06 | 日立アプライアンス株式会社 | Lighting device |
JP2018146546A (en) * | 2017-03-09 | 2018-09-20 | エアロセンス株式会社 | Information processing system, information processing device, and information processing method |
JP7137190B2 (en) * | 2018-06-30 | 2022-09-14 | アイリスオーヤマ株式会社 | Light source unit and lighting device |
JP7262077B2 (en) * | 2019-04-25 | 2023-04-21 | パナソニックIpマネジメント株式会社 | Light-emitting device and lighting equipment |
-
2011
- 2011-09-13 JP JP2011199147A patent/JP2013062108A/en not_active Withdrawn
-
2012
- 2012-07-13 CN CN201220342268XU patent/CN202769565U/en not_active Expired - Fee Related
- 2012-07-18 KR KR1020120078359A patent/KR20130029000A/en not_active Application Discontinuation
- 2012-07-26 TW TW101127054A patent/TW201312041A/en unknown
Cited By (1)
Publication number | Priority date | Publication date | Assignee | Title |
---|---|---|---|---|
CN103322478A (en) * | 2013-07-01 | 2013-09-25 | 深圳市聚作照明股份有限公司 | Led ceiling lamp |
Also Published As
Publication number | Publication date |
---|---|
JP2013062108A (en) | 2013-04-04 |
TW201312041A (en) | 2013-03-16 |
KR20130029000A (en) | 2013-03-21 |
Similar Documents
Publication | Publication Date | Title |
---|---|---|
CN202769565U (en) | Light-emitting device and lighting device | |
JP6094908B2 (en) | lighting equipment | |
CN202884522U (en) | Light-emitting device and lighting appliance | |
CN202733486U (en) | Lighting fixture | |
CN102444845B (en) | Lighting fixture | |
US8604679B2 (en) | LED light source lamp having drive circuit arranged in outer periphery of led light source | |
CN102997087A (en) | Lighting system and control method thereof | |
CN103968340A (en) | Lighting device and lighting device | |
JP2012084316A (en) | Lighting fixture | |
CN103032724A (en) | Lighting system and control method thereof | |
CN202647502U (en) | Illuminating tool | |
CN102404913A (en) | Lighting device | |
CN105402613B (en) | A kind of lamp mixed | |
CN202598185U (en) | Lamp device and illumination device | |
CN102588777B (en) | Lighting device | |
CN210511122U (en) | Direct type panel lamp | |
CN102997086A (en) | Lighting system and control method thereof | |
CN212029208U (en) | Line lamp for both RGB and white light | |
CN202501234U (en) | Lamp apparatus and lighting appliance | |
TW201812207A (en) | Illumination device | |
CN103115290B (en) | Bank light device | |
JP6034744B2 (en) | Lighting device | |
CN102563406A (en) | Lighting fixture | |
CN208750556U (en) | A kind of complete cycle light flying saucer lamp | |
CN213334154U (en) | Novel outdoor lamp |
Legal Events
Date | Code | Title | Description |
---|---|---|---|
C14 | Grant of patent or utility model | ||
GR01 | Patent grant | ||
CF01 | Termination of patent right due to non-payment of annual fee |
Granted publication date: 20130306 Termination date: 20140713 |
|
EXPY | Termination of patent right or utility model |
