Abstract

A nursing tray comprises a tray body. The tray body is in a rectangular shape. The left part of the tray body is provided with an infusion bottle groove and an infusion tube groove, the infusion bottle groove is a round groove, and the infusion tube groove is a rectangular groove. The right part of the tray body is provided with a sterilizing bottle groove, a cotton swap groove, a forcep groove and a medical adhesive tape groove. The sterilizing bottle groove is a round groove, the cotton swap groove is a rectangular groove, the forcep groove is a groove shaped like a Chinese character 'ren', and the medical adhesive tape is an annular groove. The nursing tray can enable medical supplies to be placed in a classification mode, the positions of the various medical supplies are relatively fixed, so that medical staff can conveniently take out the medical supplies from the nursing tray, and therefore the nursing tray is convenient to use. Meanwhile, due to the fact that the various medical supplies are separated from each other, the various medical supplies can not contact with each other, cross contamination of the various medical supplies is effectively avoided, and the sanitation of the various medical supplies is guaranteed.

Description

A kind of nursing pallet
Technical field
This utility model relates to a kind of medical treatment and nursing apparatus, more particularly, relates to a kind of nursing pallet.
Background technology
In clinical nursery work, medical personnel generally need to carry a nursing pallet, are placed with the medical supplies such as infusion bottle, tube for transfusion, sterilized bottle, swab stick, tweezers and medical adhesive tape in the nursing pallet.
But, because the flat nursing pallet of the general employing of existing nursing pallet, in the nursing pallet the fixedly structure of medical supplies is not set, so, medical supplies in the existing nursing pallet are easy to mixed in together, like this, medical personnel's very inconvenient appearance when taking medical supplies not only, and very easily cause the medical supplies cross-contamination; Sometimes even that infusion bottle, sterilized bottle can occur is unrestrained or the phenomenon such as break up, therefore, the use of existing nursing pallet is inconvenient.
Summary of the invention
The technical problems to be solved in the utility model provides a kind of nursing pallet easy to use.
In order to solve the problems of the technologies described above, the technical solution adopted in the utility model is as follows:
A kind of nursing pallet, comprise tray body, the above-mentioned tray body shape that is rectangle, it is characterized in that: the left part of above-mentioned tray body is provided with infusion bottle groove and tube for transfusion groove, above-mentioned infusion bottle groove is circular groove, and above-mentioned tube for transfusion groove is rectangular recess; The right part of above-mentioned tray body is provided with sterilized bottle groove, swab stick groove, tweezers groove and medical adhesive tape groove, above-mentioned sterilized bottle groove is circular groove, above-mentioned swab stick groove is rectangular recess, and above-mentioned tweezers groove is herringbone grooves, and above-mentioned medical adhesive tape is annular groove.
During use, the medical supplies such as infusion bottle, tube for transfusion, sterilized bottle, swab stick, tweezers and medical adhesive tape are placed on respectively in infusion bottle groove, tube for transfusion groove, sterilized bottle groove, swab stick groove, tweezers groove and the medical adhesive tape groove, like this, medical supplies just are placed in the nursing pallet taxonomically, and the residing position of all kinds of medical supplies is relatively fixing, so, the placement of all kinds of medical supplies in good order and in order, therefore, medical personnel are very convenient when taking medical supplies;
Simultaneously, because all kinds of medical supplies are spaced from each other, so all kinds of medical supplies can not be in contact with one another, thereby effectively prevent all kinds of medical supplies generation cross-contaminations, guarantee the health of all kinds of medical supplies.
As further improvement of the utility model, be respectively equipped with handle on the left surface of described tray body and the right flank.
When needing movement or carrying this nursing pallet, with the hands hold respectively the handle on tray body left surface and the right flank, so just can move easily or carry this nursing pallet.
Further improve as of the present utility model, the trailing flank of described tray body is provided with at least two hooks, and above-mentioned hook is arranged on the trailing flank of tray body equably.
By above-mentioned hook, can be easily this nursing pallet be hung on one's sick bed, thereby be convenient to medical personnel's use.
This utility model beneficial effect against existing technologies is:
Because the left part of its tray body of this nursing pallet is provided with infusion bottle groove and tube for transfusion groove, above-mentioned infusion bottle groove is circular groove, and above-mentioned tube for transfusion groove is rectangular recess; The left part of its tray body of this nursing pallet is provided with sterilized bottle groove, swab stick groove, tweezers groove and medical adhesive tape groove, above-mentioned sterilized bottle groove is circular groove, above-mentioned swab stick groove is rectangular recess, and above-mentioned tweezers groove is herringbone grooves, and above-mentioned medical adhesive tape is annular groove; So this nursing pallet can be with the medical supplies sorting placement, and the residing position of all kinds of medical supplies is relatively fixing, like this, medical personnel just can take medical supplies easily in this nursing pallet, therefore, and this nursing pallet easy to use;
Simultaneously, because all kinds of medical supplies are spaced from each other, so all kinds of medical supplies can not be in contact with one another, thereby effectively prevent all kinds of medical supplies generation cross-contaminations, guarantee the health of all kinds of medical supplies.
In addition, this nursing pallet also have simple in structure, reasonable in design, easy to use, be easy to processing, cost of manufacture is low, be easy to the advantage such as popularization.
Below in conjunction with the drawings and specific embodiments this utility model is described further.
Description of drawings

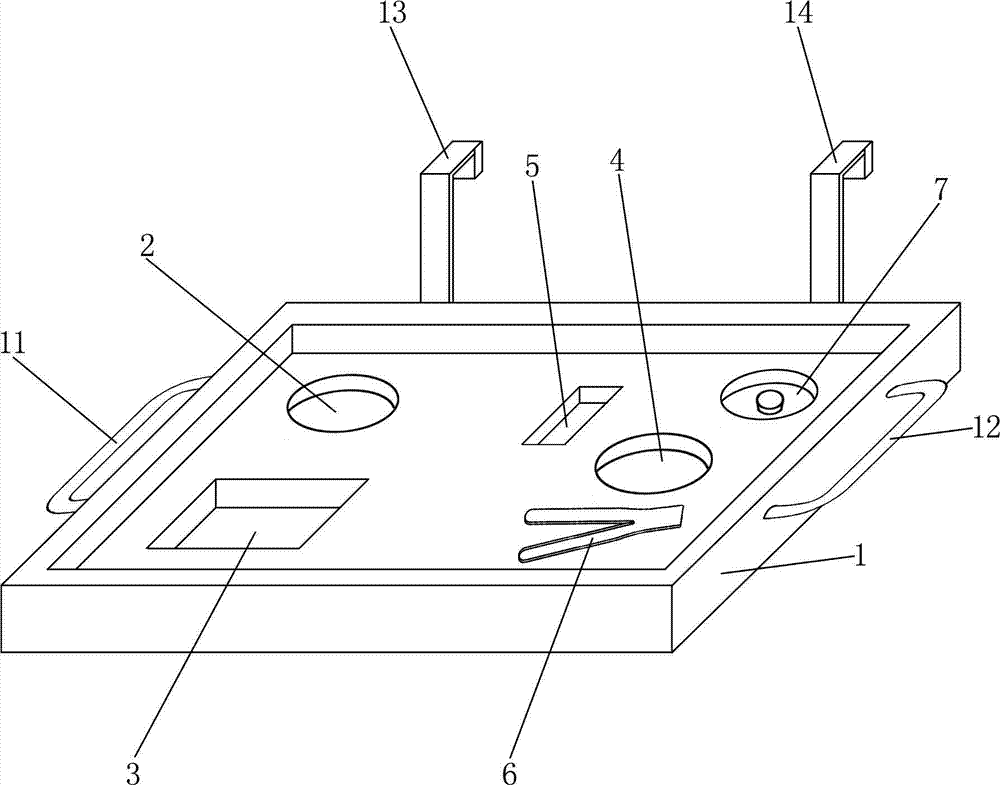

Fig. 1 is the structural representation of this utility model preferred embodiment.
The specific embodiment
As shown in Figure 1, the nursing pallet of this preferred embodiment comprises tray body 1, above-mentioned tray body 1 shape that is rectangle;
The left part of above-mentioned tray body 1 is provided with infusion bottle groove 2 and tube for transfusion groove 3, and above-mentioned infusion bottle groove 2 is circular groove, and above-mentioned tube for transfusion groove 3 is rectangular recess;
The right part of above-mentioned tray body 1 is provided with sterilized bottle groove 4, swab stick groove 5, tweezers groove 6 and medical adhesive tape groove 7, above-mentioned sterilized bottle groove 4 is circular groove, above-mentioned swab stick groove 5 is rectangular recess, and above-mentioned tweezers groove 6 is herringbone grooves, and above-mentioned medical adhesive tape 7 is annular groove;
The left surface of above-mentioned tray body 1 is provided with handle 11, and the right flank of tray body 1 is provided with handle 12;
The trailing flank of above-mentioned tray body 1 is provided with two hooks 13,14, and above-mentioned hook 13,14 is arranged on the trailing flank of tray body 1 equably.
During use, the medical supplies such as infusion bottle, tube for transfusion, sterilized bottle, swab stick, tweezers and medical adhesive tape are placed on respectively in infusion bottle groove 2, tube for transfusion groove 3, sterilized bottle groove 4, swab stick groove 5, tweezers groove 6 and the medical adhesive tape groove 7, like this, medical supplies just are placed in the nursing pallet 1 taxonomically, and, the residing position of all kinds of medical supplies is relatively fixing, so, the placement of all kinds of medical supplies in good order and in order, therefore, medical personnel are very convenient when taking medical supplies; Simultaneously, because all kinds of medical supplies are spaced from each other, so all kinds of medical supplies can not be in contact with one another, thereby effectively prevent all kinds of medical supplies generation cross-contaminations, guarantee the health of all kinds of medical supplies;
When needing movement or carrying this nursing pallet, with the hands hold respectively the handle 11,12 on tray body 1 left surface and the right flank, so just can move easily or carry this nursing pallet.
In addition, by above-mentioned hook 13,14, can be easily this nursing pallet be hung on one's sick bed, thereby be convenient to medical personnel's use.
The above is preferred embodiment of the present utility model only, is not to limit practical range of the present utility model; Be all equivalents of doing according to claim scope of the present utility model, be claim scope of the present utility model and cover.

Claims (3)

1. nurse pallet for one kind, comprise tray body, the above-mentioned tray body shape that is rectangle, it is characterized in that: the left part of above-mentioned tray body is provided with infusion bottle groove and tube for transfusion groove, above-mentioned infusion bottle groove is circular groove, and above-mentioned tube for transfusion groove is rectangular recess; The right part of above-mentioned tray body is provided with sterilized bottle groove, swab stick groove, tweezers groove and medical adhesive tape groove, above-mentioned sterilized bottle groove is circular groove, above-mentioned swab stick groove is rectangular recess, and above-mentioned tweezers groove is herringbone grooves, and above-mentioned medical adhesive tape is annular groove.
2. nursing pallet according to claim 1 is characterized in that: be respectively equipped with handle on the left surface of described tray body and the right flank.
3. nursing pallet according to claim 1 and 2, it is characterized in that: the trailing flank of described tray body is provided with at least two hooks, and above-mentioned hook is arranged on the trailing flank of tray body equably.
