Abstract
本实用新型涉及一种生活用品，更具体的说，是涉及一种感应式热水瓶。一种感应式热水瓶，包括普通水瓶（1）、感应器（2）、蜂鸣器（3）、固定装置（4）、把手震动器（5）、电源（6），其特征在于：所述的感应器（2）通过导线与蜂鸣器（3）连接，固定装置（4）通过导线两端分别连接蜂鸣器（3）和电源（6），并固定在普通水瓶（1）出水口靠近把手震动器（5）一侧，把手震动器（5）下端与把手连接，上端通过导线连接于电源（6）。本实用新型结构简单，构造合理，整体美观，通过感应器的使用，使得人们便于得知热水到达热水瓶口的时刻；热水不会溢出，具有一定的安全性。
The utility model relates to a daily necessities, in particular to an induction thermos bottle. An inductive hot water bottle, comprising an ordinary water bottle (1), an inductor (2), a buzzer (3), a fixing device (4), a handle vibrator (5), and a power supply (6), characterized in that: The sensor (2) is connected to the buzzer (3) through a wire, and the fixing device (4) is respectively connected to the buzzer (3) and the power supply (6) through the two ends of the wire, and fixed to the water outlet of the ordinary water bottle (1) Close to the side of the handle vibrator (5), the lower end of the handle vibrator (5) is connected to the handle, and the upper end is connected to the power supply (6) through wires. The utility model has the advantages of simple structure, reasonable structure and beautiful overall appearance. Through the use of the sensor, people can easily know the moment when the hot water reaches the mouth of the thermos bottle; the hot water will not overflow and has certain safety.
Description
技术领域 technical field
本实用新型涉及一种生活用品，更具体的说，是涉及一种感应式热水瓶。 The utility model relates to a daily necessities, in particular to an induction thermos bottle.
背景技术 Background technique
目前人们在打水的过程中，往往是通过听声音来判断水位，但很多情况都判断不准，使得部分热水溢出热水瓶，造成浪费，给人们的生活方式带来了不便，并且具有一定的被热水烫伤的危险。 At present, people often judge the water level by listening to the sound in the process of fetching water. Risk of scalding by hot water.
发明内容 Contents of the invention
本实用新型要解决的技术问题是提供一种感应式热水瓶，使得人们在打水的过程中便于得知热水到达热水瓶口的时刻。 The technical problem to be solved by the utility model is to provide an inductive hot water bottle, so that people can easily know the moment when the hot water reaches the mouth of the hot water bottle in the process of fetching water.
为解决上述技术问题，本实用新型所采用技术方案是：一种感应式热水瓶，包括普通水瓶、感应器、蜂鸣器、固定装置、把手震动器、电源，所述的感应器通过导线与蜂鸣器连接，固定装置通过导线两端分别连接蜂鸣器和电源，并固定在普通水瓶出水口靠近把手震动器一侧，把手震动器下端与把手连接，上端通过导线连接于电源。 In order to solve the above technical problems, the technical solution adopted by the utility model is: an induction hot water bottle, including a common water bottle, an inductor, a buzzer, a fixing device, a handle vibrator, and a power supply. The buzzer is connected, the fixing device is respectively connected to the buzzer and the power supply through the two ends of the wire, and is fixed on the side of the ordinary water bottle near the handle vibrator. The lower end of the handle vibrator is connected to the handle, and the upper end is connected to the power supply through a wire.
本实用新型的有益效果： The beneficial effects of the utility model:
（1）本实用新型结构简单，构造合理，整体美观； (1) The utility model has the advantages of simple structure, reasonable structure and beautiful appearance;
（2）通过感应器的使用，使得人们便于得知热水到达热水瓶口的时刻； (2) Through the use of sensors, it is convenient for people to know when the hot water reaches the mouth of the thermos bottle;
（3）热水不会溢出，具有一定的安全性。 (3) The hot water will not overflow, which has certain safety.
附图说明 Description of drawings

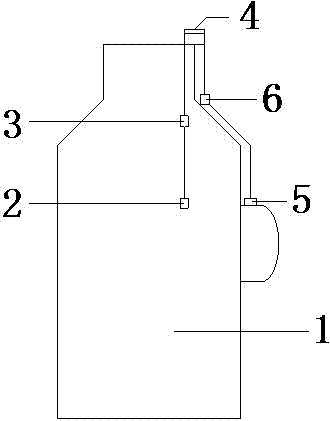

图1为本实用新型结构示意图，其中 1-普通水瓶；2-感应器；3-蜂鸣器；4-固定装置；5-把手震动器；6-电源。 Fig. 1 is a structural representation of the utility model, wherein 1-common water bottle; 2-inductor; 3-buzzer; 4-fixing device; 5-handle vibrator; 6-power supply.
具体实施方式Detailed ways
下面参照附图并结合实施例对本实用新型作进一步的详细描述。 The utility model will be described in further detail below with reference to the accompanying drawings and in conjunction with the embodiments.
一种感应式热水瓶，包括普通水瓶1、感应器2、蜂鸣器3、固定装置4、把手震动器5、电源6，所述的感应器2通过导线与蜂鸣器3连接，固定装置4通过导线两端分别连接蜂鸣器3和电源6，并固定在普通水瓶1出水口靠近把手震动器5一侧，把手震动器5下端与把手连接，上端通过导线连接于电源6。 An inductive hot water bottle, comprising a common water bottle 1, a sensor 2, a buzzer 3, a fixing device 4, a handle vibrator 5, and a power supply 6, the sensor 2 is connected to the buzzer 3 through a wire, and the fixing device 4 Connect the buzzer 3 and the power supply 6 respectively by the two ends of the wire, and be fixed on the common water bottle 1 water outlet near the handle vibrator 5 side, the handle vibrator 5 lower end is connected with the handle, and the upper end is connected to the power supply 6 by the wire.
