Abstract
The utility model discloses a wall-hanging type particulate matter (PM) 2.5 air purifier which comprises an air inlet and an air outlet. The air inlet and the air outlet are respectively arranged at two ends of the air purifier. A fan, a nano absorption catalysis purification unit, a function ultraviolet lamp, a photocatalyst oxidation unit, a negative-ion generator and a PM 2.5 filter screen are sequentially arranged inside the air purifier from the air inlet to the air outlet. The wall-hanging type PM 2.5 air purifier can collect and dispose PM 2.5 and sterilize and purify toxic and harmful substances such as HC, NOx, SO2, CO, O3, methanal, and benzene. Therefore, the purpose of integral purifying of toxic and harmful gas such as the PM 2.5, waste gas and bacteria is achieved.
Description
Technical field
The utility model belongs to air cleaning system, is specifically related to a kind of wall-hanging PM2.5 air cleaning processor.
Background technology
PM2.5 refers to that diameter is less than or equal to 2.5 microns particle in the atmosphere, is also referred to as to enter the lung particle.Because particle diameter is little, be rich in a large amount of poisonous and harmful substances, thereby larger on the impact of health and atmosphere quality.PM2.5 represents the content of this particle in every cubic metres of air, and this value is higher, just represents air pollution more serious.
The air pollution on large-scale movement of population and gathering ground comprises physical pollution, chemical contamination and biologic contamination.Physical pollution refers to because of physical factor, such as electromagnetic radiation, noise, vibration, and the pollution that causes such as inappropriate temperature, humidity, wind speed and illumination.Chemical contamination refers to because of chemical substance, the pollution that causes such as formaldehyde, benzene homologues, ammonia and suspended particulate substance etc.Biologic contamination refers to because of the biological pollution factor, mainly comprises the pollution that bacterium, fungi, pollen, virus, organism organic principle etc. cause.The indoor air pollutants kind is a lot, usually, can be divided into suspended particulate substance and gaseous contaminant two large classes by its existence.The former refers to be suspended in airborne solids and liquid particle, comprises inorganic and organic particulate matter, microorganism and biological colloidal sol etc.; The latter is the pollutant that exists with molecular state, comprises inorganic, organic compound and radioactive substance etc.Wherein, the PM2.5 particle is because particle diameter is little, be very easy to carry the poisonous and harmful substances such as a large amount of bacteriums, virus, and the aerial time of staying is long, fed distance is far away, can directly enter bronchus after being inhaled into human body, disturb the gas exchange of lung, cause the disease that comprises the aspects such as asthma, bronchitis and cardiovascular disease, also can enter blood by bronchus and alveolar, the pernicious gases such as bacterium wherein, virus, heavy metal etc. are dissolved in the blood, and be larger to the injury of health.In addition, the PM2.5 particle also can cause environment and have a strong impact on.Because the particulate sinking speed in the particle below 1 micron is slow, RT is of a specified duration in atmosphere, can be blown into far place under large Aerodynamic force action.So the pollution of particle often involves very large zone, even becomes global problem.Particle diameter is at 0.1～1 micron particle, and is close with visible light wavelength, and visible light is had very strong scattering process.This is the main cause that causes atmospheric visibility to reduce.The sulfuric acid and the nitric acid particulate that are generated by sulfur dioxide and nitrogen oxide chemical conversion are the main causes that causes acid rain.A large amount of particles drops on affects plant growth on the plant leaf, drop on can rise on building and the clothes to stain and corrosiveness.A large amount of particle in the atmosphere disturbs the radiation on the sun and ground, thereby provincialism even global weather is made a difference.
As large-scale movement of population and the type areies such as the subway station of assembling ground, high ferro Waiting Lounge, airport building, tunnel, compartment, hospital, historical relic's protection, museum, library, exhibition center, the Art Museum; the quality of these local air qualities is directly connected to the healthy of related personnel.At present, the universalness of central air-conditioning in indoor construction, the improvement that the not tight air-conditioning system of science, operational management not only is helpless to indoor air environment is owed in some designs, also may become generating source and the route of transmission of indoor air pollutants.At first, because central air-conditioning a large amount of uses in public places, air-conditioned room forms room air pollution because the unreasonable aerosol pollutant (particulate, bacterium, virus) that causes of air current composition gathers at local dead angle; Second, air in the air-conditioning system collecting chamber, again air is sent back to after treatment indoorly, in this process, might promptly be diffused into other room to the pollutant of indivedual air-conditioned rooms and air-conditioning system itself, thereby make air-conditioning system become the medium of propagation, diffuse pollution thing.Studies show that IAQ and building ventilation air-conditioning system have much relations, if ventilation and air conditioning system design, operation or mismanagement will become pollution sources and pollute room air, be detrimental to health.The American Studies man analysis air pollution problem inside rooms in the building of building more than 1000, find it is the air conditioning system for building poor filtration effect more than 50%, Canada environmental sanitation fabric study finds: human 68% disease is owing to room air pollution causes, and the incidence of disease rises year by year.China Ministry of Public Health organizes national centralized air conditioner ventilating system hygiene state of public place supervision and check in February, 2004 to April, 937 public places in Nan Chongs that more than 60 city possesses the central air conditioning facility have been inspected in the whole nation altogether by random samples, comprise hotel, megastore, supermarket, 5600 of test sample.The centralized air ventilation system that wherein belongs to severe contamination has 441, accounts for 47.1% of sampling observation sum, and 438 of medium pollutions account for sampling observation sum 46.7%, qualified 58, accounts for 6.2% of sampling observation sum.Beijing Municipal Health Bureau also spot-check the central air-conditioning sanitary condition of Beijing 80 public places in Nan Chongs in 2004, and check result 90% belongs to severe contamination.
Therefore, wall-hanging PM2.5 air cleaning processor is in large-scale movement of population and assemble local application, can blow pure and fresh " natural wind " for this place on the one hand, allow people that the living environment of a fresh cleaning is arranged, can reduce on the other hand because of the exceed standard generation of the group public health event that causes of airborne bacterium, microorganism, timely decomposing harmful substances, conveying fresh air, reduce the secondary injury that the condition of a disaster causes people, for the safety of public place provides powerful guarantee, has very important meaning and value to making up civilized harmonious society.
At present, people only carry out physical dilution by ventilation etc. for large-scale movement of population and the toxic and harmfuls such as PM2.5 level dust, bacterium, motor-vehicle tail-gas (waste gas), ozone, VOC of assembling ground, fundamentally do not solve purifying problem.
Summary of the invention
The purpose of this utility model is in order to improve or to remedy the deficiency of existing dust purification technology and treatment system, developing a kind of collection and process PM2.5, sterilization, purification HC, NOx, SO
2, CO, O
3, the poisonous and harmful substance such as formaldehyde and benzene class wall-hanging PM2.5 air cleaning processor.
The technical solution of the utility model is:
A kind of wall-hanging PM2.5 air cleaning processor, it comprises air inlet and air outlet, described air inlet and air outlet lay respectively at the two ends of this air cleaning processor, wherein in the inside of this air cleaning processor, be provided with successively blower fan, nano adsorption catalytic purification unit, function uviol lamp, photocatalyst catalytic oxidation unit, anion generator and PM2.5 screen pack from air inlet to air outlet.
The entrance of described blower fan communicates with air inlet, and described nano adsorption catalytic purification unit is led in the outlet of blower fan.
Be provided with function uviol lamp and photocatalyst catalytic oxidation unit after the nano adsorption catalytic purification unit, utilize the coordinative role of uviol lamp and photocatalyst further to remove CO, kill various bacteriums.
The photocatalyst catalytic oxidation unit is provided with anion generator, through the anion process PM2.5 screen pack that the collaborative anion generator of preceding step purified gas produces, discharges via air outlet.
The PM2.5 screen pack is located at described air outlet place.The PM2.5 screen pack is wide-spectrum bactericide modified polypropylene melt-blown static electret composite filter paper or HEPA filter paper.
Photocatalyst in the photocatalyst catalytic oxidation unit comprises the PM2.5 level filter screen of the cellular photocatalyst filtering net of one deck and the immobilized nano titanium oxide of two layers of surface, effectively CO catalytic oxidation with kill the bacterium such as white glucose coccus.Cellular photocatalyst filtering net can adopt aluminium matter honeycomb, and its aperture is 0.1-0.3mm, and this filter screen thickness is 0.5-1mm, immobilized active carbon content 40-45, its surface spraying nano titanium oxide.
Nano adsorption material in the nano adsorption catalytic purification unit scribbles the nano adsorption material of noble metal and/or rare earth element for the surface.The oxide of the noble metals such as the active catalyst palladium of nano adsorption material surface-coated different proportion, rhodium, platinum and/or rare-earth element cerium, rubidium and other metallic coppers, manganese can effectively purify HC, NOx, SO
2, O
3, the poisonous and harmful substance such as CO, formaldehyde and benzene class.
PM2.5 can be collected and process to this wall-hanging PM2.5 air cleaning processor, energy sterilization, purification HC, NOx, SO
2, CO, O
3, the poisonous and harmful substances such as formaldehyde and benzene class, thereby realize the purpose that the integral type of the toxic and harmfuls such as PM2.5, waste gas and bacterium purifies.This device is applicable to the air on the population collection ground, public place such as subway station, high ferro Waiting Lounge, airport building, tunnel, compartment, hospital, historical relic's protection, museum, library, exhibition center, the Art Museum, people's air defense, national defence tunnel, market, hotel, public place of entertainment, service trade, biology, food, pharmacy, manufacturing, chemical industry, weaving, laboratory, office building, working environment and household.
Description of drawings

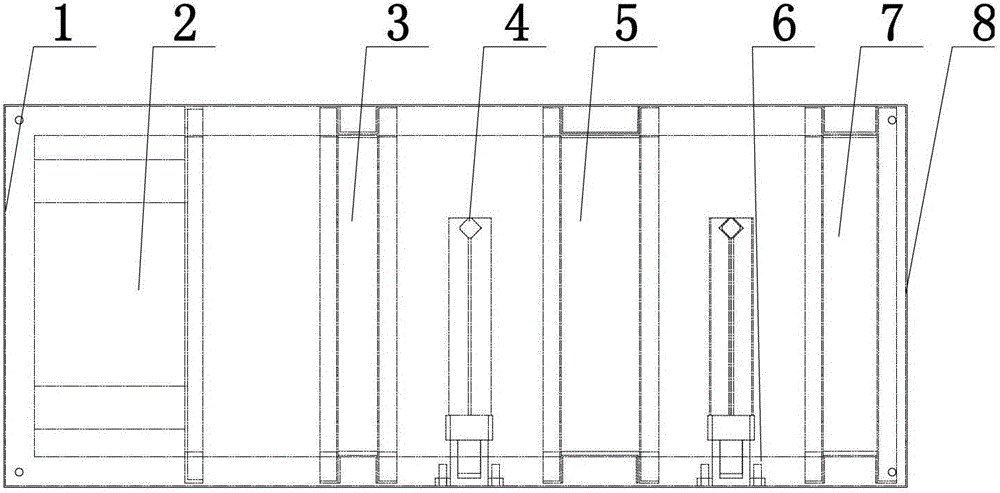

Fig. 1 is the structural representation of a kind of air cleaning processor of the present utility model.
Fig. 2 is the perspective view of a kind of air cleaning processor of the present utility model.
Fig. 3 is the surface texture schematic diagram of a kind of air cleaning processor of the present utility model.
Among the figure, 1, air inlet, 2, blower fan, 3, the nano material absorbing unit, 4, the function uviol lamp, 5, the photocatalyst catalytic oxidation unit, 6, anion generator, 7, the PM2.5 screen pack, 8, air outlet.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further described.
As shown in the figure, this wall-hanging PM2.5 air cleaning processor comprises air inlet 1, blower fan 2, nano adsorption catalytic purification unit 3, function uviol lamp 4, photocatalyst catalytic oxidation unit 5, anion generator 6, PM2.5 screen pack 7 and air outlet 8.Wherein air inlet 1 and air outlet 8 lay respectively at the two ends of this air cleaning processor, in the inside of this air cleaning processor, 8 are equipped with aforesaid blower fan 2, nano adsorption catalytic purification unit 3, function uviol lamp 4, photocatalyst catalytic oxidation unit 5, anion generator 6 and PM2.5 screen pack 7 successively from air inlet 1 to air outlet.
The entrance of blower fan 2 communicates with air inlet 1, and described nano adsorption catalytic purification unit 3 is led in the outlet of blower fan 2.The power that blower fan 2 provides makes pending air enter processor from air inlet 1, discharges through air outlet 8 more after treatment.PM2.5 screen pack 7 is located at described air outlet 8 places, guarantees the treatment effect of PM2.5.
In the implementation, apparatus of the present invention profile can be cuboid, and basic size is: length * wide * height=600mm * 200mm * 250mm, and size can be adjusted according to actual conditions, dust removing units can come the controlled filter area, HC, NOx, SO by the quantity of increase and decrease filter screen
2, O
3, various organic matters, bacterium and CO absorption, kill with the catalytic purification unit and can control treatment effect by quantity, ratio and the arrangement mode of nano adsorption material, nano titanium oxide and uviol lamp.The present embodiment adopts Stainless Steel Shell, length * wide * height=600mm * 200mm * 250mm, the PM2.5 screen pack is wide-spectrum bactericide modification HEPA filter paper, the oxide of the active catalyst palladium of nano adsorption material surface-coated different proportion and cerium and metallic copper, manganese.Modified honeycomb shape photocatalyst adopts aluminium matter honeycomb, and aperture 0.3mm, photocatalyst filtering net thickness are 0.5mm, immobilized active carbon content 40%, the surface spraying nano titanium oxide, it is 15w that uviol lamp adopts power, wavelength is 365nm, 2 is 15w with power, and wavelength is 254nm, 2.
This device is loaded on indoor wall or other supports, and when enabling, airborne dust laden air is directly sent into the nano material absorbing unit after sucking air inlet by blower fan, purifies CO, HC, NOx, SO
2, O
3, the poisonous and harmful substance such as formaldehyde and benzene, then entered function uviol lamp and photocatalyst catalytic oxidation unit, utilize the coordinative role of uviol lamp and photocatalyst further to remove CO, kill various bacteriums, the anion that the collaborative anion generator of purified gas produces is through the PM2.5 screen pack, discharge via air outlet, thereby realization is to the purpose of the integral type purification of the toxic and harmfuls such as PM2.5, waste gas, bacterium, ozone and VOC.
Claims (6)
1. wall-hanging PM2.5 air cleaning processor, it comprises air inlet (1) and air outlet (8), described air inlet (1) and air outlet (8) lay respectively at the two ends of this air cleaning processor, it is characterized in that in the inside of this air cleaning processor, be provided with successively blower fan (2), nano adsorption catalytic purification unit (3), function uviol lamp (4), photocatalyst catalytic oxidation unit (5), anion generator (6) and PM2.5 screen pack (7) from air inlet (1) to air outlet (8).
2. wall-hanging PM2.5 air cleaning processor according to claim 1 is characterized in that the entrance of described blower fan (2) communicates with air inlet (1), and described nano adsorption catalytic purification unit (3) is led in the outlet of blower fan (2).
3. wall-hanging PM2.5 air cleaning processor according to claim 1 is characterized in that described PM2.5 screen pack (7) is located at described air outlet (8) and locates.
4. according to claim 1 or 3 described wall-hanging PM2.5 air cleaning processors, it is characterized in that described PM2.5 screen pack (7) is wide-spectrum bactericide modified polypropylene melt-blown static electret composite filter paper or HEPA filter paper.
5. wall-hanging PM2.5 air cleaning processor according to claim 1 is characterized in that the photocatalyst in the described photocatalyst catalytic oxidation unit (5) comprises the PM2.5 level filter screen of the cellular photocatalyst filtering net of one deck and the immobilized nano titanium oxide of two layers of surface.
6. wall-hanging PM2.5 air cleaning processor according to claim 1 is characterized in that the nano adsorption material in the described nano adsorption catalytic purification unit (3) scribbles the nano adsorption material of noble metal and/or rare earth element for the surface.
