Abstract

The embodiment of the utility model discloses a multifunctional induction lamp, which includes an induction system, and a lighting system electrically connected to the induction system. The lighting system includes a light emitting component, and is connected to the light emitting component to control the light emitting Illuminated control unit with components working in different modes. The multifunctional sensor lamp of the embodiment of the utility model realizes lighting in different environments by adopting various lighting modes such as the sensor lighting module, the flashlight lighting module and the emergency lighting module, and sets two kinds of sensing modes of the infrared sensor module and the light sensor module to avoid The loss of invalid electric energy, at the same time, an external charging module is set to realize external charging to ensure the normal use of external electronic equipment. It has comprehensive functions, energy saving and environmental protection, reasonable structure and strong applicability.

Description

Multifunctional sensor light

technical field

The utility model relates to the technical field of lighting, in particular to a multifunctional induction lamp.

Background technique

With the development of science and technology and the advocacy of the concept of global energy saving, induction control lighting technology has gradually entered people's daily life.

The existing induction control lighting technology usually adopts light-controlled lighting circuit, which is formed by electrical connection of photosensitive elements, sensors, and triggers. The sensor transmits the changing electrical signal to the trigger, and when the intensity of the electrical signal reaches a certain level, the trigger turns on and works. The main function of the light-controlled lighting circuit is to make the lighting circuit turn on when the external light intensity is reduced to a certain level.

The existing induction control lighting technology adopts the photosensitive element as the induction part, and utilizes its characteristics of resistance to changes in the intensity of ambient light, so that the light-controlled induction lamp automatically starts to work when the light is dimmed. Intelligent sensing has been realized to a certain extent, but there are still some defects:

1. Poor functionality: The existing light-controlled sensor lights have a single function, and they can only rely on the mains power supply. When encountering a power failure, they cannot continue to work, and their own brightness is low, which is not enough to meet the specific requirements. lighting needs;

2. Poor environmental protection: the existing light-controlled sensor lights are only equipped with a single light-sensing system to control the lighting by sensing the light intensity of the surrounding environment. Trigger the light sensor system to control the light-controlled sensor lamp to work continuously, thus causing unnecessary waste of power resources;

3. Poor reliability: The reliability of the sensing element used in the existing light-controlled sensor lamp is not good, and the light-controlled sensor requires that the photosensitive element must be selected with high sensitivity, so that the circuit function can be realized more easily.

Utility model content

The technical problem to be solved by the embodiment of the utility model is to provide a multifunctional induction lamp with comprehensive functions and wide application range.

In order to solve the above technical problems, the embodiment of the utility model proposes a multifunctional induction lamp, including an induction system, and a lighting system electrically connected to the induction system, the lighting system includes a light-emitting component, and a lighting system connected to the light-emitting component A lighting control unit connected to control the lighting components to work in different modes.

Further, the lighting control unit includes one or more of an induction lighting module, a flashlight lighting module, and an emergency lighting module connected to the lighting assembly to control the operation of the lighting assembly according to the environmental information sensed by the sensing system. combination of species.

Further, the sensing system includes an infrared sensing module, a light sensing module, and a sensing switch connected to the infrared sensing module and the light sensing module to control their opening or closing.

Further, the infrared sensing module includes a Fresnel lens and an infrared sensing source arranged at the focal point of the Fresnel lens.

Further, the torch lighting module is provided with a torch control switch electrically connected to the light-emitting component to control the operation of the light-emitting component.

Further, the emergency lighting module includes a detection module that is connected to the mains power supply and detects whether the mains power supply is powered off, and is connected with the detection module to control the lighting when the mains power supply is cut off. Emergency module for component operation.

Further, the lighting system is also provided with a rechargeable battery connected to the flashlight lighting module and the emergency lighting module.

Further, a charging contact electrically connected to the rechargeable battery for charging the rechargeable battery is provided at the corresponding abutting position between the induction system and the lighting system.

Further, the sensing system and the lighting system are fastened together through a magnet structure correspondingly arranged at the abutment of the sensing system and the lighting system.

Further, the multifunctional induction lamp is also provided with an external charging module for external charging through a charging socket.

The beneficial effect of the embodiment of the utility model is: by setting the induction system and the lighting system as split type, the mobile lighting function of the lighting system is realized, and the induction lighting module and the emergency lighting module are set at the same time to meet different lighting needs, with comprehensive functions and applicability Strong; set up an infrared sensor module and a light sensor module, and control the operation of the lighting system through dual induction, effectively avoiding the loss of invalid electric energy, energy saving and environmental protection, higher sensing accuracy, and more humane; Ensure the normal use of external electronic equipment and make it more convenient to use.

Description of drawings

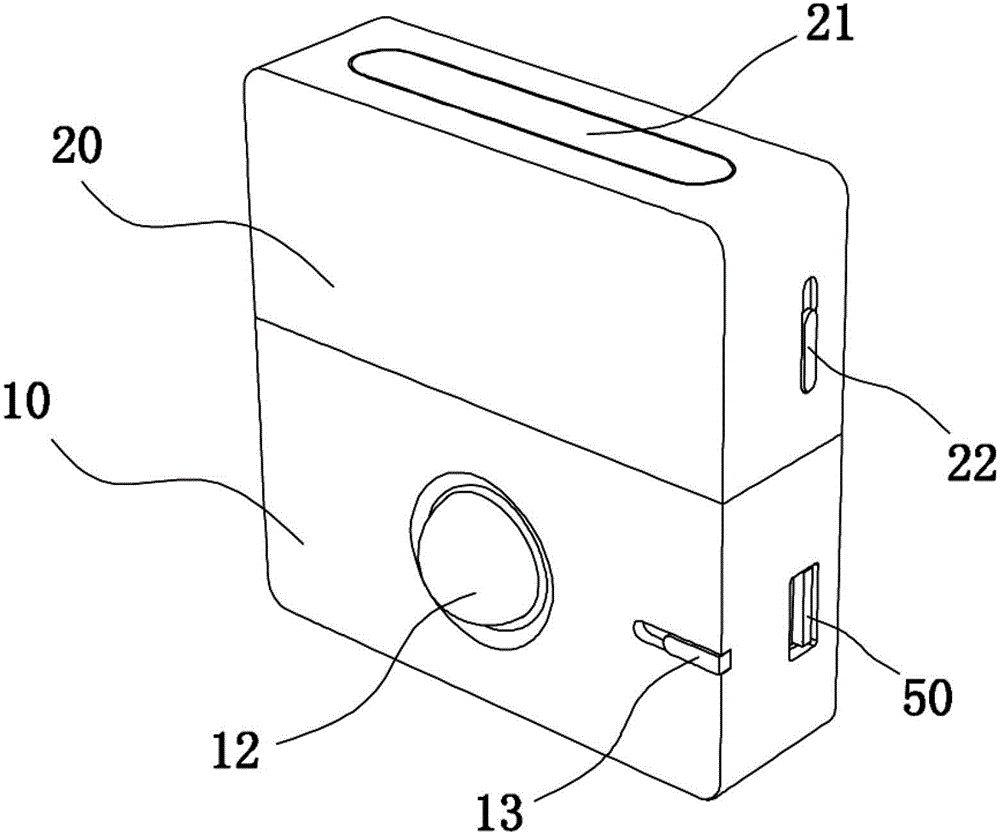

Fig. 1 is a perspective view of a multifunctional induction lamp according to an embodiment of the present invention.

Fig. 2 is a perspective view of the main body of the multifunctional induction lamp according to the embodiment of the present invention.

Fig. 3 is a perspective view of the light-emitting part of the multifunctional induction lamp of the embodiment of the present invention.

Fig. 4 is a top view of the main body of the multifunctional induction lamp according to the embodiment of the present invention.

Fig. 5 is a bottom view of the light-emitting part of the multifunctional induction lamp of the embodiment of the present invention.

Fig. 6 is a schematic block diagram of a multifunctional induction lamp according to an embodiment of the present invention.

Detailed ways

It should be noted that, in the case of no conflict, the embodiments in the application and the features in the embodiments can be combined with each other. The utility model will be further described in detail below in conjunction with the drawings and specific embodiments.

As shown in FIGS. 1 to 6 , the embodiment of the present invention provides a multifunctional induction lamp, which includes an induction system and a lighting system electrically connected to the induction system. In the embodiment of the utility model, the induction system and the lighting system adopt a split arrangement, that is, the induction system is arranged on a main body 10 that can be directly connected to the mains power supply, and the lighting system is arranged on a The main body 10 is matched and fixed to the light emitting part 20 . The main body 10 is provided with a power plug 11 for being directly connected to the commercial power supply to provide power for the multifunctional induction lamp.

As shown in Fig. 1 and Fig. 3, the lighting system includes a light-emitting assembly 21, and a light-emitting control unit connected to the light-emitting assembly 21 to control the work of the light-emitting assembly 21 in different modes, and the light-emitting control unit includes A sensor lighting module, a torch lighting module and an emergency lighting module are respectively connected to the light emitting assembly 21 to provide corresponding lighting modes according to different lighting requirements. As an implementation, the embodiment of the utility model may be provided with the induction lighting module, the flashlight lighting module and the emergency lighting module at the same time, or only one of them, or a combination of several.

Please refer to FIG. 1 and FIG. 2 , the induction lighting module is connected with the induction system and controls the operation of the light emitting component 21 through the environmental information sensed by the induction system. Preferably, in the embodiment of the present utility model, the sensing system is provided with two sensing modes, including an infrared sensing module and a light sensing module. As an implementation manner, the sensing system in the embodiment of the present utility model can also be only configured as any one of the infrared sensing module or the light sensing module.

The infrared sensing module is used to identify the infrared signal of the human body and transmit it to the sensing lighting module to control the operation of the light-emitting component 21, including the Fresnel lens 12 and the infrared sensing source arranged at the focal point of the Fresnel lens 12 . When someone enters the sensing range, the human body will emit infrared rays of about 10 UM, which will be enhanced by the Fresnel lens 12 and then gathered on the infrared sensing source, and the sensing lighting module will receive the infrared sensing sent by the sensing system. The signal automatically turns on the power supply of the light-emitting component 21, and the light-emitting component 21 is turned on. When the human body is kept within the sensing range, the induction lighting module is continuously powered on, and the light-emitting component 21 is in the working state of continuous light emission; when the human body leaves the sensing range, the induction lighting module enters a delayed shutdown stage, if the infrared signal of the human body is not detected after the time delay is reached, the power supply is automatically cut off, and the light-emitting component 21 is extinguished. Using the infrared sensor module, the light turns on when people arrive, and turns off when people leave, without manual operation or sound generation, which is convenient, intelligent, safe and environmentally friendly.

The light sensing module is an existing general technology, which uses a high-sensitivity light sensing element to sense the intensity of light in the working environment, and transmits the sensed light intensity signal to the sensing lighting module, when the light sensing When the element senses that the light intensity reaches a defined minimum value, the sensing lighting module controls the power supply of the light emitting component 21 to be automatically turned on so that the light emitting component 21 is lit; when the light sensing element senses the light intensity When it is higher than the defined minimum value, the induction lighting module enters the delay off stage, if the light intensity sensed by the light sensing element is still higher than the defined minimum value after the delay is reached, the induction lighting module controls the The power supply of the light-emitting component 21 is automatically disconnected, and the light-emitting component 21 goes out.

By setting the light sensing module and making it work with the infrared sensing module, the sensing accuracy is higher. Through the built-in program setting of the sensing lighting module, it can be realized that when the infrared sensing module senses the human body infrared signal and the light intensity sensed by the light sensing module is higher than the limited minimum value, the sensing lighting module still controls the power supply of the light-emitting component 21 to be in the disconnected state, further effectively avoiding the loss of invalid electric energy, energy saving and environmental protection .

At the same time, the sensing system in the embodiment of the present utility model is also provided with a sensing switch 13 connected with the infrared sensing module and the light sensing module to control its opening or closing, and the sensing switch 13 can be selected according to the needs of users. Turn on the infrared sensing module and the light sensing module, or turn on any one of the infrared sensing module or the light sensing module, or turn off the infrared sensing module and the light sensing module at the same time under certain specific circumstances to further achieve The purpose of saving electricity and energy saving.

The torch lighting module is used to realize mobile lighting. Please refer to FIG. 1 to FIG. 3 , since the main body 10 and the light emitting part 20 are arranged in a split type, the light emitting part 20 provided with the lighting system can be removed as a mobile lighting device. Specifically, in the embodiment of the present utility model, the outer shapes of the main body 10 and the light-emitting part 20 are both set to be rectangular. The light emitting part 20 and the main body 10 can be matched and fixed. As shown in Fig. 1, Fig. 4 and Fig. 5, in the embodiment of the present utility model, the light-emitting part 20 is fixed on the upper end of the main body 10, A magnet structure 30 at the junction realizes the fast connection of the two. The magnet structure 30 is used to realize the fast connection between the main body 10 and the light-emitting part 20 to further realize the electrical connection between the induction system and the lighting system, making full use of the characteristics of the magnet structure 30, and the connection is fastened and stable. Separation is easy and simple. At the same time, during the use of the light-emitting part 20 as a flashlight for mobile lighting, it can be conveniently fixed on any equipment with ferromagnetic substances, which provides convenience for use.

Since the flashlight lighting module needs to realize the mobile lighting function and cannot be directly powered by the mains power supply, the lighting system is also provided with a charging device that is electrically connected to the flashlight lighting module to provide power for the flashlight lighting module. Battery. At the same time, the contact points between the main body 10 and the light-emitting part 20 are correspondingly provided with charging contacts 40 electrically connected to the rechargeable battery to charge the rechargeable battery through the commercial power supply. .

In addition, the torch lighting module is provided with a torch control switch 22 electrically connected to the light emitting component 21 to control the operation of the light emitting component 21 . When the light-emitting part 20 is separated from the main body 10 and used as a flashlight, the rechargeable battery supplies power to the lighting system, and the light-emitting component 21 is controlled by the flashlight control switch 22 to operate. The torch control switch 22 can adopt any existing control switch, such as a rotary switch, a push button switch, a sliding switch and the like.

In the embodiment of the present utility model, the flashlight control switch 22 can be used as the overall control switch of the lighting system at the same time. The torch control switch 22 controls the lighting system to be turned on or off, so that the lighting system can be used as a conventional lighting device.

The emergency lighting module is used to provide emergency lighting when the commercial power supply is cut off suddenly, and it also uses the light emitting assembly 21 as a light source, and uses the rechargeable battery as a power supply. The emergency lighting module includes a detection module that is connected to the mains power supply and detects whether the mains power supply is out of power, and is connected with the detection module to control the light emitting assembly when the mains power supply is out of power 21 operational emergency modules. When the mains power supply is in the normal continuous power supply state, the emergency lighting module is in the standby state, and when the mains power supply is disconnected and stops supplying power to the multifunctional sensor lamp, the The power failure information is sent to the emergency module to start the emergency lighting module, and the emergency lighting module provides power supply for the light-emitting component 21 through the rechargeable battery with power stored in advance so that the light-emitting component 21 is activated in an emergency. light up. By setting the emergency lighting module, the lighting system can provide emergency lighting when the mains power supply is suddenly disconnected or has to be disconnected due to some emergency situations, so as to provide necessary illumination.

As shown in FIG. 1 and FIG. 3 , the multifunctional induction lamp of the embodiment of the present invention is also provided with an external charging module, and the external charging module realizes external charging through a charging socket 50 provided on the main body 10 . In the embodiment of the utility model, the charging socket 50 is a conventional USB socket. When the socket used to connect the mains power supply is not enough or the power is cut off, especially many electronic products that are generally popular at present are not equipped for plugging in. In the case that the plug to the mains power outlet must be transferred and charged through a data line, the external electronic device can be directly charged through a data line that is compatible with the charging socket 50 provided on the main body 10, so as to Guarantee its normal use. As an implementation manner, the charging socket 50 can be set as any charging socket that can realize external charging.

The multifunctional sensor lamp in the embodiment of the utility model connects the sensor system with the lighting system, and sets the sensor system and the lighting system in a split type to realize the mobile lighting function of the multifunctional sensor lamp , the induction lighting module and the emergency lighting module are set at the same time to meet different lighting needs, with comprehensive functions and strong applicability; the infrared sensing module and light sensing module are set to realize the free choice of two sensing modes, and the structure design is reasonable and humane effectively avoid the loss of ineffective electric energy; through the magnet structure 30, the fast connection between the induction system and the lighting system is realized, the connection is tight, and the docking is accurate; in addition, the external electronic device can also be charged through the external charging module. Charging, adding convenience to people's daily life.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacement and modification, the scope of the present utility model is defined by the appended claims and their equivalent scope.

Claims (10)

1. A multifunctional induction lamp, characterized in that it includes an induction system, and a lighting system electrically connected to the induction system, the lighting system includes a light-emitting component, and is connected with the light-emitting component to control the light-emitting component Illuminated control unit working in different modes. 2. The multifunctional sensor lamp according to claim 1, wherein the lighting control unit includes an induction lighting connected to the lighting assembly to control the operation of the lighting assembly according to the environmental information sensed by the induction system One or a combination of modules, flashlight lighting modules and emergency lighting modules. 3. The multifunctional sensor lamp according to claim 2, wherein the sensor system includes an infrared sensor module, a light sensor module, and a device connected to the infrared sensor module and the light sensor module to control its opening or closing. sensory switch. 4. The multifunctional induction lamp according to claim 3, wherein the infrared sensing module comprises a Fresnel lens and an infrared sensing source arranged at the focal point of the Fresnel lens. 5. The multifunctional sensor lamp according to claim 2, wherein the torch lighting module is provided with a torch control switch electrically connected to the light-emitting component to control the operation of the light-emitting component. 6. The multifunctional induction lamp as claimed in claim 2, wherein the emergency lighting module includes a detection module that is connected to the mains power supply and detects whether the mains power supply is powered off, and is connected with the detection module An emergency module connected to control the operation of the lighting assembly when the mains power supply is cut off. 7. The multifunctional induction lamp according to claim 2, wherein the lighting system is also provided with a rechargeable battery connected to the flashlight lighting module and the emergency lighting module. 8. The multifunctional induction lamp according to claim 7, characterized in that, the corresponding abutment of the induction system and the lighting system is provided with an electrical connection with the rechargeable battery to charge the rechargeable battery charging contacts. 9. The multifunctional induction lamp according to claim 1, wherein the induction system and the lighting system realize the connection between the two through the magnet structure correspondingly arranged at the abutment of the induction system and the lighting system Fasten the connection. 10. The multifunctional induction lamp according to claim 1, characterized in that, the multifunctional induction lamp is also provided with an external charging module that realizes external charging through a charging socket.
