CN202754355U - Box type garbage disposal pool - Google Patents
Box type garbage disposal pool Download PDFInfo
- Publication number
- CN202754355U CN202754355U CN2012203431994U CN201220343199U CN202754355U CN 202754355 U CN202754355 U CN 202754355U CN 2012203431994 U CN2012203431994 U CN 2012203431994U CN 201220343199 U CN201220343199 U CN 201220343199U CN 202754355 U CN202754355 U CN 202754355U
- Authority
- CN
- China
- Prior art keywords
- rubbish
- garbage
- pool
- pond
- storage pond
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/10—Waste collection, transportation, transfer or storage, e.g. segregated refuse collecting, electric or hybrid propulsion
Abstract
The utility model discloses a box type garbage disposal pool. The box type garbage disposal pool comprises a garbage storage pool. The box type garbage disposal pool is characterized in that the garbage storage pool comprises an inner garbage disposal pool (5) and an outer garbage liquid storage pool (6), wherein the outer garbage liquid storage pool (6) is arranged outside the inner garbage disposal pool (5). The bottom of the outer garbage liquid storage pool (6) is connected with a garbage liquid disposal pool (9) through a pipeline. A control valve (9) is arranged on the connecting pipeline between the outer garbage liquid storage pool (6) and the garbage liquid disposal pool (9). A concave groove is arranged at the bottom of the garbage liquid disposal pool (9), and a sewage pump (10) is arranged inside the concave groove. The box type garbage disposal pool is simple in structure, convenient to operate, low in cost and capable of compressing garbage through simple disposal and conducting the disposal of separating generated garbage liquid from solids.
Description
Technical field
The utility model relates to the refuse treatment plant field, is specially a kind of box garbage treating pool.
Background technology
Develop rapidly along with society, improving constantly of people's living standard, people's material life and cultural life are greatly improved, especially in today that material life becomes increasingly abundant, in allegro animation, people are discharging own allegro life stress with abundant material life, therefore, house refuse is of all kinds, and is multifarious, for the depositing and processing of rubbish, become a real-life problem of needing solution badly.
Existing refuse collection and deposit treating pond, or be a simple fixed case, after dropping into, taking out in rubbish, give like this garbage disposal workman's working environment very poor, especially at lower day of sweltering heat, the rubbish of carrying liqs is arranged, environment has been polluted in trickling everywhere especially, easily causes the generation of disease; Be exactly that treatment effect is better, but treatment facility with high costs is unfavorable for penetration and promotion in daily life.
Therefore, provide a kind of with low cost, and treatment effect is better, is convenient to rubbish is compressed processing, and to the New-type refuse vehicle treatment facility of the carrying less pollution of rubbish, be a problem of needing solution badly.
Summary of the invention
In order to overcome above-mentioned deficiency of the prior art, it is a kind of simple in structure, easy to operate that the utility model provides, and can just rubbish being compressed by simple processing, and the novel box type garbage treating pool that the rubbish liquid that produces and solid are carried out separating treatment.
The purpose of this utility model is achieved in that
Box garbage treating pool, comprise the rubbish storage pond, it is characterized in that: described rubbish storage pond comprises interior rubbish storage pond 5, and the outer rubbish liquid reservoirs 6 outside the interior rubbish storage pond 5 is set, and the bottom of outer rubbish liquid reservoirs 6 is connected with waste liquid treating pond 9 by pipeline;
Be provided with control cock 8 on the connecting leg road between described outer rubbish liquid reservoirs 6 and the waste liquid treating pond 9; The bottom of waste liquid treating pond 9 is provided with groove, is provided with sewage water pump 10 in the groove;
Waste liquid treating pond 9 is positioned at below or the side-lower of outer rubbish liquid reservoirs 6;
Have fluid hole 7 on the bottom in described interior rubbish storage pond 5 and the pool wall of bottom;
5 tops, described interior rubbish storage pond are provided with interior rubbish storage pond lid 3, and outer rubbish liquid reservoirs 6 tops are provided with outer rubbish liquid reservoirs lid 4; Interior rubbish storage pond 5 is provided with screw rod 1 with the middle part of outer rubbish liquid reservoirs 6, is provided with on the screw rod 1 to be positioned at the nut 2 that 3 tops are covered in the rubbish storage pond.
Positive beneficial effect: the utility model is simple in structure, and with low cost, after pouring rubbish into interior rubbish storage pond 5, rubbish liquid flows in the outer rubbish liquid reservoirs 6 by fluid hole 7 in the rubbish, and then it is interior through precipitation to flow into waste liquid treating pond 9 by pipeline, finally be used as liquid handling, and the rubbish in the interior rubbish storage pond 5 can utilize the internal rubbish storage of the screw thread rotation pond lid 3 on the screw rod 1 to compress by nut 2, garbage-compressing the most at last in the rubbish storage pond 5 reduces taking the space.
Description of drawings

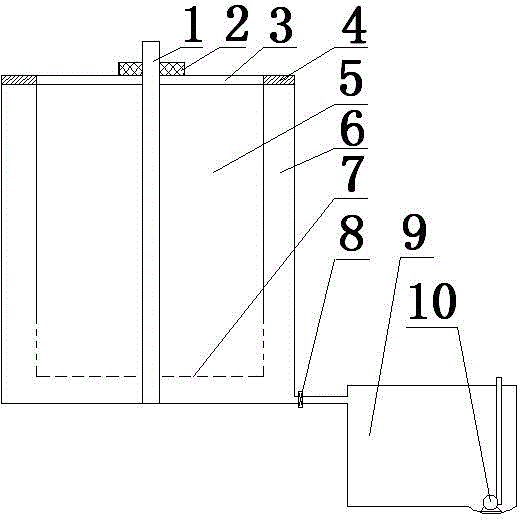

Fig. 1 is structural representation of the present utility model;
Among the figure be: screw rod 1, nut 2, interior rubbish storage pond lid 3, outer rubbish liquid reservoirs lid 4, interior rubbish storage pond 5, outer rubbish liquid reservoirs 6, fluid hole 7, control cock 8, rubbish liquid treating pond 9, sewage water pump 10.
The specific embodiment
Below in conjunction with accompanying drawing, the utility model is further described:
As shown in Figure 1, box garbage treating pool, comprise the rubbish storage pond, it is characterized in that: described rubbish storage pond comprises interior rubbish storage pond 5, and interior rubbish storage pond 5 outer rubbish liquid reservoirs 6 outward is set, the bottom of outer rubbish liquid reservoirs 6 is connected with waste liquid treating pond 9 by pipeline;
Be provided with control cock 8 on the connecting leg road between described outer rubbish liquid reservoirs 6 and the waste liquid treating pond 9; The bottom of waste liquid treating pond 9 is provided with groove, is provided with sewage water pump 10 in the groove;
Waste liquid treating pond 9 is positioned at below or the side-lower of outer rubbish liquid reservoirs 6;
Have fluid hole 7 on the bottom in described interior rubbish storage pond 5 and the pool wall of bottom;
5 tops, described interior rubbish storage pond are provided with interior rubbish storage pond lid 3, and outer rubbish liquid reservoirs 6 tops are provided with outer rubbish liquid reservoirs lid 4; Interior rubbish storage pond 5 is provided with screw rod 1 with the middle part of outer rubbish liquid reservoirs 6, is provided with on the screw rod 1 to be positioned at the nut 2 that 3 tops are covered in the rubbish storage pond.
During use, pour rubbish into interior rubbish storage pond 5, when liquid is arranged, can flow in the outer rubbish liquid reservoirs 6 by fluid hole 7, then flow in the waste liquid treating pond 9 by the pipeline that is provided with control cock 8 and precipitate; When the rubbish in the interior rubbish storage pond 5 piles with, cover interior rubbish storage pond lid 3, then rotation is positioned at the nut 2 above the rubbish storage pond lid 3, and interior rubbish storage pond lid 3 is compressed downwards, like this can the compressed garbage space, simultaneously the liquid in the rubbish is squeezed to outer rubbish liquid reservoirs 6; Extracting waste liquid treating pond 9 out by sludge pump 10 after waste liquid in the waste liquid treating pond 9 sinks to the bottom processes.
Above embodiment only is used for illustrating preferred implementation of the present utility model; but the utility model is not limited to above-mentioned embodiment; in the ken that described field those of ordinary skill possesses; any modification of doing within spirit of the present utility model and the principle, be equal to and substitute and improvement etc., it all should be encompassed within the technical scheme scope that the utility model asks for protection.
Claims (4)
1. box garbage treating pool, comprise the rubbish storage pond, it is characterized in that: described rubbish storage pond comprises interior rubbish storage pond (5), and the outer outer rubbish liquid reservoirs (6) in interior rubbish storage pond (5) is set, the bottom of outer rubbish liquid reservoirs (6) is connected with waste liquid treating pond (9) by pipeline.
2. box garbage treating pool according to claim 1 is characterized in that: be provided with control cock (8) on the connecting leg road between described outer rubbish liquid reservoirs (6) and the waste liquid treating pond (9); The bottom of waste liquid treating pond (9) is provided with groove, is provided with sewage water pump (10) in the groove.
3. box garbage treating pool according to claim 1, it is characterized in that: waste liquid treating pond (9) is positioned at below or the side-lower of outer rubbish liquid reservoirs (6).
Box garbage treating pool according to claim 1 is characterized in that: have fluid hole (7) on the bottom in described interior rubbish storage pond (5) and the pool wall of bottom.
4. box garbage treating pool according to claim 1, it is characterized in that: top, described interior rubbish storage pond (5) is provided with interior rubbish storage Chi Gai (3), and outer rubbish liquid reservoirs (6) top is provided with outer rubbish liquid reservoirs lid (4); Interior rubbish storage pond (5) is provided with screw rod (1) with the middle part of outer rubbish liquid reservoirs (6), is provided with the nut (2) that is positioned at rubbish storage Chi Gai (3) top on the screw rod (1).
