Abstract
The utility model discloses a baby walker which comprises a chassis, a front support rod, a rear support rod, a seat pocket and a tray. Wheels are mounted on the lower portion of the chassis. The lower portion of the front support rod is connected to the front portion of the chassis. The lower portion of the rear support rod is rotatably connected to the upper portion of the rear portion of the chassis and can be connected to the upper portion of the front support rod in a separating mode. One end of the seat pocket is rotatably connected to the rear support rod. The tray is connected to the front support rod in a separating mode.
Description
Technical field
The utility model relates to a kind of go-kart.
Background technology
A kind of go-kart of the prior art, comprise vehicle frame, be installed in the vehicle frame bottom wheel, be installed on the pallet of vehicle frame top, the child stands in car, pallet can support child's health, wheel can help its walking.Folding a kind of go-kart is on the market generally only opened and is folded two kinds of duties, and all is that function is more single with the form of pallet.
Summary of the invention
In order to address the above problem, the purpose of this utility model is to provide a kind of multi-functional a kind of go-kart.
In order to reach above purpose, the technical solution adopted in the utility model is: a kind of go-kart, it comprises that the bottom is equipped with front strut, bottom that the chassis of wheel, bottom be connected in the front portion, chassis and is rotationally connected with top, rear portion, chassis and rear pole, an end that front strut top is connected separatably and is connected in rotationally seat pocket on the rear pole, is connected in pallet on the front strut separatably.
Further, a kind of go-kart has at least three duties, and under the first duty, pallet and front strut are separated, and the relative rear pole of seat pocket draws in, and rear pole and front strut are separated; Under the second duty, pallet and front strut are separated, and the top of rear pole is connected with the top of front strut, and the relative rear pole of seat pocket is opened; Under the 3rd duty, rear pole and front strut are separated, and the relative rear pole of seat pocket draws in, and pallet is connected with front strut.
Preferably, front strut top is provided with handrail.
Owing to adopted technique scheme, a kind of go-kart of the utility model is realized three kinds of functions with this, under the first duty, the child can be without pallet auxiliary, directly holding up handrail to learn to walk, under the second duty, the child can take on the present pocket and ride, under the 3rd duty, the child can stand in car, learns to walk under pallet auxiliary, these three kinds of duties can freely be changed mutually, do not distinguish the backward order of conversion.
Description of drawings
Accompanying drawing 1 is the structural representation of a kind of go-kart of the utility model under the first duty;
Accompanying drawing 2 is the structural representation of a kind of go-kart of the utility model under the second duty;
Accompanying drawing 3 is the structural representation of a kind of go-kart of the utility model under the 3rd duty;

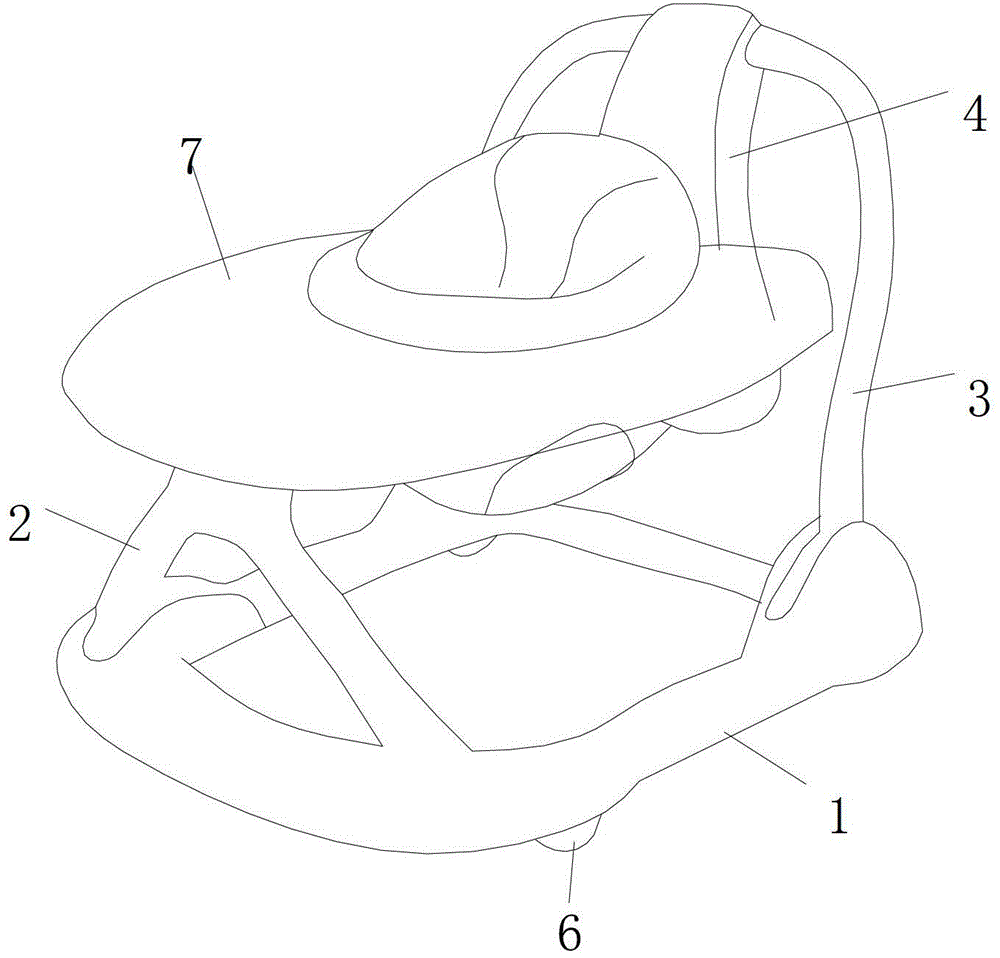

Accompanying drawing 4 is the perspective view of a kind of go-kart of the utility model under the 3rd duty.
Number in the figure is:
1, chassis; 2, front strut; 3, rear pole; 4, seat pocket; 5, handrail; 6, wheel; 7, pallet.
The specific embodiment
Below in conjunction with accompanying drawing preferred embodiment of the present utility model is described in detail, thereby so that advantages and features of the invention can be easier to be it will be appreciated by those skilled in the art that protection domain of the present utility model is made more explicit defining.
4 structural representation can be found out from accompanying drawing 1 to accompanying drawing, the utility model provides a kind of go-kart, and it comprises that front strut 2, bottom that chassis 1, bottom that the bottom is equipped with wheel 6 are connected in 1 front portion, chassis are rotationally connected with top, 1 rear portion, chassis and rear pole 3, an end that front strut 2 tops are connected separatably and are connected in rotationally seat pocket 4 on the rear pole 3, are connected in pallet 7 on the front strut 2 separatably.Front strut 2 tops are provided with handrail 5.Be provided with a pocket on the pallet 7 in the present embodiment.
This a kind of go-kart has at least three duties, under the first duty, pallet 7 is separated with front strut 2, and seat pocket 4 relative rear poles 3 draw in, and rear pole 3 is separated with front strut 2, under this state, what the child can be without pallet is auxiliary, is directly holding up handrail to learn to walk; Under the second duty, pallet 7 is separated with front strut 2, and rear pole 3 rotates forward, and the top of rear pole 3 is connected with the top of front strut 2, and pocket 4 a relative rear pole 3 is opened, and under this state, the child can take on the pocket of being present and ride; Under the 3rd duty, rear pole 3 is separated with front strut 2, and seat pocket 4 relative rear poles 3 draw in, and pallet 7 is connected with front strut 2, and under this state, the child can stand in car, learns to walk under the assisting of pallet.These three kinds of duties can freely be changed mutually, and do not distinguish the backward order of conversion.
Above-described embodiment only is explanation technical conceive of the present utility model and characteristics, and its purpose is to allow the personage who is familiar with technique can understand content of the present utility model and according to this enforcement, can not limit protection domain of the present utility model with this.All equivalences of doing according to the utility model Spirit Essence change or modify, and all should be encompassed within the protection domain of the present utility model.
Claims (3)
1. go-kart is characterized in that: it comprises that the bottom is equipped with the chassis of wheel (6) (1), bottom and is connected in described chassis (1) anterior front strut (2), bottom and is rotationally connected with top, rear portion, described chassis (1) and rear pole (3), an end that described front strut (2) top is connected separatably and is connected in rotationally a pocket (4) on the described rear pole (3), is connected in pallet (7) on the described front strut (2) separatably.
2. a kind of go-kart according to claim 1, it is characterized in that: it has at least three duties, under the first duty, described pallet (7) is separated with front strut (2), described seat pocket (4) relatively rear pole (3) draws in, and described rear pole (3) is separated with front strut (2); Under the second duty, described pallet (7) and front strut (2) are separated, and the top of rear pole (3) is connected with the top of front strut (2), and the relative rear pole (3) of seat pocket (4) is opened; Under the 3rd duty, described rear pole (3) is separated with front strut (2), and described seat pocket (4) relatively rear pole (3) draws in, and described pallet (7) is connected with front strut (2).
3. a kind of go-kart according to claim 1, it is characterized in that: described front strut (2) top is provided with handrail (5).
